QPI-1 0.45 230LM

User Manual

Android Smart PC Projector

All manuals and user guides at all-guides.com

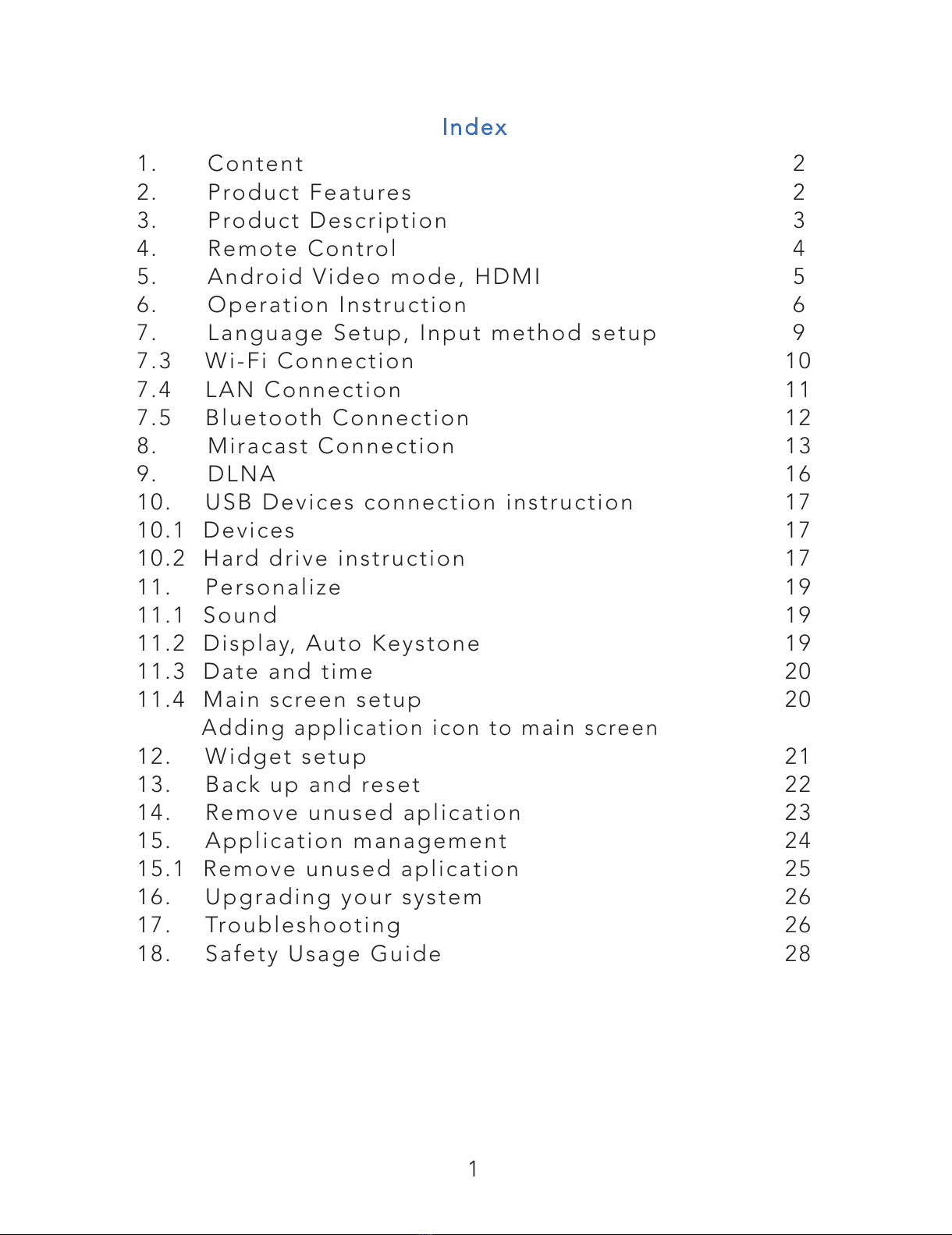

Index

1. Content 2

2. Product Features 2

3. Product Description 3

4. Remote Control 4

5. Android Video mode, HDMI 5

6. Operation Instruction 6

7. Language Setup, Input method setup 9

7.3 Wi-Fi Connection 10

7.4 LAN Connection 11

7.5 Bluetooth Connection 12

8. Miracast Connection 13

9. DLNA 16

10. USB Devices connection instruction 17

10.1 Devices 17

10.2 Hard drive instruction 17

11. Personalize 19

11.1 Sound 19

11.2 Display, Auto Keystone 19

11.3 Date and time 20

11.4 Main screen setup 20

Adding application icon to main screen

12. Widget setup 21

13. Back up and reset 22

14. Remove unused aplication 23

15. Application management 24

15.1 Remove unused aplication 25

16. Upgrading your system 26

17. Troubleshooting 26

18. Safety Usage Guide 28

All manuals and user guides at all-guides.com

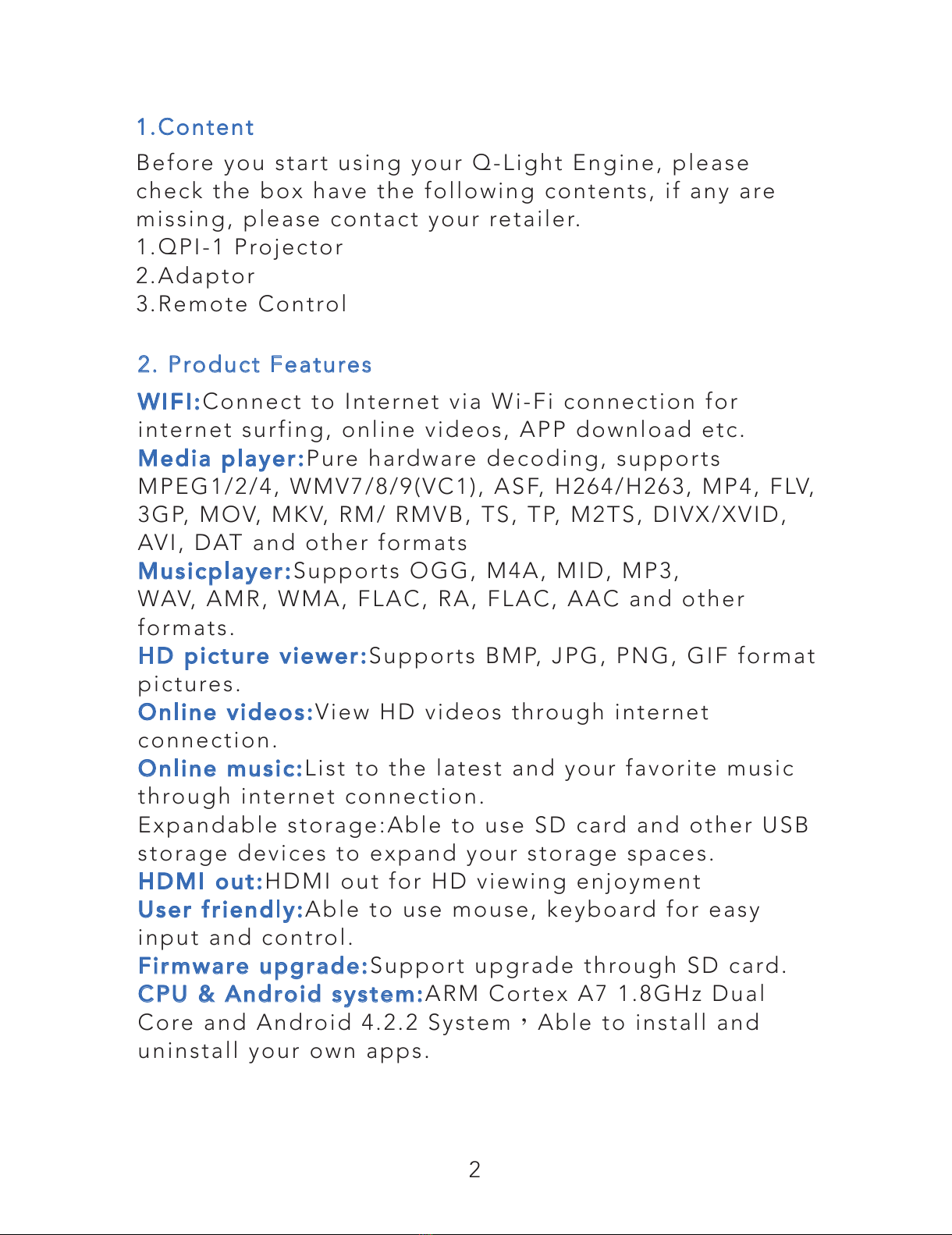

1.Content

WIFI:Connect to Internet via Wi-Fi connection for

internet surfing, online videos, APP download etc.

Media player:Pure hardware decoding, supports

MPEG1/2/4, WMV7/8/9(VC1), ASF, H264/H263, MP4, FLV,

3GP, MOV, MKV, RM/ RMVB, TS, TP, M2TS, DIVX/XVID,

AVI, DAT and other formats

Musicplayer:Supports OGG, M4A, MID, MP3,

WAV, AMR, WMA, FLAC, RA, FLAC, AAC and other

formats.

HD picture viewer:Supports BMP, JPG, PNG, GIF format

pictures.

Online videos:View HD videos through internet

connection.

Online music:List to the latest and your favorite music

through internet connection.

Expandable storage:Able to use SD card and other USB

storage devices to expand your storage spaces.

HDMI out:HDMI out for HD viewing enjoyment

User friendly:Able to use mouse, keyboard for easy

input and control.

Firmware upgrade:Support upgrade through SD card.

CPU & Android system:ARM Cortex A7 1.8GHz Dual

Core and Android 4.2.2 System，Able to install and

uninstall your own apps.

2. Product Features

Before you start using your Q-Light Engine, please

check the box have the following contents, if any are

missing, please contact your retailer.

1.QPI-1 Projector

2.Adaptor

3.Remote Control

All manuals and user guides at all-guides.com

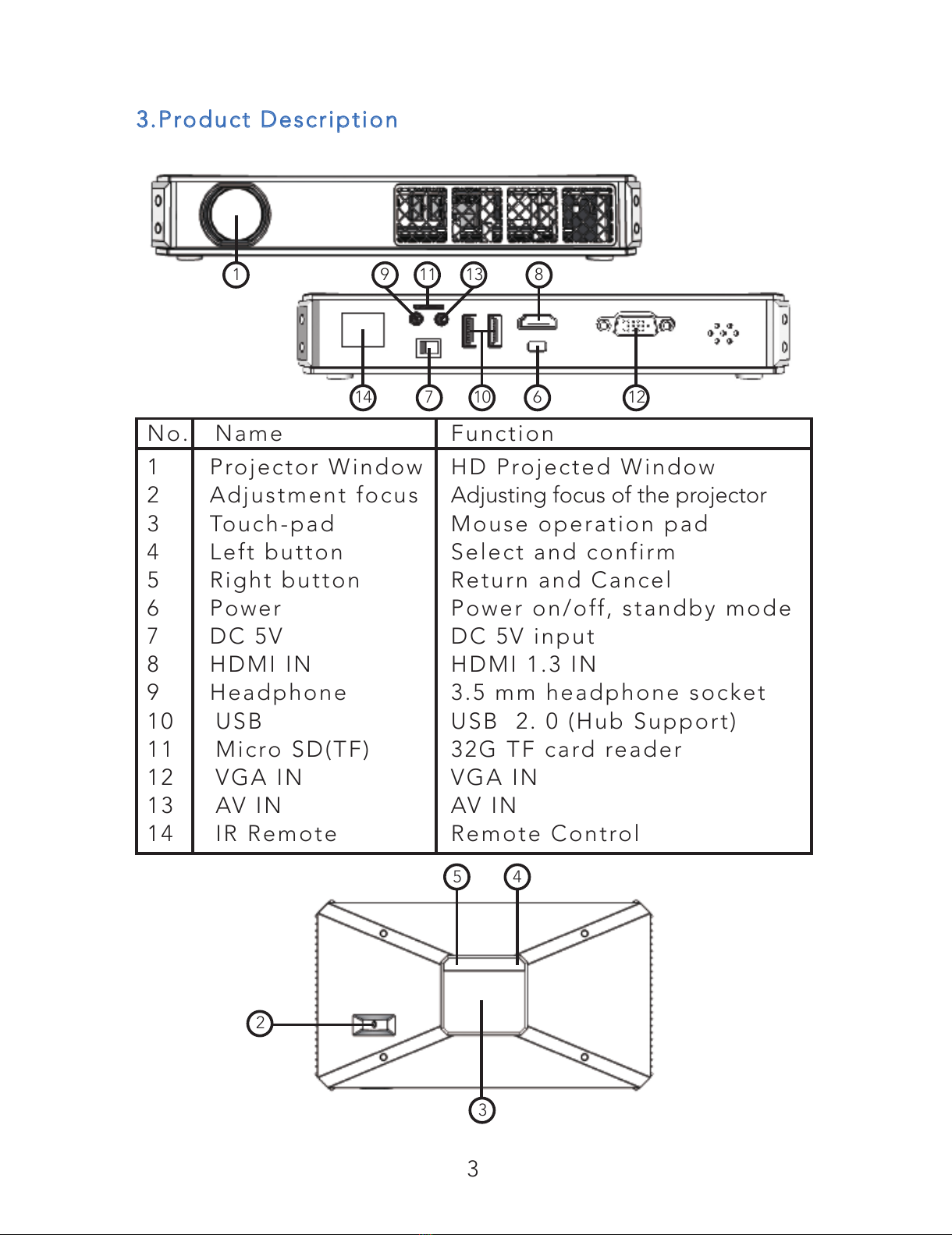

3.Product Description

11 8

12610714

9 13

1. Content 2

2. Product Features 2

3. Product Description 3

4. Remote Control 4

5. Android Video mode, HDMI 5

6. Operation Instruction 6

7. Language Setup, Input method setup 9

7.3 Wi-Fi Connection 10

7.4 LAN Connection 11

7.5 Bluetooth Connection 12

8. Miracast Connection 13

9. DLNA 16

10. USB Devices connection instruction 17

10.1 Devices 17

10.2 Hard drive instruction 17

11. Personalize 19

11.1 Sound 19

11.2 Display, Auto Keystone 19

11.3 Date and time 20

11.4 Main screen setup 20

Adding application icon to main screen

12. Widget setup 21

13. Back up and reset 22

14. Remove unused aplication 23

15. Application management 24

15.1 Remove unused aplication 25

16. Upgrading your system 26

17. Troubleshooting 26

18. Safety Usage Guide 28

No. Name Function

1 Projector Window HD Projected Window

2 Adjustment focus Adjusting focus of the projector

3 Touch-pad Mouse operation pad

4 Left button Select and confirm

5 Right button Return and Cancel

6 Power Power on/off, standby mode

7 DC 5V DC 5V input

8 HDMI IN HDMI 1.3 IN

9 Headphone 3.5 mm headphone socket

10 USB USB 2. 0 (Hub Support)

11 Micro SD(TF) 32G TF card reader

12 VGA IN VGA IN

13 AV IN AV IN

14 IR Remote Remote Control

All manuals and user guides at all-guides.com

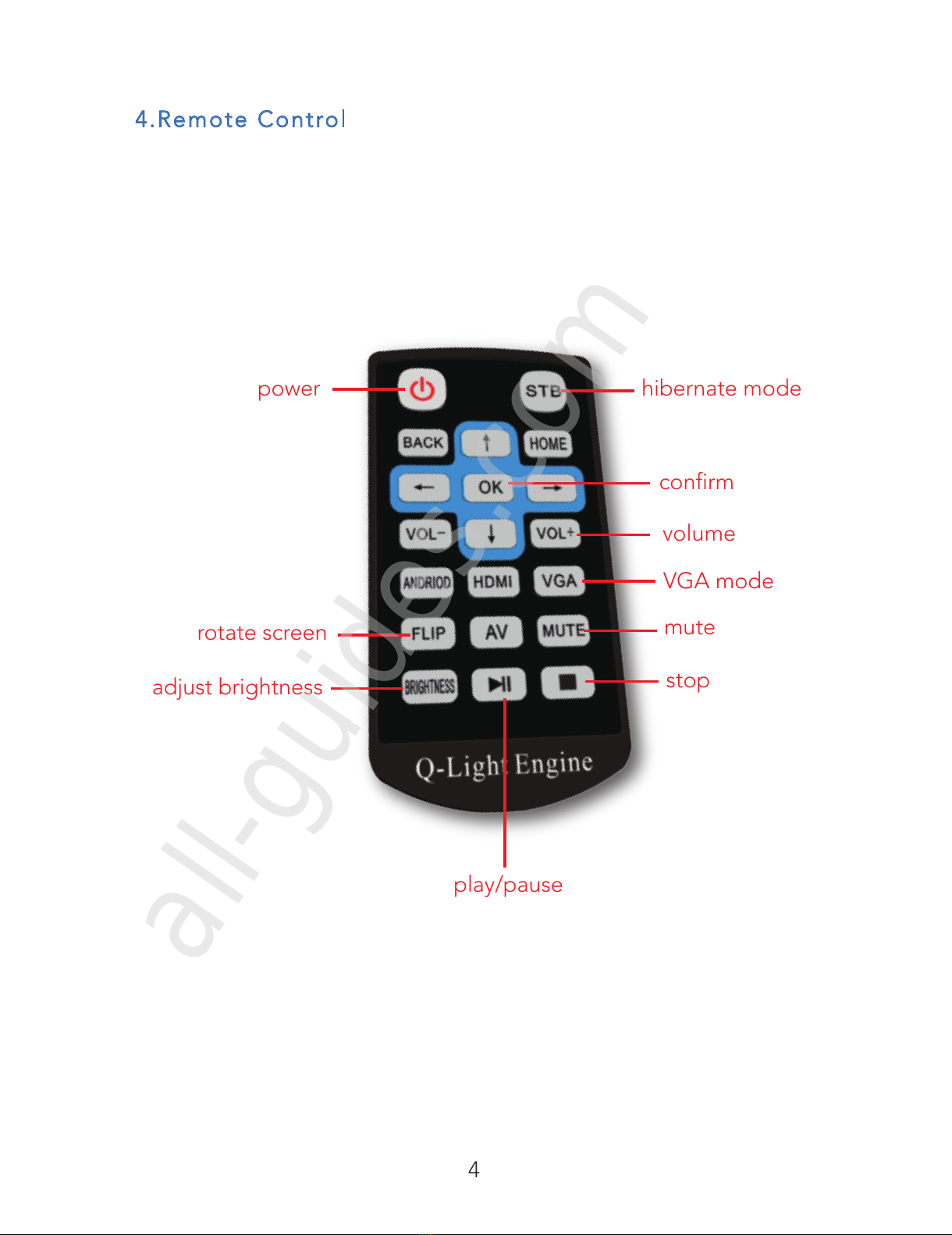

4.Remote Control

volume

confirm

VGA mode

mute

stop

hibernate modepower

rotate screen

adjust brightness

play/pause

All manuals and user guides at all-guides.com

all-guides.com

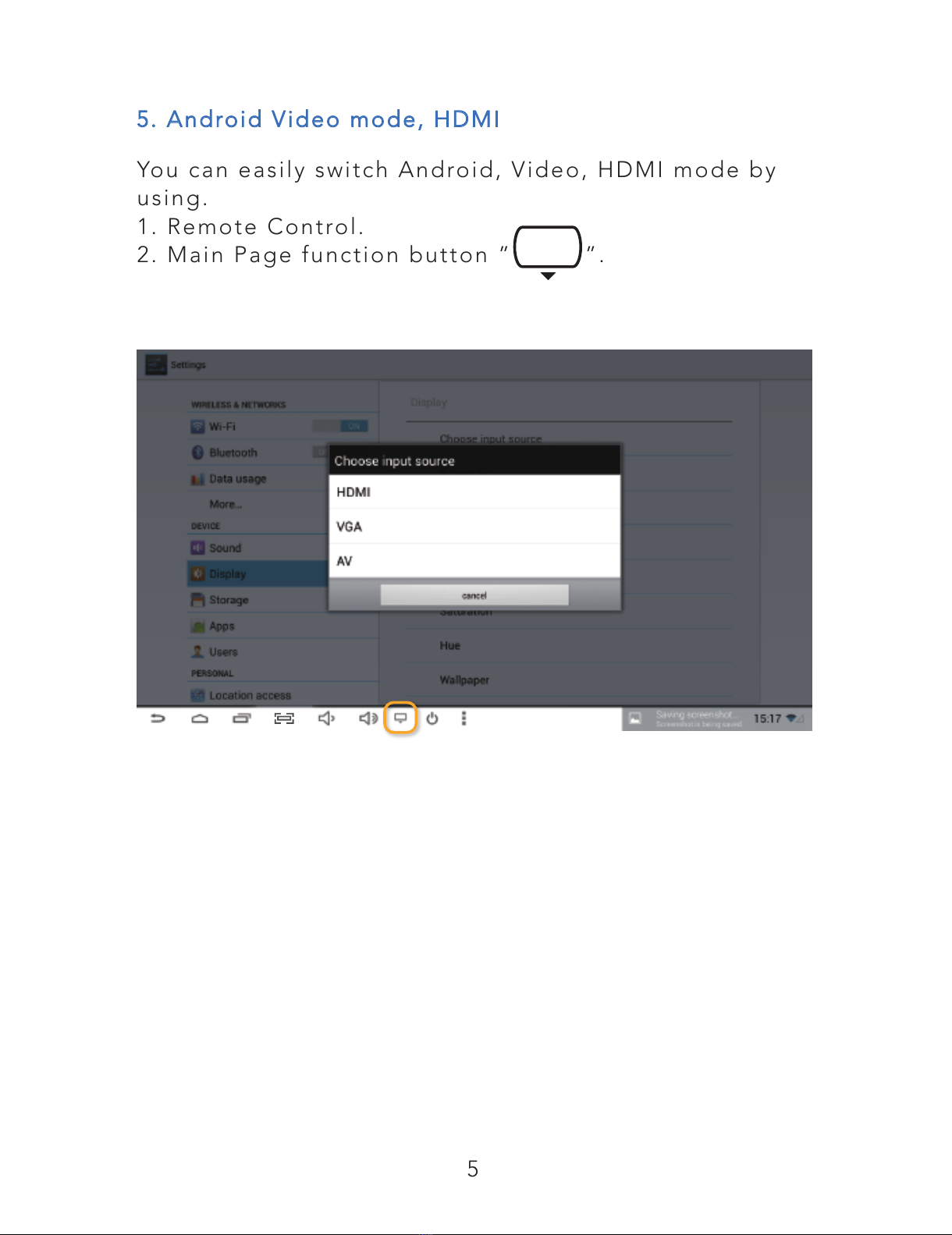

You can easily switch Android, Video, HDMI mode by

using.

1. Remote Control.

2. Main Page function button ” ”.

5. Android Video mode, HDMI

All manuals and user guides at all-guides.com

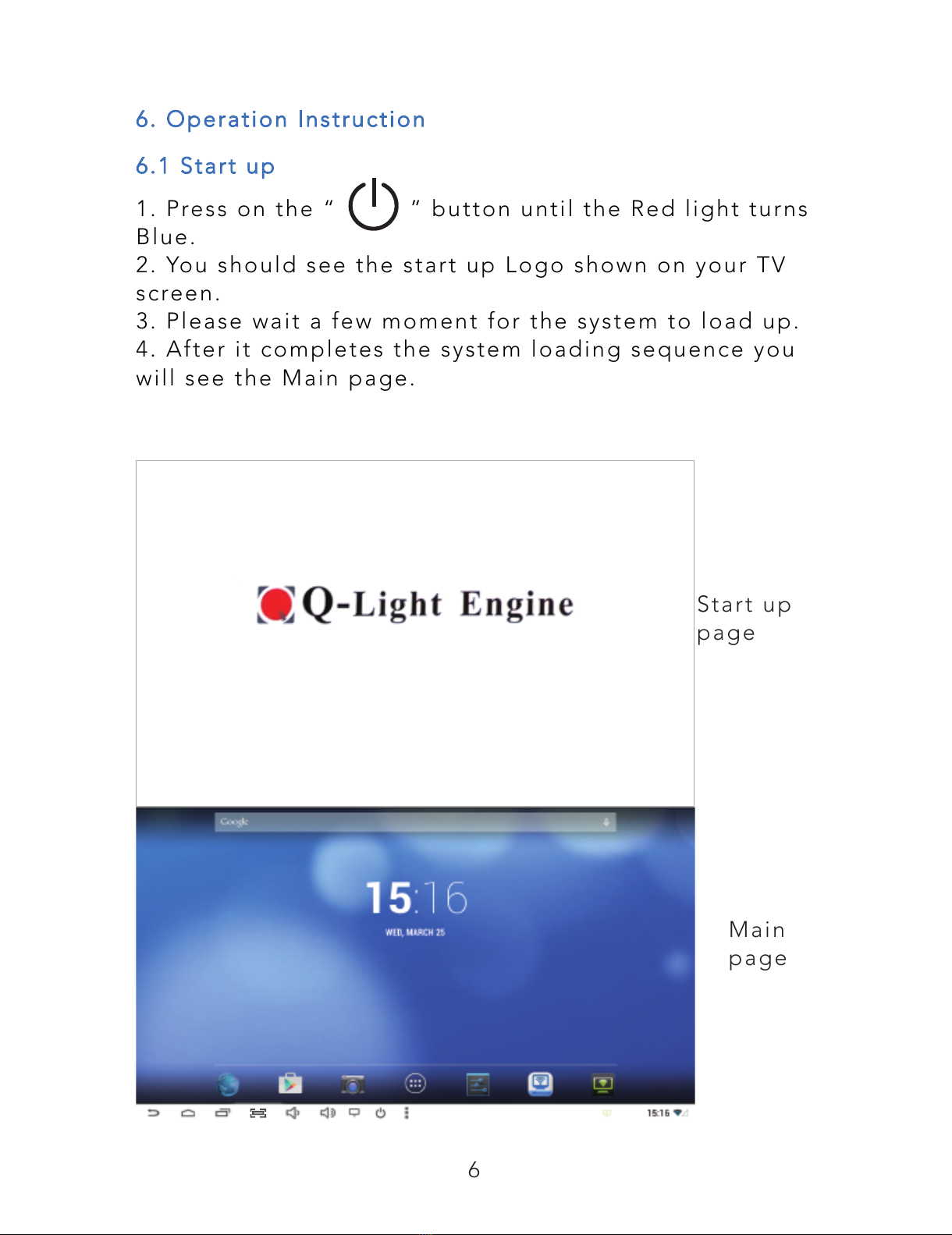

6. Operation Instruction

6.1 Start up

1. Press on the “ ” button until the Red light turns

Blue.

2. You should see the start up Logo shown on your TV

screen.

3. Please wait a few moment for the system to load up.

4. After it completes the system loading sequence you

will see the Main page.

Start up

page

Main

page

All manuals and user guides at all-guides.com

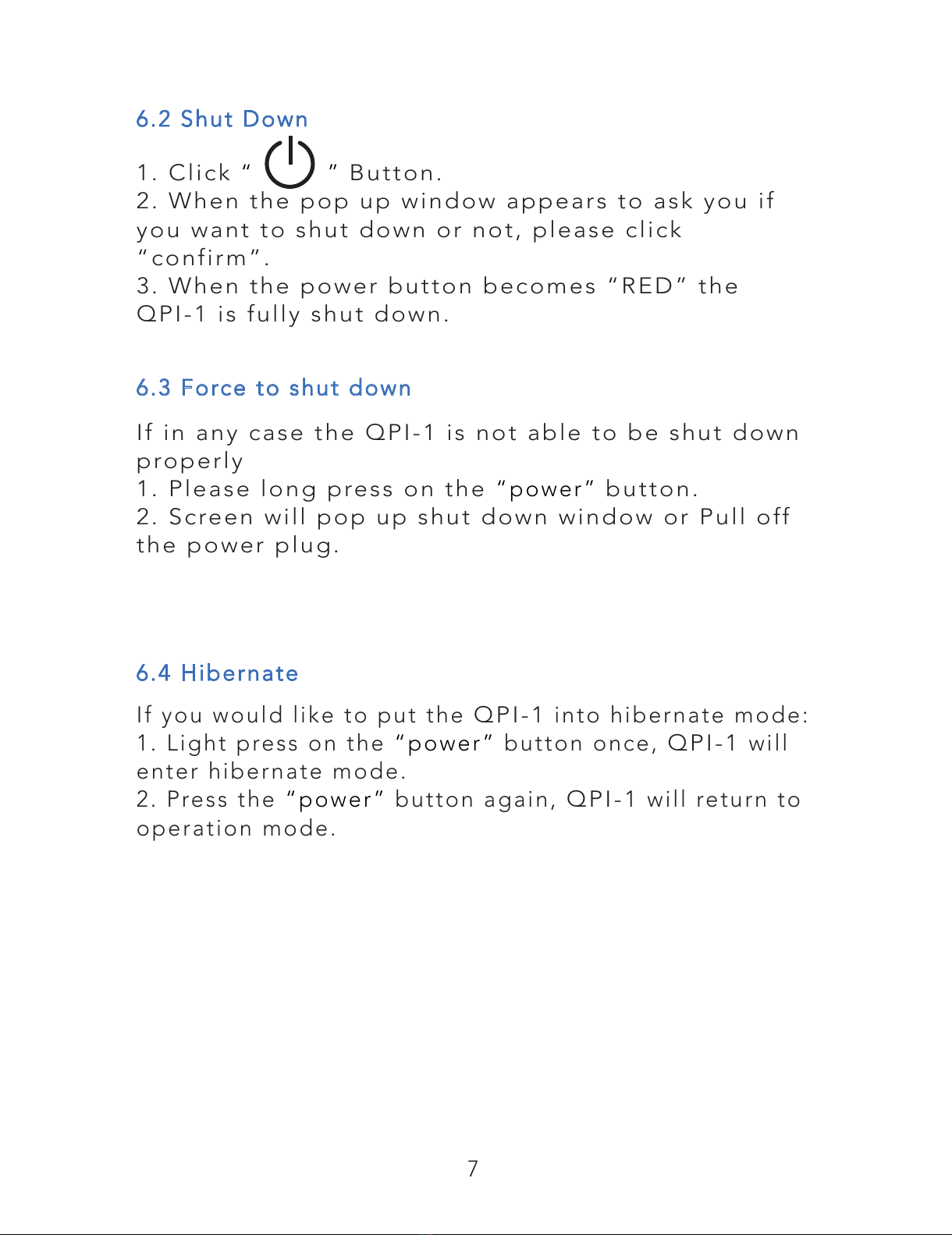

6.2 Shut Down

1. Click

“ ”

Button.

2. When the pop up window appears to ask you if

you want to shut down or not, please click

“confirm”.

3. When the power button becomes “RED” the

QPI-1 is fully shut down.

6.3 Force to shut down

If in any case the QPI-1 is not able to be shut down

properly

1. Please long press on the

“power”

button.

2. Screen will pop up shut down window or Pull off

the power plug.

6.4 Hibernate

If you would like to put the

QPI-1

into hibernate mode:

1. Light press on the “power” button once,

QPI-1

will

enter hibernate mode.

2. Press the “power” button again,

QPI-1

will return to

operation mode.

All manuals and user guides at all-guides.com

功能描

述

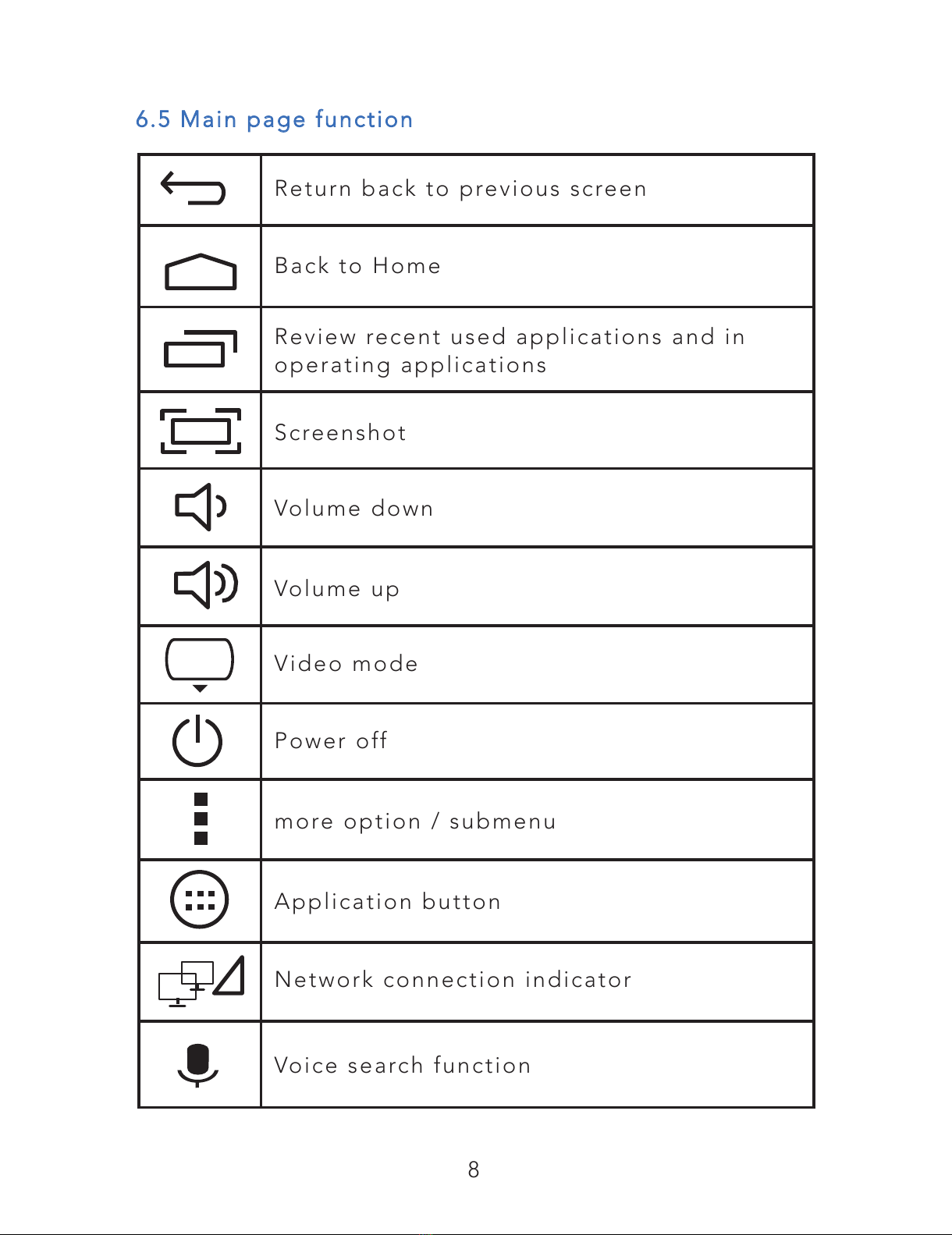

6.5 Main page function

Return back to previous screen

Back to Home

Review recent used applications and in

operating applications

Screenshot

Volume down

Volume up

Video mode

Power off

more option / submenu

Application button

Network connection indicator

Voice search function
