Q-Tech QSW-4600 Series Installations- und Betriebsanleitung

HARDWARE INSTALLATION AND REFERENCE GUIDE

www.qtech.ru

QSW-4600 Series Switch

Hardware Installation and Reference Guide V1.0

QSW-4600 Series Switch Hardware Installation and Reference Guide 2

www.qtech.ru

QTECH reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission,

translation or commercial use of this document or any portion of this document, in any form or by any means, without the

prior written consent of QTECH is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the QTECH website. QTECH endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

QSW-4600 Series Switch Hardware Installation and Reference Guide 3

www.qtech.ru

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

QTECH Website: http://www.qtech.ru

Technical Support: https://helpdesk.qtech.ru/

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of

data.

QSW-4600 Series Switch Hardware Installation and Reference Guide 4

www.qtech.ru

1 Product Overview

The QSW-4600 series switch is a next-generation intelligent switch that features high performance, high security, multiple

services and ease of use to meet the needs of the current networks. The QSW-4600 series switch can provide the

complete end-to-end Quality of Service (QoS), flexible and abundant security policies and policy-based network

management for various networks. It is greatly ideal for such applications as campus network, enterprise network,

government network, service network, residential broadband access and business building network, providing high-speed,

high-efficiency, secure and intelligent access solutions.

Table 1-1 QSW-4600

Model

10/100/1000

Base-T

Auto-sensing

Ethernet Port

SFP+

Port

1000Base-X

SFP Port

Console

Port

USB

Port

Expansion

Module

Slot

Pluggable

Power

Slot

QSW-4600-28ТX

N/A

QSW-4600-52ТX

N/A

QSW-4600-28ТX-POE

24 (PoE+)

2 (Combo)

Dual

QSW-4600-52ТX-POE

48 (PoE+)

2 (Combo)

Dual

The SFP+ ports support both 10Gbase-R and 1000base-X modules.

The SFP ports support both 1000 base-X and 100base-X modules.

1000Base-T is compatible with 100Base-TX and 10Base-T in the downlink direction.

1.1 QSW-4600-28ТX

Technical Specifications

Model

QSW-4600-28ТX

EEE

Supported

PoE

Not supported

Power

Consumption

≤24W

Operating

Temperature

0℃to 50℃

QSW-4600 Series Switch Hardware Installation and Reference Guide 5

www.qtech.ru

Storage

Temperature

-40℃to 70℃

Operating Humidity

10% to 90%

Storage Humidity

5% to 95%

Fan

Speed adjustment and fault alarm

Temperature

Warning

Supported

EMCStandards

GB9254-2008

Security Standards

GB4943-2011

Dimensions

(W x D x H)

440 mm x 260 mm x 43.6 mm

Weight

≤3.5 kg

The QSW-4600-28ТX switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

QSW-4600 Series Switch Hardware Installation and Reference Guide 6

www.qtech.ru

Product Appearance

The QSW-4600-28ТX full gigabit Ethernet switch provides 1 RJ45 Console port, 24 RJ45 10/100/1000Base-T

auto-sensing Ethernet ports and 4 SFP+ ports on the front panel.

Front Panel

Figure1-1 Front Panel of QSW-4600-28ТX

Note

1. System status LED

2. Console port

3. 10/100/1000 Base-T auto-sensing Ethernet port

4. 10/100/1000 Base-T copper port status LED

5.10G SFP+ port

6.10G SFP+ port

7. SFP+ fiber port status LED

8. SFP+ fiber port status LED

QSW-4600 Series Switch Hardware Installation and Reference Guide 7

www.qtech.ru

Back Panel

Figure 1-2 Back Panel of QSW-4600-28ТX

Note

1. Grounding pole

2. Three-hole AC power receptacle

3. Power cord retention clips

Power Supply

The QSW-4600-28ТX switch adopts AC or HVDC power input.

AC input

Rated voltage range: 100V to 240V, 50/60 Hz

Maximum voltage range: 90V to 264V, 47 Hz to 63 Hz

Frequency: 50/60 Hz

Rated current: 1.5A

Power cord specification: 10A

HVDC input

Voltage range: 192V to 290V

Current range: 0.1A to 0.5A

Heat Dissipation

The QSW-4600-28ТX full gigabit switch is designed with fans. To ensure good dissipation, sufficient space (10 cm

distance from both sides and the back panel of the chassis) should be reserved for ventilation. It is recommended to clean

the switch at regular intervals (like once every 3 months). Especially, avoid dust from blocking the screen mesh on the

back of the cabinet; otherwise, the temperature of the device may go too high and affects the performance.

When installing the device, sufficient ventilation space (1 U (44.45 mm) distance from the adjacent device) should be

reserved for the purpose of heat dissipation.

LEDs

LED

Panel Marker

Status

Indication

System status LED

Status

Blinking green

The system is being initialized.

QSW-4600 Series Switch Hardware Installation and Reference Guide 8

www.qtech.ru

Solid green

The switch is operational.

Solid red

Over-temperature, the system will reboot.

The switch is faulty.

10/100/1000 Base-T copper

port status LED

1-24

Off

The port is not connected.

Solid green

The port is connected at 1000 Mbps.

Solid yellow

The port is connected at 10/100 Mbps.

Blinking

Data are being transceived at the port.

SFP+ fiber port status LED

25F-28F

Off

The port is not connected.

Solid green

The port is connected.

Blinking

Data are being transceived at the port.

1.2 QSW-4600-52ТX

Technical Specifications

Model

QSW-4600-52ТX

CPU

Single-core CPU with the clock speed of 1.0G

BOOTROM

Flash Memory

256MB

SDRAM

DDRIII 512MB

SFP+ Port

Supports 10Gbase-R and 1000Base-X SFP+ modules.

Power Supply

AC input

Rated voltage range: 100V to 240V

Maximum voltage range: 90V to 264V

Frequency: 50/60 Hz

Rated current: 1.5A

HVDC input

Voltage range: 192V to 290V

QSW-4600 Series Switch Hardware Installation and Reference Guide 9

www.qtech.ru

Current range: 0.5A to 0.8A

EEE

Supported

PoE

Not supported

Power

Consumption

≤50W

Operating

Temperature

0℃to 50℃

Storage

Temperature

-40℃to 70℃

Operating Humidity

10% to 90%

Storage Humidity

5% to 95%

Fan

Speed adjustment and fault alarm

Temperature

Warning

Supported

EMCStandards

GB9254-2008

Security Standards

GB4943-2011

Dimensions

(W x D x H)

440 mm x 260 mm x 43.6 mm

Weight

≤4 kg

The QSW-4600-52ТX switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

Product Appearance

On the front panel, the QSW-4600-52ТX full gigabit Ethernet switch provides 1 RJ45 Console port, 48 RJ45

10/100/1000Base-T auto-sensing Ethernet ports and 4 SFP+ ports.

QSW-4600 Series Switch Hardware Installation and Reference Guide 10

www.qtech.ru

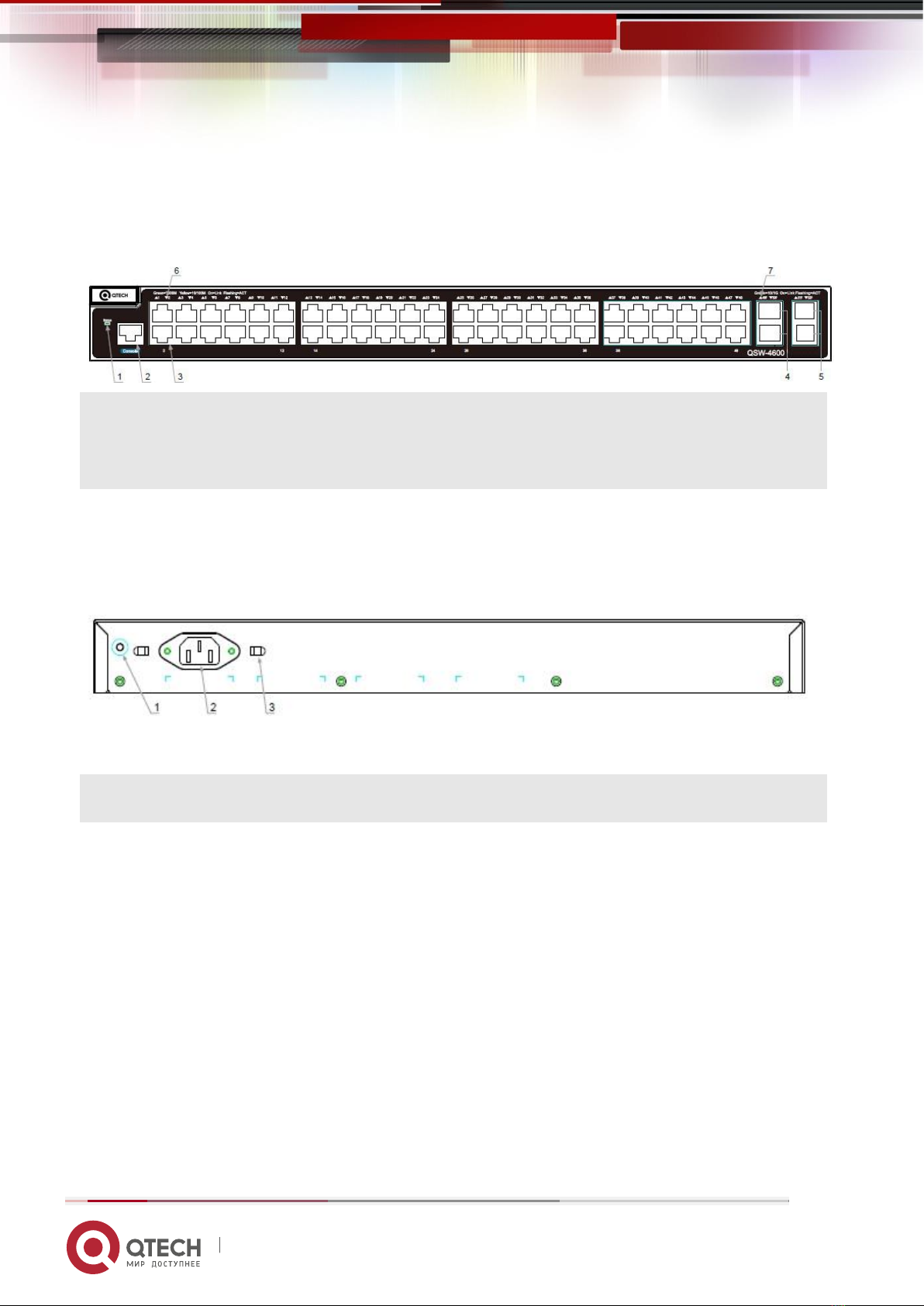

Front Panel

Figure1-3 Front Panel of QSW-4600-52ТX

Note

1. System status LED

2. Console port

3.10/100/1000 Base-T auto-sensing Ethernet port

4.10G SFP+ port

5.10G SFP+ port

6. 10/100/1000 Base-T copper port status LED

7. SFP+ port status LED

Back Panel

Figure 1-4 Back Panel of QSW-4600-52ТX

Note

1. Grounding pole

2. Three-hole AC power receptacle

3. Power cord retention clips

Power Supply

The QSW-4600-52ТX switch adopts AC or HVDC power input.

AC input

Rated voltage range: 100V to 240V, 50/60Hz

Maximum voltage range: 90V to 264V, 47 Hz to 63 Hz

Frequency: 50/60 Hz

Rated current: 1.5A

Power cord specification: 10A

HVDC input

Voltage range: 192V to 290V

Current range: 0.5A to 0.8A
