QNAP TS-101 Turbo Station Bedienungsanleitung

TS-101 Turbo Station

User Manual (Version: 2.0.0)

FOREWORD

Thank you for choosing QNAP products! This user manual provides detailed

instructions of using TS-101. Please read carefully and start to enjoy the

powerful functions of TS-101!

NOTE

•All features, functionality and other product specifications are subject to

change without prior notice or obligation.

•All brands and products names referred to are trademarks of their respective

holders.

LIMITED WARRANTY

In no event shall the liability of QNAP Systems, Inc. (QNAP) exceed the price paid

for the product from direct, indirect, special, incidental, or consequential software,

or its documentation. QNAP makes no warranty or representation, expressed,

implied, or statutory, with respect to its products or the contents or use of this

documentation and all accompanying software, and specifically disclaims its

quality, performance, merchantability, or fitness for any particular purpose. QNAP

reserves the right to revise or update its products, software, or documentation

without obligation to notify any individual or entity.

CAUTION

1. Back up your system periodically to avoid any potential data loss. QNAP

disclaims any responsibility of all sorts of data loss or recovery.

2. Should you return any components of TS-101 Turbo Station package for

refund or maintenance, make sure they are carefully packed for shipping.

Any form of damages due to improper packaging will not be compensated.

- 2 -

Table of Contents

Table of Contents .....................................................................................3

Safety Warnings.......................................................................................6

Chapter 1 Overview of TS-101 Turbo Station........................................7

1.1 Introduction ...................................................................................7

1.2 Package Contents............................................................................8

1.3 Hardware Illustration .......................................................................9

Chapter 2 Install TS-101.....................................................................10

2.1 Install Hard Disk ........................................................................... 10

2.2 Hard Disk Recommendation List ...................................................... 12

2.3 Set up TS-101 .............................................................................. 14

2.4 Check System Status..................................................................... 16

2.5 Configure Software Settings ........................................................... 18

2.5.1 Windows®Users......................................................................18

2.5.1.1 Using Mozilla Firefox..................................................................... 35

2.5.2 Mac Users...............................................................................37

Chapter 3 Start to Enjoy the Powerful Services of TS-101 ..................43

3.1 Server Administration .................................................................... 48

3.2 Quick Configuration ........................................................ 49

3.3 System Settings ............................................................ 53

3.3.1 Server Name...........................................................................53

3.3.2 Date & Time ...........................................................................54

3.3.3 Encoding Setting .....................................................................55

3.3.4 View System Settings...............................................................55

3.4 Network Settings ........................................................... 56

3.4.1 TCP/ IP Configuration...............................................................56

3.4.2 Microsoft Networking................................................................59

3.4.3 Apple Network.........................................................................61

3.4.4 Web File Manager....................................................................61

3.4.5 FTP Service.............................................................................62

- 3 -

3.4.6 Multimedia Station...................................................................64

3.4.7 Download Station ....................................................................65

3.4.8 Web Server ............................................................................66

3.4.9 DDNS Service .........................................................................67

3.4.10 View Network Settings...........................................................69

3.5 Device Configuration ...................................................... 70

3.5.1 SATA Disk ..............................................................................70

3.5.2 USB Disk................................................................................71

3.5.3 USB Printer.............................................................................73

3.5.4 eSATA Disk.............................................................................75

3.6 User Management .......................................................... 77

3.6.1 Users.....................................................................................77

3.6.2 User Groups............................................................................79

3.6.3 Quota ....................................................................................84

3.7 Network Share Management ............................................ 86

3.7.1 Create ...................................................................................87

3.7.2 Property.................................................................................88

3.7.3 Access Control ........................................................................89

3.7.4 Delete....................................................................................89

3.8 System Tools ................................................................. 90

3.8.1 Alert Notification......................................................................91

3.8.2 Restart/ Shutdown...................................................................91

3.8.3 Hardware Settings...................................................................92

3.8.4 System Update........................................................................93

3.8.5 Change Logo...........................................................................94

3.8.6 Remote Replication (Disaster Recovery)......................................95

3.8.7 Backup/ Restore/ Reset Settings................................................98

3.8.8 Network Recycle Bin ................................................................99

3.9 Event Logs .................................................................. 100

Chapter 4 Copy Data Directly by Front USB Port to TS-101...............101

Chapter 5 Multimedia Station............................................................103

5.1 Share Photos and Multimedia Files via Web Interface........................ 103

- 4 -

5.2 Enable iTunes Service .................................................................. 110

5.3 Use UPnP Media Server ................................................................ 112

Chapter 6 Download Station .............................................................115

Chapter 7 Web Server.......................................................................125

Chapter 8 FTP Server ........................................................................129

Chapter 9 Web File Manager .............................................................132

Chapter 10 NetBak Replicator ...................................................138

Chapter 11 TS-101 Maintenance ......................................................153

11.1 Restart/ Shut down Server......................................................... 153

11.2 Reset Administrator Password and Network Settings...................... 154

11.3 Disk Failure or Malfunction ......................................................... 155

11.4 Power Outage or Abnormal Shutdown.......................................... 155

Technical Support ................................................................................156

GNU GENERAL PUBLIC LICENSE ...........................................................157

- 5 -

Safety Warnings

1. TS-101 can operate normally in the temperature of 0ºC-35ºC and relative

humidity of 0%-85%. Please make sure the environment is well-ventilated.

2. The power cord and devices connected to TS-101 must provide correct

supply voltage (36W, 90-264V).

3. Do not place TS-101 in direct sunlight or near chemicals. Make sure the

temperature and humidity of the environment are in optimized level.

4. Unplug the power cord and all connected cables before cleaning. Wipe TS-

101 with wet towel. Do not use chemical or aerosol to clean TS-101.

5. Do not place any objects on TS-101 for the server’s normal operation and to

avoid overheat.

6. Use the flat head screws in the product package to fasten the hard disk in

TS-101 when installing hard disk for proper operation.

7. Do not place TS-101 near any liquid.

8. Do not place TS-101 on any uneven surface to avoid falling off and damage.

9. Make sure the voltage is correct in your location when using TS-101. If you

are not sure, please contact the distributor or the local power supply

company.

10. Do not place any object on the power cord.

11. Do not attempt to repair your TS-101 in any occasions. Improper

disassembly of the product may expose you to electric shock or other risks.

For any enquiries, please contact the distributor.

- 6 -

Chapter 1 Overview of TS-101 Turbo Station

1.1 Introduction

Thank you for choosing TS-101 Turbo Station. This product has the following key

features:

99-in-1 server: Multimedia Station, Download Station, Mirror Station, Disaster

Recovery, Web Server, Backup Server, File Server, FTP Server, and Printer

Server.

9Easy-to-use, simple configuration in a few steps and TS-101 is ready to use!

9Enormous storage capacity, support SATA disk of up to 500GB or above, and

extendable to 1TB or more by eSATA/ USB port.

9Web interface for authority configuration and folder management, even novice

can mange the server easily

9Supports PHP and SQLite to establish interactive websites

9Embedded digital album supports automatic thumbnail generation, easy

backup, browsing and sharing of photos

9Supports UPnP (DLNA compatible) multimedia technology for sharing of

multimedia files at home

9Supports iTunes service to enable computers in LAN to play the songs shared

by TS-101 via iTunes.

93 high speed USB 2.0 ports to support multiple USB devices like printer, disk,

digital camera, thumb drive, card reader etc. to provide diversified functions.

9High speed transfer, 480Mbps USB 2.0, Gigabit Ethernet, 1.5GB SATA high

speed file transfer. With highly efficient block level algorithm, data transfer

can be done instantly.

9Block level remote replication for secure data backup

9Incomparable high reliability: NetBak Replicator for instant and schedule

backup

9Stylish aluminum design, the best heat dissipation, shock-resistance, anti-

collision aluminum design

9Fanless design, absolutely quiet

9BT, HTTP and FTP download independent of computer to minimize electricity

expense

9Supports Network Recycle Bin, files deleted by mistake can be restored

- 7 -

1.2 Package Contents

Your TS-101 package contains:

9TS-101 Turbo Station

9Adaptor

9Power cord

9CD-ROM (user manual,

Quick Install Wizard

and software inclusive)

9Quick Installation

Guide

9Flat head screw x 4

9Ethernet cable x 1

9Stand x 2

- 8 -

1.3 Hardware Illustration

One Touch Copy Button

LED indicators:

Status, HDD,

eSATA, LAN and

Power

Power Button

USB Ports

eSATA

Giga LAN

Reset Button

Power Cord Hook

Power Connector

K-Lock

Security Slot

- 9 -

Chapter 2 Install TS-101

2.1 Install Hard Disk

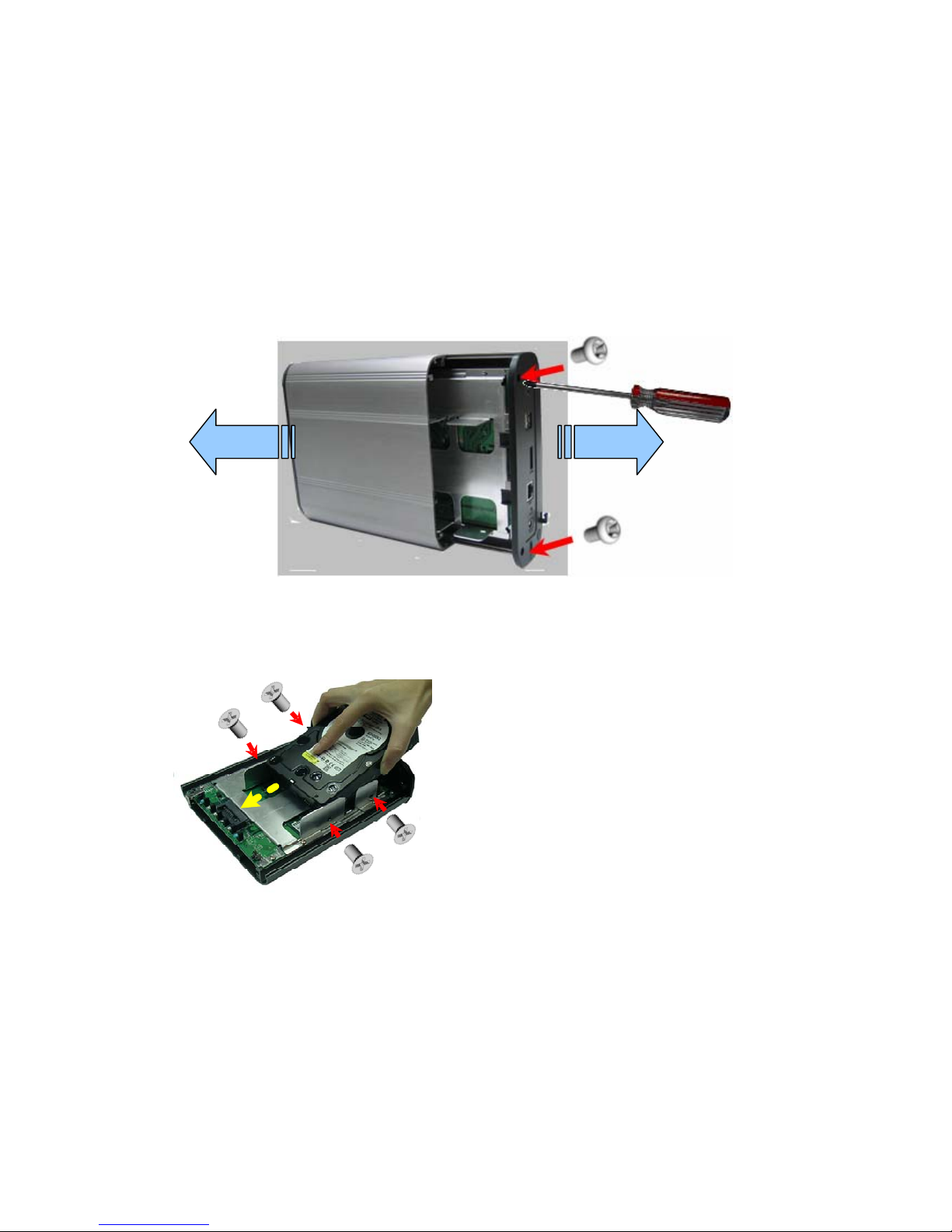

1. Unfasten the two round head screws at the back of TS-101. Pull out the front

case of TS-101 as shown below:

PullPull

2. Install a hard disk in TS-101 drive plate. Make sure the disk holes of the disk

match the holes of drive plate. Lock the disk with flat head screws.

- 10 -

Andere Handbücher für TS-101 Turbo Station

Inhaltsverzeichnis

Andere QNAP Server Handbücher

QNAP

QNAP TS-31P3 Series Bedienungsanleitung

QNAP

QNAP QBoat Sunny Bedienungsanleitung

QNAP

QNAP Turbo NAS TS-219P Bedienungsanleitung

QNAP

QNAP TVS-72XU Series Bedienungsanleitung

QNAP

QNAP TS 77 Series Bedienungsanleitung

QNAP

QNAP SS-439 Pro Bedienungsanleitung

QNAP

QNAP TS-h1283XU-RP-E2236-32G Bedienungsanleitung

QNAP

QNAP WS-411U Bedienungsanleitung

QNAP

QNAP VioGate-340 Bedienungsanleitung

QNAP

QNAP TVS-882BRT3 Bedienungsanleitung

QNAP

QNAP TS-53E Series Bedienungsanleitung

QNAP

QNAP TBS-464 Bedienungsanleitung

QNAP

QNAP TS-h 90FU Series Bedienungsanleitung

QNAP

QNAP VioStor CMS Bedienungsanleitung

QNAP

QNAP TS-401T Turbo Server Bedienungsanleitung

QNAP

QNAP TS-i410X Bedienungsanleitung

QNAP

QNAP Disk On-line Server NAS-2100 Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
