4.5 Ton Electric Horizontal Log Splitter - Owner’s Manual

4.5 Ton Electric Horizontal Log Splitter

FORYOUR SAFETY, READ AND UNDERSTAND

THE ENTIRE MANUAL BEFORE OPERATING

THIS MACHINE

MODEL NUMBER: LS5T-H

SERIAL NUMBER:

BOTH MODEL NUMBER AND SERIAL NUMBER MAY BE FOUND ON

THE MAIN LABEL.YOU SHOULD RECORD BOTH OFTHEM IN A SAFE

PLACE FOR FUTURE USE.

SAvETHIS MANUAL FOR FUTURE REFERENCE

TABLE OF CONTENTS / SAFETY WARNINGS & CAUTIONS

UNDERSTANDYOUR LOG SPLITTER

Read and understand the owner’s manual and labels afﬁxed to the log splitter. Learn its

application and limitations as well as the speciﬁc potential hazards particular to it.

DRUGS, ALCOHOL AND MEDICATION

Do not operate the log splitter while under the inﬂuence of drugs, alcohol, or any medication

that could affect your ability to use it properly.

AvOID DANGEROUS CONDITIONS

Put the log splitter on a 59-76 cm (23 in-30 in) high, stable, ﬂat, and level work bench where

there is plenty of room for handling. Bolt the log splitter to the work surface if it tends to

slip, walk, or slide.

Keep your work area clean and well lighted. A cluttered area invites injuries.

Do not use the log splitter in wet or damp areas or expose it to rain.

Do not use it in areas where fumes from paint, solvents or ﬂammable liquids pose a potential

hazard.

INSPECTYOUR LOGSPLITTER

Check your log splitter before turning it on. Keep guards in place and in working order. Form

a habit of checking to see that keys and adjusting wrenches are removed from tool area

before turning it on. Replace damaged, missing or failed parts before using it.

DRESS PROPERLY

Do not wear loose clothing, gloves, neckties or jewelry (rings, wrist watches). They can get

caught in moving parts. Protective, electrically non-conductive gloves and non-skid foot-

wear are recommended when working. Wear protective hair covering to contain long hair,

preventing it from getting caught in machinery.

PROTECTYOUR EYES AND FACE

Any log splitter may throw foreign objects into the eyes. This can cause permanent eye

damage. Always wear safety goggles. Everyday eyeglasses have only impact resistant

lenses. They are not safety glasses.

Do not put the log splitter on the ground for operation. This is an awkward operating

position that the operator has to bring his face close to the machine, and thus risks being

struck by wood chips or debris.

SYMBOL AFFIXEDTO MACHINE

TABLE OF CONTENTS

Safety Warnings & Cautions 2-4

Application Conditions 4

Speciﬁcations 4

Electrical Requirements 4

Set up & Preparation for Operation 5

Wiring Diagram 6

Plumbing Diagram 6

Log Splitter Operation 6-7

Freeing a Jammed Log 7

Replacing Hydraulic Oil 8

Sharpening Wedge 8

Trouble Shooting / Warranty 9

Parts Schematic 10

Parts List 11

SAFETY WARNINGS & CAUTIONS

SYMBOL AFFIXEDTO MACHINE

EXTENSION CORDS

Improper use of extension cords may cause inefﬁcient operation of the log splitter which

can result in overheating. Be sure extension cord is approved for this application. See

speciﬁcations.

Avoid use of free and inadequately insulated connections. Connections must be made with

protected material suitable for outdoor use.

AvOID ELECTRICAL SHOCK

Check that the electric circuit is adequately protected and that it corresponds with the

power, voltage and frequency of the motor. Check that there is a ground connection and a

regulation differential switch upstream.

Prevent body contact with grounded surfaces: pipes, radiators, ranges, and refrigerator

enclosures.

Never open the pushbutton box on the motor. Should this be necessary, contact a qualiﬁed

electrician.

Make sure your ﬁngers do not touch the plug’s metal prongs when plugging or unplugging

the log splitter.

KEEP vISITORS AND CHILDREN AWAY

The log splitter must always be operated by one person only. Other people should keep

a safe distance from the work area, especially when the log splitter is in operation. Never

have another person help you with freeing a jammed log.

INSPECT LOG

Make sure there are no nails or foreign objects in logs to be split. The ends of the logs

must be cut square. Branches must be cut off ﬂush with the trunk.

DO NOT OvERREACH

Floor must not be slippery. Keep proper footing and balance at all times.

Never stand on log splitter. Serious injury could occur if the tool is tipped or if the cutting

tool is unintentionally contacted. Do not store items above or near the log splitter where

anyone might use the log splitter to stand on in order to reach the items.

AvOID INJURY FROM UNEXPECTED ACCIDENT

Always pay full attention to the movement of the log pusher. Do not attempt to load the

log on until the log pusher has stopped. Keep hands out of the way of all moving parts.

PROTECTYOUR HANDS

Keep your hands away from splits and cracks which open in the log, as they may close

suddenly and can cause severe injury. Do not remove jammed logs with your hands.

DO NOT FORCE THE TOOL

Never try to split logs larger than those indicated in the speciﬁcations table. This could be

dangerous and may damage the machine. Do not use log splitter for purposes in which it

was not intended.

NEvER LEAvETOOL RUNNING UNATTENDED

Don’t leave tool until it has come to a complete stop and unplugged.

DISCONNECT POWER

Unplug when not in use, before making adjustments, changing parts, cleaning, or working

on the log splitter. Consult technical manual before servicing.

APPLICATION CONDITIONS / SPECIFICATIONS / ELECTRICAL REQUIREMENTS

PROTECT THE ENvIRONMENT

Take used oil to an authorized collection point or follow the stipulations in the country

where the log splitter is used. Do not discharge into drains, soil or water.

MAINTAINYOUR LOG SPLITTER WITH CARE

Keep the log splitter clean for best and safest performance.

MAKE THE WORKSHOP CHILDPROOF

Lock the shop. Disconnect master switches. Store the log splitter away from children

and others not qualiﬁed to use it.

APPLICATION CONDTIONS

This log splitter is a home use model. It is designed for operating under ambient temperatures between 5˚ C - 40˚ C (41˚ F and 104˚ F) and

for installation at altitudes no more than 1,000 metres (3,281 feet) above M.S.L. The surrounding humidity should be less than 50% at 40˚ C

(104˚ F). It can be stored or transported under ambient temperatures between 10.5˚ C - 55˚ C (13˚ F and 131˚ F).

SPECIFICATIONS

* The diameter of the log is indicative – a small log can be difﬁcult to split when it has knobs or a particularly tough ﬁber. On the other hand, it

may not be difﬁcult to split logs with regular ﬁbers even if its diameter exceeds the max ﬁgure indicated above.

ELECTRICAL REQUIREMENTS

Connect the main leads to a standard 110 volt electrical supply which has protection devices of under-voltage, over-voltage, over-current as

well as a residual current device (RCD) with a maximum residual current rated at 0.03A.

SYMBOL AFFIXEDTO MACHINE

SET UP & PREPARATION FOR OPERATION

1. Bolt the Support Leg to the Log Splitter, lift the log splitter by the handles at both ends and place it on a 60.9 cm 76.2 cm (2 ft - 2.5 ft)

high, stable, ﬂat and level work surface.

2. Familiarize yourself with the controls and features of this log splitter in the illustrations.

1. Log Pusher

2. Work Table

3. Wedge

4. Lift Handle

5. Support Leg

6. Log Retaining Plates

7. Switch

8. Motor

9. Pushbutton Box

10. Wheels for Minor Moving ONLY.

11. Hydraulic Control Lever

12. Control Lever Guard

13. Bleed Screw

14. Oil Drain Bolt w/ Dipstick

15. Max Pressure Limiting Screw

Before operating the log splitter, the Bleed Screw should be loosened by a few rotations until air can go in and out of the oil

tank smoothly. Air ﬂow through the Bleed Screw hole should be detectable while the log splitter is under operation.

Before moving the log splitter, make sure the Bleed Screw is tightened to avoid oil leaking from this point.

FAILURE TO LOOSEN THE BLEED SCREW WILL KEEP THE SEALED AIR IN HYDRAULIC SYSTEM BEING

COMPRESSED AFTER BEING DECOMPRESSED. SUCH CONTINUOUS AIR COMPRESSION AND

DECOMPRESSION WILL BLOW OUT THE SEALS OF THE HYDRAULIC SYSTEM AND CAUSE PERMANT

DAMAGE TO THE LOG SPLITTER.

DO NOT ADJUST THE MAX PRESSURE LIMITING SCREW!

Max pressure was set by the manufacturer and the max pressure

limiting screw is sealed with glue to ensure the log splitter works

under pressure no more than 4 tons. This setting was done by a

qualiﬁed mechanic with professional instruments.

UNAUTHORIZED RESETTING WILL VOID THE WARRANTY AND CAUSE

THE HYDRAULIC PUMP TO FAIL, RESULTING IN SERIOUS INJURY AS WELL

AS DAMAGE TO THE MACHINE

1 2

WIRING & PLUMBING DIAGRAMS / LOG SPLITTER OPERATION

LOG SPLITTER OPERATION

This log splitter is equipped with “ZHB” control system that requires it to be operated by both hands of the user. The left hand controls the

hydraulic control lever while the right hand controls the push button switch. The log splitter will not operate if either hand is removed from the

controls. Only after both hands release the controls, does the log pusher start to return backward to the starting position.

Trigger type lock-out device is adopted to avoid accidental Hydraulic Control Lever pushdown. To operate the Hydraulic Control Lever, draw

the Trigger backward with the index ﬁnger before pushing the Hydraulic Control Lever forward.

Never force the log splitter for more than 5 seconds by keeping pressure on it to split excessively hard wood.

Excessive force will void the warranty.

WIRING DIAGRAM PLUMBING DIAGRAM

After this time interval, the oil under pressure will be overheated and the machine could be damaged. For splitting an extremely hard log,

rotate it by 90˚ to see whether it can be split in a different direction. In any case, if you are not able to split the log, this means that its hardness

exceeds the capacity of the machine and thus the log should be discarded to protect the log splitter.

Always set logs ﬁrmly on the log retaining plates and work table. Make sure logs will not twist, rock or slip while being split. Do

not force the blade by splitting the log on the upper part. This will break the blade or damage the machine.

Split log in the direction of its growing grain. Do not place log across the log

splitter for splitting. It may be dangerous and may seriously damage the

machine. Do not attempt to split 2 pieces of logs at the same time. One of them

may ﬂy up and hit you.

FREEING A JAMMED LOG

- Release both controls.

- After the log pusher moves back and completely stops at its starting

position, insert a wooden wedge under the jammed log.

- Start the log splitter to push the wooden wedge completely under the jammed one.

- Repeat above procedure with sharper sloped wooden wedge until the log is

completely freed.

Do not try to force the jammed log off. Forcing will damage the machine or may

launch the log and cause accident.

LOG SPLITTER OPERATION / FREEING A JAMMED LOG

REPLACING HYDRAULIC OIL

Replace the Hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it.

- Make sure all moving parts stop and the log splitter is unplugged.

- Unscrew Oil Drain Bolt with Dipstick to remove it.

- Turn the log splitter on the Support Leg side over a 1gal. capacity container to drain the

hydraulic oil off.

- Turn the log splitter on the motor side.

- Reﬁll fresh hydraulic oil at the volume as per the hydraulic oil capacity of the particular model

indicated in the speciﬁcations table. (see pg. 4)

- Clean the surface of Dipstick on the Oil Drain Bolt and put it back into the oil tank while

keeping the log splitter vertical.

- Make sure the level of the reﬁlled oil is just between 2 grooves on the Dipstick.

- Clean the Oil Drain Bolt before reinstalling. Make sure they are tightened to avoid leakage

before placing the log splitter back to its horizontal postition.

Periodically check oil level to ensure it is between the 2 grooves on the Dipstick.

If oil is below lower level, oil reﬁlling is required.

The following hydraulic oils or equivalent are recommend for the log splitter’s

hydraulic transmission system:

- SHELL Tellus 22

- MOBIL DTE 11

- ARAL Vitam GF 22

- BP Energol HLP-HM 22

SHARPENING WEDGE

After using the log splitter for some time, sharpen the wedge of the log splitter using a ﬁne toothed ﬁle and smooth any burrs or crushed areas

along the cutting edge.

REPLACING HYDRAULIC OIL / SHARPENING WEDGE

PROBLEM PROBABLE CAUSE SUGGESTED ACTION

Fails to split logs

The log pusher

moves jerkily,

making unfamiliar

noise or excessive

vibration.

Oil leaks around

cylinder ram or

from other points.

Log is improperly positioned.

The sizes or hardness of the log exceeds

the capacity of the machine

Reduce the log size before splitting it on

the log splitter.

Refer to “ Sharpening Wedge “ section to

sharpen the cutting edge.

Wedge cutting edge is blunt.

Locate leak(s) and contact the dealer.Oil leaks.

Contact the dealer.Unauthorized adjustment was made on

Max. Pressure Limiting Screw. Lower

max pressure rating was set.

Lack of hydraulic oil and excessive air

in the hydraulic system.

Air sealed in hydraulic system while

operating.

Loosen Bleed Screw by 3 ~ 4 rotations

before operating the log splitter.

Bleed Screw is not tightened before

moving the log splitter.

Tighten the Bleed Screw up before

moving the log splitter.

Oil Drain Bolt with Dipstick is not tight. Tighten the Oil Drain Bolt with Dipstick.

Hydraulic Control Valve Assembly and /

or seal(s) are worn.

Contact the dealer.

Check oil level for possible oil refilling.

Contact the dealer.

Refer to “Log Splitter Operation” section

for correct log loading.

TROUBLE SHOOTING / WARRANTY

WARRANTY

Your electric log splitter is guaranteed for one year. If the tool should stop working within one year from the date of purchase you

should return it to the retailer where you purchased it for a free replacement.

This guarantee is for do-it-yourself / home owner use only and is not valid if the tool is used for commercial or rental use.

The guarantee may not be honoured if in the opinion of Quality Craft, the tool has been misused, dropped, taken apart and or has

been the subject of unusual wear and tear, and/or if repairs have been made or attempted by those other than speciﬁed by Quality

Craft. Disassembling the tool will also void the warranty.

IMPORTANT. If you have any problems with your Quality Craft product please vist our website at www.qualitycraft.ca or call cus-

tomer service at 1-800-459-4409 before returning unit to the store. Save packaging until you are satisﬁed with your purchase.

Imported by

Quality Craft Ltd.

Laval, Quebec, Canada H7S 2G7

1-800-459-4409 (EST)

www.qualitycraft.com

Made in China

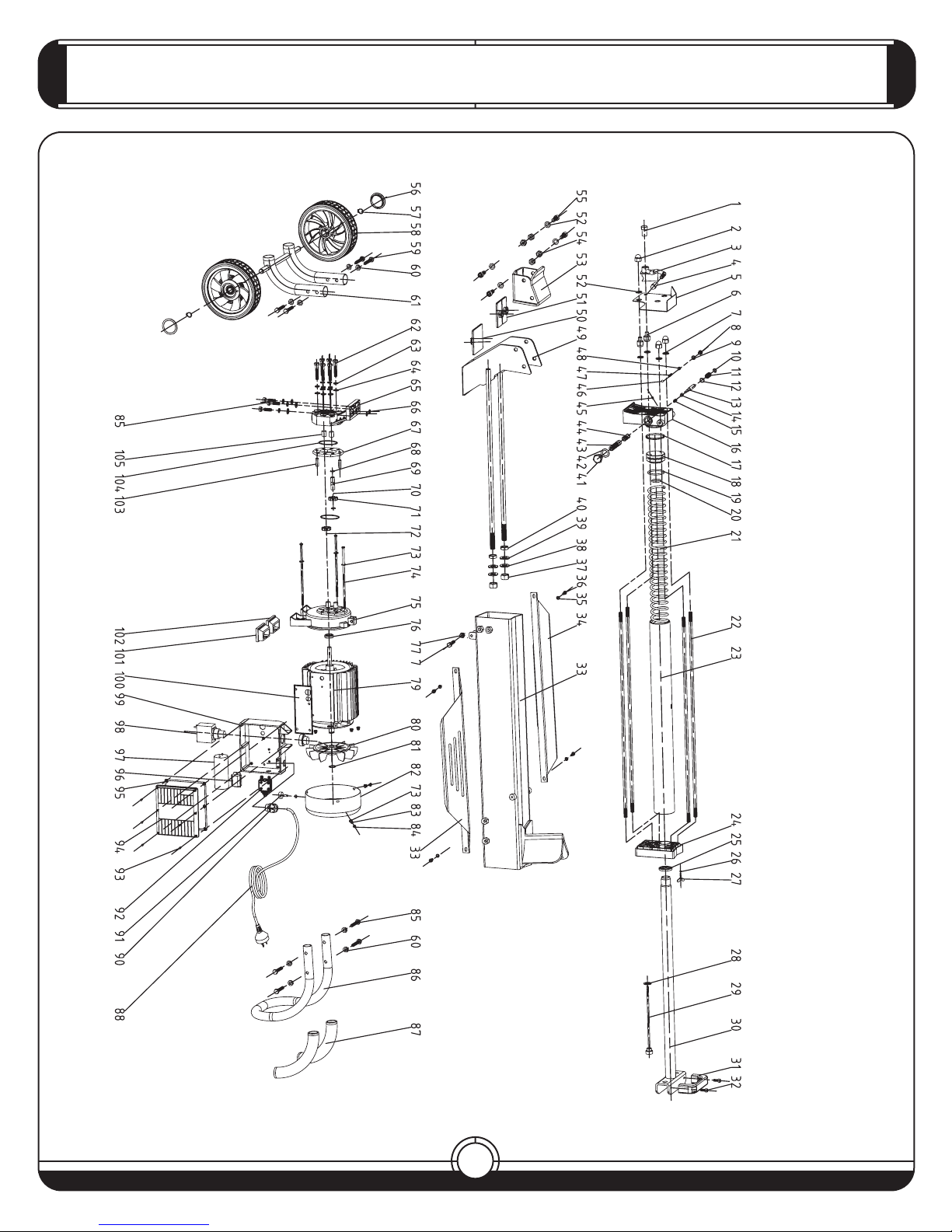

PARTS SCHEMATIC

Inhaltsverzeichnis

Sprachen:

Andere Quality Craft Holzspalter Handbücher

Quality Craft

Quality Craft 85LSF-001 Bedienungsanleitung

Beliebte Holzspalter Handbücher anderer Marken

Bell

Bell Pickpine VS S9 Gebrauchsanweisung

ATIKA

ATIKA ASP 5 N-UG Betriebsanleitung

Posch

Posch Schälprofi 500 Bedienungsanleitung

Champion

Champion 91520 Handbuch

Fieldmann

Fieldmann FZLS 1008V-E Bedienungsanleitung

Craftsman

Craftsman 247.28775 Bedienungsanleitung

Scheppach

Scheppach OX 3-1000 Montageanleitung

Swisher

Swisher 21200 Bedienungsanleitung

Elem Garden Technic

Elem Garden Technic FBHT65-22TCH Bedienungsanleitung

Champion Power Equipment

Champion Power Equipment 90720 Handbuch

Boss Industrial

Boss Industrial ES5T20 Bedienungsanleitung

Villager

Villager LSP 12 T Bedienungsanleitung

MTD

MTD 242-642A Bedienungsanleitung

Rok

Rok 150-51-50255 Bedienungsanleitung

Hakki Pilke

Hakki Pilke Raven Bedienungsanleitung

Swisher

Swisher LSRB11534 Bedienungsanleitung

Hyundai

Hyundai HYLS7TE Bedienungsanleitung

Scheppach

Scheppach HL1500M Benutzerhandbuch
