Quik n’ Crispy GF5 Bedienungsanleitung



ModelGF5

Operator’sManual



ForModelswithIntegralSystemsforLimitingtheEmissionsofGrease

LadenVaporstoComplywithEPA202/UL710B



CoveringQuikn’CrispyPartNumbers:

900007

900009

950000



TableofContents

INTRODUCTION........................................................................................4

PACKINGLIST............................................................................................5

INSTALLATIONPREPARATION..................................................................6

INSTALLATIONPROCEDURES...................................................................7

THEINITIALOPERATIONOFYOURQUIKN'CRISPY®................................9

MENUTEMPERATURE&TIMESETTINGS...............................................10

CONFIGURATION....................................................................................11

RECIPEEDITING......................................................................................12

NAME&COOKSEGMENTEDITING........................................................13

COOKINGARECIPE.................................................................................15

QUICKCOOKWINDOW..........................................................................17

SETBACKCONFIGURATION....................................................................18

COOKINGPROCEDURES.........................................................................19

PROCEDURESTOCLEANANDMAINTAINTHEFILTERS..........................22

CLEANINGPROCEDURES........................................................................24

PRODUCTREGISTRATION.......................................................................29

WARRANTY.............................................................................................29

SERVICE..................................................................................................29

EXTENDEDWARRANTY..........................................................................29

APPENDIX–WIRINGDIAGRAMANDIMAGES.......................................30



INTRODUCTION



Marketedsince1990,theQuikn'Crispy®GreaselessFryeristheresultofyearsofresearch,

development,andrefinement.Byusingtheprinciplesofforcedhotairandradiantheat,the

Quikn'Crispycanquicklycookandbrownanumberof"ovenready"conveniencefoods.This

easy‐to‐usecountertopgreaselessfryersafelyandefficientlyeliminatesthehealthconcerns,

expense,andoperatingdifficultiesinherentwithhotoilcookingprocesses.



WearepleasedtoannouncethatstartinginJuly2020,wearemanufacturingallofour

GreaselessFryerswithanupgradedcontrollerplatform.Thisupgradedplatformincludesa

morepowerfulmicrocontroller,increasedcodestorage,andamoresophisticatedgraphics

system.Someotherkeybenefitsforourcustomersinclude:



 USBFirmwareUpdates:OwnerscaneasilyperformfirmwareupdatesusingonlytheUSB

port.

 OperationLogging:Storestotalhoursofoperation,heatinghours,heatercycles,

cookinghours,recipescooked,idlehour,andreadytocookhours(idlingatsetpoint)

 QuikCookfeature.Thisprovidestheoperatorwithaneasywaytoevaluatenewmenu

itemsbyeasilysettingthepreheatandcookingtemperatures,andthecookingtime

withouthavingtocreateanewrecipe.

 SetbackConfigurationprovidestheusewiththreenewfeatures.

o Thefirstfeatureisthe“HOLDSTAGE”option.Withthisfeature,theQuikn’Crispy

willholdthecookingtemperaturethatwasusedduringthepreviousrecipes.

o ThesecondfeatureistheSETBACKfeature.Whenthisfeatureisturnedon,your

Quikn’Crispywillmaintainthisminimumtemperatureforthetimethatyou

enteredintothisscreen.



Moreinformationontheenhancementstotheupgradedcontrollerareexplainedfurtherin

thefollowingpages.



PACKINGLIST



IncludedintheQuikn'Crispypackingcartonarethefollowingitems:



 1Quikn'CrispyGreaselessFryer



 1CookingBasketAssembly



 2CookingBasketHandles&MountingHardware

  53/8”screws(1extra)

  6nuts(2extra)

  1¼”screw(extra)



1DripTray



 1Three‐PieceAirPlenum



 1RemovableFrontPanel



 4AdjustableLegs



 1Operator'sManual



 1ProductRegistrationForm



INSTALLATIONPREPARATION



SelectasuitablepositionintheretaillocationtoinstalltheQuikn'Crispy.Pointstoconsider

whenselectingalocationare:



1. Accessibilitybystoreemployees



2. Proximitytocustomers



3. Proximitytorefrigeratorandfreezerequipment



4. Proximitytootherretailpointsofsaletotakeadvantageofcrossmerchandising

opportunities



5. Sightlineofcustomer(toenhancecustomerperceptionof"fresh"preparation).



TheQuikn'Crispyshouldbemountedonasturdy,foodservice‐appropriatesurface.Stainless

steelisthepreferredmaterial.AllowanadequateamountofworkspaceneartheQuikn'

Crispysothatoperatorswillnothavetoworkinaconfinedlocation.Aminimumof1"of

spacebetweentherear,sidesandtopoftheQuikn'Crispy,andthewalls,ceilingorother

structuralsurfacesofyourfacilityisrecommended.



Inadditiontoasuitablelocation,accommodationmustbemadeforthenecessaryelectrical

connection.Pleasenotethefollowingelectricalspecifications.



ElectricalSpecifications

US/Canada/International:SinglePhase,50/60Hz.

208VACUSA(5760Watts,29amps)3hourinputaveragingtest,lessthan24amps,canbe

installedon30ampcircuit

208VAC–Canada‐(4326Watts,21amps)

230VAC(5290Watts,23amps)

240VAC(5750Watts,24amps)

GF5Receptacle(USA/Canada)NEMA#6‐30R



INSTALLATIONPROCEDURES



1. Opentheshippingcartonandliftoffthetopportion.



2. Liftoffthe4sidesofthecarton,leavingtheQuikn'Crispyandthecorrugatedcardboard

packingsetinplaceonthefloor.



3. RemovethecorrugatedcardboardpackingsetfromaroundthebaseoftheQuikn'

Crispy.



4. Liftthefryerintopositiononthedesignatedcounter.Thegreaselessfryerweighs

approximately165lb.Theuseofatleasttwopeopleisadvisedforthisstepofthe

installation.



5. Apieceoftapeisattachedtoeachappliancelegtopreventthemfromshiftingduring

shipment.Removethetapefromtheappliancelegs.Adjustthelegstolevelthefryer

onthecountersurface.



6. ApieceoftapeisattachedtotheCookingBasketAssembly.Usethetapetopullthe

CookingBasketopen.RemovetheplasticbagcontainingtheCookingBaskethandles,

screws,nuts,wrench,Operator’sManual,and32‐pageMenu.



7. MounttheCookingBaskethandlestotheCookingBasketbyattachingtwo3/8”screws

withacornnutstothebaseofeachhandleusingthewrenchtotighten.



8. Takethefouradhesivebackedrubberlegstopsandmountthemtothebottomofthe

fouradjustablelegs.ThisistopreventtheQuikn’Crispyfromslidingonastainlesssteel

appliancestandortable.



9. Apieceoftapeisattachedtotherearairdischargeventonthebacksideoftheunit(SEE

IMAGEBELOW).Carefullyremovethistapebypullingitdowngentlyfromtopto

bottom.THEUNITWILLNOTHEATUPPASTROOMTEMPERATUREIFTHISTAPEIS

NOTREMOVED!



a. 

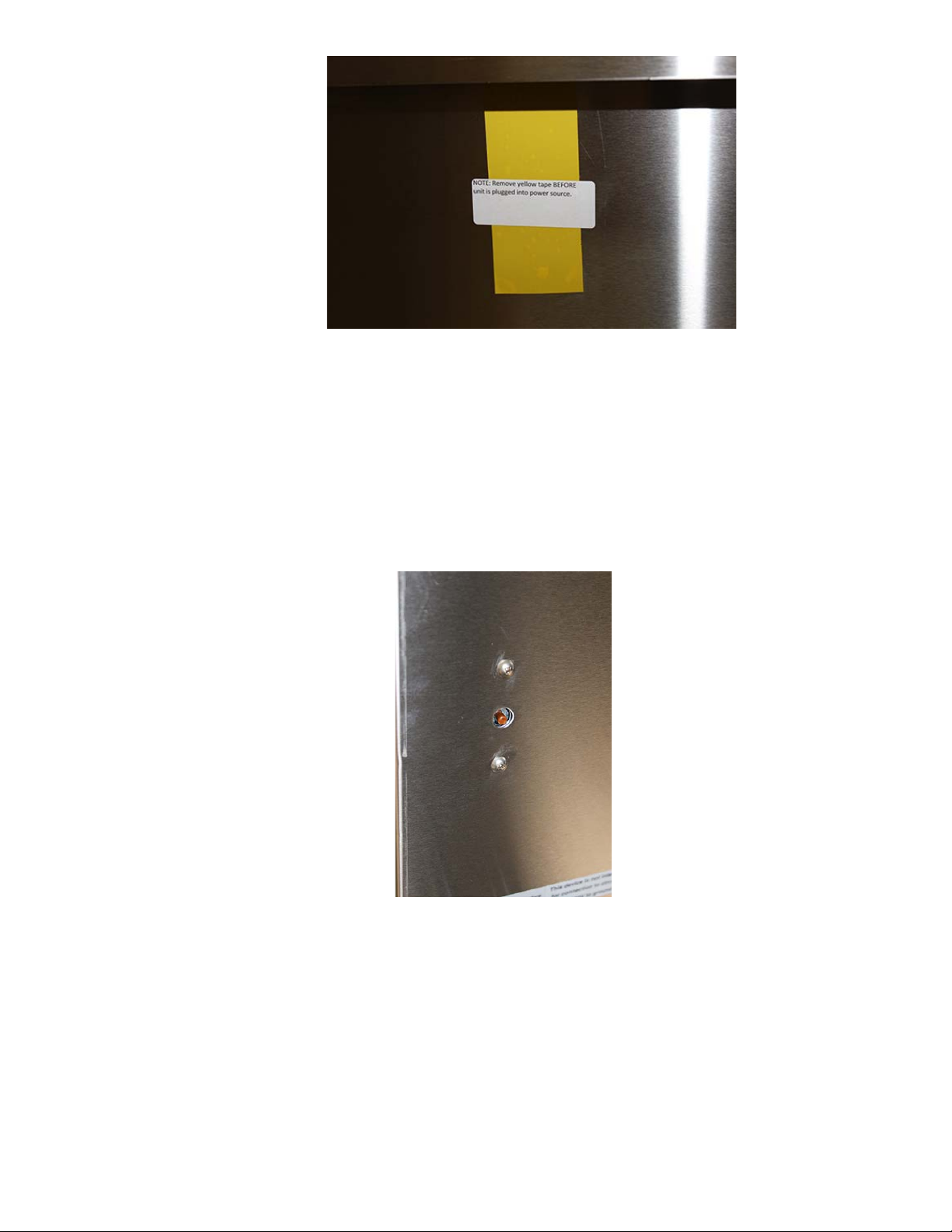

b. YellowTapeonAirDischargeVent



10. BesurethattheOn/OffSwitchfortheQuikn'Crispyisinthe“Off”Position.Plugthe

Quikn'Crispyintothereceptacle.



11. IfyouhaveengagedamenuandtheQuikn’Crispydoesn’theatuppasttheroom

temperature,youmightneedtoresetthehightemperaturesafetyswitchbypushing

redbutton.Itislocated6”abovethepowercord



HighLimitSwitch



THEINITIALOPERATIONOFYOURQUIKN'CRISPY®



Thefirstoperatingcycleafterinstallationshouldbeaconfirmationofthehot‐airfryer'sproper

workingorder.Todothis,werecommendthatyoudepresstheswitchtotheright"POWER

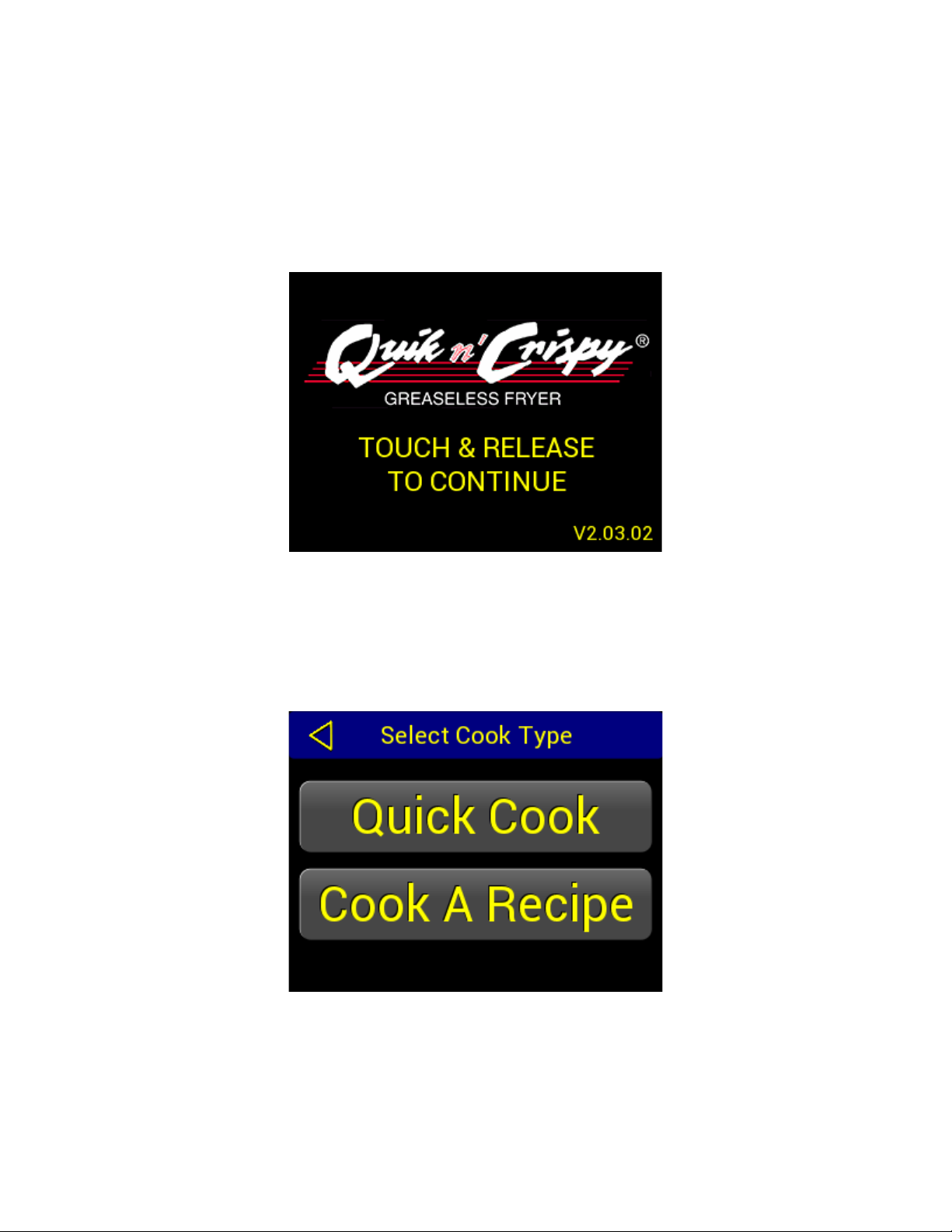

ON"position.ThecontrollershoulddisplaytheQuikn’Crispylogowiththecaption“Touchto

Start”.



Next,touchthescreenandthenextscreenwillprovideyouwiththeoptionof“QuickCook”

(Wewillexplainthisoptionlaterinthemanual)or“CookARecipe”.Click“CookARecipeand

itwilldisplaythe15RecipesthathavebeenpreprogrammedintoyourQuikn’Crispy.These

settingsareshownonthenextpage:



MENUTEMPERATURE&TIMESETTINGS



Belowarethecookingtimeandtemperaturesthathavebeenpreprogrammedintoeachof

the15menus.Ifyoudesiretochangeanyofthesesettings,pleaseseethefollowingsection.



Recipe TemperatureF° TemperatureC° Time

1 420° 215° 1:00

2 420° 215° 2:00

3 420° 215° 2:30

4 420° 215° 3:00

5 420° 215° 3:30

6 420° 215° 4:00

7 420° 215° 4:30

8 420° 215° 5:00

9 420° 215° 5:30

10 420° 215° 6:00

11 400° 205° 6:30

12 400° 205° 7:00

13 400° 205° 7:30

14 400° 205° 8:00

15 400° 205° 8:30



Pleasenotethatthesepresettemperaturesareestimatedtemperaturesforcookingmenu

itemsinyourQuikn’Crispy.Duetovoltagefluctuations,thevoltageatareceptaclecanrange

fromaslowas200voltstoashighas245volts.Presettemperaturesettingsmayneedtobe

adjustedaccordingly. 
