QView QD3900 Bedienungsanleitung

Visual Presenter

Owner’s Manual

Model: QD3900

PRECAUTIONS

Please follow these precautions:

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electrical shock, do not open the cabinet. Refer to qualified

personnel for service only.

Do not use the unit continuously for more than 24 hours with camera auto

focus on. It may cause damage to the camera lens.

Be careful not to spill water or other liquids onto the unit, or allow combustible

or metallic objects to get inside the cabinet.

Unplug the visualizer from the wall outlet when it is not in use for

an extended period of time.

Clean cabinet with a soft cloth lightly moistened with a mild detergent.

Clean lens carefully with an air spray or soft dry cloth to avoid scratching.

When lamps flash or become dark, they should be replaced with new ones.

Avoid interchanging arm lights and back light frequently.

Remove the camera lens cap before power the unit on.

CONTENTS:

PARTS IDENTIFICATION.................................................................................3

CONTROL PANEL ............................................................................................3

BUTTON INSTRUCTION..................................................................................4

REMOTE CONTROL........................................................................................4

CONNECTIONS................................................................................................6

BASIC PREPARATIONS...................................................................................6

PAL/NTSC VIDEO OUTPUTS ........................................................................10

WORKING ON THE STAGE...........................................................................10

WORKING OUTSIDE THE STAGE ................................................................10

LIGHT..............................................................................................................10

ADJUSTING IMAGE SIZE.............................................................................. 11

WORKING WITH NEGATIVES....................................................................... 11

FOCUSING ..................................................................................................... 11

FREEZING IMAGE ......................................................................................... 11

BRIGHTNESS ADJUSTMENT........................................................................12

WHITE BALANCE ADJUSTMENT..................................................................12

AUTO ADJUSTMENT .....................................................................................12

TEXT/IMAGE MODE.......................................................................................12

COLOR AND B&W MODE SWITCH...............................................................12

HDMI/VIDEO INPUTS.....................................................................................12

RGB INPUTS ..................................................................................................12

PROJECTOR ON/STANDBY..........................................................................13

PROJECTOR INPUTS SELECTION..............................................................13

IMAGE ROTATION..........................................................................................13

IMAGE REVERSION ......................................................................................13

INFRARED REMOTE CONTROL...................................................................13

4 X 4 MULTIPLE SCREEN DISPLAY.............................................................13

INSTALLING VISUALIZER SOFTWARE........................................................14

USB PORT......................................................................................................14

USB IMAGE CAPTURE..................................................................................15

CONTROLLING VISUALIZER BY COMPUTER ............................................16

CONTROLLING PROJECTOR BY VISUALIZER...........................................16

FOLDING THE UNIT.......................................................................................20

SPECIFICATIONS...........................................................................................21

PARTS IDENTIFICATION

Arm lights

Camera

Camera stand

Back light

Remote control slot

Operation panel

Stage

Connectors

Button instruction

CONTROL PANEL

Rot (Rotate the image)

Frz (Freeze the image)

Neg (Display film negatives)

Text (Switch between image/text mode)

Save (Save captured images)

Title (Freeze the top 1/8 of the screen)

Split (Split Image function)

Mem (Multiple Screen Display, the stored images will be displayed in a

4 x 4 matrix)

Ppw (Control the projector On/Standby)

Pin (Projector input signal selection)

/(Move the image up/down)

POWER (Control the visualizer On/Off)

CAM/PC1/PC2 (CAM/RGB input signal selection)

HDMI/VIDEO (HDMI equipment/ Video input signal selection)

LAMP (Control the arm lights and back light)

AUTO (To auto white balance and auto focus)

T/W (Zoom in and out)

BUTTON INSTRUCTION

REMOTE CONTROL

POWER (Control the visualizer On/Off)

SAVE (Save captured images)

RECALL (Multiple Screen Display)

LAMP (Control the arm lights and back light/Press the button more than 5

seconds to delete all pictures stored in the Flash ROM)

ROTATE (Rotate the image)

FREEZE (Freeze the image)

NEG (Display film negatives)

MIRROR (V-Reverse the image)

XGA (Toggle among XGA, SXGA, WXGA, 720P, 1080P)

TEXT (Switch between image/text mode)

B&W (Switch between Color mode and Black & White mode)

TITLE (Freeze the top 1/8 of the screen)

SPLIT (Split Image function)

PROJECTOR POWER (Control the projector On/Standby)

PROJECTOR INPUT (Projector input signal selection)

EXIT (Exit selected function)

TELE/WIDE (Increase and decrease magnification)

FAR/NEAR (Focus near or far)

AUTO (To auto white balance and auto focus)

CAM/PC1/PC2 (CAM/RGB input signal selection)

HDMI/VIDEO (HD equipment/ Video input signal selection)

VOL+/- (Increase or decrease the volume)

RED+/- (Increase or decrease the red hue)

BLUE+/- (Increase or decrease the blue hue)

BRIGHT+/- (Increase or decrease the brightness)

SCROLL / (Move the image up/down)

CONNECTIONS

HDMI OUT

VIDEO OUT

HDMI IN

COMPUTER OUT PROJECTOR

COMPUTER IN

AUDIO IN

AUDIO

VIDEO

DC 12V IN

13 Side Panel

Rear Panel

RS232

AUDIO INRGB IN

MIC

PROJECTOR USB

AUDIO OUT

#1 DC-12V-IN #2 VIDEO AUDIO IN

#3 VIDEO IN #4 COMPUTER AUDIO IN

#5 COMPUTER IN #6 COMPUTER OUT

#7 HDMI IN #8 AUDIO OUT

#9 PROJECTOR Connector #10 VIDEO OUT

#11 HDMI OUT #12 PROJECTOR RS232 Connector

#13 MIC IN #14 USB Connector

#15 RGB IN #16 RGB AUDIO IN

#17 COMPUTER RS-232 Connector

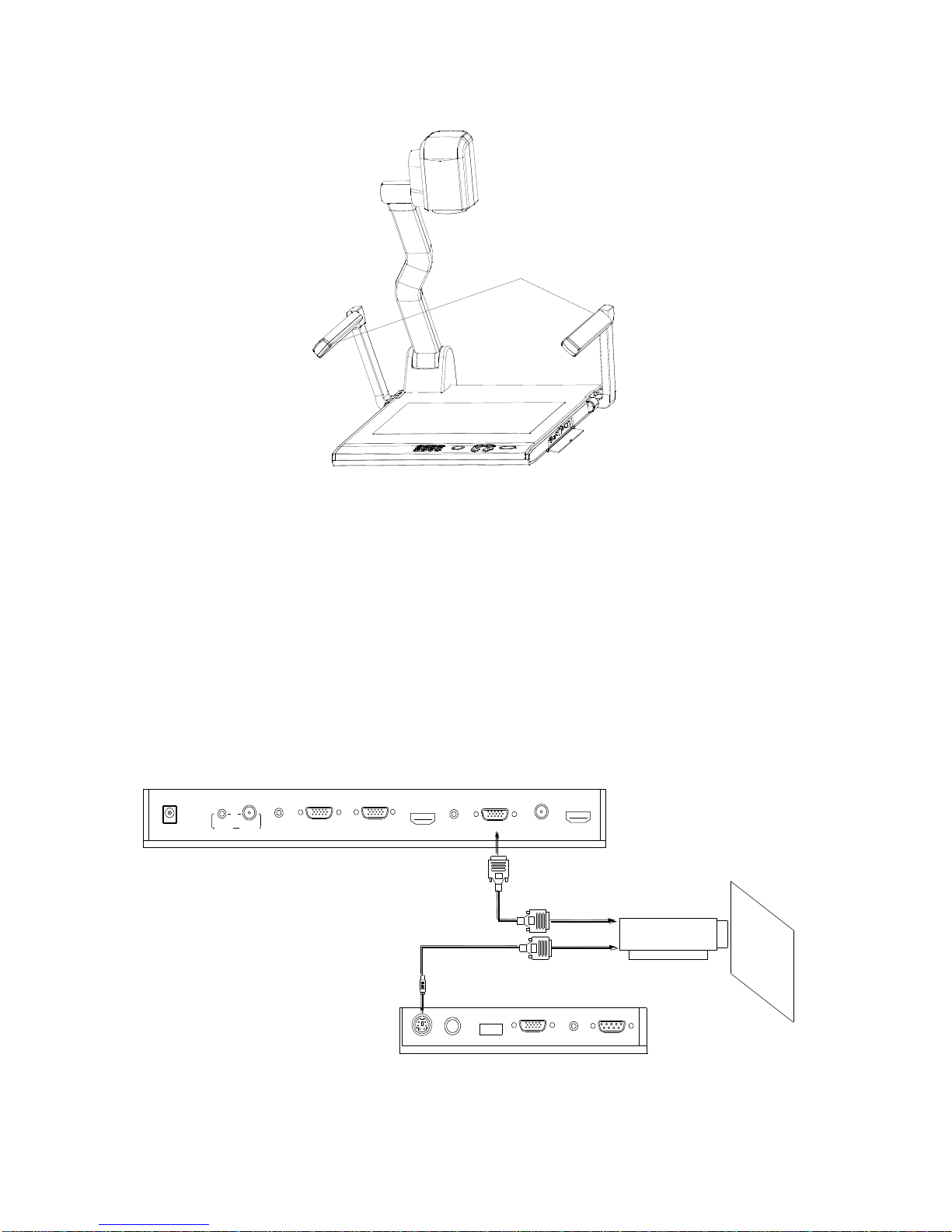

BASIC PREPARATIONS

1. Place one hand firmly on the base of the visualizer, while carefully

lifting up the camera stand using the other hand.

2. Open the arm lights and rotate the camera head until they are properly

positioned.

Arm lights

3. Making connections:

Before making any connections, turn off all the power. Please ensure that

the visualizer along with all other equipment to be connected are turned off.

Step 1: Connect power source.

First connect the power cord to the 12V IN connector.

Step 2: Connect to the projector.

USB

PROJECTOR MIC

RGB IN AUDIO IN RS232

Side Panel

13 14 15 17

1234678

DC 12V IN VIDEO

AUDIO AUDIO IN COMPUTER IN PROJECTOR

COMPUTER OUT HDMI IN AUDIO OUT VIDEO OUT HDMI OUT

910 11

Projector

RGB Input

Screen

RS232 Cable

Rear Panel

Connect the PROJECTOR port to the projector‟s RGB IN port using the

RGB cable. You can also control a projector using the controls on the

visualizer by connecting the projector to the visualizer using a 6-pin to 9-pin

RS232 cable. Some projector models may require a converter cable in

addition to this standard RS232 cable to connect to the projector control

port, for the pin locations and shape of some projectors‟ control port

connector may be different from the connector of a standard RS232 cable.

Once the visualizer is connected to the projector, you can control the

projector‟s power on, standby and input selection by using the visualizer.

(Aside from Hitachi projectors, the Code Writing program that comes with

the visualizer is required to access this function.)

Step 3: Connect to a desktop computer.

USB

PROJECTOR MIC

RGB IN AUDIO IN RS232

Side Panel

13 14 15 17

1234678

DC 12V IN VIDEO

AUDIO AUDIO IN COMPUTER IN PROJECTOR

COMPUTER OUT HDMI IN AUDIO OUT VIDEO OUT HDMI OUT

910 11

Rear Panel

RGB Output

To the

Monitor

USB Connector

Computer

RS232

Cable

Note: You can connect a laptop computer to the RGB IN port of side panel

using a RGB cable.

Step 4: Connect to the HD equipment with HDMI input.

To display equipment with HDMI

connector

HDMI Cable

HDMI out

HDMI equipment

Rear Panel

HDMI OUT

VIDEO OUT

AUDIO OUT

HDMI IN

COMPUTER OUT PROJECTOR

COMPUTER IN

AUDIO IN

AUDIO

VIDEO

DC 12V IN

Step 5: Connect to the video equipment with Video input.

1234678

DC 12V IN VIDEO

AUDIO AUDIO IN COMPUTER IN PROJECTOR

COMPUTER OUT HDMI IN AUDIO OUT VIDEO OUT HDMI OUT

910 11

Rear Panel

Video equipment

Video out

Audio out

Audio input

(or amplifier/speaker equipment)

Projector

Video Cable

In the step 2, the connection between the C-Video output signals to the

projector was established, where the RGB cable runs from the visualizer

and goes to the projector. Once the connections have been made as

detailed in the steps 2,3,4,5, input signals from the HD equipment,

computer, visualizer camera, and C-Video are going to the RGB1 input on

the projector and will be displayed on the projector screen as RGB1. These

signals can be seen in turn when pressing “CAM/PC1/PC2”and

“HDMI/VIDEO” on the control panel of the visualizer.

Step 6: Connections for external control from the computer.

RS232

AUDIO INRGB IN

MIC

PROJECTOR USB

Side Panel

RS-232 cable

USB cable

of the computer

USB connector RS 232 connector

Use the computer RS232 cable (9-pin to 9-pin) to make the connections

displayed below to control the visualizer from an external computer.

A USB connection enables the computer to capture still images and/or

video streams from the visualizer. Special software is required for this

operation.

4. Turn on the power by pressing the “POWER”button.
