QPIR-REC-IP65
INFRAFED MOTION SENSOR
FOR LED PANELS
Power Source 220-240V/AC
Power Frequency 50/60 Hz
Minimum Time Delay 10sec ± 3sec
Maximum Time Delay 15min ± 2min
Rated Load 600W to 1200W
Installation Height 2 - 2.4m
Detection Range 360°
Detection Distance 8m Max (<24°C)
Ambient Light <3-2000LUX (adjustable)
Working Temperature -20~+40°C
Working Humidity <93%RH
Power Consumption Approximately 0.5W
Detection Moving Speed 0.6-1.5m/s
SPECIFICATIONS
FUNCTIONS
INSTALLATION ADVICE
• Identifies day & night. Working states can be adjusted to suit
different ambient light settings. The sensor can work in the
daytime and at night when it is adjusted to the ‘sun’ position
(maximum). The sensor can work in ambient light lower than
3LUX when it is adjusted to the ‘3’ position (minimum)
• Avoid pointing the detector towards objects with highly
reflective surfaces - mirrors etc.
• Avoid mounting the detector near heat sources, such as
ventilation, air conditioning units etc.
• Avoid pointing the detector towards objects than may move
in the wind and cause obstruction: curtains, tall plants etc.

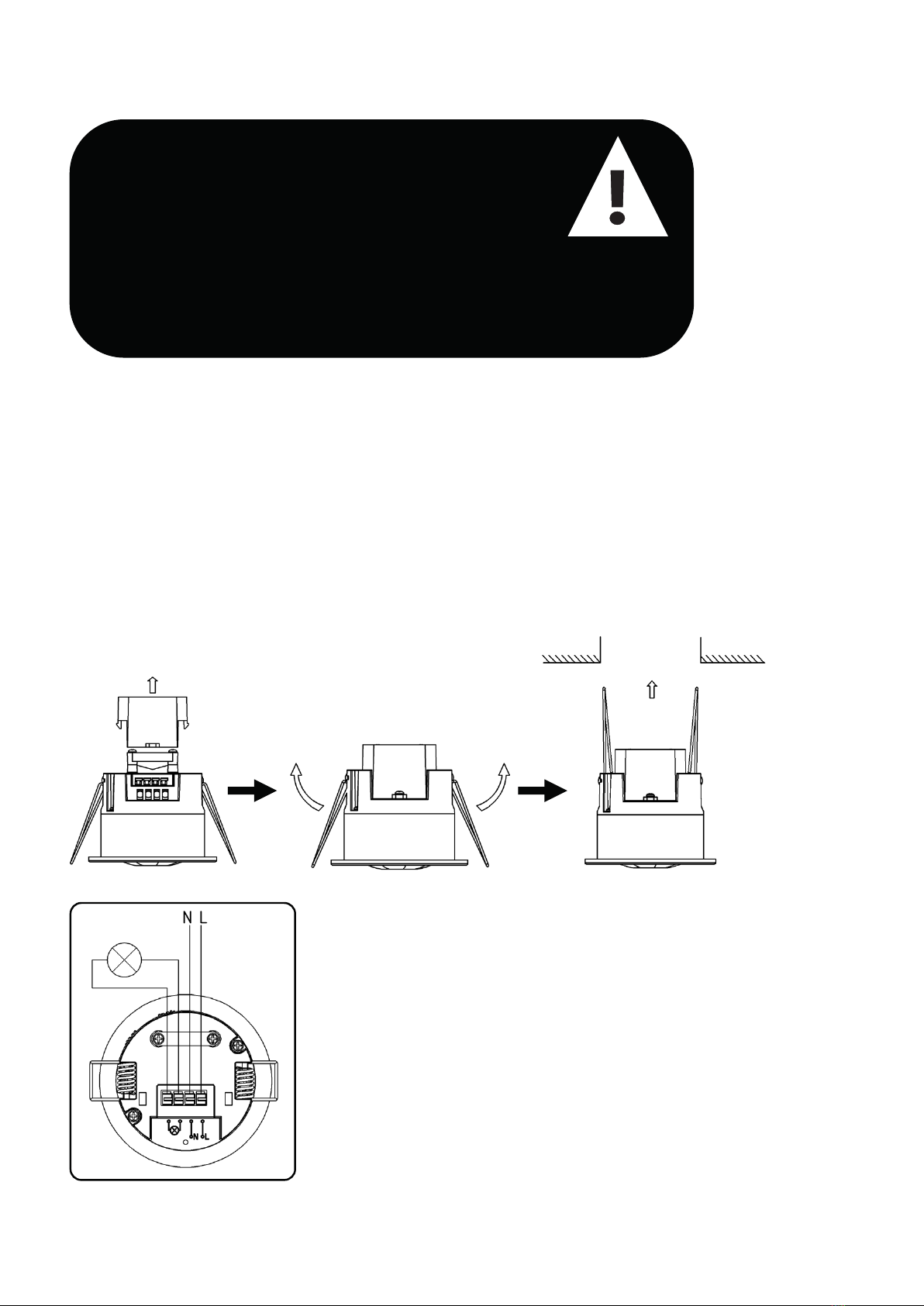

CONNECTION INSTRUCTIONS
1. Temporarily remove the transparent vinyl cover which is at the bottom of
the sensor
2. Loosen the screws in the connection terminal, and then connect the
power to connection terminal of the sensor according to the below
connection-wire diagram.
3. Place the vinyl cover back onto its original location
4. Fold the metal springs of the sensor upwards, until they are in an “I”
position with the sensor, and then place the sensor into the hole in the
ceiling or installation box. Release the spring so that the sensor is set in
this installation position
5. Switch on and test
WWARNINGARNING
IT IS IMPORIT IS IMPORTTANT THAANT THAT YT YOU HANDLE THIS PRODUCT WITHOU HANDLE THIS PRODUCT WITH
CARE AND CLCARE AND CLOSELOSELY FY FOLLOLLOW THE BELOW THE BELOW INSTRUCTIONSOW INSTRUCTIONS
•• MUST BE INSTMUST BE INSTALLED BY A QUALLED BY A QUALIFIED ELECTRICIANALIFIED ELECTRICIAN
•• DISCONNECT POWER SOURCEDISCONNECT POWER SOURCE
•• COCOVER OR SHIED ANY ADJAVER OR SHIED ANY ADJACENT LIVE COMPONENTSCENT LIVE COMPONENTS
•• ENSURE DEVICE CANNOENSURE DEVICE CANNOT BE SWITCHED ONT BE SWITCHED ON
•• CHECK POWER SUPPLCHECK POWER SUPPLY IS DISCONNECTEDY IS DISCONNECTED
CONNECTION DIAGRAM
(AS PER STEP 2)
TESTING INSTRUCTIONS
1. Turn the TIME knob anti-clockwise on the minimum setting (10s). Turn the
LUX knob clockwise on the maximum setting (sun).
2. Switch on the power; the sensor and its connected lamp will have no
signal at the beginning. After warming-up for 30sec, the sensor should
start working. If the sensor receives the induction signal, the lamp will
turn on. While there is no longer an induction signal, the load should stop
working within 10sec ± 3sec and the lamp should turn off.
3. Turn the LUX knob anti-clockwise on the minimum setting (3). If the
ambient light is more than 3LUX, the sensor will not be functional and the
lamp will not respond. If the ambient light is less than 3LUX (darkness),
the sensor should work. Under the condition of no induction signals, the
sensor should stop 10sec ± 3sec.
PROBLEMS & SOLUTIONS
PROBLEM: The load does not work
1. Please check that the power source is connected properly
2. Please check that the load is sufficient
3. Please check that the settings of the working light correspond to ambient light
PROBLEM: The sensitivity is poor
1. Please check that the e is no obstruction that could affect signals
2. Please check if the ambient temperatu e is too high
3. Please check that the installation height cor esponds to the heights
specified in these instructions
4. Please check the induction signal source is in the detection fie
5. Please check that the moving orientation is cor ect
PROBLEM: The sensor does not shut off the load automatically:
1. Please check that there is continuous signal in the detection field
2. Please check the time delay is set to the maximum position
3. Please check if the power input corresponds to these instructions
NOTE: WHEN TESTING IN DAYLIGHT, THE ‘LUX’ SETTING SHOULD BE SET TO (SUN) IN ORDER
FOR THE PIR TO WORK PROPERLY
