• To use the screw and cup washer to attach the left and
right bracket to mounting rails in a 19” rack
• Adjust the rear mounting bracket to fit the rack
• Remember to leave the screws slightly loose before
you complete the last step
• Insert the drawer into the mounting bracket
• ull and hold the left and right black arrow buttons on
the rails
• Return the drawer to the park position
• Use the screw and cup washer to attach the front left
and right mounting ears of the drawer to the vertical
mounting rails
• Complete the installation by tightening all screws.
To Install the Mounting Brackets and LCD Keyboard Drawer
LMK1B Series - Installation and User Guide

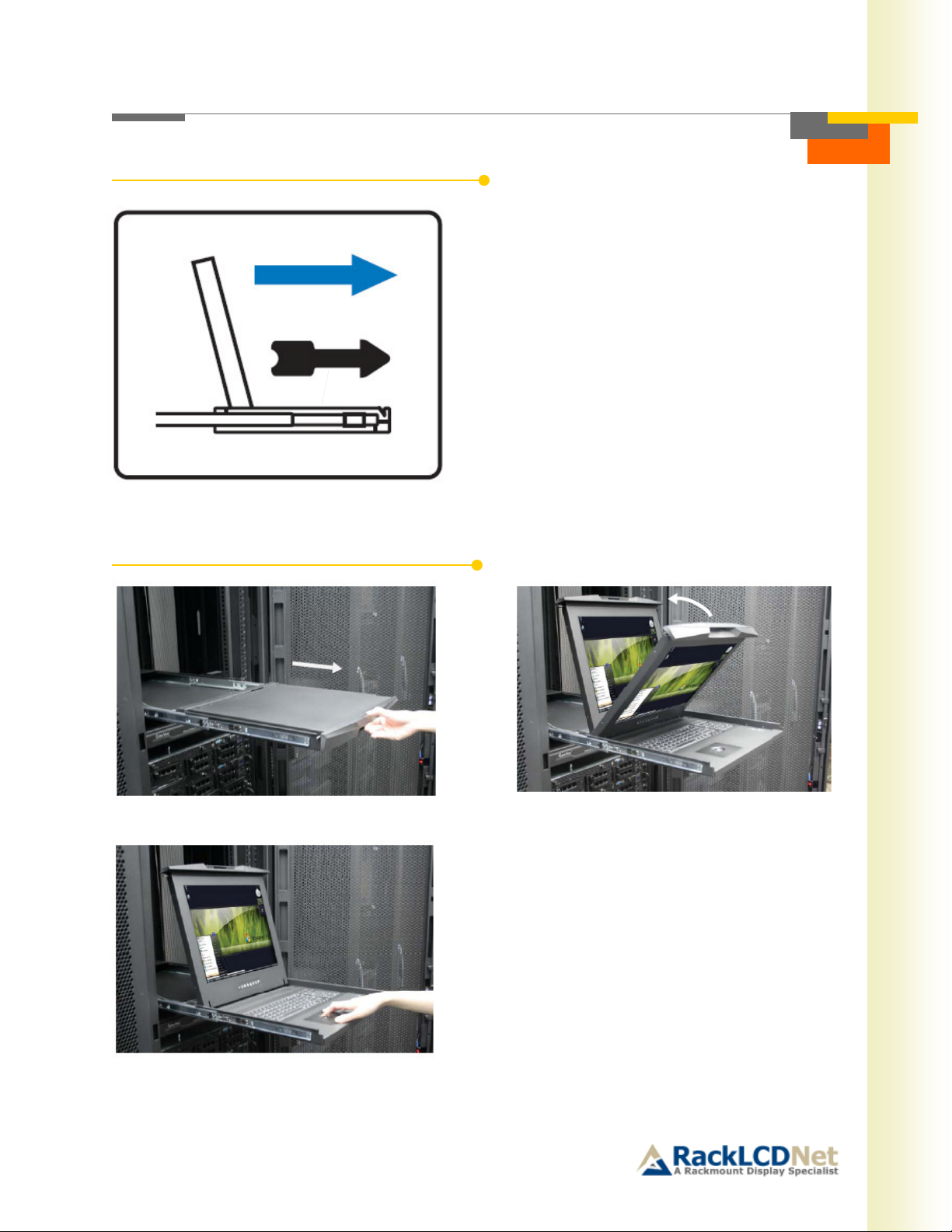

To Use the Slides
• A black arrow button is located on the out-
side of each side
• To slide the drawer out, pull and hold the
black arrow button to unlock
• To slide the drawer into the rack, just push
in.
To Open the LCD Keyboard Drawer
• Gently pull the LCD keyboard drawer out
when the carry handle button is pressed
• Flip up the drawer
• Drawer is not ready to operate
LMK1B Series - Installation and User Guide
