User Manual
ST7610-4S-S2
Version:2.0 (April, 2009)
Check Package Contents and Accessories................................................. 2
Hardware Introduction................................................................................... 2
Precautions prior to Installation.................................................................... 3
Hardware Installation Procedure.................................................................. 4
Hard Disk Drive Format Procedure............................................................... 7
How to Use the Operating System to Set Up the RAID Type ..................... 12
Product Description....................................................................................... 16
Frequently Asked Questions......................................................................... 17
Index
Index
1
Please check above parts are included prior to installation.The accessories bag contains screws and a plastic key.
Status Indications of LEDs:
HDD Access LED will flash orange when the data is accessed from the hard drive.
Power LED will light blue if the power is on.
Fail LED will light red when the internal temperature is higher than 60°C or the fan fails.
2
Check Package Contents and Accessories & Hardware Introduction
ST7610 system includes the following:
Item Quantity
ST7610 1
Removable Carrier 4
eSATA cable 4
Quick Installation Guide 1
Power cable 1
Accessories bag 1
(including 24 x 6#-32 screws and Key x 2)
ST7610
Removable Carrier Accessories bag
Power cable eSATA cable
SATA
SATA
Check Package Contents and Accessories
Hardware Introduction
eSATA
1
1
2
2
3
3
4
4
eSATA
eSATA
1
2
3
4
eSATA
FAIL
Power
Tray handle
Power Socket Power Switch4cm Fan
Lock hole
3Precautions prior to Installation
Precautions prior to Installation
1. Before installation, please refer to Check Package Contents and Accessories and ensure
necessary parts are fully provided. Contact the original distributor in case of any missing
or damaged item.
2. Please use the power cord that comes with the package to connect the power supply.
Do not disassemble or modify the device without authorization. Be sure to use 100-240V,
60Hz, power supply. Any unauthorized disassembly or modification may cause damage
to the electronic parts and deprive you of the benefit under the warranty. RAIDON is
not liable and responsible for any damage due to unauthorized disassembly or
modification, if such unauthorized disassembly or modification results in any storage
device failure, data damage or loss, or causes the operating system unable to start.
3. Please carefully go through the Quick Installation Guide and back up your data on the hard
disk drive before installation or use the newly purchased hard disk drive to avoid data loss
in case of inadvertent operation. RAIDON is not reliable and responsible for any data
damage due to inadvertent operation, if such inadvertent operation results in data damage
or loss, or causes the operating system unable to start.
4. Hardware Requirements
Please use an external eSATA II card or RAID card which can support at least 4 ports to
enhance compatibility and transmission efficiency.
5. OS Software Requirements
This product is applicable to any OS system that supports the SATA card.
4
Hardware Installation Procedure
1. After verifying that the package is complete, proceed to unpack the package.
2. Hardware Installation.
A.Insert the supplied plastic key into the lock hole on the removable tray and carefully
remove the tray.
B.Remove the holder from the removable tray with a screwdriver (be careful not to
damage the nuts)
C.Mount the hard disk drive and fasten the screws.
Hardware Installation Procedure
SATA
SATA
SATA
SATA
ST7610 eSATA Ports eSATA cable
eSATA
1
2
3
4
eSATA
5Hardware Installation Procedure
Ｄ.Carefully push the removable tray into the slot and push the handle back into place.
3.Connection Wiring Installation.
A.Four Individual Hard Disk Drives Mode
a. Connect the ends of the four eSATA-to-eSATA cables to the SATA II card (Note) and
connect the other ends of the eSATA-to-eSATA cables to the eSATA ports on the
ST7610. Make sure the screws on the bracket are fastened and the eSATA
connectors are secured.
b. After ensuring the device is installed successfully, power on the ST7610 first and then
turn on the PC when the ST7610 runs normally.
SATA Card PCI Slot
Computer Case
6
B.RAID CARD Mode
a. Install the RAID CARD into the PCI slot on the PC (Note). Connect the ends of the
four eSATA-to-eSATA cables to the SATA interface on the RAID CARD and connect
the other ends of the eSATA-to-eSATA cables to the eSATA ports on the ST7610.
Make sure the screws on the bracket are fastened and the eSATA connectors are
secured.
b. After ensuring the device is installed successfully, power on the ST7610 first and then
turn on the PC when the ST7610 runs normally. Users may use the optional RAID
CARD to set up the RAID level (please refer to the user manual for the RAID CARD).
SATA
SATA
SATA
SATA
ST7610 eSATA Ports eSATA cable
eSATA
1
2
3
4
eSATA
RAID Card PCI Slot
Computer Case
1. We strongly recommend purchasing an external SATA II (3.0 GHz) card to enhance compatibility and transmission
efficiency. Please be advised that the external card should work properly before the ST7610 incorporates with the
external card to be a highly efficient external enclosure storage system.
2. PCI-X SATA II is available on the RAIDON web site, which is an alternative solution for customers who do not have
the SATA II interface on their motherboards or are in need of high-speed data transmission.
3. When using the external RAID card, please follow the manual to install the RAID system provided by its manufacturer.
Only when the RAID card operates normally shall ST7610 incorporate the card to become a highly efficient RAID
system.
4. Users may use commercially available RAID cards provided by RAID manufacturers such as Areca, 3ware, High Point
and Promise RAID card for a highly efficient RAID system.
Hardware Installation Procedure
Hard Disk Drive Format Procedure
Hard Disk Drive Format Procedure
7

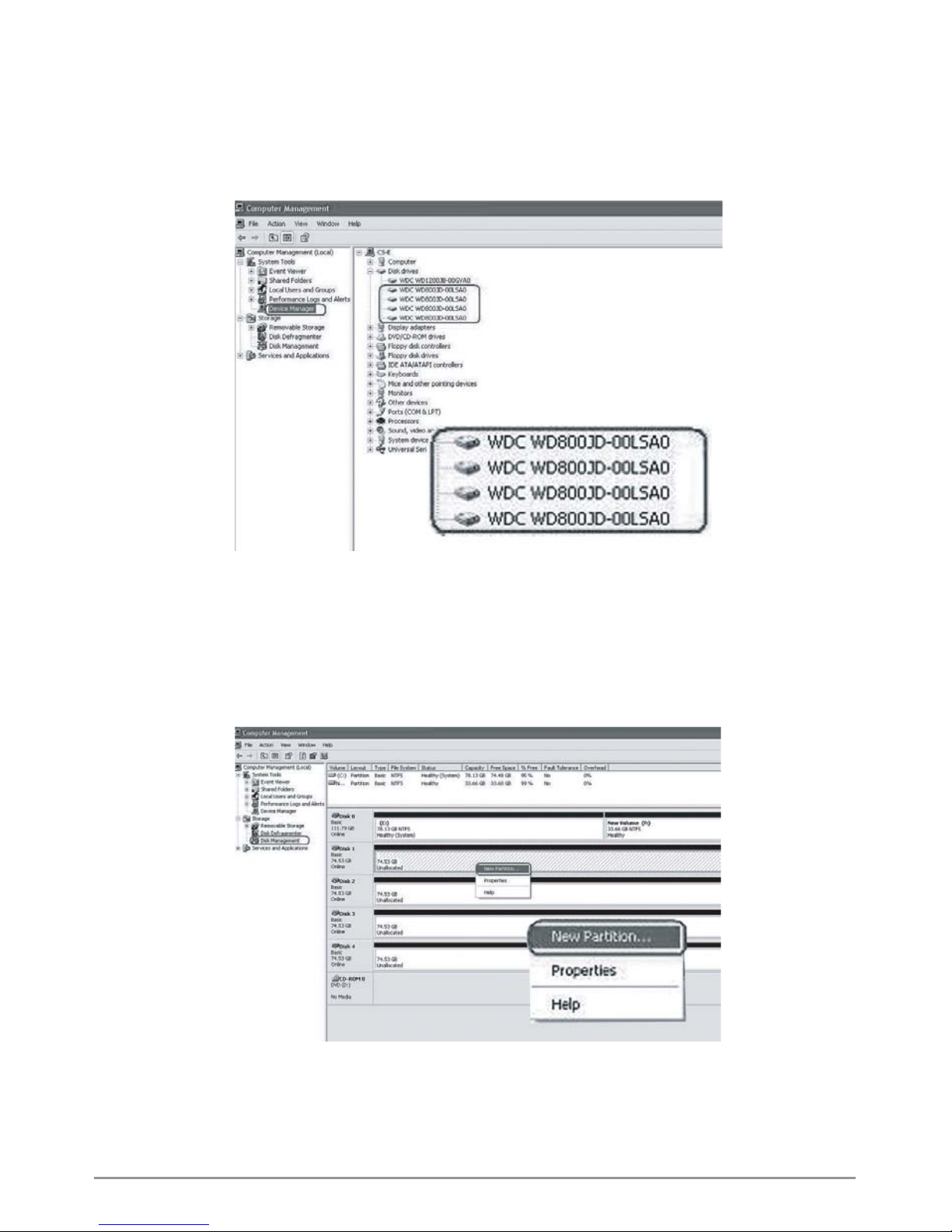

1. In the four individual Hard Disk Drives modes, the installed devices can be detected by the
Device Manager of the operating system.
A.Window OS
2. Customers can format the hard disk drive by using the Disk Management tool of the
operating system and then using the ST7610 normally.
A.Operating Instructions for Windows OS
8
Hard Disk Drive Format Procedure
9
B.Operating Instructions for Macintosh
After the hardware installation for the ST7610 is completed, you can restart the system
and connect the device to Macintosh.
Hard Disk Drive Format (same as in the Windows format function)
a. Move the cursor to the Toolbar on the Desktop, and select the Disk Utility. A disk tool
window will pop up with several function tabs, such as First Aid, Erase, Partition,
RAID and Reinstall.
b. Select the Erase tab. If the disk device is ready, the disk information will be displayed
on the left window.
c. To erase all data and volumes on a disk, please select the icon for the disk drive and
a Volume Format and enter a name and then click “Erase”. A dialog will pop up with
the following message, “Erasing a disk will destroy all information on the volume of
the disk. Are you sure you wish to erase the disk ‘XXX’? Cancel or Erase” If you wish
to erase, please click “Erase”. After the disk is formatted, you can use the ST7610
normally. Please refer to the figure for instructions.
Hard Disk Drive Format Procedure
