RAISE 3D PRO2 Series Bedienungsanleitung
Quick Start Guide
Pro2-Series 3D Printer
* Please review this entire guide before operating the printer.
Pro2 Pro2 Plus
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 26
24 25
27
The contents of this Quick Start Guide may be updated over time. For the latest version, scan the
QR code or visit the link below.
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 26
https://www.raise3d.com/download/#down-quickguide
24 25
27
Pro2-Series 3D Printer
/ Quick Start Guide
A. List of Parts
Pro2
Touch Screen
Hot Ends
Fans
Z-Stage
Print Bed
Filament Feeder
Z Ball Screws
Power Inlet
Power Switch
USB Storage Slots
Pro2 Plus
Wheels
Filament
Run-out Sensor
Camera
HEPA Filter
Filament
Guide Tube
Touch Screen
Hot Ends
Fans
Z-Stage
Print Bed
Filament Feeder
Filament
Run-out Sensor
Z Ball Screws
Power Inlet
Power Switch
USB Storage Slots
Camera
HEPA Filter
Filament
Guide Tube
Ethernet Interface
Ethernet Interface
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 2624 25
27
Pro2-Series 3D Printer
/ Quick Start Guide

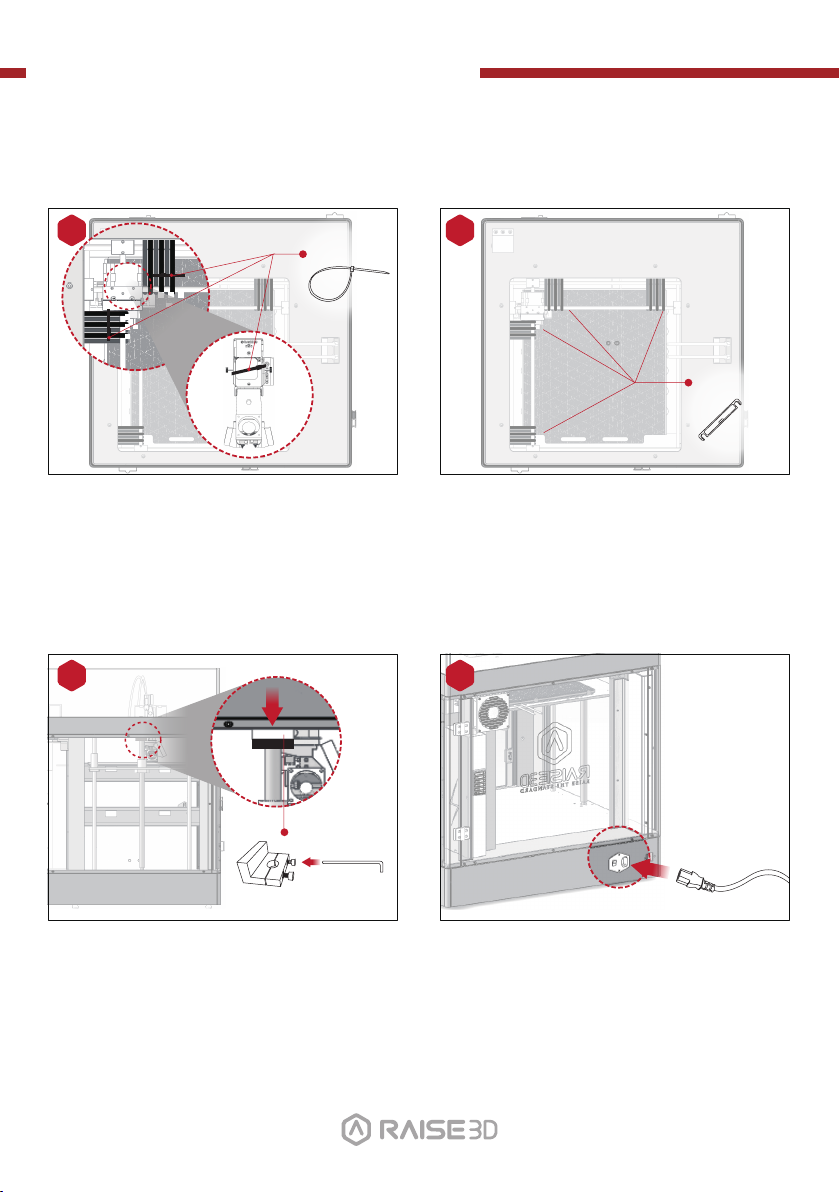

B. Hardware Installation
Locate the four shipping zip ties, and remove
them.
It's recommend to unclip these as opposed to
cutting. They can be reused if you need to
transport your machine in the future.
1
3
Remove!
(×2) Hex Wrench
(3 mm)
Select the largest of the included hex head
wrench (3mm), and remove all four hex head
security bolts from Z-axis clamps (2 bolts
each).
These are located on the left and right sides on
the printer on the ball screw thread.
Peel the yellow sticker and remove the 24
security spacers.
These clips are designed to hold the extruder
assembly in place during shipping and should
be saved for future transport. Do not operate
printer with clips installed.
2
Remove!
(×24)
Remove!
Plug the machine into a wall outlet using the
power adapter for your designated country. (5
included)
Flip the switch to power the unit on.
4
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 2624 25
27
Pro2-Series 3D Printer
/ Quick Start Guide
B. Hardware Installation (continued)
Open the front door, and remove the starter
box and filament box from the base of the
printer.
Open these packages, and compare with the
following contents list.
7
Once the unit has been powered, the printer
will go through a start-up sequence. Your
Raise3D printer will take approximately 60
seconds to boot up. When the touch screen
displays the "Home" screen, the printer is
ready.
5
Open the "Utilities" tab, and press the Z
Homing button.
OK the request, and the print bed will begin to
“home” or move to the origin position.
This will also allow you to access your
accessory packages.
6
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 2624 25
27
Pro2-Series 3D Printer
/ Quick Start Guide
Spatula
Filament
(×2)
Filament Holder
(×2)
Nozzle
Cleaning Kit
Tweezers
USB Storage
Other Accessories
(Spare)
Fuse
15A
10A
Thumb Screws
(Spare)
Power Cable
(×5)
B. Hardware Installation (continued)
Heat Resistant Gloves
Build Plate
(with Build Surface
inside Protective Cover)
List of Contents
Hex Wrenches
2.5mm
2mm
1.5mm
3mm
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 26
24 25
27
Pro2-Series 3D Printer
/ Quick Start Guide
B. Hardware Installation (continued)
Lower the Z platform by 50mm.
To do this, set the interval at "10mm" by
selecting it in the "Move Steps" bar. This will
move the bed 10mm per arrow click. Click this
downward arrow 5 times to move Z platform
downward to 50mm.
8
Remove the aluminum build plate from the
foam packaging.
10
Protective Foam
Cover Build Plate Remove!
Loose the two thumb screws on the Z platform
by rotating the two thumbscrews count-
er-clockwise.
9
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 2624 25
27
Pro2-Series 3D Printer
/ Quick Start Guide
B. Hardware Installation (continued)
Re-install the thumb screws, rotating
clockwise, to lock the build plate into position.
Slide the build plate onto the Z platform with
the logos facing upwards, and the handle edge
facing the front of the machine.
12
13
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 26
Using the included spatula, remove the
leveling calibration model from your
build plate.
11
24 25
27
Pro2-Series 3D Printer
/ Quick Start Guide
B. Hardware Installation (continued)
Open the side door of the printer, and install
the filament holders into the mounting points.
Open one of the included spools of filament,
and place it on the holder.
NOTE: The direction of filament spool should be
placed to rotate in clockwise if at points B and D, and
should be oriented to rotate counterclockwise at
mount points A and C.
A B
C D
14
Mount Points
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 2624 25
Locate the open end of the filament, and feed
it through the guide tube.
15
27
Pro2-Series 3D Printer
/ Quick Start Guide
B. Hardware Installation (continued)
Press the “Utilities” tab on the screen and set
the temperature of the left nozzle for the
filament that you're using.
Press the “Load” button and the printer will
begin to heat. When the target temperature is
reached, press "Load". Complete the feeding
operation according to the instructions on the
screen.
NOTE: This document's instructions are based on the
properties of Raise3D PLA filament. This is the
standard filament included with your product and it is
advised to use the Raise3D PLA for testing and initial
setup.
16
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 2624 25
27
