Raloy CATx Style 1U KVM Switch Bedienungsanleitung
User Manual
1U KVM Switch with CATx Connections
Options :
»KVM Over IP
»Remote Console
»8, 16, or 32 port
»Single or Multi-User
CATx Style KVM Switch
II
Contents
Safety Notice iii
1 Product Overview 1
1-1 Package Content (Standalone KVM) 1
1-2 Package Content (Integrated KVM) 1
1-3 CATx Style KVM Table 2
2 Installation 3
2-1 Before Installation 3
2-2 Unpacking the Unit 3
2-3 Installation Instructions (Standalone KVM) 3
2-4 KVM Port & CATx Dongle Connection 4
2-5 Cascading the KVM 5
2-6 Local and Remote Console Diagram 6
2-7 Connecting a Remote Console 7
3 Operation 8
3-1 KVM Button 8
3-2 Password 9
3-3 On-Screen Display (OSD) 10
3-4 IP Operations 11
3-5 Hotkeys for KVM & Remote Console 11
4 Product Specications 12
4-1 Specications Table 12
4-2 Resolution Support Information 13
4-3 DC Power: 12V, 24V, 48V Input 13
5 Important Information 14
Warranty Information 14
What the Warranty Does Not Cover 15
Regulatory Notices Federal Communications Commission (FCC) 15
Legal Information 15
iii
Please read the following before using your Raloy unit:
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned
environment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it
and the power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and
current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher
than the one listed on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the
power supply or on other hardware may cause damage, re or electrical shock.
■ Only qualied service personnel should open the chassis. Opening it yourself could damage the equipment
and invalidate its warranty.
Safety Notice
1
1 Product Overview
1-1 Package Content (Standalone KVM)
1-2 Package Content (Integrated KVM)
KVM unit
KVM unit
KVM unit
KVM with Remote User
■1 x KVM Unit
■1 x Mounting set w/ bracket & screws
■1 x Power cord (for KVM)
■1 x Receiver box for remote console
■1 x Power adapter with power cord (for receiver)
■1 x RCE-6 6ft combo KVM cable for receiver
■1 x KVM Unit
■1 x KVM Unit
■1 x Mounting set w/ bracket & screws
■1 x Power cord (for KVM)
Remote
USB console
Local
USB
console
Remote
Cat6
Console
CAT 5 / 6 cable
max. 150m
Receiver
KVM with Remote User
■1 x KVM Unit
■1 x Receiver box for remote console
■1 x Power adapter with power cord (for receiver)
■1 x RCE-6 6ft combo KVM cable for receiver
Remote
USB console
Local
USB
console
Remote
Cat6
Console
CAT 5 / 6 cable
max. 150m
Receiver
2
1-3 CATx Style KVM Table
Multi-User Matrix Part Numbers Concurrent Users Local Remote Ports
CATx21016* 2 1 1 0 16
CATx21032* 2 1 1 0 32
CATx31116* 3 1 1 1 16
CATx31132* 3 1 1 1 32
CATx32016* 3 1 2 0 16
CATx32032* 3 1 2 0 32
CATx42116* 4 1 2 1 16
CATx42132* 4 1 2 1 32
CATx41216* 4 1 1 2 16
CATx41232* 4 1 1 2 32
CATx43016* 4 1 3 0 16
CATx43032* 4 1 3 0 32
Single User Part Numbers Concurrent Users Local Remote Ports
CATx10008* 1 1 0 0 8
CATx10016* 1 1 0 0 16
CATx10032* 1 1 0 0 32
CATx10108* 1 1 0 1 8
CATx10116* 1 1 0 1 16
CATx10132* 1 1 0 1 32
www.Raloy.com/support/downloads.html
* Replace with either an e for the touchpad or b for the trackball. i.e CATx10108e
3
2 Installation
2-1 Before Installation
2-2 Unpacking the Unit

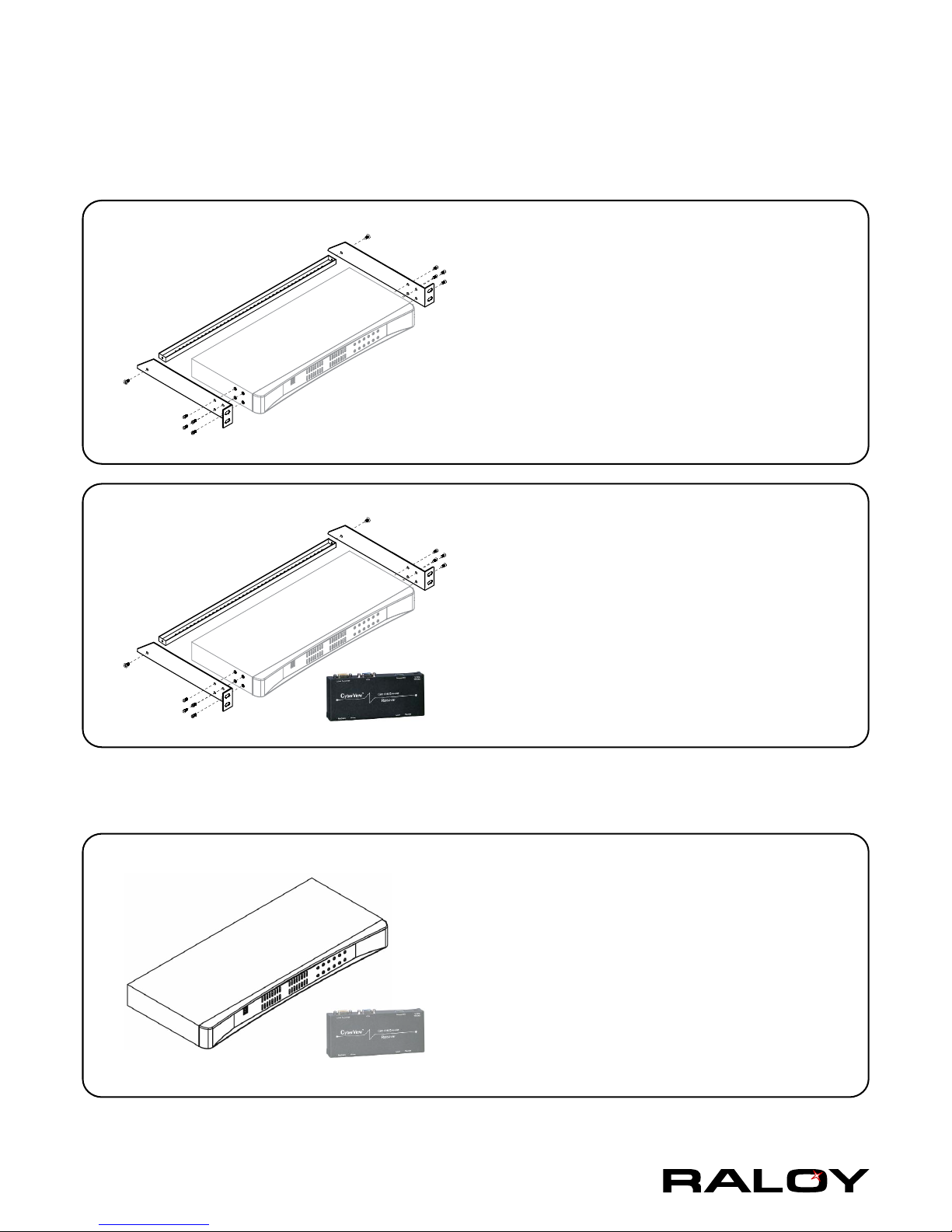

2-3 Installation Instructions (Standalone KVM)
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact Raloy immediately.
AB
M3.2 x 4.5 mm M4 x 10 mm
Screw A: 2 pcs Screw B: 8 pcs
■Install each bracket using the screws provided.
■Mount the KVM into the rack.
Step 1
Step 2
4
RDG-100 VGA-PS/2 dongle
■Connect the DB-15 connector to the server’s video card
■Connect the PS/2 keyboard connector to the server’s keyboard port
■Connect the PS/2 mouse connector to the server’s mouse port
RDG-100S VGA-USB dongle
■Connect the DB-15 connector to the server’s video card
■Connect the USB connector to the server’s USB port
RDG-100SD DVI-USB dongle
■Connect the DVI-D connector to the server’s video card
■Connect the USB connector to the server’s USB port
Cat6 KVM port
USB Servers
PS/2 Servers
RDG-100
VGA-PS/2 dongle
RDG-100SD
DVI-USB dongle
USB Servers
USB
DVI-D
RDG-100S
VGA-USB dongle
USB
VGA
PS/2
VGA CAT 5 / 6 cable
max. 40 meters
CAT 5 / 6 cable
max. 40 meters
2-4 KVM Port & CATx Dongle Connection
5
2-5 Cascading the KVM
Raloy KVMs CATx10008 / CATx10016 / CATx10032 can be cascaded.
■Cascade up to 8 levels (256 servers max)
■Cascade multiple KVM Switches with RCBC-6 cascade cable.
RCBC-6
■6ft Combo KVM cascade cable
When multiple CATx KVMs cascade together, the master KVM at level 1 will take all control
of other slave KVM switches (e.g. level 2 to 8).
Master KVM
Slave KVM
level 2
Slave KVM
level 8
Slave KVM
level 7
Slave KVM
level 6
Slave KVM
level 5
Slave KVM
level 4
Slave KVM
level 3
To console VGA port
Cascade
6

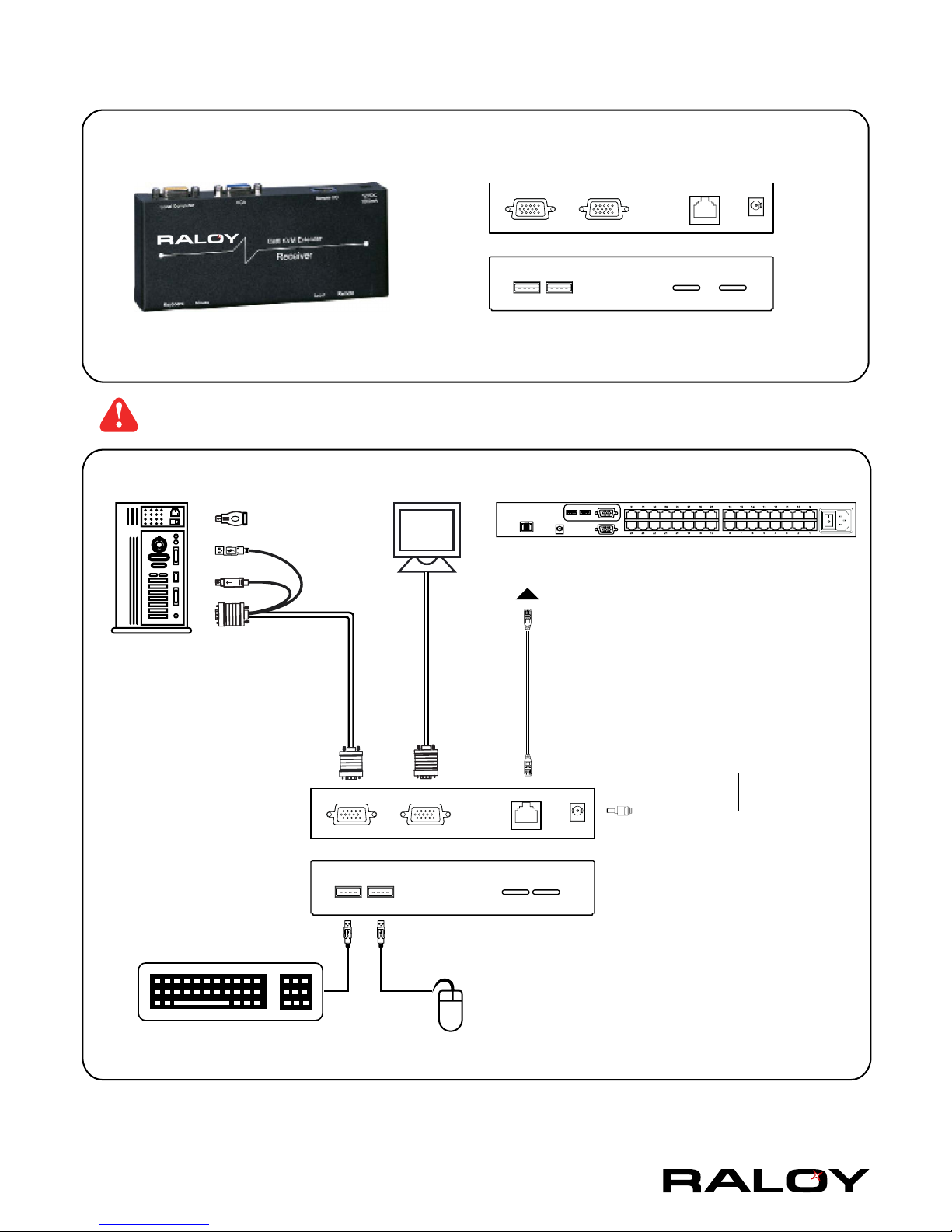

2-6 Local and Remote Console Diagram
7
Receiver
K/B Mouse Local Remote
Local
Computer Monitor
Power
USB
Remote I/O
Monitor
RCE-6
Combo
KVM cable
Cat6 cable
up to 150m
12V DC Power
Adapter
Local computer
( Optional setup )
VGA
cable
Remote
Console
Button
to
PC
Button
to
KVM switch
The receiver provides a hotkey function for remote console.
Front
Rear
Front
Rear
2-7 Connecting a Remote Console
