Range Master LEIHDS120SC Bedienungsanleitung

LEIHDS120SC/

Users Guide

Installation Instructions

CONTENTS

IMPORTANT SAFETY INFORMATION Installation Page 2

Child Safety 2

Maintenance and service

YOUR APPLIANCE

OPERATING INSTRUCTIONS Cooker Hood Controls 4

To Operate 5

Recirculation 5

Extraction 5

MAINTENANCE AND CLEANING Metal Grease Filters 6

Charcoal Filter 6

Lighting 7

Cleaning 7

INSTALLATION INSTRUCTIONS Technical Information 8

ELECTRICAL CONNECTION Elecrical Requirements 9

Electrical Connection 9

INSTALLING THE CHIMNEY HOOD Components 10

Installation Requirements 10

Clearance Heights 11

Fitting the Wall Brackets 11

Drilling the Holes 1 12

Fixing the Canopy 12

Ducting 1

Recirculation 1

Fitting the Recirculation Ducting 1

Fitting the Telescopic Chimney 14

These arnings are provided in the interests of safety. Ensure that you understand

them all before installing or using this appliance. Your safety is of paramount importance.

If you are unsure about the meaning of any of these arnings contact the Helpline.

•INSTALLATION

•Any installation work must be

undertaken by a qualified electrician or

a competent person.

•This hood must be installed in

accordance with the installation

instructions and all measurements

must be adhered to.

•If the cooker hood is installed for use

above a gas appliance then the

provision for ventilation must be in

accordance with the latest edition of

the Gas Safety Codes of Practice and

the Gas Safety (Installation & Use)

Regulations, the Building Regulations

issued by the Department of the

Environment, the Building Standards

(Scotland) (Consolidated) Regulations

issued by the Scottish Development

Department.

•The fan motor of this cooker hood

incorporates a cut-out device which will

operate if the cooker hood is installed

below the minimum height

recommended under the section

‘Clearance Height’, or if the motor

becomes overheated. If the cut-out

device is activated, switch off the fan

motor and allow the cooker hood to

cool. The cut-out device will reset itself

when the fan motor has cooled

significantly.

•It is dangerous to alter the

specifications or modify this product in

any way.

•When installed between adjoining wall

cabinets the wall cabinets must not

overhang the hob.

IMPORTANT SAFETY INFORMATION

•If the room where the cooker hood is to

be used contains a fuel burning appliance

such as a central heating boiler then its

flue must be of the room sealed or

balanced flue type.

•If other types of flue or appliances are

fitted ensure that there is an adequate

supply of air to the room.

•The ducting system for this appliance

must not be connected to any existing

ventilation system that is being used for

any other purpose.

•Do not install above a cooker with a high-

level grill.

•CHILD SAFETY

•This appliance is designed to be operated

by adults. Children should not be allowed

to tamper with the appliance.

•DURING USE

•This product is for domestic use only.

•Never leave frying pans unattended during

use as overheated fats and oils might

catch fire.

•Never do flambé cooking under this

cooker hood.

•Do not leave naked flames under the

cooker hood.

IMPORTANT SAFETY INFORMATION

•MAINTENANCE AND SERVICE

•This appliance can be a hazard if the

grease filters and charcoal filters are not

cleaned and replaced as recommended.

•Always insist on genuine RANGEmaster

spare parts.

•Under no circumstances should you

attempt to repair the appliance yourself.

Repairs carried out by inexperienced

persons may cause injury or more

serious malfunction. In the event of your

chimney hood requiring service contact:

RANGEmaster Helpline: 0845 603

5312, or

Consumer Services: 0870 789 5107

OPERATING INSTRUCTIONS

The chimney hood is designed to extract

unpleasant odours from the kitchen, it will

not extract steam. The appliance can be

installed to recirculate or extract

contaminated air.

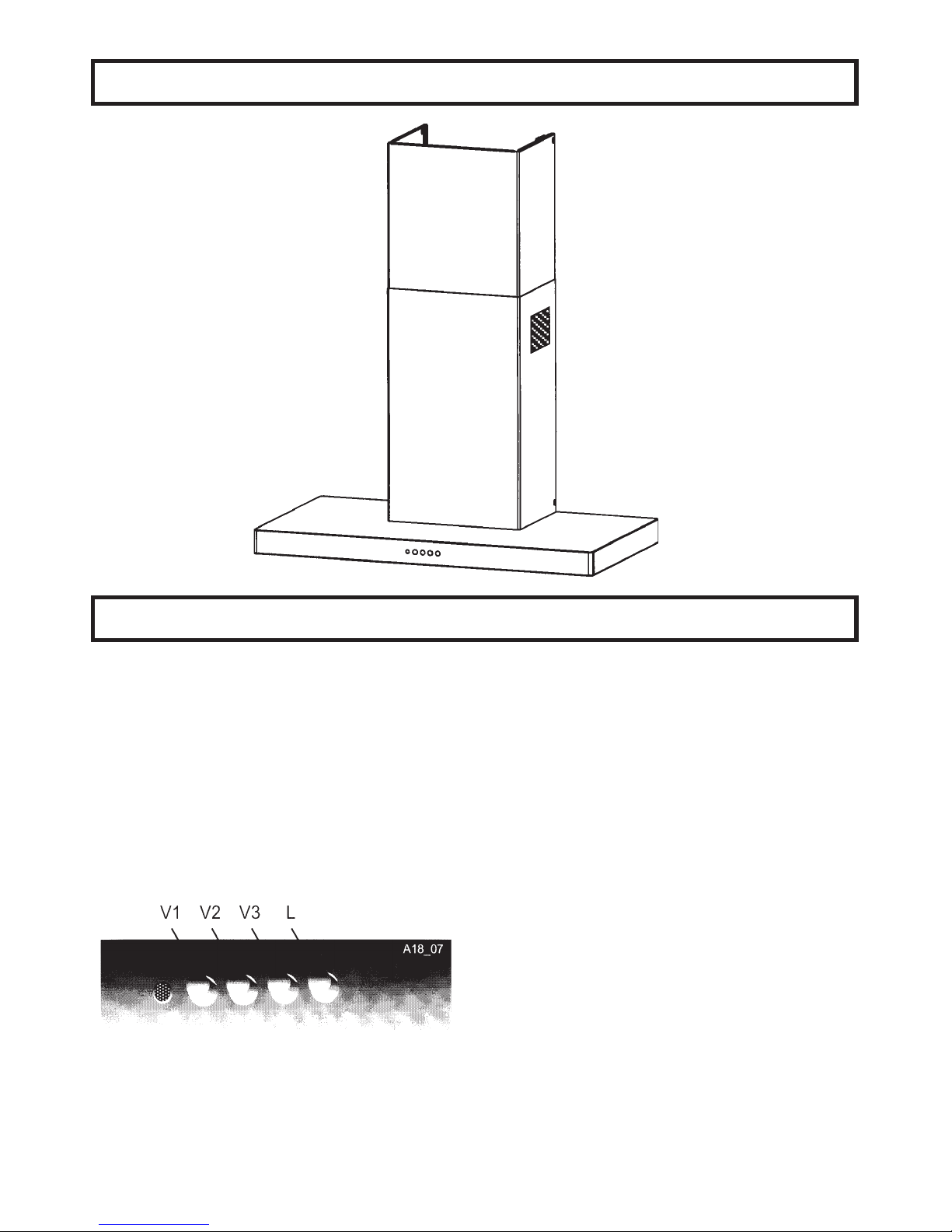

COOKER HOOD CONTROLS

The chimney hood functions are controlled

by four push buttons located centrally on

the front of the canopy.

BUTTON L- Turns the worktop lighting

On and Off.

YOUR APPLIANCE

BUTTON V1 - Turns the fan On and Off at

the low speed setting. This is

an ideal speed when cooking

for long periods as the

continuous flow of air is

particularly quiet.

BUTTON V2 - Medium speed, suitable for

most normal operating

conditions. This speed gives

an excellent ratio between

treated air when the hood is

recirculated and the level of

noise.

BUTTON V3 - High speed, suitable for

removing strong odours when

frying or simmering for long

periods.

TO OPERATE

Select the required fan speed and light if

required.

To obtain the best performance when cooking

it is advisable to switch the chimney hood on

for a few minutes before you start cooking

and leave it running for about 15 minutes after

finishing.

RECIRCULATION

In the recirculation mode contaminated air

enters the chimney hood through the grease

filter cassettes. The air is cleaned as it passes

through the charcoal filter and is passed out

through grilles in either side of the chimney

stack into the kitchen.

EXTRACTION

In the extraction mode contaminated air

enters the chimney hood through the grease

filter cassettes and is passed out through

ducting into the atmosphere.

When used in the ducting mode

the charcoal filter is not required.

Never do flambé cooking under

this chimney hood.

When using a gas hob under this

chimney hood never leave the

burners uncovered hile the

hood is in use or hen the pans

have been removed.

The grease filters and the

charcoal filter should be cleaned

and replaced as recommended or

more frequently if the hood is

used consistently over 4 hours

per day.

OPERATING INSTRUCTIONS

Regular maintenance and cleaning ill ensure good performance and reliability, hile

extending the orking life of the hood. Special attention should be paid to the grease

filter cassettes and the charcoal filter hen the hood is used in the recirculation mode.

Before carrying out any mainte-

nance or cleaning isolate the cooker hood

from the mains supply.

METAL GREASE FILTERS

The grease filters absorb grease and dust

during cooking to help keep the chimney hood

clean inside, and should be cleaned every

month with normal usage or more frequently

if the hood is used consistently over 4 hours

per day.

Remove the metal grease filter

cassettes one at a time, by pressing the

release catch towards the rear of the hood

as illustrated opposite. When replacing the

filters ensure that the handle faces forwards.

The metal grease filters can be washed in a

dishwasher or by hand using a mild detergent

or liquid soap.

CHARCOAL FILTER

In the recirculation mode the activated

charcoal filter absorbs smells and unwanted

odours.

The charcoal filter cannot be cleaned or

regenerated and must be replaced every four

months, or more frequently if the hood is used

consistently over 4 hours per day.

To replace the charcoal filter, first

remove the metal grease filters and press

against the plastic retaining clips to remove

the charcoal filter as illustrated opposite.

We recommend that you wear rubber gloves

when removing the charcoal filter as the filter

will be saturated in grease. Put the filter into

a polythene bag or container so that the

grease and dirt cannot spill onto clothing of

furnishing.

MAINTENANCE AND CLEANING

THIS APPLIANCE CAN BE A

POSSIBLE FIRE HAZARD IF THE GREASE

FILTERS ARE NOT CLEANED AND THE

CHARCOAL FILTERS REPLACED AS

RECOMMENDED.

Replacement charcoal filters may be

purchased by returning the enclosed order

form, or by telephoning 01803 296155 if you

wish to pay by credit card

LIGHTING

The canopy is fitted with three 20W halogen

spotlamps. If one of the spotlamps fails to

function check that the two pins are correctly

inserted into the lamp holder.

To replace a spotlamp remove the two

screws, which secure the lens retaining ring

and glass lens as illustrated. Take care to

ensure the lens and retaining ring are

supported while removing the screws. Extract

the spotlamp from the lamp holder by pulling

gently.

Replacement spotlamps are specified 2 0V

20W.

When replacing the spotlamps, make sure

that the two pins are correctly inserted in the

lamp holder, and then replace the glass lens

and retaining ring.

CLEANING

We recommend the chimney hood is cleaned

using a damp cloth wrung out in warm soapy

water using a mild liquid household cleaner.

Never use excessive amounts of

ater hen cleaning, in particular

around the control buttons.

Never use thinners or products

containing alcohol, as they ill

damage the painted or bright metal

finish.

Never use abrasive cleaning

materials, or scouring pads in

particular hen cleaning painted or

bright metal finish.

MAINTENANCE AND CLEANING

It is dangerous to alter the specifications or attempt to modify this chimney

hood in any ay.

TECHNICAL INFORMATION

DIMENSIONS CANOPY: Height 60mm

Width 1198mm

Depth 490mm

CHIMNEY: Height - Upper Chimney 215mm

Lower Chimney 740mm

Width 00mm

Depth 260mm

ELECTRICAL SUPPLY VOLTAGE: ~50Hz 2 0V

POWER CONSUMPTION: 200W

FAN: 140W

SPOTLAMPS: x20W 60W

PERFORMANCE SPEEDS

CAPACITY m /h* 550

CAPACIITY m /h** 690

PRESSURE PA 40

INPUT W 200

NOISE LEVEL dBA*** 67

*IEC 61591 method for cooker hoods in evacuation mode - ** IEC 61591 method with free delivery - ***IEC

60704-2-1 method

Note: CE Marking certifies that this appliance complies ith the requirements

laid do n in EEC directive 89:336 (Electromagnetic compatibility) and

subsequent modifications and Lo Voltage directive 72/23/E.

INSTALLATION INSTRUCTIONS

ELECTRICAL REQUIREMENTS

Any permanent electrical installation must

comply with the latest I.E.E. Regulations and

local Electricity Board regulations. For your

own safety this should be undertaken by a

qualified electrician e.g. your local Electricity

Board, or a contractor who is on the roll of

the National Inspection Council for Electrical

Installation Contracting (NICEIC).

ELECTRICAL CONNECTION

Before connecting to the mains supply

ensure that the mains voltage corresponds

to the voltage on the rating plate inside the

cooker hood.

This appliance is fitted with a core mains

cable and must be permanently connected

to the electricity supply via a double-pole

switch having mm minimum contact gap on

each pole. A Switched Fuse Connection Unit

to BS.1 6 Part 4, fitted with a Amp fuse, is

a recommended mains supply connection

accessory to ensure compliance with the

Safety Requirements applicable to fixed

wiring instructions.

This appliance conforms to BS.800:1988 and

EEC Directive No. 78 08 regarding

suppression of radio and television

interference.

ELECTRICAL CONNECTION

THIS APPLIANCE MUST BE EARTHED

Andere Range Master Dunstabzugshaube Handbücher

Range Master

Range Master RM50000 Series Bedienungsanleitung

Range Master

Range Master 64000 series Bedienungsanleitung

Range Master

Range Master RMHDT110SS Bedienungsanleitung

Range Master

Range Master 63000 Series Bedienungsanleitung

Range Master

Range Master INFHDS90SS Bedienungsanleitung

Range Master

Range Master RM51000 Series Bedienungsanleitung

Range Master

Range Master RM60000 SERIES Handbuch

Range Master

Range Master 61000 Series Bedienungsanleitung

Range Master

Range Master GLX490 RM Bedienungsanleitung

Range Master

Range Master OPLHD60 Bedienungsanleitung

Range Master

Range Master HI-LITE HLTHDS90 Bedienungsanleitung

Range Master

Range Master RM50000 Series Bedienungsanleitung

Range Master

Range Master RMP1 series Bedienungsanleitung

Range Master

Range Master 63000EX Series Bedienungsanleitung

Range Master

Range Master RMHDT90SS Bedienungsanleitung

Range Master

Range Master RM51000 Series Bedienungsanleitung

Range Master

Range Master RMIP45 Bedienungsanleitung

Range Master

Range Master RM61000EX series Bedienungsanleitung

Range Master

Range Master RM65000 Series Bedienungsanleitung

Range Master

Range Master GLX390 Bedienungsanleitung

Range Master

Range Master RMDD3004 Bedienungsanleitung

Range Master

Range Master RMG1H60SG Bedienungsanleitung

Range Master

Range Master 637004 Bedienungsanleitung

Range Master

Range Master HI-LITE HLTHDS90 Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
