Rat Rig V-CORE Bedienungsanleitung
V-CORE
build guide
© Rat Rig 2018. All rights reserved.
V-Core Design by Teemu Mäntykallio
V-core - build Guide
1
Index
Frame extrusion lengths ................................................................................................................. 2
Frame corners ................................................................................................................................ 3
Z rails.............................................................................................................................................. 4
XY motor and plates ....................................................................................................................... 5
XY belt idler stack........................................................................................................................... 6
XY idlers ......................................................................................................................................... 7
Z frame overview ............................................................................................................................ 8
Z frame plates and wheels.............................................................................................................. 9
Z frame front corners .................................................................................................................... 10
Z motors and lead screws............................................................................................................. 11
Anti backlash nuts......................................................................................................................... 12
X frame......................................................................................................................................... 13
Openbuilds wheels and idlers ....................................................................................................... 14
X idler wheel stacks ...................................................................................................................... 15
X rail wheels and plates................................................................................................................ 16
X carriage ..................................................................................................................................... 18
Extruder body ............................................................................................................................... 20
Extruder assembly..................................................................................................................... 21
V-core - build Guide
2
Frame extrusion lengths
2040
460mm
2040
460mm
2020
500mm
V-core - build Guide
3
Frame corners
Screws
M5 8mm
Double
T nuts
for Z motors
V-core - build Guide
4
Z rails
M5
8mm
2020
500mm
V-core - build Guide
5
XY motor and plates
M5
8mm
M3
6mm
V-core - build Guide
6
XY belt idler stack
M5 Wheel
spacer
5mm
precision
washer
V-core - build Guide
7
XY idlers
M5
50mm
M5
8mm
M5
Nylock nut
V-core - build Guide
8
Z frame overview
331mm
381mm
359mm
V-core - build Guide
9

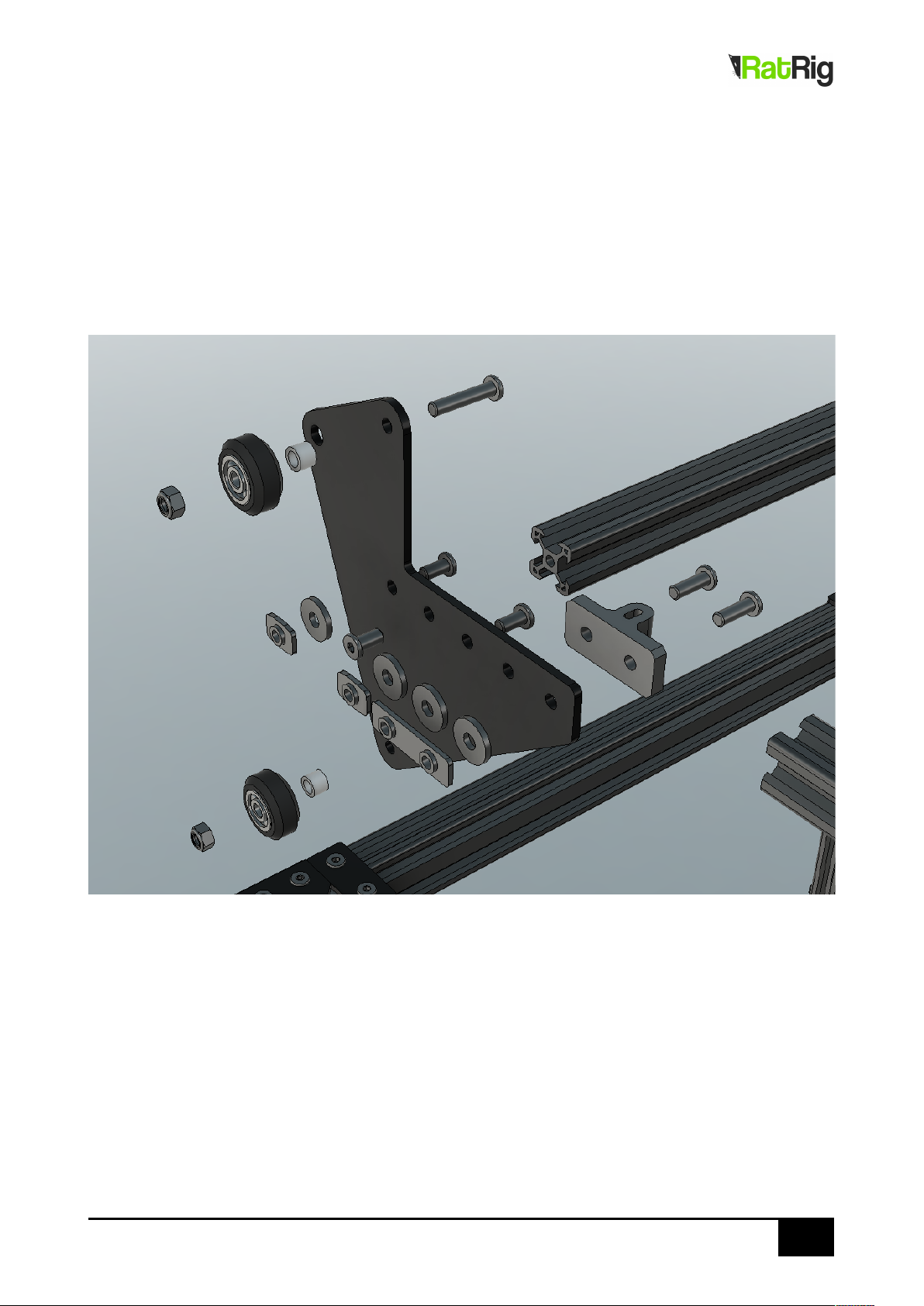

Z frame plates and wheels
M5
25mm
10mm
15mm
Slot washer
6mm
spacer
