Rayence 1417WGC Leitfaden

USM

020

1417WGC

User / Installation Manual

Version 1

Date: 2014-03-24

USM

020

All pages of this document contain proprietary and confidential

information of Rayence Corporation and are intended for exclusive use

by Rayence Corporation personnel or customers. Copying, disclosure to

others or other use is prohibited without the express written

authorization from Rayence Corporation. Please report any violations of

requirement to Rayence Corporation.

USM

020

Attention

For improvement of product performance, supplementation, or follow-up of information; the

contents of this manual are subject to change without separate prior notice.

Please note that our company has neither responsibility for any accidents nor obligation to

do free repair service for any damage of the equipment due to user's mistake, which resulted

from failure to follow the contents in this manual. Make sure to be familiar with the safety

precautions and usage procedures. Also note that the product may slightly differ from the

contents of this manual depending on specification.

The following marks are used for the effective use of the product in this manual.

Attention, consult accompanying documents.

This is used to emphasize essential information. Be sure to read this

information to avoid incorrect operation.

This indicates hazardous situation which, if not heeded, may result in

minor or moderate injury to you or others, or may result in machine

damage.

This indicates a potentially hazardous situation which, if not heeded, could

result in death or serious injury to you or others.

Federal Law restricts this device to sale by or the order of a radiologist or

any other practitioners licensed by the law of the state in which that

person practices to use or order the use of the device.

USM

020

Contents

1. Introduction ................................................................................. 6

(1) Overview .................................................................................... 6

(2) Intended use .............................................................................. 6

(3) Product features ........................................................................ 7

(4) Product components ................................................................. 8

(5) Components Description ........................................................ 11

(6) Warning .................................................................................... 14

(7) Caution ................................................................................... 16

2. Notes for Using the Detector ..................................................... 19

(1) Preparing ................................................................................. 19

(2) Handling................................................................................... 21

(3) Before Exposure ...................................................................... 22

(4) During Exposure ..................................................................... 22

(5) Limit of Load ............................................................................ 23

(6) Disinfection and Cleaning ....................................................... 24

(7) Others ...................................................................................... 24

3. Technical Features .................................................................... 25

(1) Mechanical Features ............................................................... 25

(2) Electrical Features .................................................................. 25

(3) Environmental requirement .................................................... 29

(4) PC Requirements .................................................................... 29

4. Installation ................................................................................. 30

(1) Program setup ......................................................................... 30

(2) Connection (Manual Trigger) .................................................. 31

(3) Connection (Auto Trigger) ...................................................... 39

(5) IP set up ................................................................................... 44

(6) Using FPD_Manager (IP, SSID Change / Upgrade FW) .......... 45

5. Calibration ................................................................................. 51

(1) General Principle ..................................................................... 51

(2) Calibration ............................................................................... 53

6. Image Acquisition Test .............................................................. 58

(1) Get Image ................................................................................. 58

(2) View Images ............................................................................. 59

(3) Get Recent Frame .................................................................... 64

7. Operation ................................................................................... 65

(1) Recommend............................................................................. 65

(2) Switching power on / off ......................................................... 65

(3) Storage .................................................................................... 65

8. Safety Information ..................................................................... 66

(1) Safety standard ....................................................................... 66

(2) Electromagnetic Compatibility Information ........................... 68

9. Radio Frequency compliance .................................................... 73

(1) FCC Notice (U.S.A) .................................................................. 73

(2) IC Notice (CANADA) ................................................................ 75

(3) R&TTE Notice (European Union) ............................................ 76

10. Maintenance .............................................................................. 77

USM

020

(1) Maintenance ............................................................................ 77

(2) Cleaning ................................................................................... 77

(3) Inspection ................................................................................ 78

(4) Disposal or Recycling ............................................................. 79

(5) Marking and labeling symbols ................................................ 80

Appendix ........................................................................................... 82

USM

020

1. Introduction

(1) Overview

The 1417WGC is a wireless digital X-ray flat panel detector that

can generate images of any part of the body. The wireless

LAN((IEEE 802.11a/g/n) communication feature improves the

operability, and high-speed processing. This X-ray imaging

system consists of a scintillator directly coupled to an a-Si TFT

sensor. It makes high-resolution, high-sensitive digital images.

(2) Intended use

Digital Flat Panel X-Ray Detector is indicated for digital imaging

solution designed for general radiographic system for human

anatomy. It is intended to replace film or screen based

radiographic systems in all general purpose diagnostic

procedures. Not to be used for mammography.

USM

020

(3) Product features

 Wi-Fi (802.11a/g/n)

 Based on a-Si TFT active matrix

 Compact (15.4mm thickness) and light weight (Typ. 3kg)

 Limiting Resolution : 3.9 lp/mm

 14/16-bit digital output

 Easy integration

USM

020

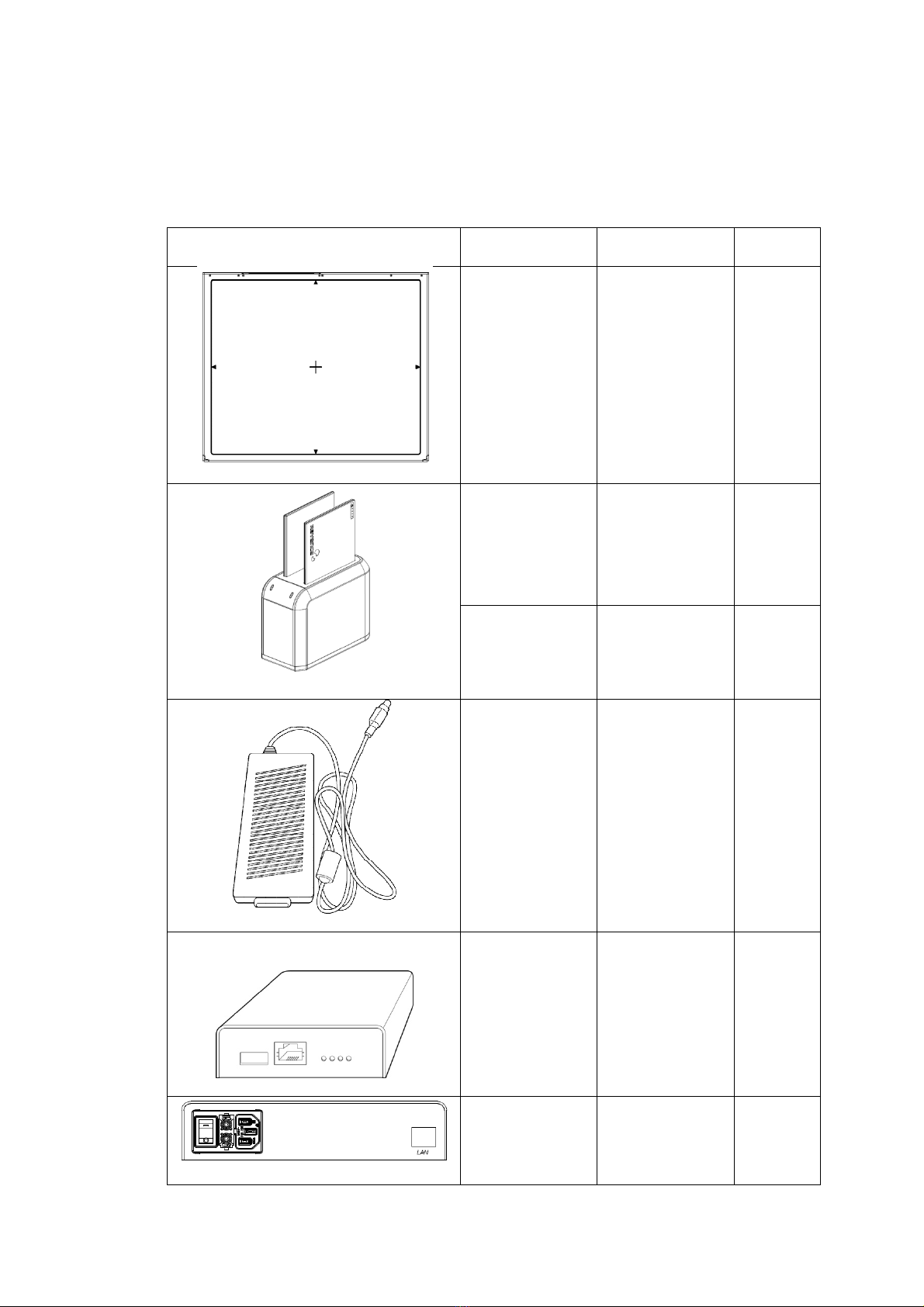

(4) Product components

 Medical Image Processing Unit


Item

Part Name

Quantity

Detector RD1417WGC 1

Battery pack RB37WHA 2

Battery charger

RC120WA 1

Charger

adapter PMP120-13-3 1

AGI RA001A 1

Power supply

box RP003A 1

USM

020

 Cables

Item

Part Name

Length

Quantity

Link cable

7m 1

P-

Interface

cable

VRH017A 8m 1

USB

cable(A to

VRH078A 1.8m 1

LAN

cable VRH027A 10m 1

AC Power

cord VRH018A/019A 1.8m 2

 Installation CD

o Manual

o Detector Library

USM

020

 Option

o Additional Battery

o Trigger cable
