Remote Display

Important

Due to the wireless communication systems used in Micronet

instruments they are only recommended for use on boats up to 18

metres (60 ft.) Before installing to a boat of aluminium or steel

construction, please contact your Raymarine dealer.

Like any other electronic instruments your Micronet system is designed

to serve only as an aid to navigation and it remains the skippers

responsibility to maintain a permanent watch and be aware of

developing situations.

Any attempt to take a Micronet product apart will invalidate the warranty.

The battery may only be replaced by a person trained and approved for

this purpose.

EMC Conformance

All Raymarine equipment is designed to the best industry standards for

use in the recreational marine environment. The design and

manufacture of Raymarine equipment conforms to the appropriate

Electromagnetic Compatibility (EMC) standards. Correct installation is

required to ensure that performance is not compromised.

Remote Display

www.raymarine.com

Contents

www.raymarine.com

1 Information Page

1.1 Introduction - 2

1.2 Specifications - 2

1.3 Power Management and Battery Life - 3

1.4 Safety and Disposal - 4

2 Operation

2.1 Display Information - 5

2.2 Switching the System On and Off - 5

2.3 Information Display Operation - 6

2.4 Remote Control Operation - 7

2.5 Backlighting - 8

2.6 Keylock - 9

2.7 Audible Signals and Alarms 9

2.8 Information Display - Data Item Descriptions - 10

3 Setup and Calibration

3.1 Entering Setup and Calibration Mode - 18

3.2 Setup and Calibration Chapter and Page Operation 18

3.3 Editing Values - 18

3.4 Setup Chapter and Page Organisation - 20

3.5 Setup Parameter Descriptions - 21

4 Seatrial and Calibration

4.1 Depth Offset - 31

4.2 Speed Calibration - 32

4.3 Wind Calibration - 33

4.4 Compass Calibration and Alignment - 34

5 Installation

5.1 Changing the Bezel - 35

5.2 Cradle - 35

6 Maintenance and Fault Finding

6.1 Care and Maintenance - 36

6.2 Fault Finding and Technical Support - 36

7 Warranty Information

1 Information

1.1 Introduction

Your Raymarine Remote Display provides a unique combination of

features:

Mobile display of instrument data

All data available on your Micronet network can be viewed wherever you

are located on your vessel.

Remote control of Micronet displays

The Remote Display can control the other Micronet displays on your

network, i.e. Maxi, Dual Maxi and remote enabled models of the Digital,

Dual Digital and Analogue displays.

Solar Power

Your Micronet display is powered for life by the environment. Although

feature packed and highly visible in all conditions, current demand is so

low, and the supply so efficient, that the solar-powered display is self

sufficient. Combined with other displays in the Micronet range this

display becomes part of a complete navigational system.

1.2 Specifications

Height of digits: 15mm (0.6 inches)

Backlighting: 3 levels with daylight shutoff

System-wide or local control

Power: Solar Powered

300 hrs autonomy by day, 7 nights at brightest backlighting,

20 nights at economy backlighting without charge

Units of display: Boat Speed (knots, km per hour, statute miles per hour)

Distance (nautical miles, statute miles, kilometres)

Depth (metres, feet, fathoms)

Wind Speed (knots, metres per second, Beaufort)

Alarm: Audible Alarm for Depth, Wind, Cross Track Error and

Waypoint Arrival

Weight: 135g (0.3 lbs)

Operating Temp.: -10oto +60oC (14oto 140oF)

Frequency: 868 MHz or 916 MHz

Remote Display

2www.raymarine.com

Bright Sunny Day

Overcast Day

Night

Battery is charged and being

topped up by the sun. (see Note)

Battery is low and being charged

by the sun.

Battery is charged and requires no

further charging.

Battery is low but maintaining it’s

level.

Battery is charged but is not

charging.

Battery is low with no charging.

It is recommended that the

instrument be left in daylight for

some time for the battery to

recover. A fully discharged battery

will recharge in approximately 12

hours of direct bright sunlight.

LOW Power

Information

If using the displays at night, power usage can be reduced dramatically

by switching the Backlighting to level 1 or Off. If Backlighting is not

required on displays located below decks it is best to set them to "Local"

backlighting control (see page 28 S38) so that power is not being

wasted in displays which may not be visible from the one being viewed.

Note: If the internal battery is fully charged then it does not matter how

much the display is subjected to bright sunlight no further charging is

required and the Charge Rate Indicator will remain low.

If the displays are to be stored for a long period of time before next use

(Over Winter) ensure that the batteries are fully charged before storage.

www.raymarine.com

1.3 Power Management and Battery Life

What makes your Micronet display possible is Raymarine’s revolutionary

approach to power management. By reducing the amount of power

being used by the electronics and maximizing the potential of the sun to

provide power, a Micronet display becomes a virtually perpetual device.

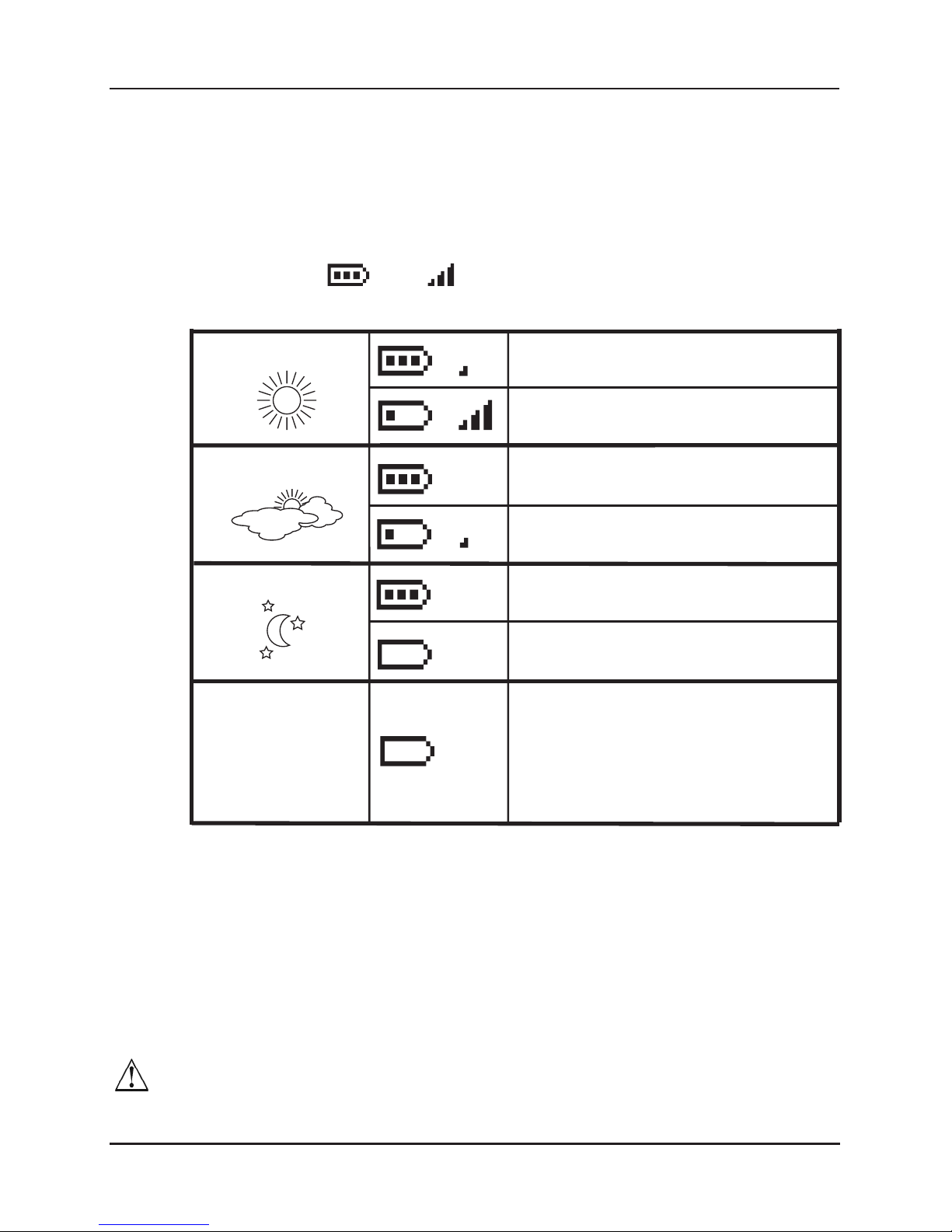

Power status is indicated by two icons on the display:

Battery Level and Charge Rate

Used together these icons will show the condition of the power supply.

Pocket Mode

When Pocket Mode is enabled (see page 28 S35) the Remote display

switches off the LCD panel after a user configured time delay. The unit

remains connected to the network and pressing any button switches the

display panel back on.

Sleep Mode

If there is no boat speed or change in heading registered on the system

for a period of 12 hours your Remote Display will switch off to conserve

power. A "POWER SAVE" alarm will sound before the system switches

off. Pressing any button within 10 seconds of the alarm sounding will

allow the system to remain switched on.

Backlighting will automatically shut down/off when operated in daylight.

Artificial light WILL NOT recharge the battery. Placing your Micronet

display close to an artificial light will seriously damage the display. Only

recharge in natural daylight.

1.4 Safety and Disposal

Your Micronet display contains Manganese Lithium Dioxide batteries

which should be disposed of correctly. Do not dispose of any instrument

in domestic waste. Refer to regulations in force in your country.

If in doubt return the instrument to Raymarine Ltd. for correct disposal.

Remote Display

4www.raymarine.com

2 Operation

Important:

Ensure that the "Auto Network" procedure described on the yellow

instruction sheet and full Setup and Calibration has been performed

correctly before attempting to use your Micronet system.

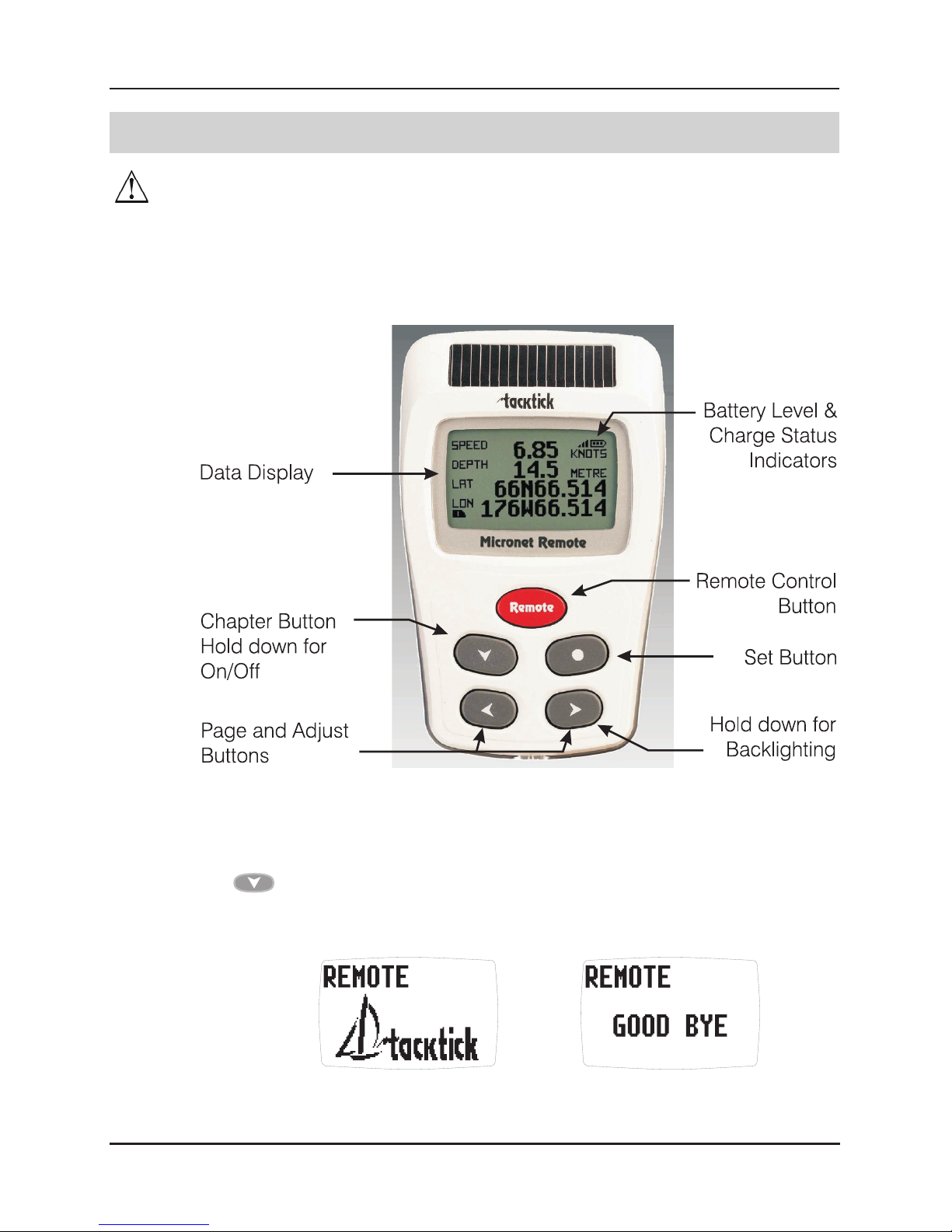

2.1 Display Information

2.2 Switching the System On and Off

To switch your Micronet system on or off select any display and press

the button for 2 seconds.

Operation

www.raymarine.com

Switch on Switch off

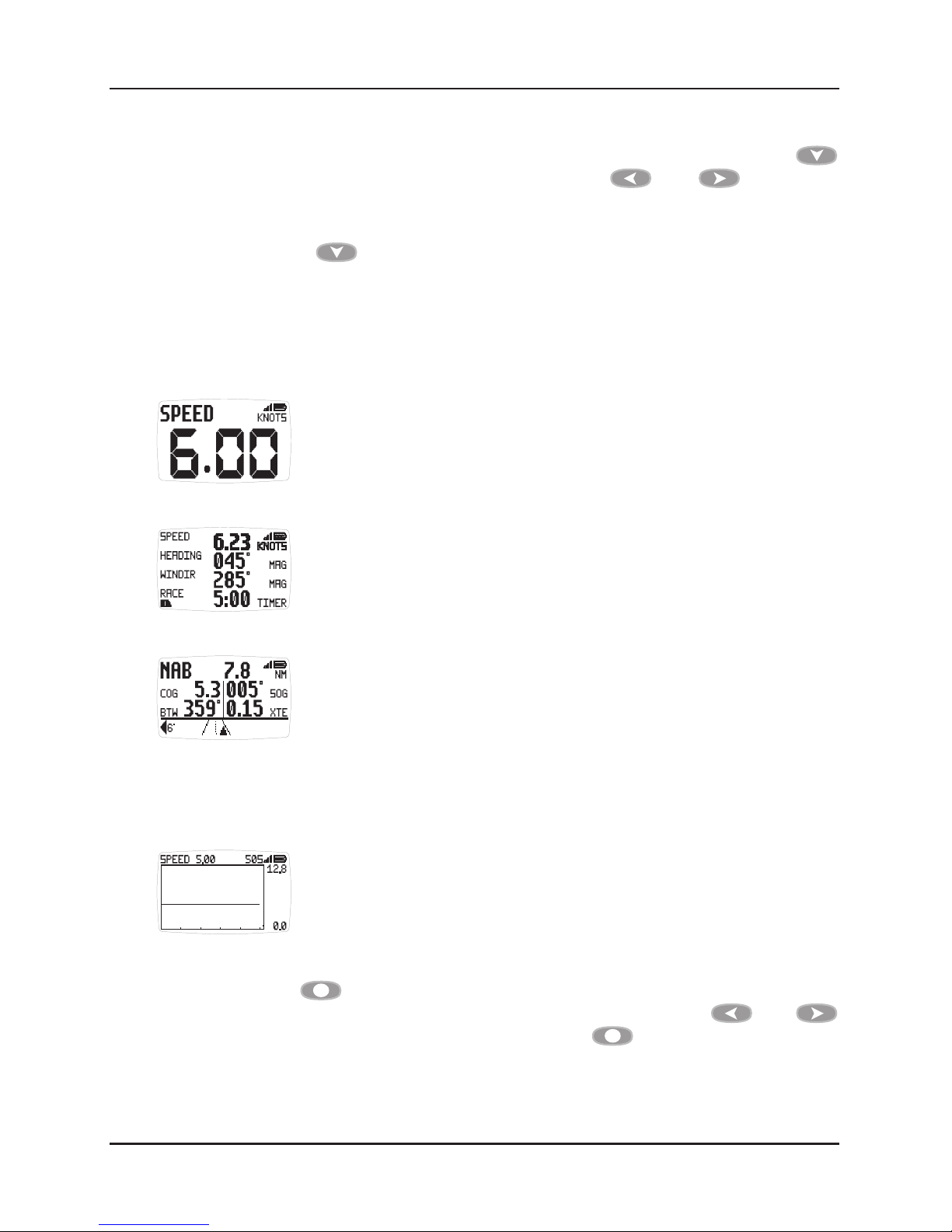

2.3 Information Display Operation

Information is displayed in a "Chapter and Page" format using the

button to scroll through the chapters and the and buttons to

move between the pages within a chapter. The diagram below shows

the information format.

Pressing the button at any time moves to the next Chapter and the

page last selected in that Chapter will be displayed. Both Chapter and

Page selection will scroll back to the first page once a cycle has been

completed.

Four chapters are available:

Single line displays

Eight pages, each displaying a single item of data. The data

item to be displayed on each page can be selected in setup

from the full list of data pages described in section 2.8.

See setup on page 25 S28.

Four line displays

Four pages, each displaying four data items. The data items

to be displayed on each page can be selected in setup from

the full list of data pages described in section 2.8.

See setup on page 26 S29

Rolling Road display

A single page displaying the following navigation data:

current waypoint name, distance to waypoint, course over

the ground (COG), speed over the ground (SOG), bearing to

waypoint, cross track error and turn angle.

A rolling road diagram illustrates the vessels course in

relation to the direct track from the previous to the current waypoint and

the direction to steer to return to the direct track.

Graph Displays

Two pages, each displaying a plot of a user selected data

item against time. See setup on page 26 S30.

For the wind direction graph, LFT and HDR labels indicate

the lift and header trend segments of the graph.

To alter the time span of a graph:

Press the button while the graph is displayed. The message

“CHANGE TIME” appears at the top of the page. Use the and

buttons to change the time span. Press again to confirm the

selection.

Remote Display

6www.raymarine.com

Operation

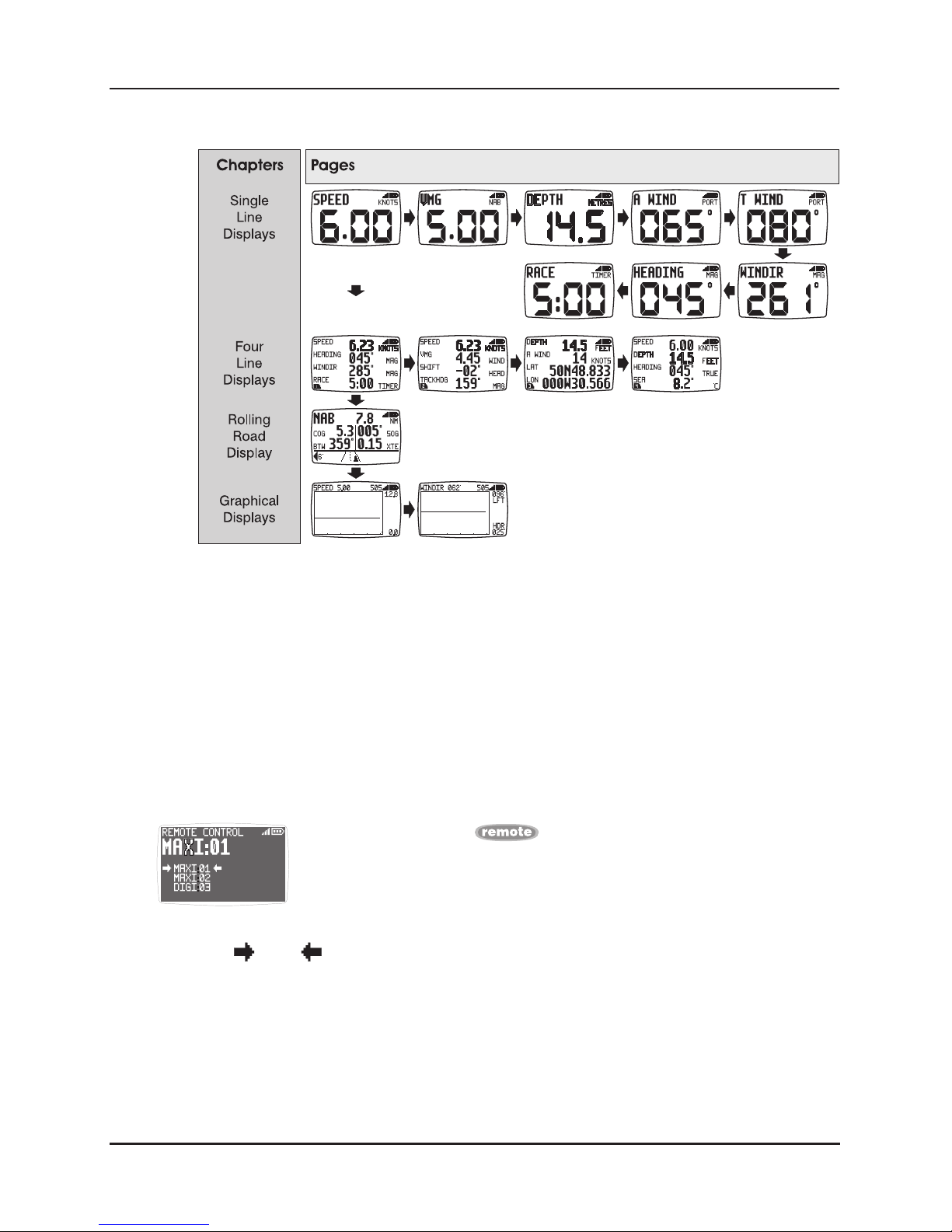

Default Chapter and Page diagram

2.4 Remote Control Operation

In this mode, the Remote Display is able to control the functions of other

displays on the Micronet network.

All remote control screens are displayed in "reverse", with white text on

a black background, to allow immediate recognition of remote control

mode.

Remote control mode is cancelled if a period of thirty seconds elapses

in which no key is pressed. The Remote Display automatically returns to

information display mode.

To enter Remote Control mode

Press and hold the button.

The Remote Display builds a list of the Micronet displays on

the network that are configured for remote control. This list

allows the user to select a display to control with the Remote

Display. The display that is currently selected for control is indicated by

the and markers around the display identifier.

The screen of the selected display will flash to indicate that it is under

remote control.

Displays on the network can be added to or removed from the list and

the order of the list can be modified. See setup on page 27 S32 for

details on how to configure the list

www.raymarine.com

Remote Display

8www.raymarine.com

To select a different display for control

Repeatedly press the button until the required display is

highlighted.

The screen of the newly selected display will flash to indicate that it is

under remote control.

To control the selected display.

Pressing the , , or button on the Remote Display

has the same effect as pressing that same button on the controlled

display. For example, pressing the button will cause the controlled

display to scroll to the next chapter.

The full range of operation and configuration functions on the controlled

display is available by pressing keys on the Remote Display.

Note: The first press of , , or on the remote display

causes the screen of the controlled display to stop flashing but the

controlled display remains under remote control until the Remote

Display exits remote control mode.

To exit Remote Control mode

Press and hold the button. The Remote Display returns to

information display mode.

If a period of thirty seconds elapses without a key press, remote control

mode is automatically cancelled and the Remote Display returns to

information display mode.

2.5 Backlighting

At any stage of the display’s operation press and hold for 2 seconds the

button to access the lighting control.

Pressing the and buttons will scroll through

setting OFF, 1, 2 and 3 whilst changing the backlighting.

Depending on the display setup (see page 28 S38),

Backlighting on the whole system or just the single display

will be altered.

In Pocket Mode, backlighting will turn off automatically after a preset

interval which can be configured in setup (see page 28 S35)

Backlighting is automatically switched off in daylight as part of the

display’s power saving feature and will not operate in daylight.

Andere Handbücher für Remote display

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Raymarine Schiffsausrüstung Handbücher

Raymarine

Raymarine ST60 Tridata Benutzerhandbuch

Raymarine

Raymarine Autohelm 3000 Bedienungsanleitung

Raymarine

Raymarine ST40 Speed Benutzerhandbuch

Raymarine

Raymarine stand-alone master instrument Bedienungsanleitung

Raymarine

Raymarine SmartPilot X-5 Sport Bedienungsanleitung

Raymarine

Raymarine C-Series Bedienungsanleitung

Raymarine

Raymarine ST4000 Plus Benutzerhandbuch

Raymarine

Raymarine SmartPilot ST7002 Bedienungsanleitung

Raymarine

Raymarine hsb2 PLUS Series Benutzerhandbuch

Raymarine

Raymarine Autohelm ST6000 Bedienungsanleitung

Raymarine

Raymarine Autohelm ST4000 Bedienungsanleitung

Raymarine

Raymarine ST7001+ Bedienungsanleitung

Raymarine

Raymarine SmartPilot ST8002 Bedienungsanleitung

Raymarine

Raymarine ST60 Tridata Bedienungsanleitung

Raymarine

Raymarine ST60 Tridata Benutzerhandbuch

Raymarine

Raymarine mn100 Bedienungsanleitung

Raymarine

Raymarine St290 Bedienungsanleitung

Raymarine

Raymarine A series Bedienungsanleitung

Raymarine

Raymarine ST60+ SPEED INSTRUMENT Benutzerhandbuch

Raymarine

Raymarine ST60 Tridata Benutzerhandbuch

Raymarine

Raymarine ST40 Wind Bedienungsanleitung

Raymarine

Raymarine ST70 Instrument Bedienungsanleitung

Raymarine

Raymarine L750 Bedienungsanleitung

Raymarine

Raymarine C-Series Bedienungsanleitung

Beliebte Schiffsausrüstung Handbücher anderer Marken

Clarion

Clarion CMS2 Reparaturanleitung

EBS

EBS M7000 Bedienungsanleitung

Kongsberg

Kongsberg M3 Bathy Bedienungsanleitung

NPK

NPK SCS-1002 Bedienungsanleitung

Furuno

Furuno FE-800 Bedienungsanleitung

Harken

Harken 1561 Bedienungsanleitung

Simrad

Simrad DD15 Bedienungsanleitung

Notifier

Notifier FS-BSO Bedienungsanleitung

E2S

E2S E2XS112UL Bedienungsanleitung

R2Sonic

R2Sonic 2026 Bedienungsanleitung

COBHAM

COBHAM SAILOR 6000 Bedienungsanleitung

Clarion

Clarion GR10BT Reparaturanleitung

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Montageanleitung

olympia electronics

olympia electronics ΒS-531/1/MAR Bedienungsanleitung

Sonic

Sonic 2024 Bedienungsanleitung

Quicksilver

Quicksilver 88688A25 Handbuch

Furuno

Furuno Navtex NX-700-A Bedienungsanleitung

olympia electronics

olympia electronics ΒS-532/WP Bedienungsanleitung
