Raytheon Electronics AUTOHELM Z235 Bidata Round Bedienungsanleitung
ST30 Bidata Round Instrument
ST30 Bidata Round Service Manual 83102-2 1
Z235
Warning
CE Marking of Equipment/Replacement Parts
IftheAutohelmequipmentunderrepair,test,calibration,installationorsettingtoworkcarriestheEuropeanCEmark,
onlypartsandcomponentssuppliedorapprovedforsuchusebyAutohelmshouldbeusedinordertomaintain
compliancewiththerelevantCErequirements.
Incorporation,useorattachment,byanymeans,ofpartsorcomponentsnotsuppliedforornotapprovedforsuchuseby
Autohelmor,ifsuppliedorapprovedforusebyAutohelm,notproperlyfittedinaccordancewithinstructionspublished,
providedorrecommendedbyAutohelm,maycausetheequipmenttomalfunctionand,inparticular,tobecomeunsafeor
tonolongermeettherelevantCErequirements.Inthesecircumstances,RaytheonMarineEuropeLtdexcludesliability
tothefullestextentpermissibleinlawforanylossordamageincludinganyliabilityforitscontributiontosuchlossor
damagebyitsnegligentactsoromissions.
Z235, ST30 Bidata Round
ServiceManual
D4038-1

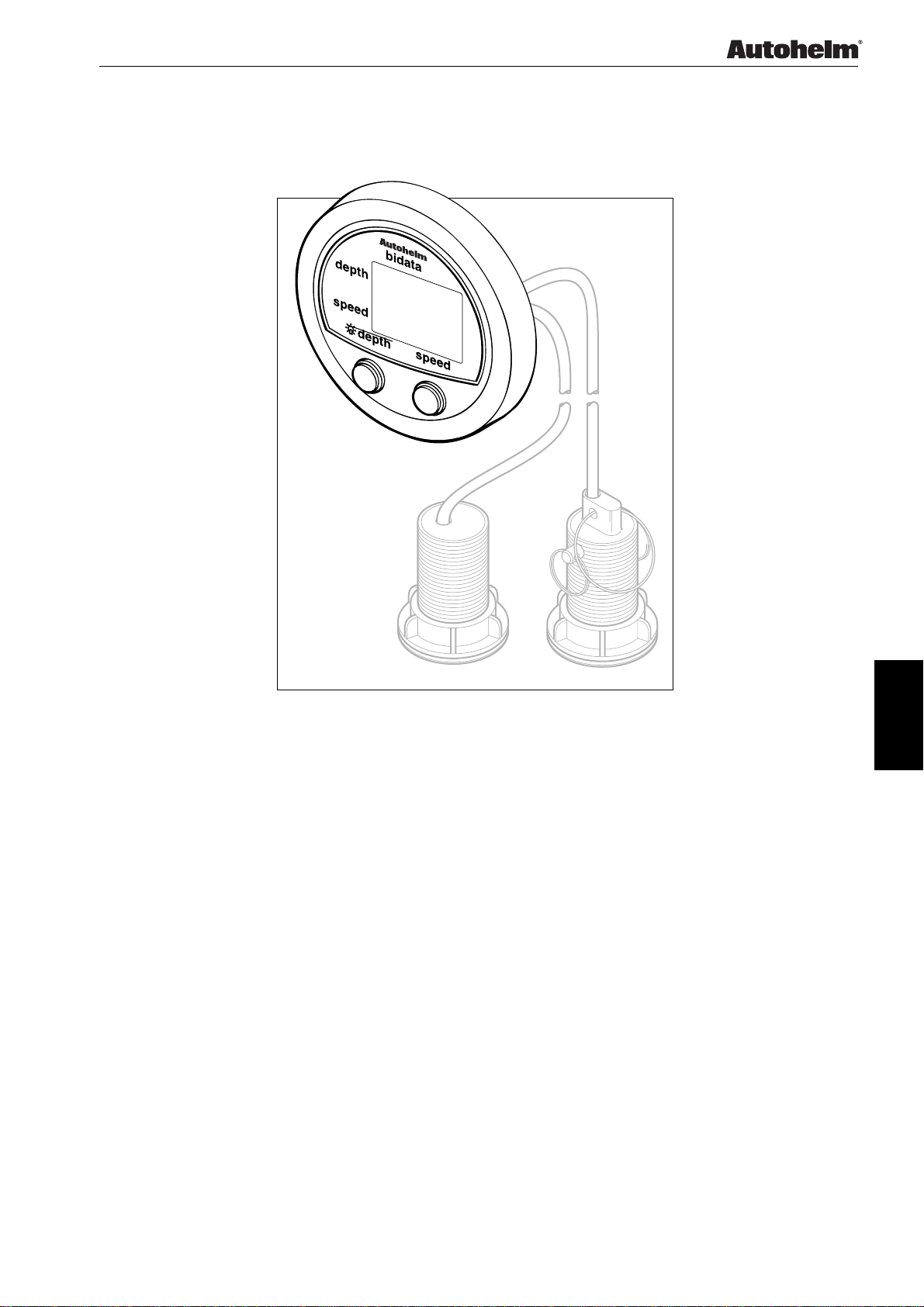

ST30BidataRoundInstrument
2ST30Bidata Round Service Manual 83102-2
Z235
Chapter 1. Special Functions
SpecialfunctionsavailableontheST30BidataRoundare:
1. Calibration lock/unlock
2. Boatshow mode
3. Damping
Forsecurity reasons,extended calibrationfeatures are selected byan
extended hold(15 seconds) of depth andspeed untilCAL is displayedfor
the secondtime,followed by momentary depressionof boththe depth and
speed keys.
Tocycle thefeatures,pressthe depth keyuntil the requiredoption is
displayed.
1.1 Calibration Lock/Unlock
Calibrationlock/unlockeliminatesthe risk of accidentally changing allbutthe
extended calibration values.
Thisfeatureis particularly useful foroperatorsofcharterboats who spenda
greatdealof time tuningthepilot tothevessel,onlytofind acustomeralters
thesettings at alaterdate.
ThisfeatureisdisplayedasC1orC0.
C1= unlocked (normalaccess)
C0= calibrationislocked (noaccess).
Themode ischangedbypressingthespeed key.
Calibrationlock/unlock isstored bypressingdepthandspeed together for2
seconds.
1.2 Boatshow Mode
Boatshowmode(S0 = disabled,S1 = enabled)isa demonstration
programmeto showthe featuresof theinstrument.
The modeis changedby pressing speed.
Note:Boatshow Modeautomaticallyresets to normal modeif a transduceris
connecteddirectlyto theinstrumentoriftheinstrumentispowereddown.
However,boatshow modecanbe stored by:
1. Settingthe instrument to repeater mode
2. Selecting Boatshow Mode
3. Exitingfrom repeater mode
ST30 Bidata Round Instrument
ST30 Bidata Round Service Manual 83102-2 3
Z235
1.3 Damping
Dampingcontrols the sensitivity to speed and depth changes detectedby
thetransducer.The dampingrangeis from 1to15;the factory settingis 04.
Tochange thedamping factor, pressthe speed key asrequired to obtainthe
desired setting.
Dampingis storedbypressing depth and speed togetherfor2 seconds.
ST30Bidata Round Instrument
4ST30Bidata Round Service Manual 83102-2
Z235
Chapter 2. Dismantle/Assembly
D4039-1
1. Case screw (x3)
2. Rear case
3. 'O' ring
4. PCB
5. PCB screw (x2)
6. Facia
7. Bezel
8. Gasket
67 1 (x3) 4
5 (x2) 3 28
Figure1: ST30BidataRounddisplayunit
ST30 Bidata Round Instrument
ST30 Bidata Round Service Manual 83102-2 5
Z235
2.1 Spare Parts List
ST30 Bidata Round display unit
Theitem numbersrefertoFigure 1:ST30Bidata Round displayunit.
Item SpareDescription PartNo. Comments
Rearcaseassembly,
including
W053
1 Screw(x3)
2 Rearcase
3 Label Affixedtorearcase.
Notillustrated.
4 PCBassembly Q161
6 Facia W052
7 Bezel W051 Blackincolour.
7 Bezel W071 Greyincolour.
8 Gasket W072
ST30Bidata Round Instrument
6ST30Bidata Round Service Manual 83102-2
Z235
Chapter 3. PCB Details
3.1 Input/Output Signals (referto Figure2Circuit Diagram)
Wirecolour Circuitdiagram Description
reference
Red P1/P2 +12Vnominaldcsupply
Yellow P3/P4 SeaTalkdata.Intermittentstreams
of+12V(nominal)pulses.
Screen P5/P6 0Vsupplyandsignalreturn
Red P7 Speedtransducersupply.
12Vdcnominal.
Green P8 Speedtransducer–Logsignal
Screen P9 Speedtransducer,0V
Blue P10 Depth+,echoesfromtransducer
Black P11 Depth,0V
(Ownersupply) P12 Externallightoncontrol
ST30 Bidata Round Instrument
ST30 Bidata Round Service Manual 83102-2 7
Z235
D4040-1
Figure2: Circuitdiagram
ST30Bidata Round Instrument
8ST30Bidata Round Service Manual 83102-2
Z235

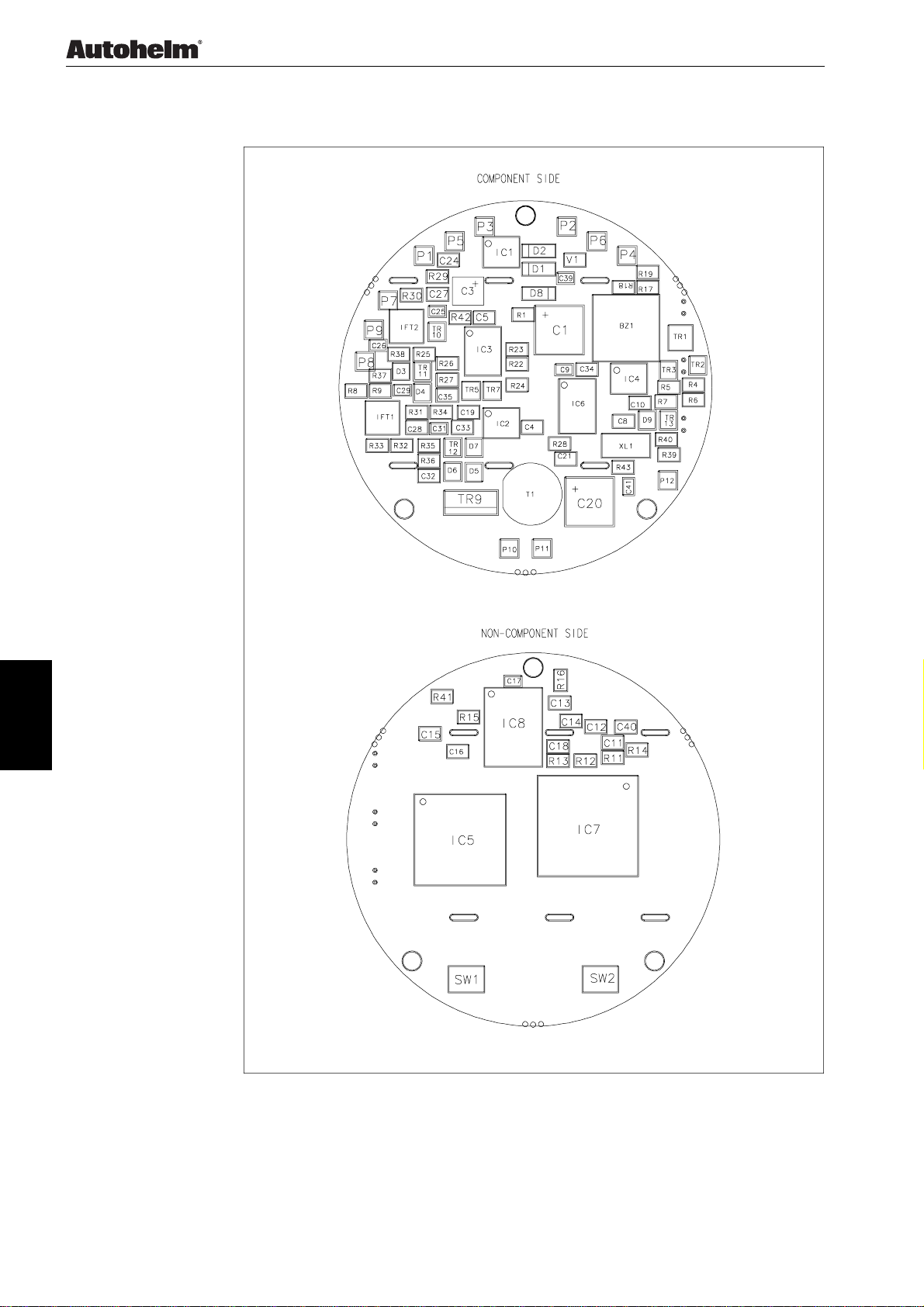

3.2 PCB Layout
Taken from Drawing No: 4263-001 Issue: J Date: 10.08.97
D4041-1
Figure3: PCBcomponentlayout
ST30 Bidata Round Instrument
ST30 Bidata Round Service Manual 83102-2 9
Z235

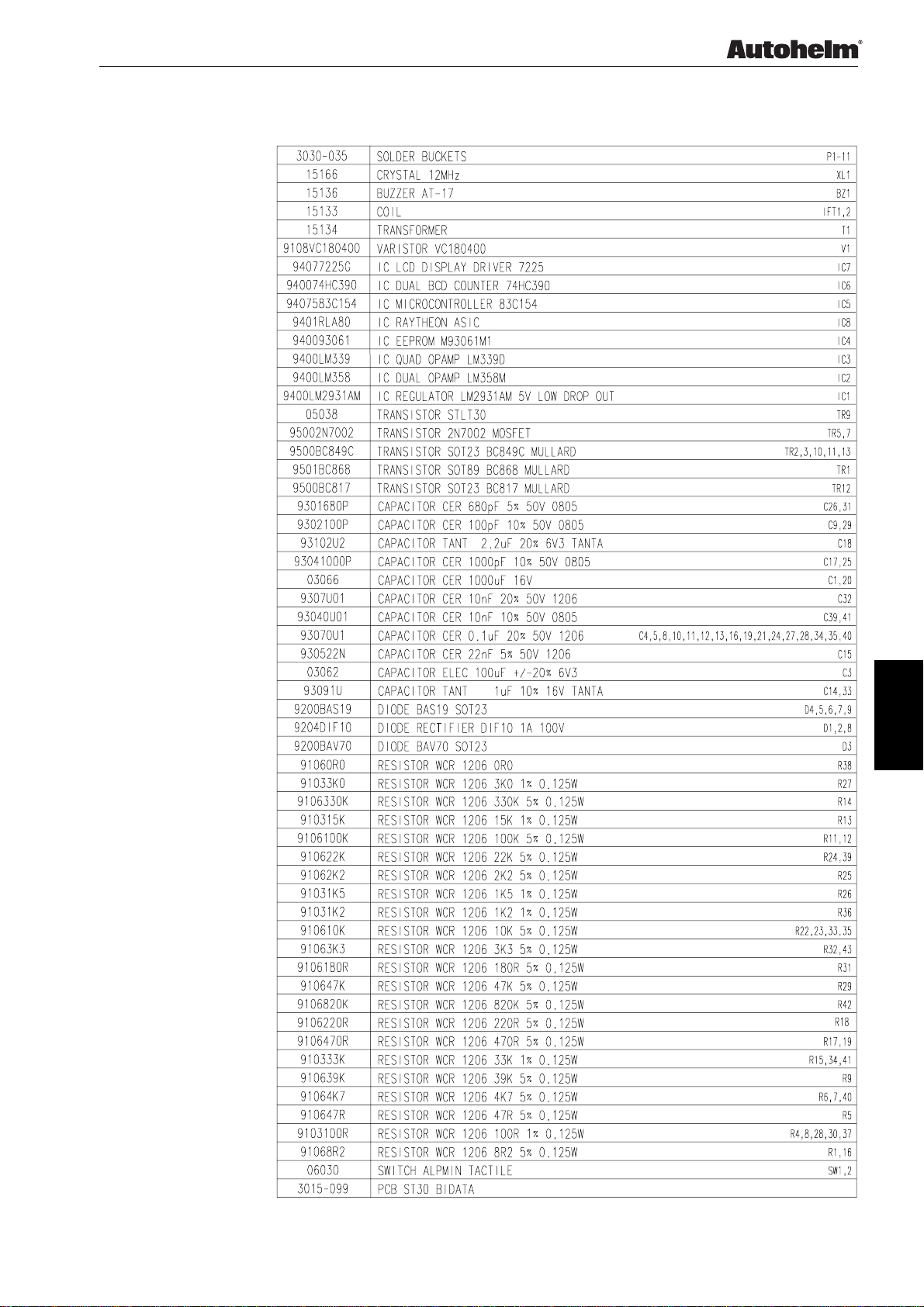

PCB Components
D4042-1
Taken from Drawin
g
No: 4263-001 Issue: J Date: 10.08.97
ST30Bidata Round Instrument
10 ST30 Bidata Round Service Manual 83102-2
Z235
Raytheon Marine Company
676 Island Pond Road
Manchester
New Hampshire 03109-5420
Tel:(001 603) 647 7530
Fax:(001 603) 634 4756
Raytheon Marine Europe Limited
Anchorage Park, Portsmouth
HampshirePO3 5TD
Tel:(01705) 693611
Fax: (01705) 694642
http://www.raytheon.com
