Razer Chimaera 5.1 Gebrauchs- und Pflegehandbuch

The Razer Chimaera 5.1 Wireless Gaming Headset for Xbox 360® gives you a true-to-life

surround sound experience. Building on our extensive gaming audio expertise from PC gaming,

this wireless headset offers pinpoint tournament grade 5.1 positional audio with extra large

circumaural ear cups for maximum comfort.

The base station doubles up as a charging dock and audio processing unit, giving you the

option to adjust the game sound and link up to four base stations to talk to your teammates

over a lag-free, local communication channel.

MASTER GUIDE

CONTENTS

1. Package Contents

2. System & Hardware Requirements

3. Key Features

4. Technical Specifications

5. Installation and Setup / Registration / Technical Support

6. Using Your Razer Chimaera 5.1

7. Legalese

1. PACKAGE CONTENTS

- Razer Chimaera 5.1 Wireless Gaming Headset for Xbox 360®

- Charging Dock Base Station

- Cables:

Optical Cable

RCA Cable

AC Adapter

2.5mm to 2.5mm Stereo Cable (For Controller Connection)

3.5mm to 3.5mm Stereo Cable (For Local Team Communications)”

- 2 AAA Rechargeable Batteries

- Quick Start Guide

- Master Guide

2. SYSTEM & HARDWARE REQUIREMENTS

- Xbox 360®

- Composite Cable (or Component HD AV Cable)

- PC

3. KEY FEATURES

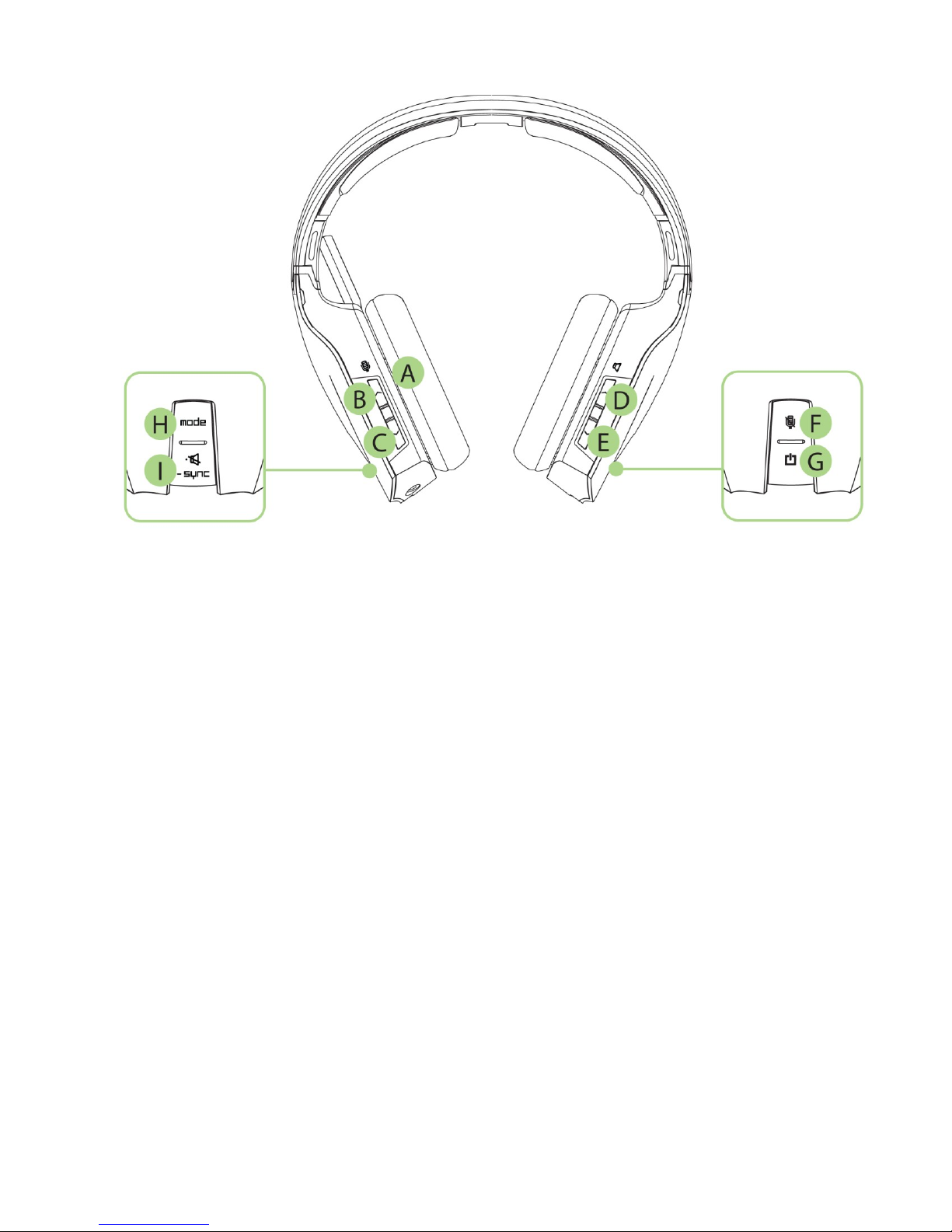

A. 5.1 Surround Sound

B. Left Button 1 –Microphone Volume Up

C. Left Button 2 –Microphone Volume Down

D. Right Button 1 –Volume Up

E. Right Button 2 –Volume Down

F. Left Button 3 –Microphone Mute

G. Left Button 4 –Power Button

H. Right Button 3 –Mode Button (Xbox LIVE / Local Team Communications Toggle)

I. Right Button 4 –Volume Mute / Synchronization Button

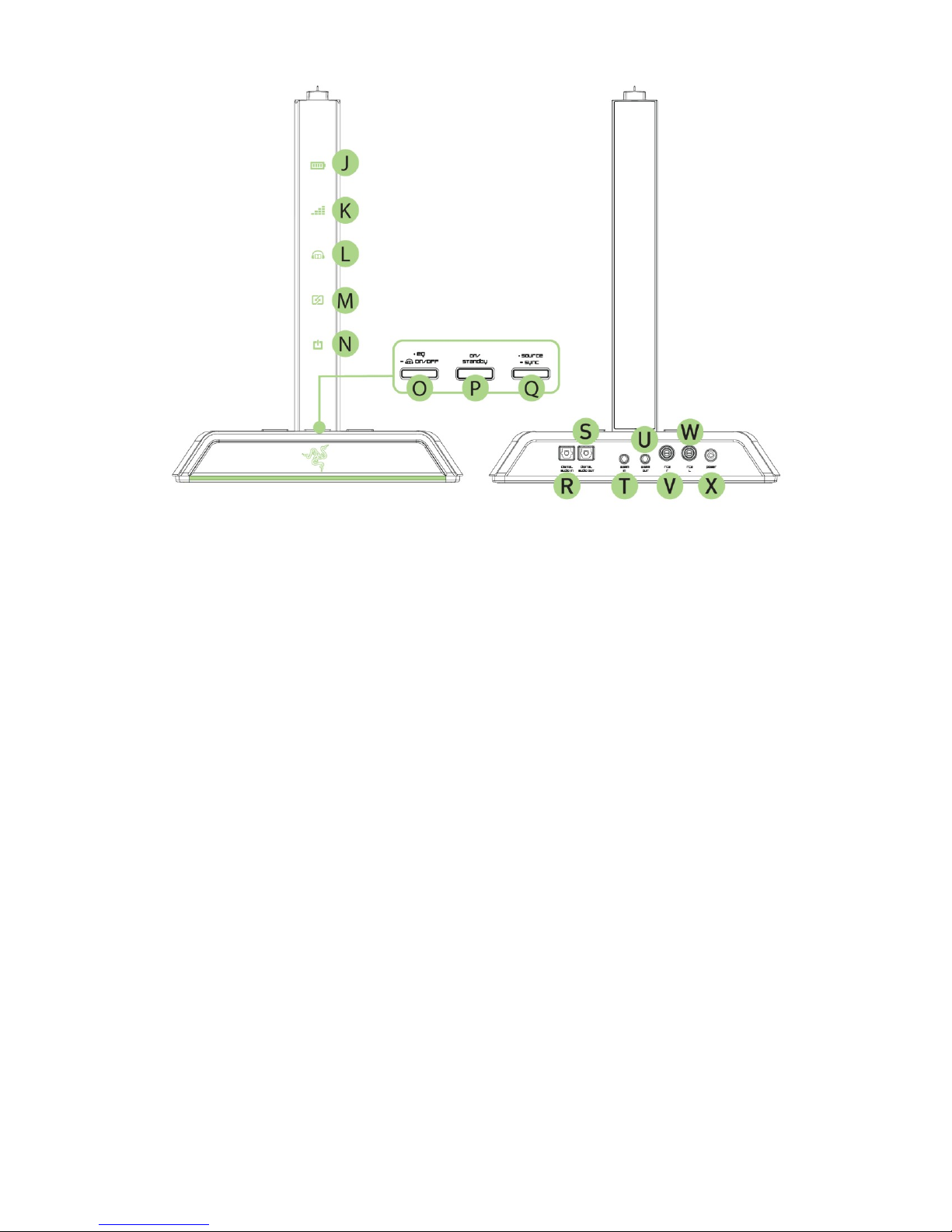

J. Charging LED

K. EQ LED

L. Dolby Headphone LED

M. Mode (Xbox LIVE / Local Team Communications) LED

N. Standby LED

O. EQ/ Dolby Headphone Button

P. Standby Button

Q. Source / Synchronization Button

R. Digital Audio In

S. Digital Audio Out

T. 3.5 mm In

U. 3.5 mm Out

V. RCA In Right

W. RCA In Left

X. AC Connector

4. TECHNICAL SPECIFICATIONS

Wireless Headset Dimensions (in mm): 200 (W) x 204 (H) x 88 (D)

HEADPHONES

• Radio Frequency: 5.8GHz

•Dolby® Headphone / Dolby® Pro Logic® II / Dolby® Digital

• Wireless Range: 33 Ft / 10m

• Frequency Response: 20 - 20,000 Hz

• Impedance: 32Ω at 1kHz

• Sensitivity (@1kHz, 1V/Pa): 105dB +/- 2dB

• Drivers: 50mm Neodymium Magnets

• Batteries: 2 AAA Batteries (Up to 8 Hours Battery Life)

• Charging Time: 3 Hours

MICROPHONE

• Frequency Response: 130 - 10,000 Hz

• Sensitivity (@1kHz, 1V/Pa): -42 ± 2dB

• Signal-to-Noise Ratio: >55 dB

• Pick-up Pattern: Uni-directional

5. INSTALLATION AND SETUP / REGISTRATION /

TECHNICAL SUPPORT

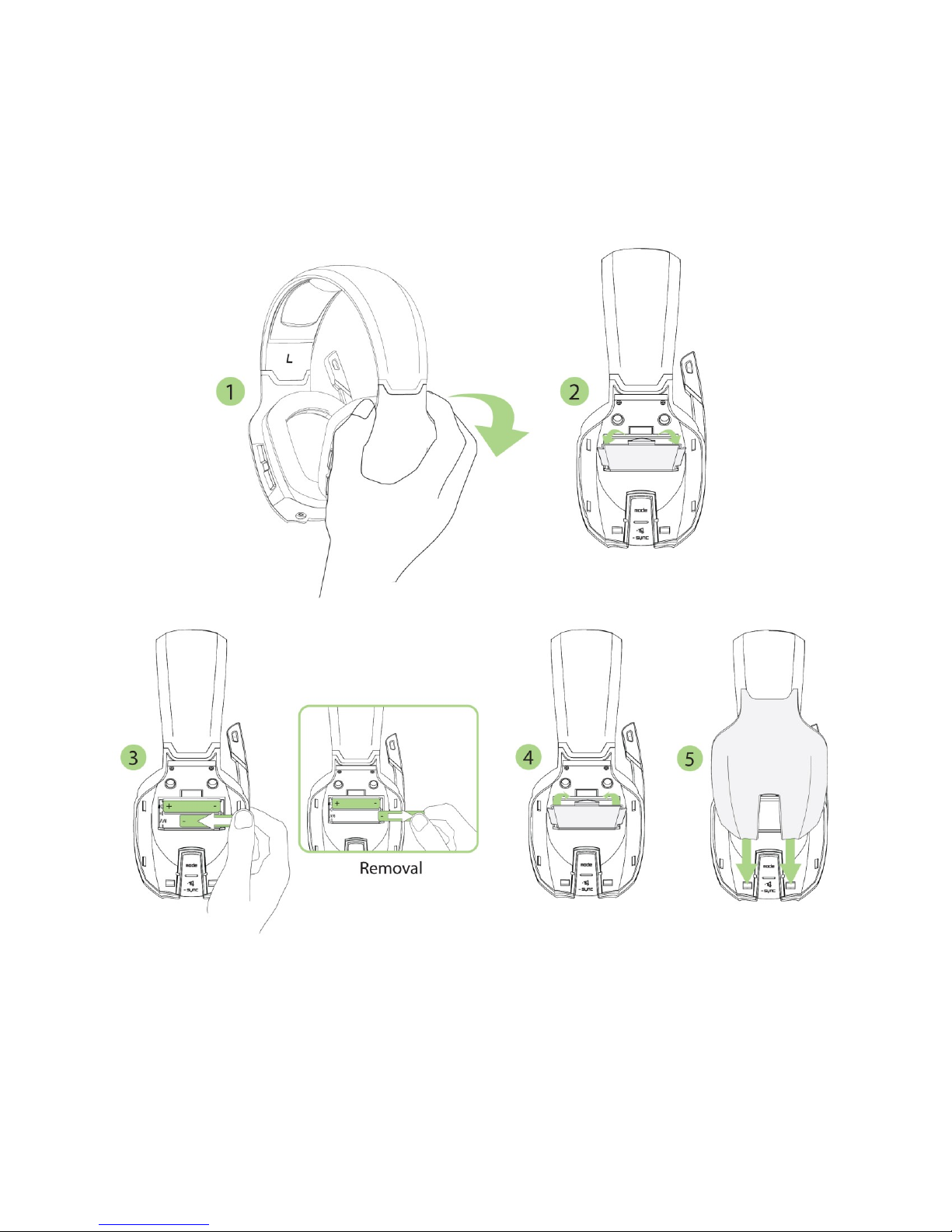

BATTERY INSTALLATION

For best results, fully charge the batteries before first time use of the Razer Chimaera 5.1. A

depleted battery will be fully charged in about 3 hours.

CAUTION: Use AAA batteries and the supplied adaptor only.

POWER

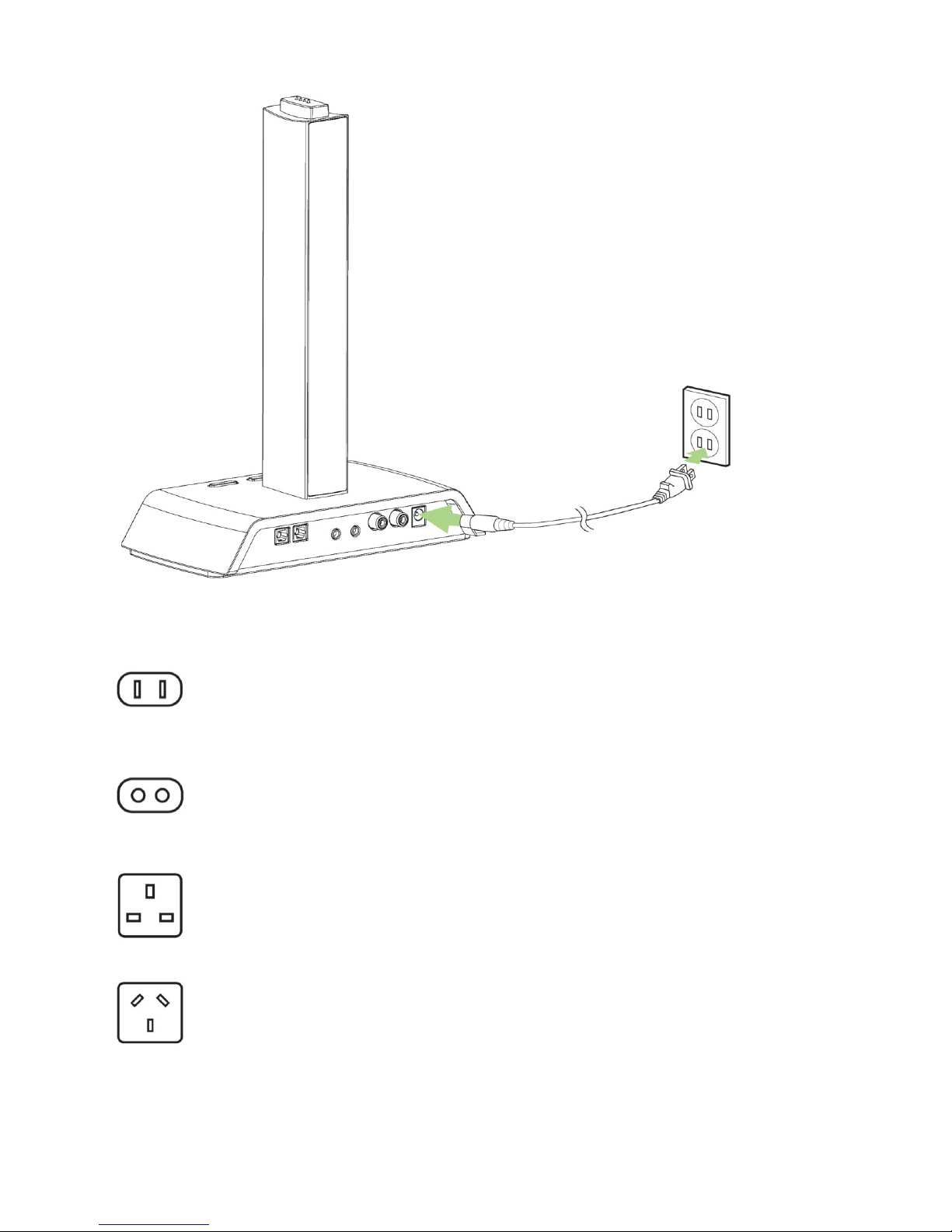

For US*, Japan and Taiwan

- Voltage: 100-240V ~ 50/60/Hz

* Please note that in the United States, a polarized plug is used. It can only be inserted one way.

For France, Germany, Sweden, Switzerland and Korea

- Voltage: 100-240V ~ 50/60/Hz

For UK, Singapore, India and Hong Kong

- Voltage: 100-240V ~ 50/60/Hz

For Australia

- Voltage: 100-240V ~ 50/60/Hz

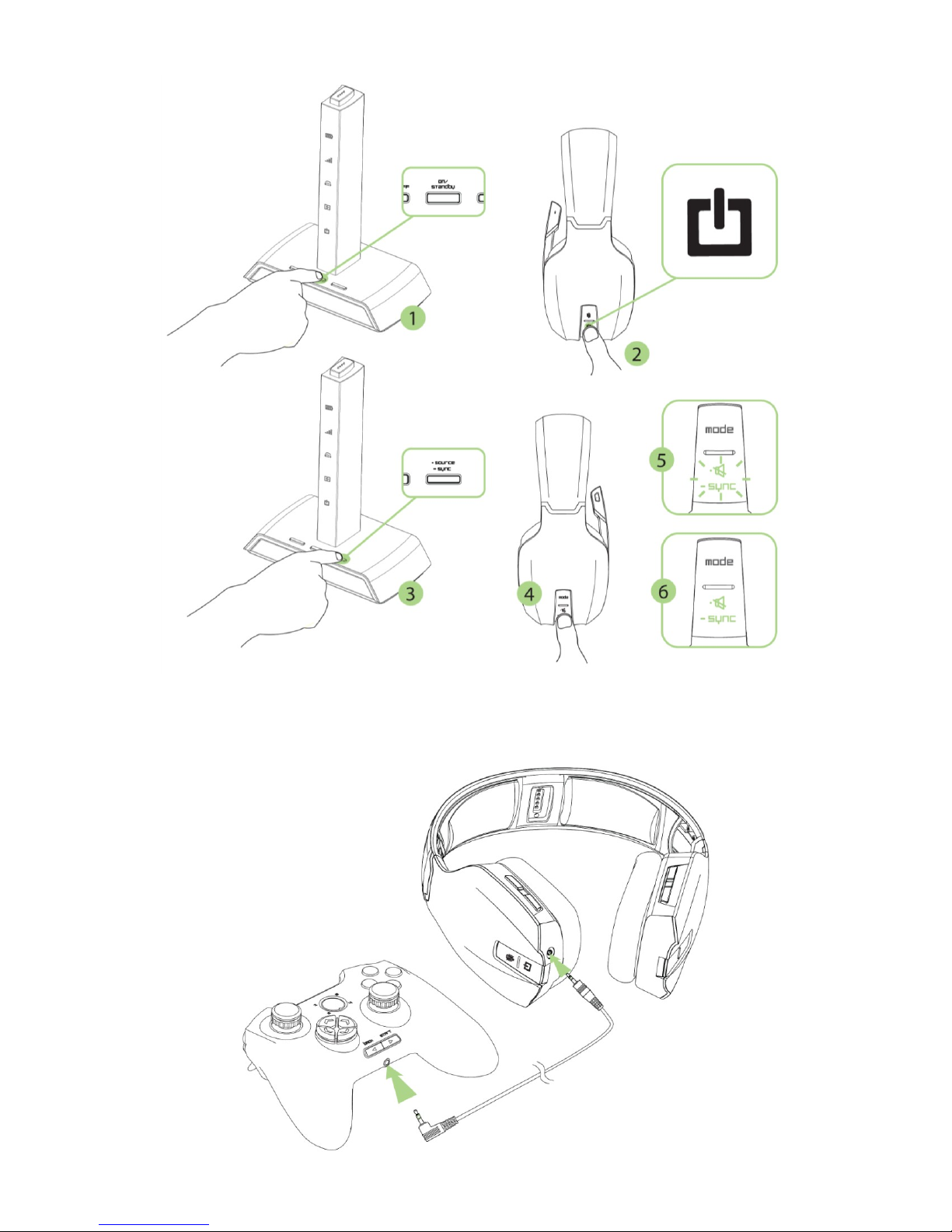

PAIRING

CONTROLLER

CONNECTIVITY TO XBOX 360®

AUDIO

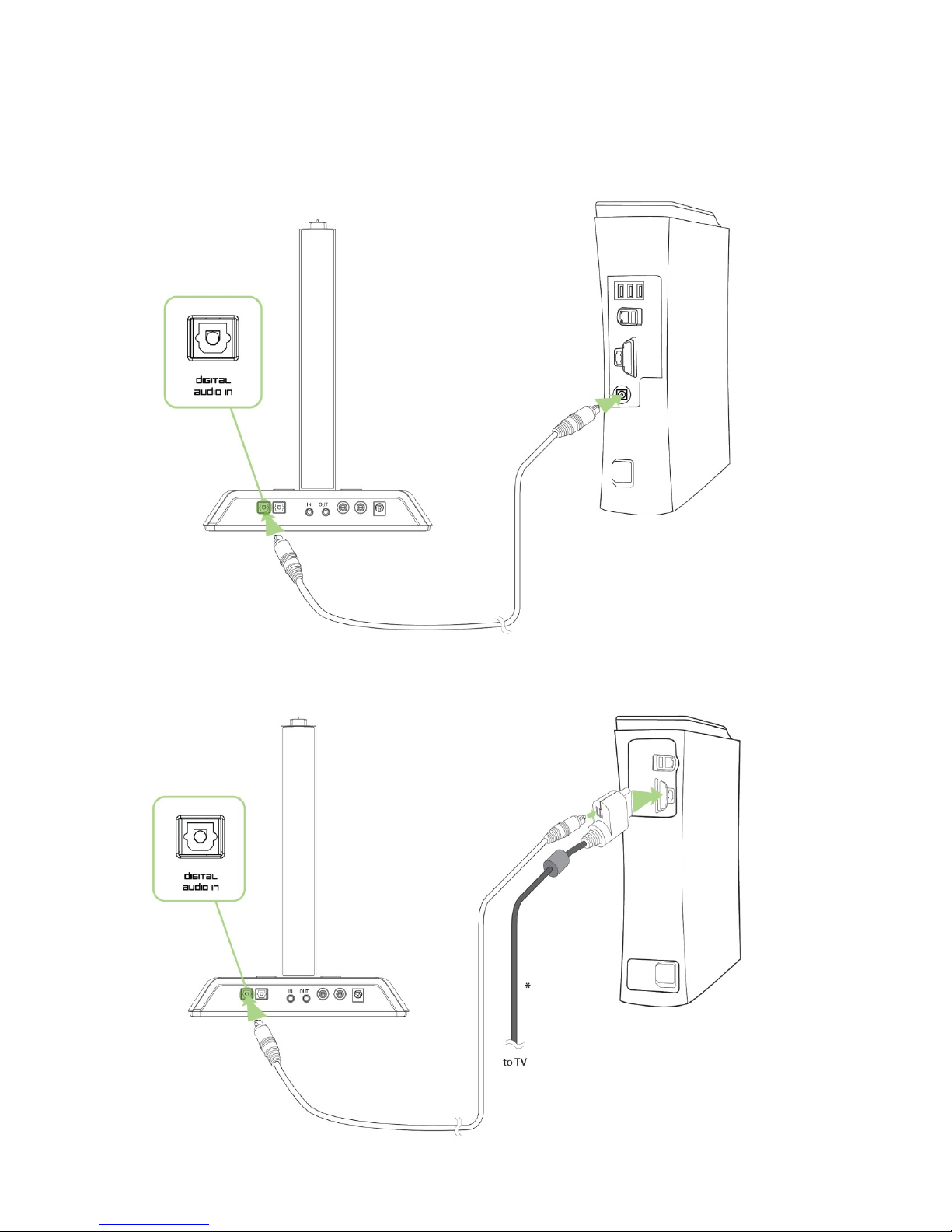

You can choose between 3 methods of installation depending on your configuration.

1. Plugging directly into the Xbox 360® (Xbox 360 S)

2. Using a Component HD AV Cable with Digital Audio Output

* Not Included

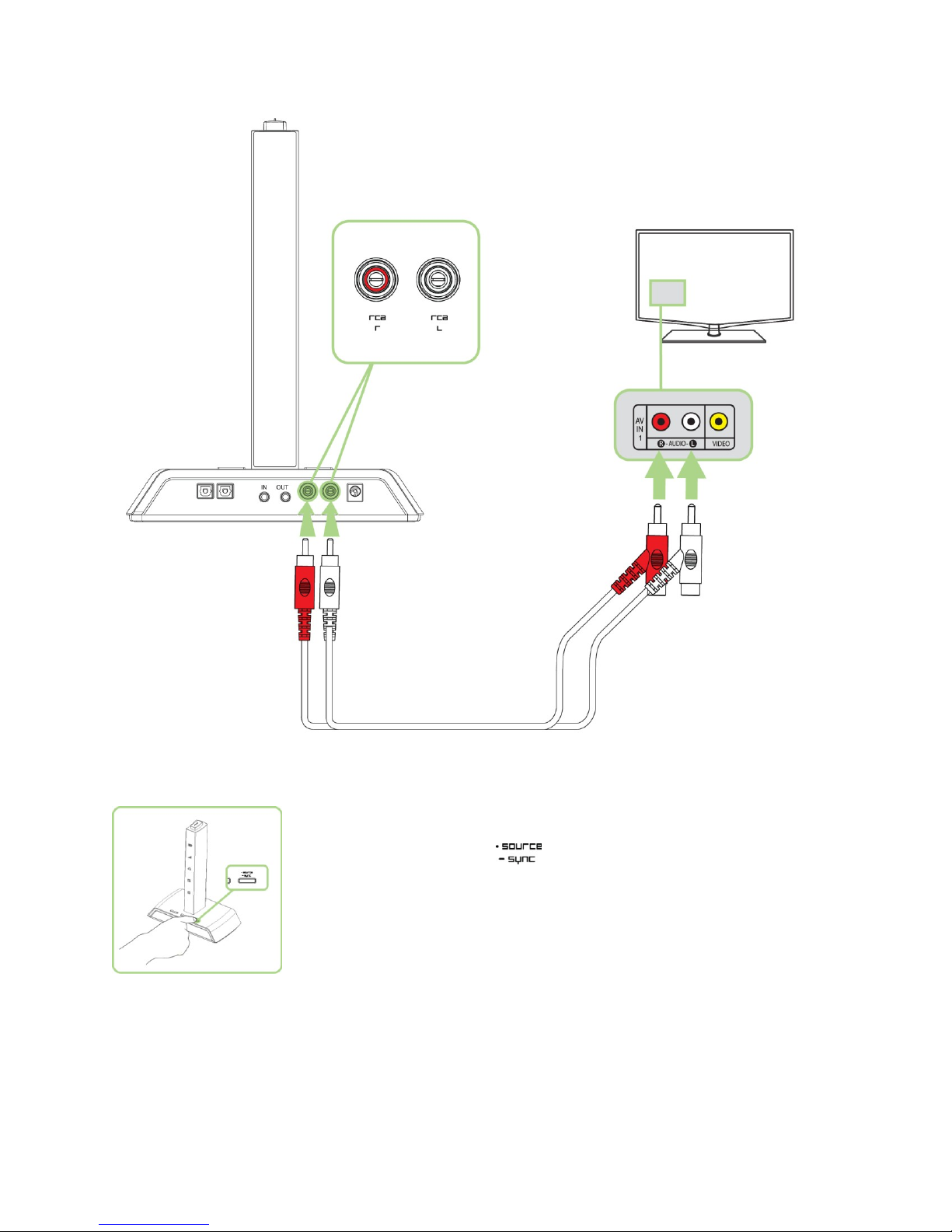

3. Using a Composite AV Cable without Digital Audio Output

On first time usage, press to change the source

from Digital Audio In to RCA In.

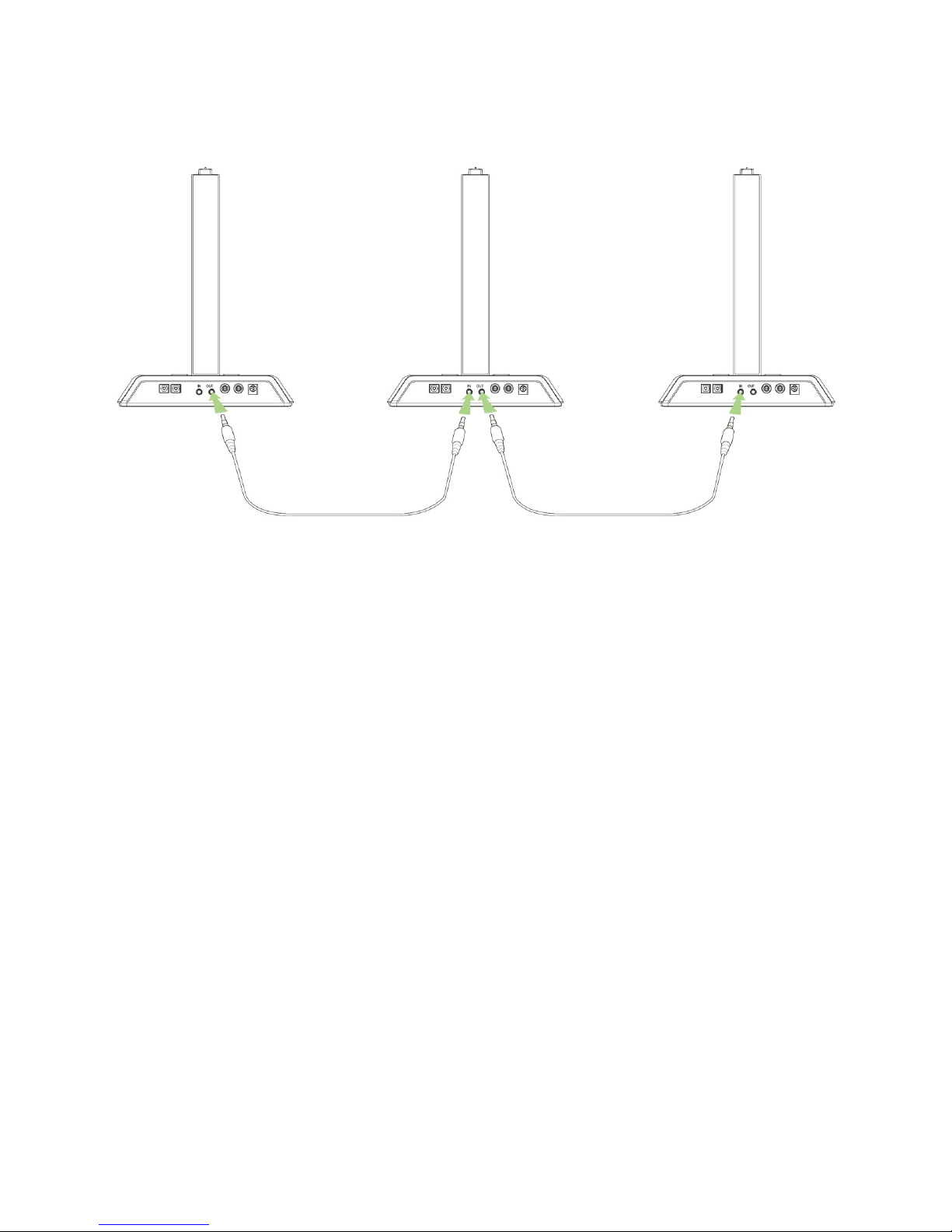

CONNECTION TO ANOTHER RAZER CHIMAERA 5.1

You can connect up to 4 Base Stations (purchased separately) to create a local communication

channel for team talk through your Razer Chimaera 5.1 Headset.
