Razer RZ05-0157 Bedienungsanleitung

User Manual

(Model:RZ05-0157)

0 | For gamer s by gamer s™

PACKAGE CONTENTS

•GAMING & MUSIC SPEAKER (Model: RZ05-0157)

•Micro-USB to USB cable (for charging)

•3.5 mm analog audio cable

•Carrying case

•Power adapter with interchangeable plugs

•Quick Start Guide

•Important Product Information Guide

HARDWARE & SYSTEM REQUIREMENTS

Hardware Requirements

•Devices with Bluetooth connectivity or a 3.5 mm analog audio port

System Requirements

For use with the Razer Leviathan Mini mobile app

•iOS 8 or newer / Android 4.3 or newer

1 | r azer ™

REGISTRATION / TECHNICAL SUPPORT

REGISTRATION

Visit www.razerzone.com/razer-id to sign up for a Razer ID now to get a wide range of

Razer benefits. For example, get real-time information on your product’s warranty

status via Razer Synapse. To learn more about Razer Synapse and all its features,

visit www.razerzone.com/synapse.

If you already have a Razer ID, register your product by clicking on your email address

within the Razer Synapse application and select Warranty Status from the dropdown

list.

To register your product online, visit www.razerzone.com/registration. Please note

that you will not be able to view your warranty status if you register via the website.

TECHNICAL SUPPORT

What you’ll get:

• 1 year limited manufacturer’s warranty.

• Free online technical support at www.razersupport.com.

2 | For gamer s by gamer s™

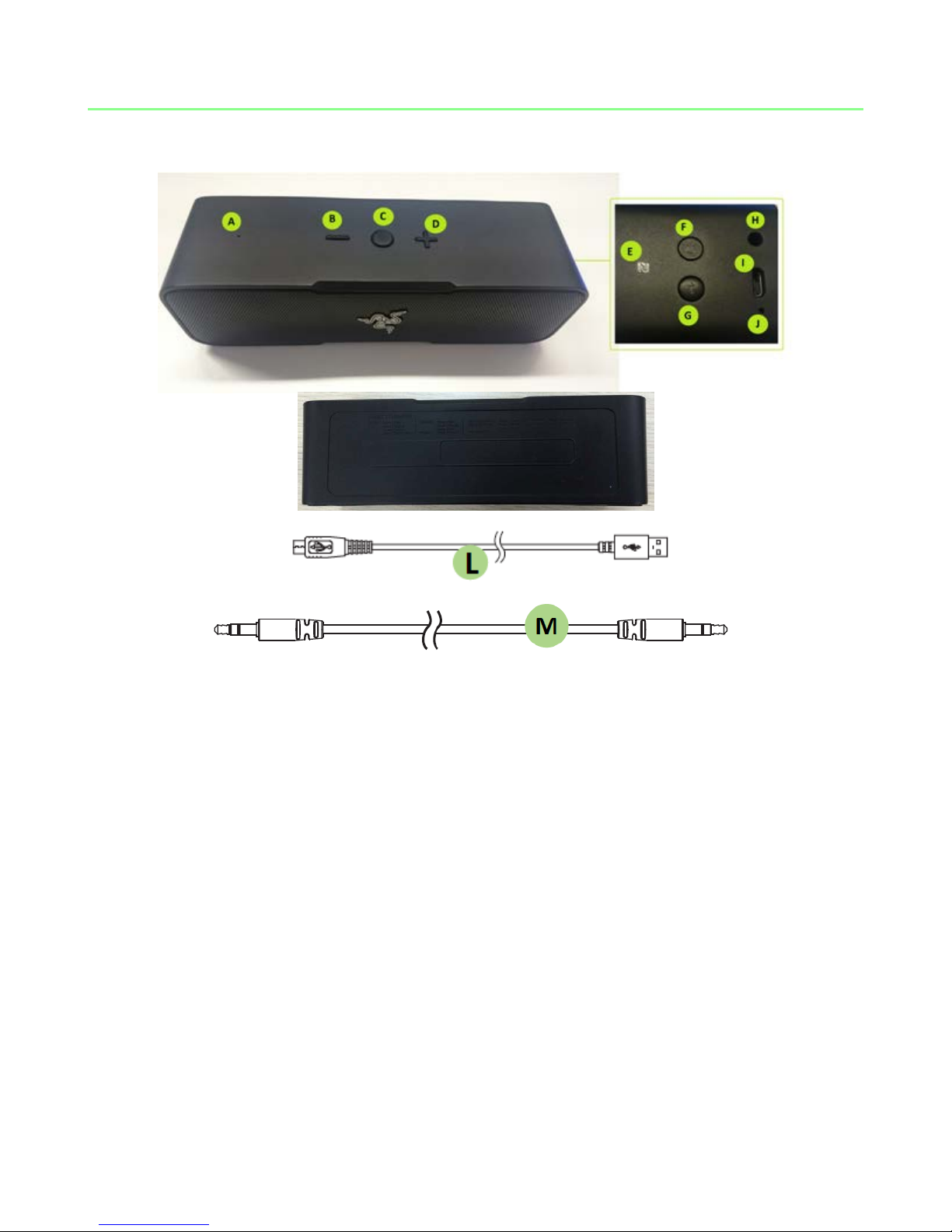

DEVICE LAYOUT

A. Microphone

B. Volume down

C. Play/Talk button

D. Volume up

E. NFC connectivity zone

F. Power button / Battery indicator LED

G. Bluetooth mode button

H. 3.5 mm analog audio port

I. Micro-USB port

J. Factory reset button

L. Micro-USB to USB charging cable

M. 3.5 mm to 3.5 mm cable

N. Carrying case

O. Power adapter with interchangeable plugs*

*Use the appropriate adapter plug for your region

3 | r azer ™

USING YOUR RAZER LEVIATHAN MINI

POWERING ON / OFF

[PLACEHOLDER: Diagram showing short press and green LED on power button.]

To power on/off your speaker, press and hold the power button until the audio

feedback is heard.

CHARGING YOUR SPEAKERS

[PLACEHOLDER: Diagram showing 1, attaching the appropriate power plug, 2, speakers connected to

a power source (Power plug)]

1. Select the appropriate power plug for your region and attach it to the power

adapter.

2. Connect your speaker to an appropriate power source.

For best results, please charge the battery fully before using your Razer Leviathan Mini

for the first time. A depleted battery will fully charge in about 5 hours.

Battery Indicator (Power button)

LED

Audio feedback

Status

Green

N.A.

Battery is fully charged and speaker is

on.

Off

N.A.

Battery is charged and speaker is off.

Orange

N.A.

Battery low

Blinking in red

Single beep

Battery is critically low.

Breathing in red

N.A.

Battery is charging.

4 | For gamer s by gamer s™

CONNECTING TO AN AUDIO SOURCE

Note: When connected to devices with inbuilt speaker systems, audio may continue to be played via the inbuilt

speaker. In such cases, please switch your device’s audio output to the Razer Leviathan Mini manually.

Connecting via NFC

Simply activate NFC on your device and tap it on the speaker’s NFC connectivity region

to pair. The input source will automatically switch to the paired device.

[DIAGRAM]

Connecting via Bluetooth®

If you are using the speaker’s Bluetooth input for the first time, or if you are attempting

to connect a new device to the speaker via Bluetooth, you will need to activate pairing

mode.

1. Press and hold the Bluetooth button for 3 seconds or more to enter pairing mode.

The Bluetooth LED will start to blink slowly.

[DIAGRAM]

2. Enable Bluetooth on your device and search for new Bluetooth devices.

3. Select “Razer Leviathan Mini” from the list of devices found.

4. Wait for pairing to complete. The Bluetooth indicator will change to a solid light once

successfully connected.

5 | r azer ™

Understanding the Bluetooth modes

The speaker’s Bluetooth module operates in the following modes:

Pairing Mode

Connecting Mode

Connected Mode

Pairing with new

devices

Connecting to the last

paired device

When a device is

connected to the

speaker via Bluetooth

Discoverable?

Any Bluetooth enabled

device

Only the last paired

device

How to

activate?

Press and hold the

Bluetooth button

for >3 sec

Press the Bluetooth

button once

Automatically activated

when a device is

successfully paired

Timeout

15 min

10 sec

Never

Automatically

changes to?

Speaker turns off after

timeout

Pairing mode after

timeout

Connecting mode when

the paired device is

disconnected (out of

range)

LED indication

Blinks slowly

Blinks fast

Solid

Audio

feedback

Yes

Connecting via the analog cable

Connect your device to the Razer Leviathan Mini’s 3.5 mm audio port using a 3.5 mm

analog cable. When connected, AUX input takes priority over devices paired via

Bluetooth.

[PLACEHOLDER DIAGRAM]

6 | For gamer s by gamer s™

CONTROLLING YOUR RAZER LEVIATHAN MINI

You can use the buttons on the speaker to manually control various functions including

audio playback and call features. You can also link 2 Razer Leviathan Mini speakers

together using the Play/Talk button.

Note: You can also use the Razer Leviathan Mini Mobile App to control your speaker remotely. Please refer to

USING THE RAZER LEVIATHAN MINI MOBILE APPLICATION for more information.

Playing Music

You can use the following button presses to control music playback from the connected

audio source.

Button

Action

Effect

Single press

Press and hold

Decrease the speaker’s playback volume.

While audio is being played through the speaker,

each press comes with an audio beep feedback,

indicating the current volume level.

Single press

Press and hold

Increase the speaker’s playback volume.

While audio is being played through the speaker,

each press comes with an audio beep feedback,

indicating the current volume level.

Two beeps will be played when the volume is

increased to the maximum level.

Single press

Play / pause music playback from the currently

connected audio source.

Double press

Play next track.

Triple press

Play previous track.

7 | r azer ™

Answering Calls

You can receive calls with the Razer Leviathan Mini by connecting it to a call-enabled

mobile device.

If music is playing through the speaker when a call is received, the currently playing

audio track will fade off into the speaker’s ring tone. When the call ends, the speaker

will resume playing the audio track.

The Play/Talk button () can be used to control the speaker during a call. The

following table explains the button presses and LED indicator. A single beep will be

played upon each of the actions below.

Action

Light indicator

Effect

N.A.

Blinking in green

There is an incoming call on the connected

mobile device. The speaker will play its

incoming call ringtone

Press once

Green

Answer the call.

Press once

while the call

is ongoing

Red

Mute the call. Press the button again to

unmute. The LED indicator will return to

green.

Press and

hold > 3 sec

Off

Reject / end the call.

Using Combo Play

Linking 2 Razer Leviathan Mini Speakers

Wirelessly link 2 Razer Leviathan Mini speakers together with our Combo Play feature,

playing audio from a single source onto both speakers simultaneously. To link your

speakers:

1. Turn on the primary speaker and connect it to an audio source via Bluetooth.

Start playing music on this speaker.

2. Press and hold the button for > 5 sec until it starts to blink slowly in white.

The speaker will start to search for other Razer Leviathan Mini devices in range.

3. Turn on your 2nd speaker. Check to ensure that it is not paired to any device via

Bluetooth.

8 | For gamer s by gamer s™

4. On the 2nd speaker, press and hold the button for > 5 sec until it starts to

blink slowly in white.

5. Wait for the LED of the button on both speakers to turn a solid white, indicating

that the speakers are now linked.

Changing the playback mode

Combo Play gives you the flexibility of using your linked speakers in two modes: Mono

and Stereo mode.

In Mono mode, both speakers receive the same audio signal from the single audio

source connected to the primary speaker. This allows you to amplify the audio playback.

In Stereo mode, the primary speaker acts as the left speaker while the secondary

speaker acts as the right speaker out of the box. Position your speakers accordingly to

enjoy a stereo effect from the Razer Leviathan Mini.

Note: You can switch modes and change the default left/right speaker setting via the Razer Leviathan Mini App

for iOS and Android.

Disabling Combo Play

To unlink your speakers, simply press and hold the button for > 5 sec on either

speaker till the button starts to blink quickly in white. The speakers are unlinked when

the LED indicator on the button turns off.

RESETTING THE SPEAKER TO FACTORY DEFAULT

[PLACEHOLDER: Diagram showing a thin pin inserted into and pressed onto the factory

reset button for 3s]

9 | r azer ™
