RCA RLEDV1920A Bedienungsanleitung

INSTRUCTION MANUAL

LED TV

RLEDV1920A

Table of Contents

Caution

Important Safety Precautions

Top/Side panel diagram

Remote Controller

Battery Installation

Using the Remote Control

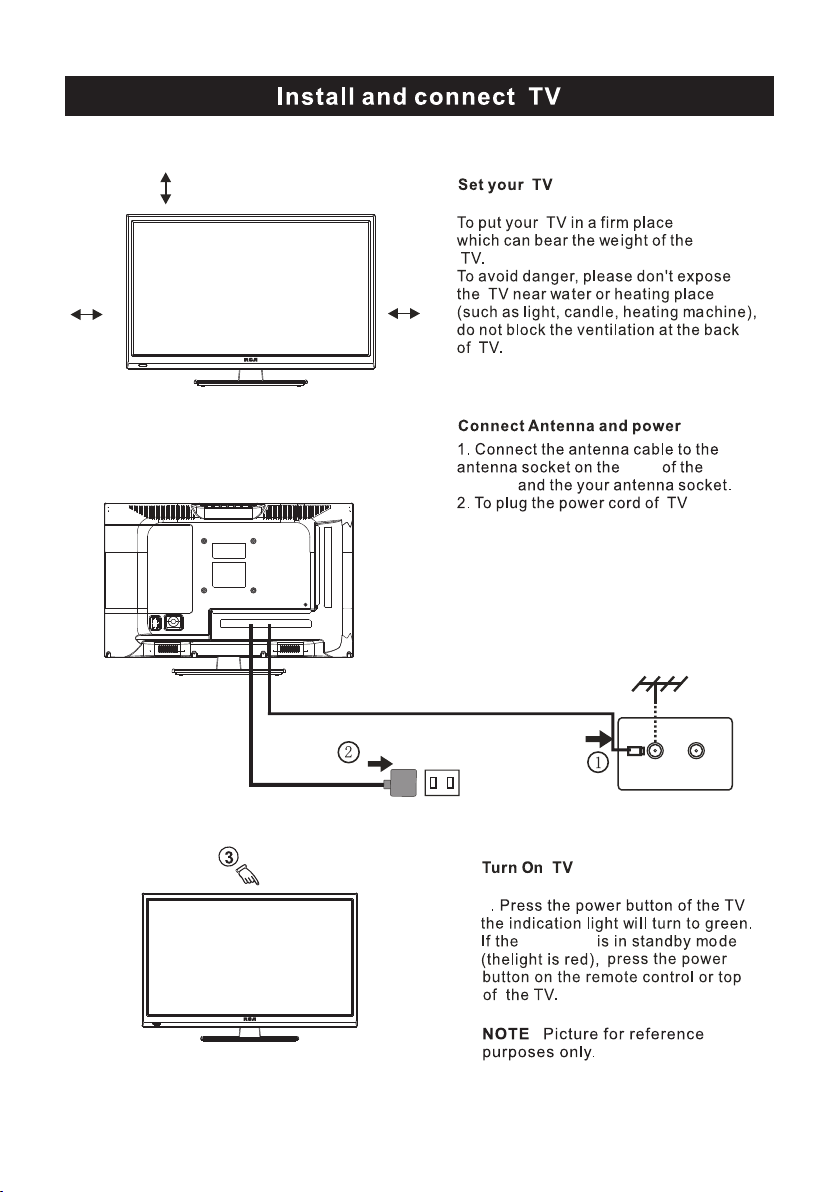

Install TV

Set your TV

Connect Antenna and power

Turn On TV

Help

6-7

12-13

15-31

TV Bracket assembly 5

Specifications

Setup Wizard

Wall Mount Installation

Main Menu Operation

Sound Menu

Time Menu

Setup Menu

Close Caption

Lock Menu

US Rating

MPAA

Canada Rating

Hotel Menu

Channel Menu

15-17

17-18

21-23

Systems Connection 10

Select Input Source

24-25

28-29

30-31

PC 32-33

PC Menu

DVD Setup 34-35

The lightening flash with arrowhead symbol, within an equilateral triangle is

intended to alert the user to the presence of un-insulated "dangerous voltage"

within the products enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user to

the presence of important operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

Correct disposal of this Product

W aste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life,

should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste

collection/recycling centre.

In the European Union there are separate collection systems for used electrical

and electronic products. Please help us to conserve the environment we live in!

Caution

3.95”

3.95” x 3.95”

100 100

Wall Mount Installation

BB4 * 12mm

1.Match the TV unit into the stand, then hold the TV stand,

revolve and lock the tv unit tightly as the arrowhead point.

2.Fix the screws into the TV stand after installing the tv

unit and tv stand.

3screws

TV Bracket assembly

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

(IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby) LED Indicator: Press to turn on and off

VOL

The functions of the buttons on the are as follows:TV

CH+/-:When watching TV: select channels.

(DVD Mode. CH-:DVD Eject. CH+:Play/Pause DVD Program)

MENU:

1.Press Menu.

2.Press SOURCE to enter.

3.Use CH+/- to shift UP/DOWN.

4.Press SOURCE to confirm,then press VOL+/-to adjust.

5.Press SOURCE to confirm

Top panel diagram

SOURCE External signal input selection and confirm the

item selected.

/ /

Side Panel Diagram

(Left Side)

(Back Side)

Connect to ANT or cable source

PC AUDIO IN PC audio input

VGA IN VGA signal from computer output

YPbPr Connect to the composite terminal of your DVD/VCR

ANT 75 Ω

EARPHONE

For Upgrade Use

AV INPUT

Earphone output

COAXIAL Digital Audio Output

Service Port

HDMI IN Connect to HDMI of DVD or other equipment

Name Function Description

AC 12 0V~

60Hz

HDMI1 HDMI2 HDMI 3

COA XIAL

ser vic e port

COAXIAL

INPUT

VIDEO L R

service p ort

HDMI

INPUT

Y Pb Pr

DC 12V

Remote Controller

Universal remote code

This is the code for remote control of

RLEDV1920A,if you want to change to a

universal remote control,you can edit

this code into your universal remote control.

(1)Open the battery compartment cover

on the back side

(2)Insert two 1.5V batteries of AAA type

with correct polarity

(3)Close the battery compartment cover

on the back side

Universal Remote Control code:007F

(Universal Remote control is not included)

MENU SO URCE

ENT ER

EXIT

SLEE P

P.MOD E S.MO DE

DISPLAY

MTS / MP3PROG

ZOOM

D.MENU D.TITLE

ANGLE

EPG

D.DISP

REV FWD PREV

FAV-

GOTO

AUDIO SUBTITLE

FAV FAV+

PROG STEP REPEAT A-B

D.setup

D.Menu D.Title Goto D.Disp

PROG STEP REPEAT A-B

Zoom Angle Subtitle

Audio

D.TITLE:

A-B During the playback,press thi s button to r epeat

playback of a specific section on a d isc.

SLEEP: Select amount of time before TV turn

off

automatically.

S.MODE: Press to cycle through the different sound settings

P.MODE: Press to cycle through the different picture settings

D.DISP:

D.MENU:

Press "-" t o enter a pro gram numb er for mult iple prog ram

channel , such as 2-1 e tc.

GOTO:

STEP：Play for single frame ima ge

ZOOM In DVD source adjust DVD picture size

MTS / MP3PROG:

Press to select the audio mode,yo u can selec t stereo, Mono,

or SAP(second audio pr ogram). /When pla ying mp3 di sc,

press MP3 PROG and add the favorite m usic to pla ylist,

press PROG two times to see the progr ammed pla ylist.

CH +/- : Press to scan through or to s elect a channel.

V +/-: Press to increase / decre ase the sound level.

EPG:

D.Setup:

AVTV HDMI PC

YPbPr DVD

side

indicator

10cm

10cm 10cm

LED TV
