RCA RNSMU5836 Bedienungsanleitung

RNSMU5836

“This product is manufactured and sold by Curtis International Ltd.

RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks or trademarks of RCA

Trademark Management and are used under license by Curtis International Ltd.

Any other product, service, company, trade or product name and logo referenced herein are neither endorsed

nor sponsored by RCA Trademark Management or its afﬁliates.”

Function Menu 16

Option Menu

Lock Menu

Channel Menu

SMART TV

OPERATION

* The pictures, functions and other information provided in the manual are for reference only.

If it does not match the actual object, please refer to the actual product.

15 29

WARRANTY

CARD

defeat

●ALWAYS read and follow all instructions for the installation and use of the TV.

●Place the TV in a location that is level and sturdy.

●DO NOT place the TV on a furniture with drawers that can be used as steps by small

children.

●DO NOT allow children to pull the TV or climb on the furniture where the TV is placed.

●DO NOT allow children to play in front of or around the TV.

●ALWAYS route all the cables connecting to the TV so the cables cannot be easily pulled and

grabbed by children.

●When installing the TV on a wall, please purchase a TV mount recommended by a

professional TV installer, and follow the installation instructions that come with the TV mount.

●Before installing the TV on a wall, please check to make sure the wall structure can support

the weight of the TV and the mount. If in doubt, please ask the advice from a professional TV

installer.

PERSONAL SAFETY NOTICE

Base stand

Base stand screws x 4

x 2

Mini AV in Cable x 1

Mini YPbPr in Cable x 1

Troubleshooting instructions card

12 10

01 02 03

04 05 06

07 09

0B 00

5B 19 14

42 40

1E 45

3D 63

48 49 4A 4B

686B

POWER( ): Turns the TV on or off.

MUTE( ): Mute or restore the sound

Number buttons: Choose the channel directly

Decimal Point: Input the decimal point.

Return(Back): Return to the previously-viewed channel.

MENU: Access the main menu

SOURCE: Select the input source mode.

Navigate the menu.

Navigation buttons: (Up/Down/Left/Right )

OK: Conﬁrm the selection.

HOME( ): Enter the home page.

EXIT: Exit the current screen.

NETFLIX: Access the Netﬂix interface.

VOL+/VOL- : Increases or decreases the TV volume.

CH /CH : Change to the previous or next program.

INFO: Show the detailed information.

EPG: This control button does not apply to this product.

REC( ): This control button does not apply to this product.

MTS: Select desired sound output depending on the

broadcasting channel.

CC: Setup the mode of closed caption.

SUBTITLE: Access the subtitle.

CH LIST: Access the channel list.

FAV: View your assigned favorite channels.

QUICK: Access the quick menu.

Color Buttons(RED/GREEN/YELLOW/BLUE): Execute the

prompt function in speciﬁc mode.

PLAY/PAUSE ( ): Pause or continue the playback.

STOP ( ): Stop playback.

FAST BACKWARD/FAST FORWARD ( / ): Fast review of

fast forward.

Remote Code: 20DF

IMPORTANT NOTICE:

Depending on the country where the TV is installed, certain apps may not be available.

The quick launch button on the remote control associated with those apps will therefore not work.

All other functionalities of the remote will work as designed.

NOTE: If there is a protective ﬁlm around the screen, remove the protective ﬁlm before using the TV.

BOTTOM VIEW

1. When TV power off, long press this button to turn on. When TV is on, long press this button to turn off,

short press this button to call out the input source menu, press the VOL+/- button to select the input

source and press the power on/off button again to conﬁrm the selection.

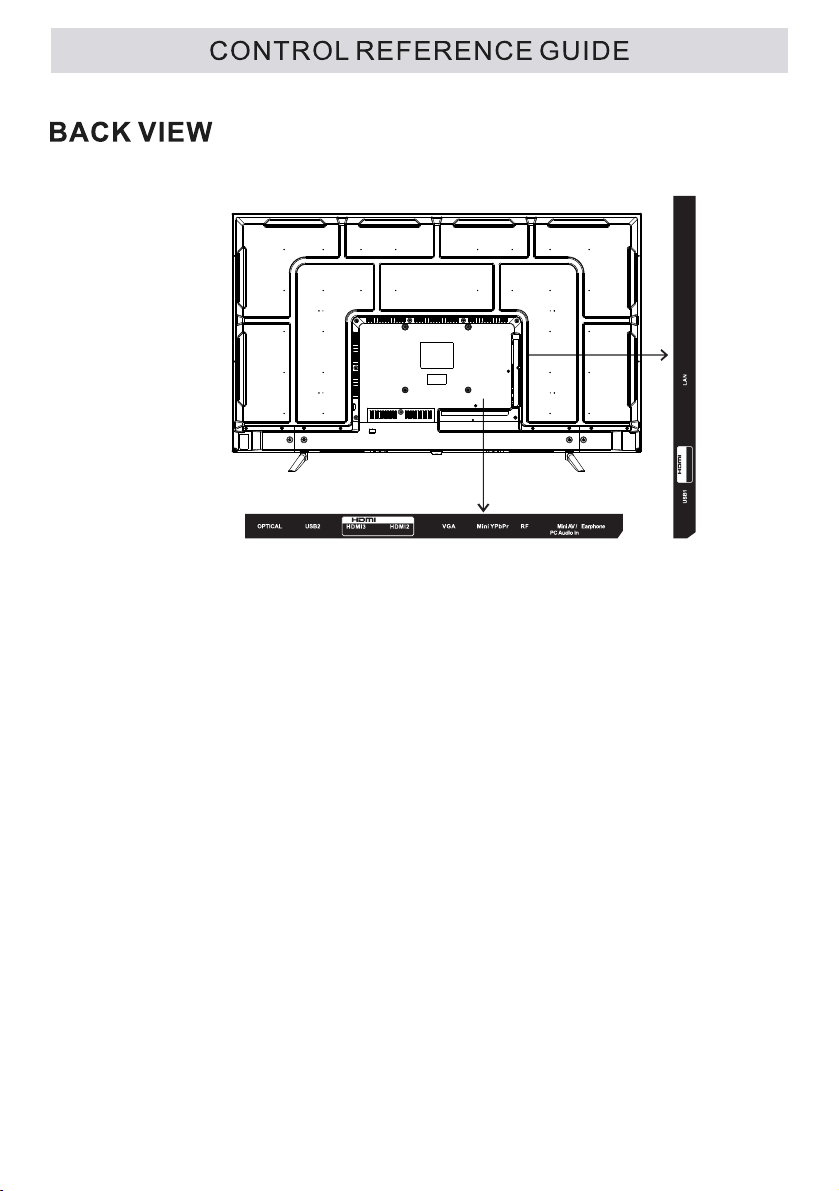

/INPUT:

OPTICAL: Digital TV sound output.

EARPHONE: Connect a 3.5mm headset for personal audio.

LAN: Connect the Internet.

USB: Connect the USB device such as the flash disk to access the TV media function.

VGA: Connect the PC to these jacks.

RF: Connect to receive the signal from your antenna or cable through a coaxial cable.

HDMI:(High-Definition Multimedia Interface) Provides an uncompressed digital connection.

MINI YPbPr: Connect the YPbPr output jack of the DVD or VCR.

MINI AV: Connect an AV device that has compostise video jacks,such as a VCR or DVD Player.

Note: PC AUDIO IN and mini AV share one port, PC audio and YPbPr audio should connect from this port.

(HDCP2.2) (HDCP2.2)

(4K@60Hz)

HDMI1(HDCP2.2)
