RCA RCU 404 Bedienungsanleitung

universal

UNIVERSAL

Multi-Brand Use RCU404

See back

for most

popular brands.

Compatible with

today’s most

popular brands.

Consolidates

up to 4

remotes

Dedicated

MENU key

for DVD

navigation

remote

Remote

RCU404_US_IB_REVB 7/16/03 15:34 Page 1

Component keys.

(TV, VCR,

DBS•CABLE,

DVD•AUX)

CHAN and VOL

keys have dual

functions. They

act as navigation

keys (up, down,

left, and right) in

menu systems.

Dedicated MENU

key for DVD disc

menus, some TVs

and satellite receivers.

Table of Contents

Product Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Battery Information and Installation . . . . . . . . . . . . . . . . . . .3

Key Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Program for TV—Direct Entry Method . . . . . . . . . . . . . . . . .5

Program for VCR—Direct Entry Method . . . . . . . . . . . . . . .6

Program for Satellite or Cable Box—Direct Entry Method . . .7

Program for DVD or AUX—Direct Entry Method . . . . . . . . .8

Code Search Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Manual Code Search . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Auto Code Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Code Retrieval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Sleep Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

On-screen Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Accessing a Menu System . . . . . . . . . . . . . . . . . . . . . . .12

Highlighting and Selecting Menu Items . . . . . . . . . . . .12

Exiting a Menu System . . . . . . . . . . . . . . . . . . . . . . . . .12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Limited 90-Day Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Actual model may vary from picture shown

RCU404_US_IB_REVB 7/16/03 15:34 Page 2

Battery Installation

and Information

Your universal remote requires two AAA Alkaline batteries

(batteries may or may not be included, depending on model).

To install the batteries:

1. Remove the battery compartment cover.

2. Insert the batteries, matching the

batteries to the (+) and (–) marks

inside the battery compartment.

3. Press and push the battery cover

back into place.

Note: Reprogramming may be

required after batteries are replaced.

Congratulations on your purchase of the 4 component

universal remote by RCA. This universal remote controls

up to four electronic components and makes juggling remote

controls a thing of the past. You can program this RCA

universal remote to operate most models of most brands of

infrared, remote-controlled components manufactured after

1990. (See the enclosed Code List for a complete list of brands).

The 4 component universal remote is easy to use, easy to

program and gives you control at the touch of your fingertips.

Note: The 4 component universal remote is already

programmed to operate most RCA, GE and PROSCAN

branded TVs, VCRs, DVD players and satellite receivers (DBS).

Just press the corresponding component key—VCR for a VCR;

DVD•AUX for a DVD player; TV for a television; DBS•CABLE

for a satellite receiver or a cable box.

4 Component

Universal Remote

Key Descriptions

Component keys (DVD•AUX, DBS•CABLE,

VCR,TV): selects the component you

want the remote to operate.

For example, after you’ve programmed

the remote to operate your TV, you must

press the TV key first to put the remote in

TV Mode. While in TV Mode, the CHAN

keys change the channel on the TV, the

VOL keys adjust the TV’s volume, etc.

Transport keys–REW (Rewind), PLAY, FF

(Fast Forward), PAUSE, STOP: operate

the same as your original VCR or DVD

remote control, although key labels may

vary (REVERSE, FORWARD).

RCU404_US_IB_REVB 7/16/03 15:34 Page 3

Other Keys (listed alphabetically)

0-9 (Number Keys):operate the same as number keys on your

original remote and are used to enter component codes when

programming the remote control with Direct Entry method.

ANTENNA: in TV mode, switches between the signal coming

from a satellite receiver or cable box and an off-air antenna.

In VCR mode, switches between the signal coming from a

VCR and a TV.

CHAN (Channel) UP AND DOWN: goes to the next highest

or lowest channel number in the component channel list,

respectively, except for DVD's. In DVD's the CHAN UP/DOWN

goes to the NEXT/PREVIOUS chapter. Additionally, when

you’re using the remote with On-screen Menus, the CHAN

keys act as UP ARROW and DOWN ARROW keys (moving

the cursor or highlight up or down).

CODE SEARCH: use to program the remote.

ENTER: use with Manual or Automatic Code Search method

to accept code (See Code Search on page 9). Also, some

brands require you to press the ENTER key after you enter

a channel number. In some menu systems, you must press

ENTER to select a highlighted item.

MENU: accesses DVD disc menus when DVD•AUX key

is programmed to operate a DVD player. Accesses menu

systems of some TVs, a few RCA brand VCRs and satellite

receivers. (For more information, refer to Using On-screen

Menus section on page 11).

MUTE: lowers the TV’s volume to its minimum level.

ON•OFF: turns component on and off.

Note: Some RCA, GE and PROSCAN models require that

you press the component key to turn ON the component

and the ON•OFF key to turn OFF the component.

PREV CH (Previous Channel):switches back to previous

channel—operates the same as LAST CHANNEL, GO BACK

or RECALL key found on some brands of remote controls.

REC (Record):used with VCR to record programming.

You must press the REC key twice to start recording.

SLEEP: allows you to set a time to turn off your

TV automatically.

VOL (Volume) UP and DOWN: increases or decreases the

TV’s volume level. Additionally, when you’re using the

remote with On-screen Menus, the VOL keys act as RIGHT

or LEFT ARROW keys (moving the highlight or cursor

right or left).

RCU404_US_IB_REVB 7/16/03 15:34 Page 4

(OFF)

123

456

789

ON•OFF

TV CODE

Program for TV—

Direct Entry Method

1. Manually turn on the TV.

2. Locate the enclosed TV Code List.

Find your brand of TV.

Note: If your brand isn’t listed,

use one of the Code Search methods

to program this remote control

(See Code Search on page 9).

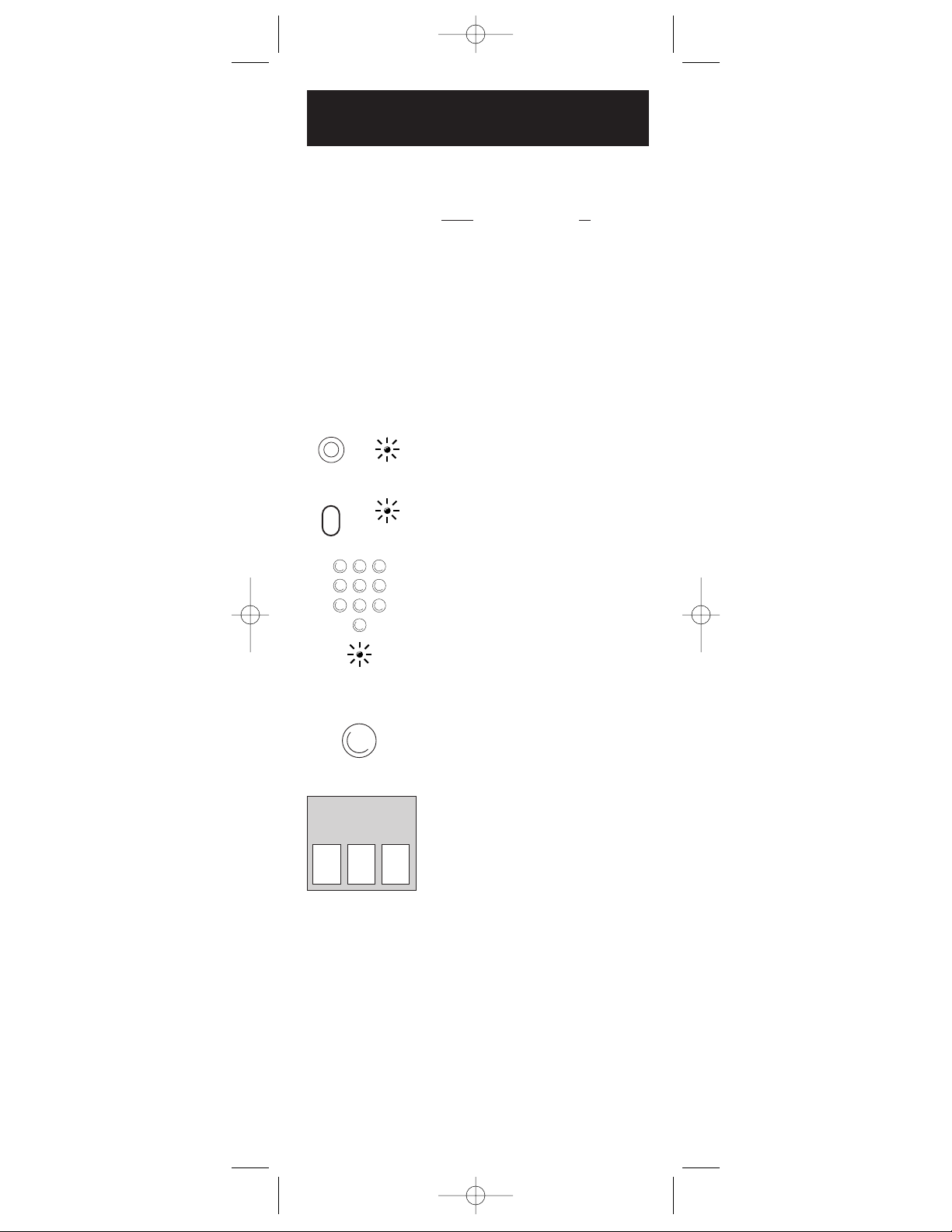

3. Press and hold the CODE SEARCH

key until the indicator light

illuminates. Then release the

CODE SEARCH key.

4. Press and release the TV key. The

indicator light blinks and then remains lit.

5. Use the number keys to enter

the first code listed for your brand.

After you enter a valid three-digit

code, the indicator light turns off.

Note: If you enter an invalid code,

the LED will flash rapidly for 2

seconds. Start over at step 3.

6. Aim the remote at your TV and press

the ON•OFF key. If your TV turns

off, you have found the correct code.

7. Enter the code in the box provided

on this page for future reference.

8. If your TV doesn’t turn off, repeat

steps 3-6 above, entering the next

code for your brand.

If none of the codes work or your

brand is not listed, use one of the

Code Search methods to program this

remote (See Code Search on page 9).

For a description of each key on

the remote control, refer to the Key

Descriptions section on page 3-4.

In order for the 4 component universal remote to control

your TV, you must program it with the TV code that matches

your TV. These instructions explain the preferred method

of programming the remote—the Direct Entry method.

CODE

INDICATOR

LIGHT

(BLINK)

RCU404_US_IB_REVB 7/16/03 15:34 Page 5

Program for VCR—

Direct Entry Method

VCR

1. Manually turn on the VCR.

2. Locate the enclosed VCR Code List.

Find your brand of VCR.

Note: If your brand isn’t listed, use one

of the Code Search methods to program

this remote control (See Code Search

on page 9).

3. Press and hold the CODE SEARCH

key until the indicator light illuminates.

Then release the CODE SEARCH key.

4. Press and release the VCR key.

The indicator light blinks and then

remains lit.

5. Use the number keys on the remote to

enter the first code listed for your brand.

After you enter a valid three-digit

code, the indicator light turns off.

Note: If you enter an invalid code,

the LED will flash rapidly for 2

seconds. Start over at step 3.

6. Aim the remote at the VCR. Press

the ON•OFF key. If your VCR turns

off, you have found the correct code.

7. Enter the code in the box provided

on this page for future reference.

8. If your VCR doesn’t turn off, repeat

steps 3-6 above, entering the next

code for your brand.

If none of the codes work or your

brand is not listed, use one of the

Code Search methods to program this

remote (See Code Search on page 9).

For a description of each key on

the remote control, refer to the Key

Descriptions section on page 3-4.

In order for the 4 component universal remote to control

your VCR, you must program it with the code that matches

your VCR. These instructions explain the preferred method

of programming the remote—the Direct Entry method.

ON•OFF

(BLINK)

(OFF)

123

456

789

CODE

INDICATOR

LIGHT

VCR CODE

RCU404_US_IB_REVB 7/16/03 15:34 Page 6

Program for Satellite or Cable Box—

Direct Entry Method

DBS•

CABLE

1. Manually turn on the satellite

receiver or cable box.

2. Locate the enclosed Satellite or Cable

Box Code List. Find your brand in the

Satellite Codes or Cable Box Codes

section, respectively.

Note: If your brand isn’t listed,

use one of the Code Search methods

to program this remote control

(See Code Search on page 9).

3. Press and hold the CODE SEARCH

key until the indicator light illuminates.

Then release the CODE SEARCH key.

4. Press and release the DBS•CABLE

key. The indicator light blinks and

then remains lit.

5. Use the number keys on the remote to

enter the first code listed for your brand.

After you enter a valid three-digit

code, the indicator light turns off.

Note: If you enter an invalid code,

the LED will flash rapidly for 2

seconds. Start over at step 3.

6. Aim the remote at the satellite receiver

or cable box and press the ON•OFF

key. If your Satellite receiver or cable

box turns off, you have found the

correct code.

7. Enter the code in the box provided

on this page for future reference.

8. If your satellite receiver or cable box

doesn’t turn off, repeat steps 3-6 above,

entering the next code for your brand.

If none of the codes work or your

brand is not listed, use one of the

Code Search methods to program

this remote (See Code Search on page 9).

For a description of each key on the

remote control, refer to the Key

Descriptions section page 3-4.

In order for the 4 component universal remote to control your

satellite or cable box, you must program it with the code that

matches your component. The DBS•CABLE key can be

programmed to operate either a satellite receiver or a

cable box. These instructions explain the preferred method

of programming the remote—the Direct Entry method.

ON•OFF

(BLINK)

(OFF)

123

456

789

CODE

INDICATOR

LIGHT

DBS (SATELLITE)

CABLE BOX CODE

RCU404_US_IB_REVB 7/16/03 15:34 Page 7

DVD•AUX CODE

Program for DVD•AUX—

Direct Entry Method

DVD•

AUX

In order for the 4 component universal remote to control

your DVD player or auxiliary component, you must program

it with the code that matches your component. The DVD•AUX key

can be programmed to operate a DVD player or a second TV,

VCR, DBS or cable box. These instructions explain the preferred

method of programming the remote—the Direct Entry method.

ON•OFF

(BLINK)

(OFF)

123

456

789

CODE

INDICATOR

LIGHT

INDICATOR

LIGHT

1. Manually turn on the component you

wish to assign to the DVD•AUX key (TV,

VCR, DVD, DBS System or cable box).

2. Locate the enclosed DVD code list, or the

corresponding code list for the auxiliary

component (TV, VCR, DBS, or cable box).

Note: If your brand isn’t listed, use one of

the Code Search methods to program this

remote control (See Code Search on page 9).

3. Press and hold the CODE SEARCH

key until the INDICATOR LIGHT

illuminates, then release the CODE

SEARCH key.

4. Press and release the DVD•AUX key.

The INDICATOR LIGHT will blink.

5. To program for DVD, press the

VCR key. For an auxiliary component,

press the corresponding component

key (TV, VCR, DBS•CABLE).

The INDICATOR LIGHT will blink

again, then remain lit.

6. Use the number keys on the remote

to enter the first code listed for

your brand.

After you enter a valid three-digit

code, the indicator light turns off.

Note: If you enter an invalid code,

the LED will flash rapidly for

2 seconds. Start over at step 3.

7. Aim the remote at your component

and press the ON•OFF key. If your

component turns off, you have found

the correct code.

8. Enter the code in the box provided

on this page for future reference.

9. If your component doesn’t turn off,

repeat steps 3-7 above, entering the

next code for your brand.

If none of the codes work or your

brand is not listed, use one of the

Code Search methods to program this

remote (See Code Search on page 9).

For a description of each key on

the remote control, refer to the Key

Descriptions section page 3-4.

TV VCR CABLE DBS DVD

✓

RCU404_US_IB_REVB 7/16/03 15:34 Page 8

Code Search Methods

Manual Code Search

1. Manually turn on the component

you want the remote to operate.

2. Press and hold the CODE SEARCH

key until the indicator light

illuminates. Then release the

CODE SEARCH key.

3. Press and release the component key

that corresponds to the component

you want the remote to operate (TV,

VCR or DBS•CABLE). The indicator

light blinks once and then remains lit.

Note: For DVD or AUX, Press

DVD•AUX, then the component key

corresponding to the component to be

stored under the AUX key. For DVD,

press DVD•AUX, then the VCR key.

For an auxiliary component, press

DVD•AUX, then the corresponding

component key (TV, VCR,

DBS•CABLE).

4. Aim the remote at the component and

press the ON•OFF key continuously

until the component turns off.

Important: Because there are so many

codes, you may have to press the

ON•OFF key many times—possibly

up to 200 times.

5. When the component turns off, press

the ENTER key to store the code.

6. Use Code Retrieval on the next

page to identify the code for your

component for future reference.

If your component’s brand isn’t listed in the Code List or

you have tried all of the codes for your brand and the remote

does not operate your component, use one of the Code Search

methods below—Manual Code Search or Auto Code Search.

Both Code Search methods search all of the codes because

your component’s code may be listed under another brand

in the code list.

Note: The Code Search method may take a long time because

the remote searches all of the codes in its memory for the

code which operates your component. Therefore, if your

brand is listed in the Code List, use the Direct Entry method

described on pages 5-8.

Auto Code Search

1. Manually turn on the component

you want the remote to operate.

2. Press and hold the CODE SEARCH

key until the indicator light

illuminates. Then release the CODE

SEARCH key.

3. Press and release the component key

that corresponds to the component

you want the remote to operate (TV,

VCR, or DBS•CABLE). The indicator

light blinks once and then remains lit.

INDICATOR

LIGHT

CODE

ON•OFF

(BLINK)

INDICATOR

LIGHT

CODE

ENTER

RCU404_US_IB_REVB 7/16/03 15:34 Page 9

123

456

789

1. Press and hold the CODE SEARCH

key until the indicator light illuminates.

Then release the CODE SEARCH key.

2. Press and release the component

key that matches the component’s

code you are retrieving (TV, VCR, or

DBS•CABLE). The indicator light

blinks once and then remains lit.

Note: For DVD or AUX, Press

DVD•AUX, then the component key

corresponding to the component stored

under the AUX key. For DVD, press

DVD•AUX, then the VCR key. For an

auxiliary component, press DVD•AUX,

then the corresponding component

key (TV,VCR, DBS•CABLE).

3. Press and release the CODE SEARCH

key. The indicator light turns off.

4. Starting with 0 on the keypad, press

the number keys in order (0-9) until

the indicator light blinks.

If you used one of the Code Search methods to program

your remote, follow the steps below to find out which code

is compatible with your component. Finding the actual code

and writing it down will save you time if you ever need to

program the remote again (e.g., if programming is lost when

you change the batteries).

INDICATOR

LIGHT

(OFF)

CODE

Code Retrieval

(BLINK)

Note: For DVD or AUX, Press

DVD•AUX, then the component key

corresponding to the component

to be stored under the AUX key. For

DVD, press DVD•AUX, then the VCR

key. For an auxiliary component,

press DVD•AUX, then the

corresponding component key

(TV, VCR, DBS•CABLE).

4. Aim the remote at the component

and press the ON•OFF key once.

The remote automatically sends every

code for the specified component

one at a time, with a 3 second delay

between each code. Keep the remote

aimed at the component throughout

the process.

5. As soon as the component turns

off, you must press the ENTER key

immediately so the remote stores

the correct code. If you don’t press

ENTER within 3 seconds, the remote

will send the next code in the list, and

you will have to start over from step 2.

6. Use Code Retrieval to identify the code

for your component for future reference.

ENTER

ON•OFF

(BLINK)

RCU404_US_IB_REVB 7/16/03 15:34 Page 10

Andere Handbücher für RCU 404

Inhaltsverzeichnis

Andere RCA Fernbedienung Handbücher

RCA

RCA RCRPS04GR Stücklistenhandbuch

RCA

RCA RCR4283 Benutzerhandbuch

RCA

RCA RCRPS06GR Bedienungsanleitung

RCA

RCA RCRN04GR Bedienungsanleitung

RCA

RCA RCU1010 Bedienungsanleitung

RCA

RCA RCR815 - Universal Remote Control Administratorhandbuch

RCA

RCA RCR4373 - Universal Snowboard Remote Bedienungsanleitung

RCA

RCA SYSTEMLINK3 RCU1300 Bedienungsanleitung

RCA

RCA RCU1300 Handbuch

RCA

RCA CRCU5601 Bedienungsanleitung

RCA

RCA RCRN04GR Bedienungsanleitung

RCA

RCA RCR812 - Universal Remote Control Bedienungsanleitung

RCA

RCA RCU403 - Universal Remote Control Bedienungsanleitung

RCA

RCA RCRPS02GR Bedienungsanleitung

RCA

RCA RCRBB04GZ Bedienungsanleitung

RCA

RCA NiteGlo RCU4GLW Bedienungsanleitung

RCA

RCA RMK300 Bedienungsanleitung

RCA

RCA RCU704 Series Bedienungsanleitung

RCA

RCA SystemLink 6 AV RCU600RS Bedienungsanleitung

RCA

RCA RCR6473 - Universal Remote Control Administratorhandbuch

RCA

RCA RCR504BR Series Bedienungsanleitung

RCA

RCA RCR504BR Series Bedienungsanleitung

RCA

RCA RCRN08GR Bedienungsanleitung

RCA

RCA RCR3283 - Universal Remote Control Administratorhandbuch

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung

Invacare

Invacare G91S Bedienungsanleitung
