RCA RLCDV3282A Bedienungsanleitung

32” LCD Television TV with DVD

MODEL: RLCDV3282A

Contents

Caution

Safety Information

Unit and Accessories

Introduction

1. Front View

2. Rear View

4. Remote Control

Basic Operation

OSD Menu

1. Picture menu

2. Sound menu

3. Channel menu

4. Parental Control menu

5. Setup menu

6. Others menu

Simpl

DVD Operation 20-27

e Troubleshooting

5-10

8-10

12-19

12-13

16-17

3. Instruction for Wall Mount 7

LIMITED PRODUCT WARRANTY

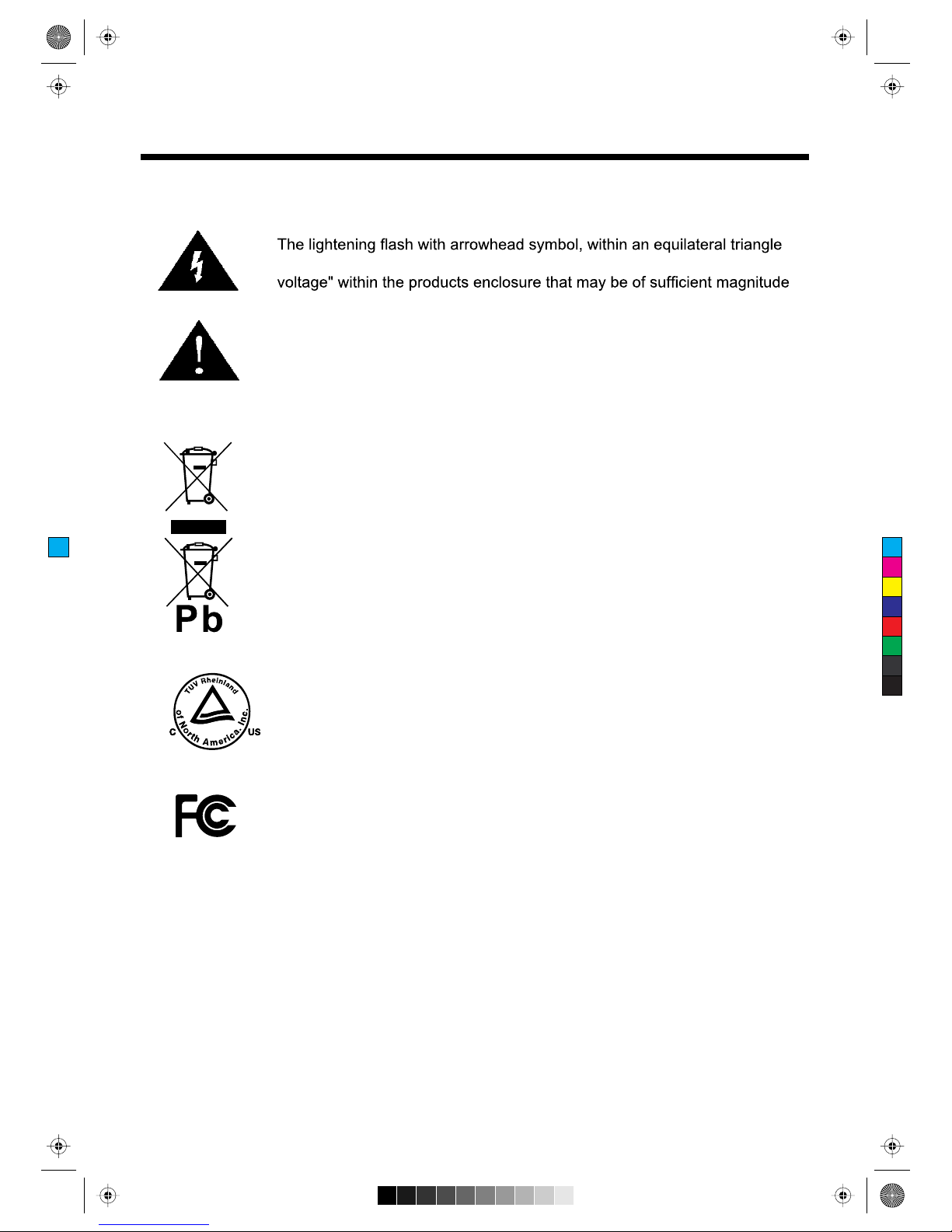

Caution

is intended to alert the user to the presence of un-insulated "dangerous

to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-

of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/

recycling centre.

In the USA there are separate collection systems for used electrical and

electronic products. Please help us to conserve the environment we live

in!

This unit complies with America Safety directives.

This unit complies with FCC directives.

Safety Information

Electrical safety

Physical safety

power

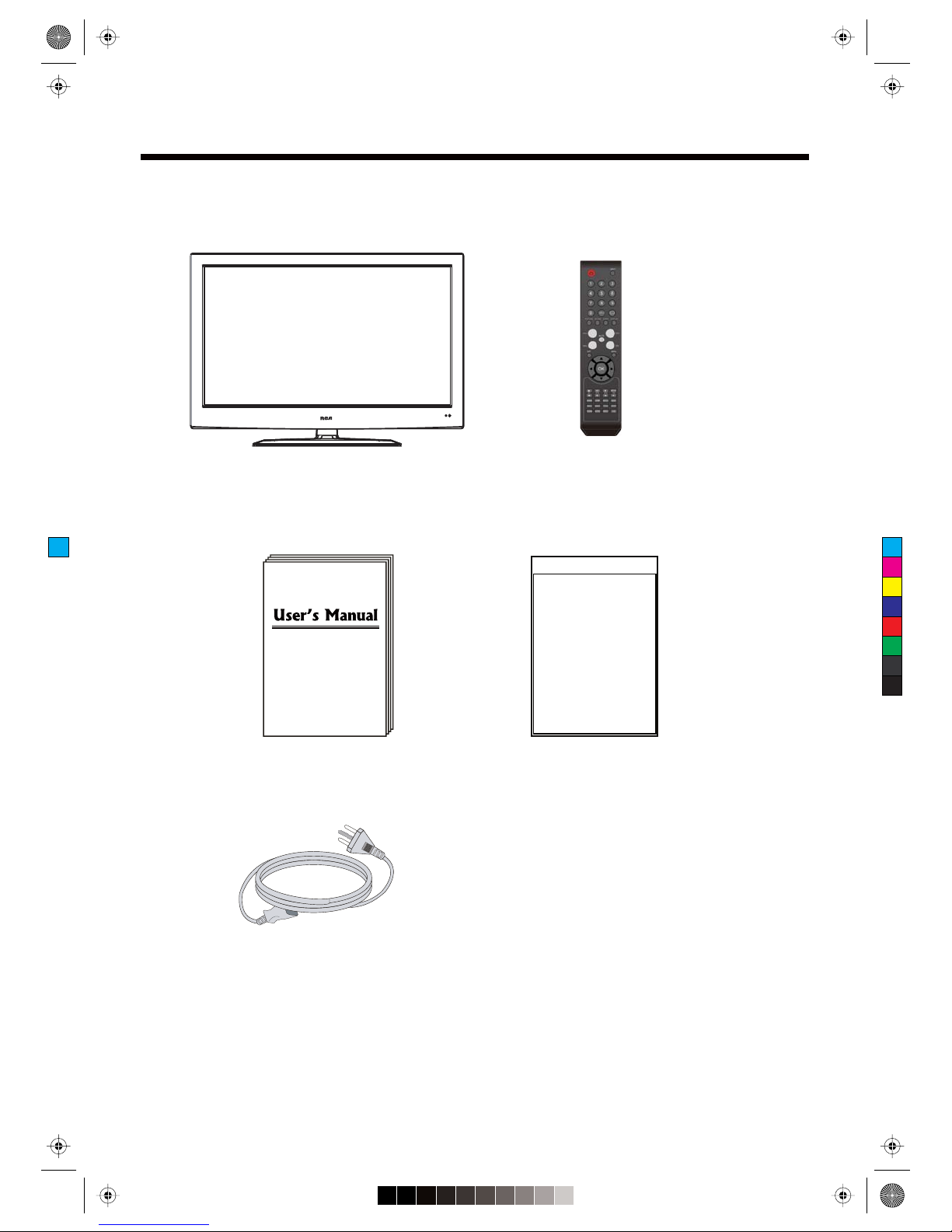

Unit and Accessories

TV set

User's manual

Remote control

Batteries: 2xAAA

Instructions for fixing stand

Instructions for

fixing stand

AC Cord

Introduction

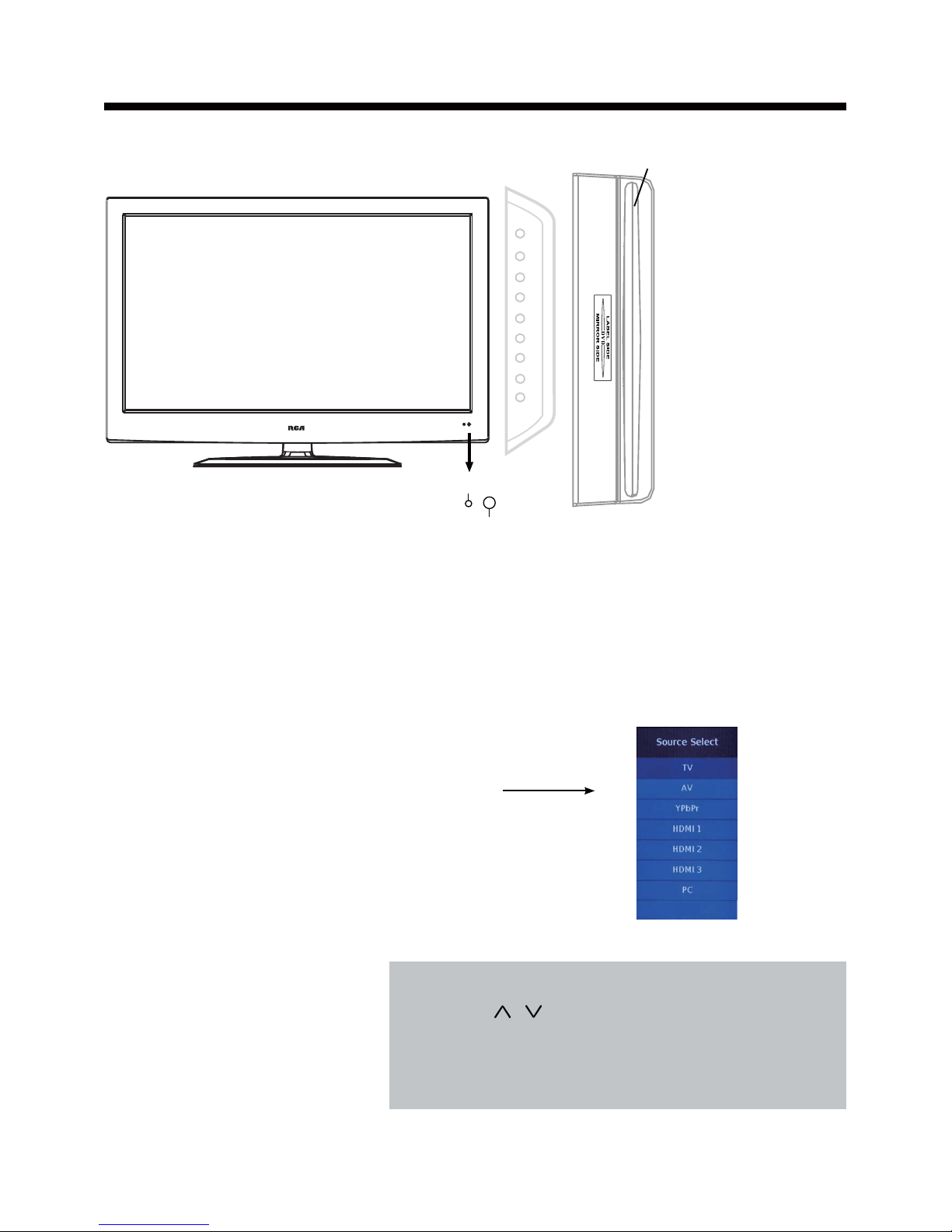

1. Front View

1). (IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press POWER to turn on and off.

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

2). The functions of the buttons:

INPUT: Press to display the input source menu.

MENU: Press to display the OSD menu,

press again to exit the menu.

CH+/-: Press to scan through channels.

VOL+/-: Press to adjust the volume.

POWER:

PLAY: Play/pause the disc playing.

EJECT: Eject the disc.

Turn on/standby the TV set.

The effective receiving range for the signal is 5-8 metres from the front of the remote

control window, and 300to the left or right side and 200above or below the remote control

window.

Press INPUT button on the TV set or remote control to

display the input source menu, and use CH+/- button on

the TV set or / button on remote control to select the

input source, press OK button on the remote control to

enter.

Note: Before you select the input source, make sure the

connections are prepared.

Power Indicator

Remote Control window (Keep clear)

Please insert a 12cm disc

according to the silk

INPUT MENU CH+ CH- VOL+ VOL- PLAY EJECT POWER

DVD

Introduction

2. Rear View

Headphone out: Connect it to your headphone or audio equipments.

RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.

COAX : Digital audio output.

: Connect it to the HDMI output of video device.

HDMI1/2/3

L/R in : Connect them to audio output of video device.

AUDIO L/R out : Connect them to audio equipments.

VIDEO : Connect it to video output of video device.

USB(Service) : For service use only.

Coax RF VGA PC-IN HDMI1 HDMI2 HDMI3

USB

(Service)

R in L inVideo R

AUDIO OUT

YPb Pr RL

YPbPr : Connect them to the video output terminal of DVD.

L/R : Connect them to the audio output terminal of DVD

AC POWER IN: Connect it to AC100-240V~ 50/60Hz power supply with the mains cable.

Introduction

3. Instruction for Wall Mount

- Do not mount your RCA TV at more than a 15 degree tilt.

- Always use two people to mount the TV to a wall.

- Do not install your Wall Mount Kit while your TV is turned on. It may result in

personal injury due to electric shock.

The wall mount kit (not included) with your purchase allows you to mount your

RCA TV on the wall. For detailed information on installing the wall mount, refer

to the instructions provided by the wall mount manufacturer. It is strongly

recommended to contact a technician for professional assistance for wall mount

installation. RCA is not responsible for any damage to the product or injury to

yourself or others resulting from the wall-mounting.

- 4 pcs of type M6 screws are required for installing the wall mount bracket to

your RCA TV. Do not use screws that are longer than 10 mm. Screws that

are too long may cause damage to the inside of the TV set.

- Do not fasten the screws too tight for this may damage the TV or cause the

TV to fall, resulting in personal injury. RCA is not liable for these kinds of

incidents

Dimensions for Mounting Hole Pattern

This RCA TV is compatible with a 400mm x 200mm mounting hole pattern.

400mm

200mm

Introduction

4. Remote Control

The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote

control may not work correctly if it is operated out of range or out of angle.

Universal Remote Code:11359

Universal Remote Control not included.

POWER

Press to turn the TV on/standby

INPUT

Press to display the input source

To select the program directly.

e.g.:

Select channel 5,

press “5” button.

Select channel 62

press “6” button, and press “2”

button in 2 seconds.

Select channel 152

press “1” button, and press “5”

button, then press “2” button

in 2 seconds.

select channel “5-1”,

press “5” then “-/--” and “1”.

NUMBER BUTTONS

Return to the previous channel viewed.

MUTE

Press to mute the sound.

Press again or press VOL+ to

unmute.

DISPLAY

Press to enter the EPG menu

directly.


Press repeatedly to cycle

through the available video

picture modes.

SOUND

Press to cycle through the

different sound settings.

SLEEP

Press to setup the sleep time

CH+/-

Channel/Program +/-

VOL+/-

Volume +/-

Press to display the OSD menu.

EXIT

Press to exit form the OSD menu.

Allows you to navigate the

on-screen menus and adjust the

system settings to your

preference.

THUMBSTICK OK )

Press to display the closed caption.

MTS

Press to select the audio channels.

FAV

Press to display teh favorite

channels list.

EPG

Press to enter the EPG menu

directly.

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

123

456

789

CC MTS EPG FAV

SETUP

TITLE

ANGLE

GOTOMENU

REPEAT

INTRO A-B

PROGRAM



LANGUAGE

ZOOM

SUBTITLE

SLOW
