USERIS

GUIDE

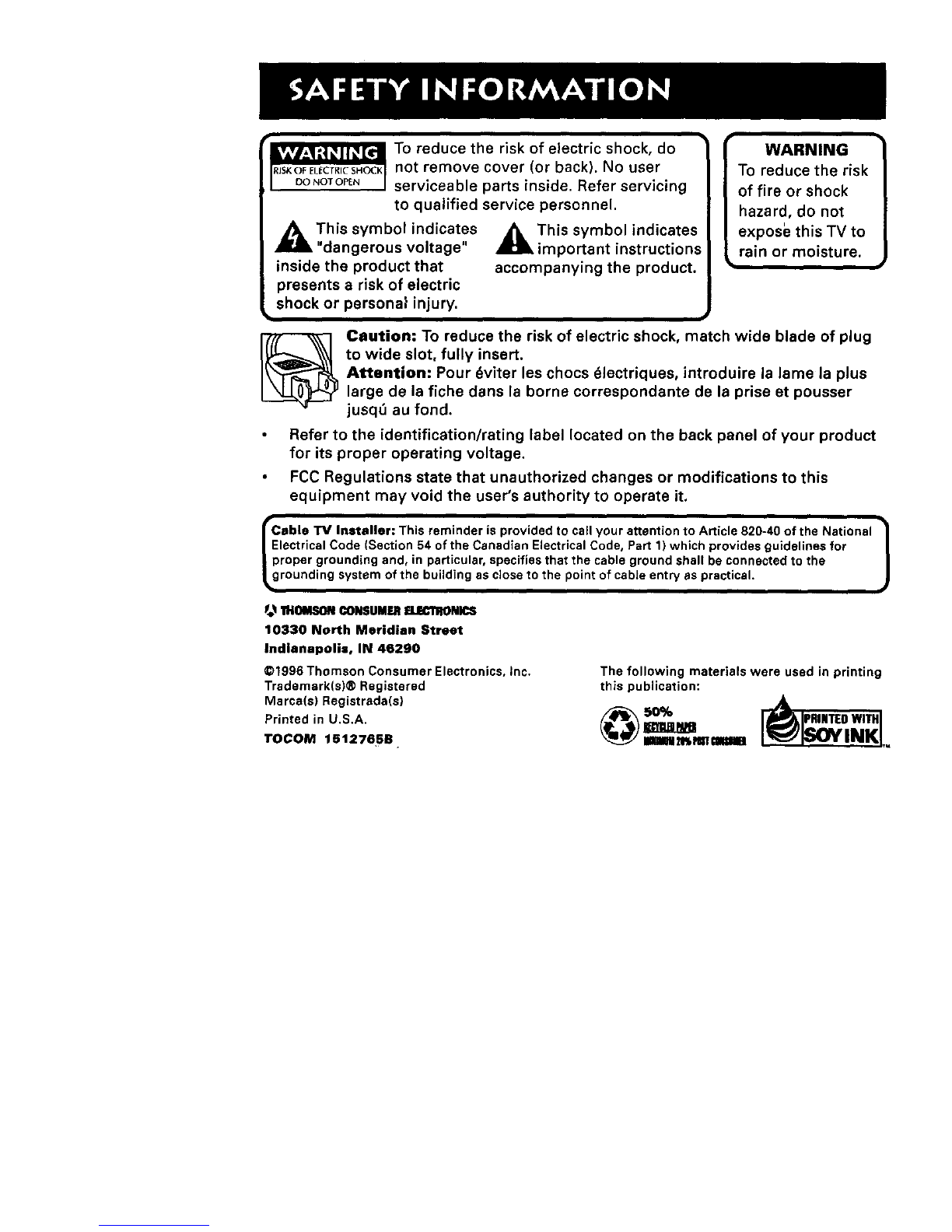

_/_Th is symbol indicates

"dangerous voltage"

inside the product that

presents a risk of electric

_,shock or personal injury.

To reduce the risk of electric shock, do

not remove cover (or back). No user

serviceable parts inside. Refer servicing

to qualified service personnel.

_This symbol indicates

important instructions

accompanying the product.

rWARNING

To reduce the risk

of fire or shock

hazard, do not

expose this TV to

rain or moisture.

Caution: To reduce the risk of electric shock, match wide blade of plug

to wide slot, fully insert.

Attention: Pour 6viter les chocs _lectriques, introduire la lame ia plus

large de la fiche dans la borne correspondante de la prise et pousser

jusq_ au fond.

Refer to the identification/rating label located on the back panel of your product

for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

able "IV Installer: This reminder is provided to call your attention to Article 820-40 of the National |

ectrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for )

roper grounding and, in particular, specifies that the cable ground shall be connected to the

rounding system of the building as close to the point of cable entry as practical.

_THOMSON CONSUNEI! FJ.ECIilON_S

10330 North Meridian Street

Indianapolis, IN 46290

01996 Thomson Consumer Electronics, inc.

Trademark(s)® Registered

Marca(s) Registrada(s)

Printed in U.S.A.

TOCOM 1512765B

The following materials were used in printing

this publication:

STEP 1

Unpack the TV and remote control.

IMPORTANT STAND INFORMATION:

CAUTION: If you choose to use a stand with your TV, take precautions that

the stand or other furniture the TV is placed on is properly located and of

adequate size and strength to prevent the TV from accidentally being

pushed off, pulled off or tipped over. This could cause damage to the TV

and or personal injury.

STEP 2:

Connect your TV. This is a basic

connection from an antenna, cable

box, or VCR to your TV. Connect the

cable from your cable system or off-air

antenna to the cable-in jack on the

back of the TV, as shown.

ANTENNA,CABLE,CABLEPOXORVCR

STEP 3:

Plug in the TV. Plug the end of the power cord into the wall

outlet, matching the wide blade of the plug with the wide

slot in the outlet. Be sure to insert the plug completely.

STEP 4

Put batteries in the remote.

Remove the battery compartment cover from

the back of the remote.

Insert two AAA batteries as shown, matching

the + and- ends of each battery in the

compartment.

Replace the cover.

STEP 5

Turn on the TV.

Press TV on the remote.

Read the next section, Using the Menu System, which is abrief overview of

the basic rules for getting around in the menus using the remote or TV's front

control panel.

THE MENU RULE: POINT AND SELECT

You only need to know one rule to use the on-screen menus and control

panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on

the remote. (The CHAN/VOL buttons on the

remote.)

2. Sele©t a menu item by pressing MENU.

Selecting an item tells the TV's menu system to go

ahead and make the change or go to a place you

have indicated. (You can also select an item by

pressing the corresponding number button on the

remote.)

VOL CHAN VOL

CHAN

Once you know how to point and select your way through the menus, you

can apply this rule in the menu control panels, which do the real work in the

menu system.

The s_tup routine walks you through the steps needed to configure the TV.

These steps allow you to select a menu language, complete the auto channel

search, which puts available cable TV or antenna signals into the TV's

memory, label the channels and set the parental controls. After you select a

menu language, you can skip any of the remaining steps and return to them

later.

BEGIN SETUP

1. Press MENU to bring up the Main menu.

2. Point to Setup and press MENU. The first Setup screen comes up, asking

you to select a language.

Setu

3. Point to your preferred language by pressing the up and down arrows

until the language is highlighted in green.

4. Press MENU to select the language.

5. A screen appears asking if you would like the TV to search for all

channels.

Setu

6. Complete the Setup routine or skip any of the steps and return to them

late_

TV MAIN MENU

The Main menu is your gateway to controlling the TV. It lets you adjust the

TV's audio, picture quality, screen, time functions and channel settings.

TV MAIN MENU

To select any other menu item:

1. Press MENU to bring up the TV's Main menu.

2. Point to any menu item by pressing the up and down arrows until the

item is highlighted in green.

3. Press MENU to select the item and a new menu comes up.

To exit any menu screen, point to Exit and press MENU, or press CLEAR.

THE AUDIO MENU

The Audio menu lets you adjust the way the TV sounds.

Mute Turns off the TV's sound. Press MENU to toggle the Mute feature

between ON and OFF.

THE AUDIO MENU

_he Audio menu lets you adjust the way the TV sounds.

Mute Turns offthe TV's sound. Press MENU to toggle the Mute feature

between ON and OFF,

THE PICTURE QUALITY MENU

The Picture Quality menu contains the controls that adjust the TV's picture.

There are five slider controls for adjusting the way the picture looks. Use the

left and right arrow buttons to adjust the controls.

Contrast Adjusts the difference between light and dark areas of the picture.

Color Adjusts the richness of the color,

Tint Adjusts the balance between the red and green levels,

Black Level Adjusts the brightness of the picture.

Sharpness Adjusts the crispness of edges in the picture.

Auto Color Displays the current setting (ON or OFF). This feature

automatically corrects the color of the picture. Select Off if you prefer to

adjust the picture with the Picture Controls. Use the MENU button to toggle

between the choices.

Reset Picture Controls Resets the picture controls to their original settings.

THE SCREEN MENU

The Screen menu contains the controls that let you adjust the Closed-Caption

_ode, Closed-Caption display and menu language.

Closed-Caption Display Displays a choice list that lets you choose the way

closed captioning information is shown on the screen. Use the MENU button

to toggle between the choices.

Off No captioning information displayed.

On Captioning information shown always, when available.

On When Sound is Muted Displays captioning information, when

available, whenever you press the MUTE button. The captioning

information is not displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which

captioning mode is used for displaying captioning information. Use the

MENU button to toggle between the choices: CC1 and CC2.

Menu Language Lets you select the language of your choice: English,

French or Spanish. Use the MENU button to toggle between the choices.
