USER'S

GUIDE

To reduce the risk of electric shock, do

not remove cover (or back). No user

serviceable parts inside. Refer servicing

to qualified service personnel.

i_ This symbol indicates

"dangerous voltage"

inside the product that

presents a risk of electric

shock or personal injury.

_ll his symbol indicates

important instructions

accompanying the product.

WARNING

To reduce the risk

of fire or shock

hazard, do not

expose this TV to

rain or moisture.

Caution: To reduce the risk of electric shock, match wide blade of plug

to wide slot, fully insert.

Attention: Pour _viter les chocs 61ectriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et pousser

jusq_ au fond.

•Operate TV only on 120 volts, 60 Hz AC power (normal house power).

• FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

abl:e "rv Installer: This reminder is provided to call your attention to Article 820-40 of the National |

lectrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for ]

proper grounding and, in particular, specifies that the cable ground shall be connected to the

rounding system of the building as close to the point of cable entry as practical,

_._1HOMSON CONSUMERELECTRONICS

103:}0 North Meridian Street

Indianapolis, IN 46290

Trademark(s)® Registered

Marca(s) Registrada(s)

Printed in U.S.A.

TOCOM 1511223A

The following materials were used in printing

this publication:

.nu. z_P.Trams SOY INK

STEP 1

Unpack the TV and remote control.

IMPORTANT INFORMATION: OPTIONAL STAND

Matching stands were designed to be used with 25 inch and larger table

model TV(s) included in this book. The recommended stands are provided

wiith hardware to secure the TV to the stand so that it cannot be easily

pushed off, pulled of,f or tipped over. Your RCA dealer can help you choose

the appropriate stand for your TV.

Caution: If you choose not to use the stand recommended for your TV,

take precautions that the stand or other furniture the TV is placed on is

properly located and of adequate size and strength to prevent the TV from

accidentally being pushed off, pulled off, or tipped over. This could cause

damage to the TV and/or personal injury.

STEP 2:

Connect your TV. This is a basic

connection from an antenna, cable

box, or VCR to your TV. Connect the

cable from your cable system or off-air

antenna to the cable-in jack on the

back of the TV, as shown.

ANTENNA, CABLE,CABLE BOX OR VGR

STEP 3:

Plug in the TV. Plug the end of the power cord into the wall

outlet, matching the wide blade of the plug with the wide

slot in the outlet. Be sure to insert the plug completely.

STEP 4

Put batteries in the remote.

• Remove the battery compartment cover from

the back of the remote.

• Insert two AAA batteries as shown, matching

the + and- ends of each battery in the

compartment.

• Replace the cover.

STEP 5

Turn on the TV.

• Press TV on the remote.

Read the next section, Using the Menu System, which is abrief overview of

the basic rules for getting around in the menus using the remote or TV's front

control panel.

THE MENU RULE: POINTAND SELECT

You only need to know one rule to use the on-screen menus and control

panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on

the remote. (The CHAN/VOL buttons on the

remote.)

2. Select a menu item by pressing MENU.

Selecting an item tells the TV's menu system to go

ahead and make the change or go to a place you

have indicated. (You can also select an item by

pressing the corresponding number button on the

remote.)

VOL CHAN VOL

CHAN

,Once you know how to point and select your way through the menus, you

can apply this rule in the menu control panels, which do the real work in the

menu system.

The setup routine walks you through the steps needed to configure the TV.

These steps allow you to select amenu language, complete the auto channel

search, which puts available cable TV or antenna signals into the TV's

memory, label the channels and set the parental controls. After you select a

menu language, you can skip any of the remaining steps and return to them

later.

BEGIN SETUP

1. Press MENU to bring up the Main menu.

2. Point to Setup and press MENU. The first Setup screen comes up, asking

you to select a language.

Setu

3. Point to your preferred language by pressing the up and down arrows

until the language is highlighted in green.

4. Press MENU to select the language.

5. A screen appears asking if you would like the TV to search for all

channels.

6. Complete the Setun rn_Jtin,, ,,, ,-L,;...... •......

TV MAIN MENU

The Main menu is your gateway to controlling the TV. It lets you adjust the

TV's audio, picture quality, screen, time functions and channel settings.

TV MAIN MENU

To select any other menu item:

1. Press MENU to bring up the TV's Main menu.

2. Point to any menu item by pressing the up and down arrows until the

item is highlighted in green.

3. Press MENU to select the item and a new menu comes up.

To exit any menu screen, point to Exit and press MENU, or press CLEAR.

THE AUDIO MENU

The Audio menu lets you adjust the way the TV sounds.

Audio

Mute Turns off the TV's sound. Press MENU to toggle the Mute feature

between ON and OFF.

IXS Stereo An innovative method for stereo sound effect 1

providing

The sound delivered by your television is XS Stereo. This patented process /

suppresses noise, restores the dynamic range and electronically expands the/

stereo signal to create a more spacious sound effect. J

Stereo Press MENU to toggle the Stereo feature between ON and OFF.

On Sound is reproduced in stereo or mono, whichever is being broadcast.

Off Sound is reproduced in mono.

THE PICTURE QUALITY MENU

The Picture Quality menu contains the controls that adjust the TV's picture.

Picture qualit

There are five slider controls for adjusting the way the picture looks. Use the

left and right arrow buttons to adjust the controls.

Contrast Adjusts the difference between light and dark areas of the picture.

Color Adjusts the richness of the color.

Tint Adjusts the balance between the red and green levels.

Black Level Adjusts the brightness of the picture.

Sharpness Adjusts the crispness of edges in the picture.

Auto Color Displays the current setting (ON or OFF). This feature

automatically corrects the color of the picture. Select Off if you prefer to

adjust the picture with the Picture Controls. Use the MENU button to toggle

between the choices.

Reset Picture Controls Resets the picture controls to their original settings.

THE SCREEN MENU

The Screen menu contains the controls that let you adjust the Closed-Caption

mode, Closed-Caption display and menu language.

Screen

Closed-Caption Display Displays a choice list that lets you choose the way

closed captioning information is shown on the screen. Use the MENU button

to toggle between the choices.

Off No captioning information displayed.

On Captioning information shown always, when available.

On When Sound is Muted Displays captioning information, when

available, whenever you press the MUTE button. The captioning

information is not displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which

captioning mode is used for displaying captioning information. Use the

MENU button to toggle between the choices: COl and CC2.

Menu Language Lets you select the language of your choice: English,

French or Spanish. Use the MENU button to toggle between the choices.

THE CHANNEL MENU

The Channel menu contains all the commands used to control your channels,

including custom-building your channel list and setting parental controls.

Channel

Signal Type Displays a choice list that lets you select the current antenna

type.

Antenna Choose this if you are currently using an off-air antenna for

UHF/VHF TV signals.

Cable TM Choose this if you are currently using cable or a cable box for

TV signals.

Auto Channel Search Displays a control panel that lets you tell the TV to

search automatically for all the channels available through the antenna input.

When the TV finds an active channel, it places it in the channel list; inactive

channels (weak stations or channels with no signal at all) will be removed

from the channel list.

Lists and Labels Displays a control panel that lets you custom-build your

channel scan list, choose a four-character label for each channel, and decide

whether each channel is "parent-approved." Use the up, down, left and right

arrows to enter settings and create labels. Press MENU to exit.

Lists and LabeLs

scan list. You can enter the channel number directly using the

number buttons.

Chart Labels Use the up and down arrows to enter a four-character label

for each channel.

Scan List Only the channels included in the Scan list are available when

you scan up and down using the CHAN buttons. Use the up and down

a_rrows to indicate whether the channel number indicated is included

(YES) or is not included (NO) in the channel scan list.

Parent Approved Use the up and down arrows to choose whether the

clhannel indicated should be shown when the Parental Control feature is

turned on. Select YES to indicate that the channel can be shown at any

time, regardless of whether Parental Control is turned on. Select NO to

indicate that the front panel cannot tune to that channel when Parental

Control is turned on. Important: You must turn the Parental Control

feature ON in the Parental Control control panel.

Parental Control Displays a choice list that lets you adjust the Parental

Control feature.

On The front panel CHAN buttons will tune only to channels that you have

marked as "Parent Approved" in the Lists and Labels control panel.

Important: When Parental Control is on, the TV's front panel no longer

provides access to the menus. Parents may prefer to hide the remote and

let children use the front panel to change channels.

Off The TV shows all channels, whether they are marked as "Parent

Approved" or not.

THE TIME MENU

The Time menu contains the controls that let you set the time and schedule

the 7rv to turn off and on at specific times.

Time

Sleep Timer Displays a control panel that lets you select the amount of time

you want to give the TV before it shuts itself off. Use the up and down arrows

to in,crease or decrease the sleep timer by 15 minute increments. Press

MENU to exit.

Timer

Schedule Displays a control panel that lets you set up a schedule for turning

the TV on and off automatically. Make sure to turn the schedule On in the

control panel. Use the up and down arrows and number buttons to change

the settings. Use the left and right arrows to move across the control panel.

You must first set the clock to use the scheduling feature.

Schedute

Set Time Displays a control panel that lets you enter the current time. Use

the up and down arrows and number buttons to set the time. Press MENU to

exit

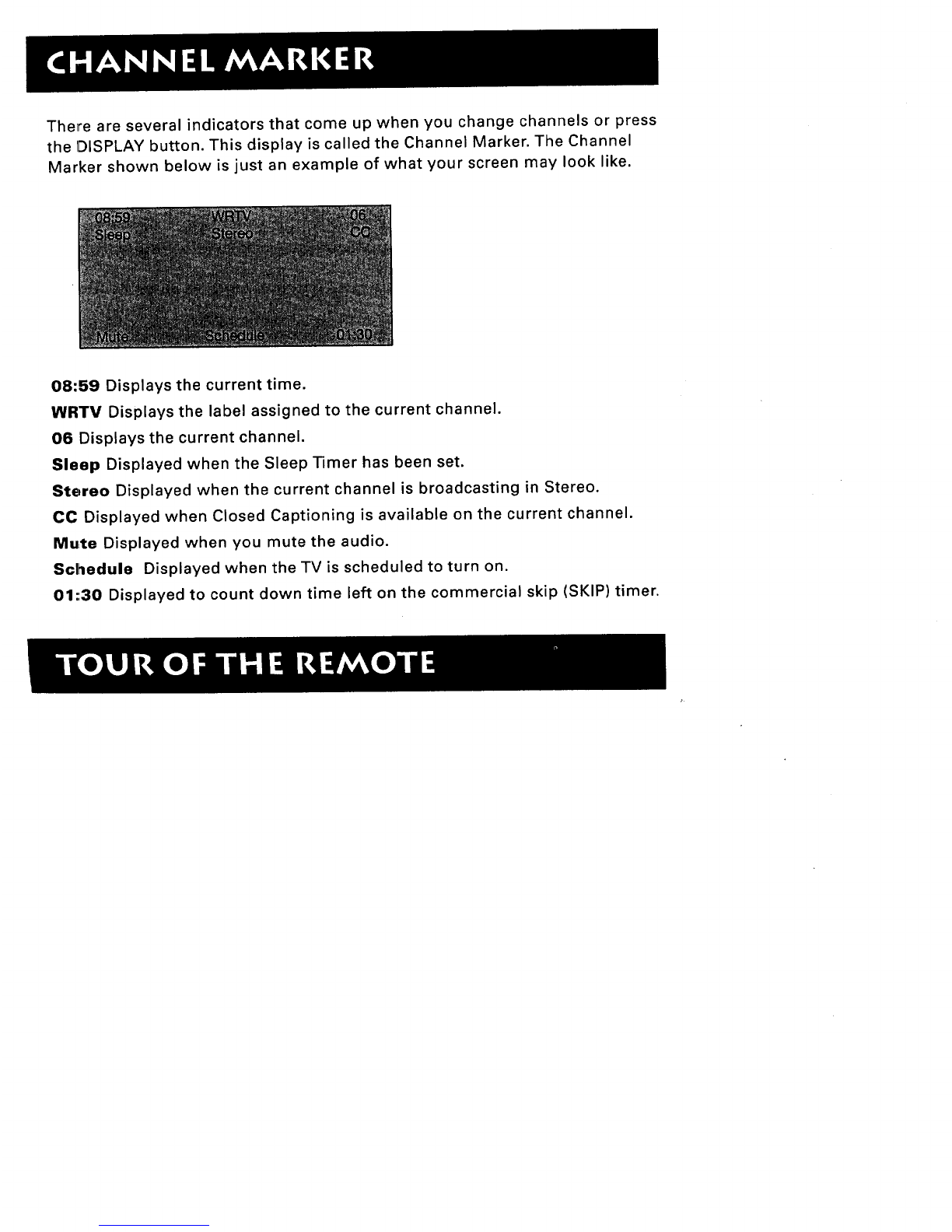

Thereareseveralindicatorsthat comeupwhenyou changechannelsor press

the DISPLAY button. This display is called the Channel Marker. The Channel

Marker shown below is just an example of what your screen may look like,

08:59 Displays the current time.

WRTV Displays the label assigned to the current channel.

06 Displays the current channel.

Sleep Displayed when the Sleep Timer has been set.

Stereo Displayed when the current channel is broadcasting in Stereo.

CC Displayed when Closed Captioning is available on the current channel.

Mute Displayed when you mute the audio.

Schedule Displayed when the TV is scheduled to turn on.

01',',30 Displayed to count down time left on the commercial skip (SKIP) timer.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA G27666 Bedienungsanleitung

RCA

RCA 20F530T Bedienungsanleitung

RCA

RCA 32F650T Bedienungsanleitung

RCA

RCA 20601 Bedienungsanleitung

RCA

RCA F25209 Bedienungsanleitung

RCA

RCA 27GT720TX2AX1 Bedienungsanleitung

RCA

RCA E13320 Bedienungsanleitung

RCA

RCA F19221 Bedienungsanleitung

RCA

RCA 20V414T Bedienungsanleitung

RCA

RCA F27550 Bedienungsanleitung

RCA

RCA RLDED2952A Bedienungsanleitung

RCA

RCA MR27555 Bedienungsanleitung

RCA

RCA 1512786B Bedienungsanleitung

RCA

RCA J32DE220 Bedienungsanleitung

RCA

RCA 24F650T Bedienungsanleitung

RCA

RCA F35675 Bedienungsanleitung

RCA

RCA P60828 Bedienungsanleitung

RCA

RCA 36F530T - 36" TruFlat TV Bedienungsanleitung

RCA

RCA 27F530T Bedienungsanleitung

RCA

RCA RBA27500, RCA27000 Bedienungsanleitung

RCA

RCA F20251 Bedienungsanleitung

RCA

RCA F27632 Bedienungsanleitung

RCA

RCA Color Television Bedienungsanleitung

RCA

RCA F26645YX2AW1 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
