[WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

To reduce the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside.

Refer servicing to qualified service personnel.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

_, This symbol indicates

important instructions

accompanying the product.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour eviter les chocs electriques, introduire la

lame la plus large de la fiche dans la borne

correspondante de la prise et pousserjusqu au fond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

Foe Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long

periods, they may be permanently imprinted on the screen, Such

images include network Iogos, phone numbers, and video games.

This damage is not covered by your warranty. Extended viewing

of channels displaying these images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

VCR Plus+, C3,PlusCode and GUIDE Plus+ are trademarks of Gemstar Development Corporation.

SETUP AND CONNECTIONS .......................................................... 3

Step 1: Unpack the TV ...................................................................... 4

Step 2: Connect Your TV .................................................................. 4

TV Only (PIP Not Available) ....................................................... 4

The Basic Connection (PIP Not Available) ................................ 5

Advanced Connections .............................................................. 6

Step 3: Connect the IR Controller .................................................... 9

Step 4: Plug in the TV ..................................................................... 10

Step 5: Place Batteries in Remote .................................................. 10

Step 6: Turn On the TV ................................................................... 10

Step 7: Program the TV .................................................................. 10

INTERACTIVE SETUP .................................................................... 11

Using Point and Select ................................................................... 12

Entering Setup ................................................................................ 12

Selecting a Language ..................................................................... 13

Auto Channel Search ..................................................................... 13

The GUIDE Plus+ System ............................................................... 14

Setting Up the GUIDE Plus+ System ........................................ 14

Setting the Time ............................................................................. 16

Setting the VCR1 Channel (auto tuning) ...................................... 17

Setting the VCR2 Channel (auto tuning) ...................................... 17

Setting the DVD Channel (auto tuning) ....................................... 18

Setting the SAT/CABLE Channel (auto tuning) ............................. 19

Labeling the Channels ................................................................... 20

USING THE REMOTE ..................................................................... 21

Remote Buttons .............................................................................. 22

Using the WHO-INPUT Button ................................................ 23

Programming the Remote ............................................................. 24

Testing the Remote .................................................................. 24

Using the Remote to Control a Device ................................... 25

Modes of Operation ................................................................ 25

Front Panel ..................................................................................... 25

USING THE MENUS ....................................................................... 27

Menus and Control Panels ............................................................. 28

Audio Menu .................................................................................... 30

Using the Remote to Select an Audio Processor .......................... 31

Picture Quality Menu ..................................................................... 32

Screen Menu ................................................................................... 33

Using Closed Captioning ......................................................... 34

Channel Menu ................................................................................ 35

Time Menu ...................................................................................... 36

Other Menus ................................................................................... 36

FEATURES AND CONTROLS ......................................................... 37

GUIDE Plus+ Menu ......................................................................... 38

About the GUIDE Plus+ System ..................................................... 38

Getting In & Out of the GUIDE Plus+ System ......................... 39

Downloading Data .................................................................. 39

The Different GUIDE Plus+ System Menus ............................. 39

Grid Guide ........................................................................... 40

Sort ...................................................................................... 41

Schedule .............................................................................. 42

Messages ............................................................................. 43

Editor ................................................................................... 43

PIP (Picture-in-Picture) Operation ................................................. 44

Channel Marker .............................................................................. 46

Parental Controls and V-Chip ........................................................ 47

V-Chip TV Rating Limit ............................................................ 48

V-Chip Movie Rating Limit ...................................................... 52

V-Chip Unrated Program Block ............................................... 53

Channel Block .......................................................................... 53

Front Panel Block ..................................................................... 53

Lock/Unlock Parental Controls ................................................ 53

REFERENCE ..................................................................................... 58

Troubleshooting ............................................................................. 54

Care and Cleaning .......................................................................... 55

RCA Digital Satellite System Limited Warranty ............................ 56

Accessory Information ................................................................... 58

INDEX ............................................................................................. 61

GETTI NG STARTED

This manual is designed to get you started quickly.

The first five sections of the manual show you how to

get your TV Setup and Connected, run the Interactive

Setup, Program the Remote, and use all of the

menus, features, and controls of your TV.

The Reference section in the back of the book

contains troubleshooting tips, care and cleaning

instructions, accessory ordering information and your

warranty.

Well... if your TV's out of the box, let's get started.

SETUP AND CONNECTIONS

Checkout the notesthat havebeen added

throughout the manual in these Tip

Boxes.There aresome important

tips that will helpyou get the mostfrom

your TV.

STEP 1: UNPACK THE TV

Make sure to locate the remote control.

STEP 2: CONNECT YOUR TV

There are three types of connections outlined in this section:

TV Only:

The Basic Connection:

If you're only going to connect the

TV to your home antenna or cable

system.

If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to a

VCR and a satellite receiver.

Cable information and illustrations are given for each type of connection.

Once you have completed your desired connection you may skip forward

to Step 3.

TV ONLY (PIP NOT AVAILABLE)

This is a basic connection from an antenna or cable system to your TV.

Connect the cable into the Cable/Antenna jack as shown.

Important Stand Information

CAUTION: Choose the location for your TV

carefully. Take precautions that the stand

or other furniture on which the TV is

placed is properly located (see Important

Safeguards sheet) and of adequate size

and strength to prevent the TV from

accidentally being tipped over, pushed off,

or pulled off. This could cause damage to

the TV and/or personal injury.

Before You Connect

Protect against power surges:

• Connect all components before

plugging any power cords into the wall

outlet.

•Turn off the TV and/or component

before connecting or disconnecting any

cables.

•Make sure all antennas and cables are

properly grounded. Refer to the

Important Safeguards sheet packed

with your TV.

Cables

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and video

signals to the TV from an antenna, cable, or cable

box.

CABLE, CABLE BOX, OR ANTENNA

CABLE/

CONTROL (_ ANTENNA

S VIDEO

Once you have completed this connection you may skip to Step 3.

This Connection Will Not Allow

You to Use Your PIP

Your TV is equipped with a single tuner,

which means you must connect with a

second video source using Audio/Video

Cables to view PIP.This TV Only

connection will not enable you to use

your PIP,but will get your TV up and

running quickly.

Refer to Advanced Connections for

connecting Audio/Video cables to your

VCR or other video component.

THE BASIC CONNECTION (PIP NOT AVAILABLE)

The basic connection below (TV and VCR) is the most common

connection and is therefore used to illustrate asingle component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

Cables

You will use the following type of cable to make your connection:

Coaxial Cables: in this connection, two Coaial

Cables are used: one connects from an antenna,

cable, or cable box to the VCR, and one connects

from the VCR to the TV. These cables carry both

audio and video signals.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

iN FROM ANT •

_ OO_TOTv

VIDEO AUDIO

This Connection Will Not Allow

You to Use PIP

Your TV is equipped with a single tuner,

which means you must connect with a

second video source using Audio/Video

Cables to view PIP.This Basic Connection

will not enable you to use your PIP,but

will get your TV up and running quickly.

Refer to Advanced Connections for

connecting Audio/Video cables to your

VCR or other video component.

AUDIO

VEDEO R LJ MONO

[ _o0,

VCR CABLE/

CONTROL _ _ ANTENNA

S VIDE(}

How to View the VCR

To watch the VCR in this connection tune TV to

Channel 3 or 4.

Later, in the Interactive Setup section you will

program the TV to automatically tune to Channel 3 or

4 when you turn on the VCR.

Once you have completed this connection you may skip to Step 3,

"Connect the IR Controller."

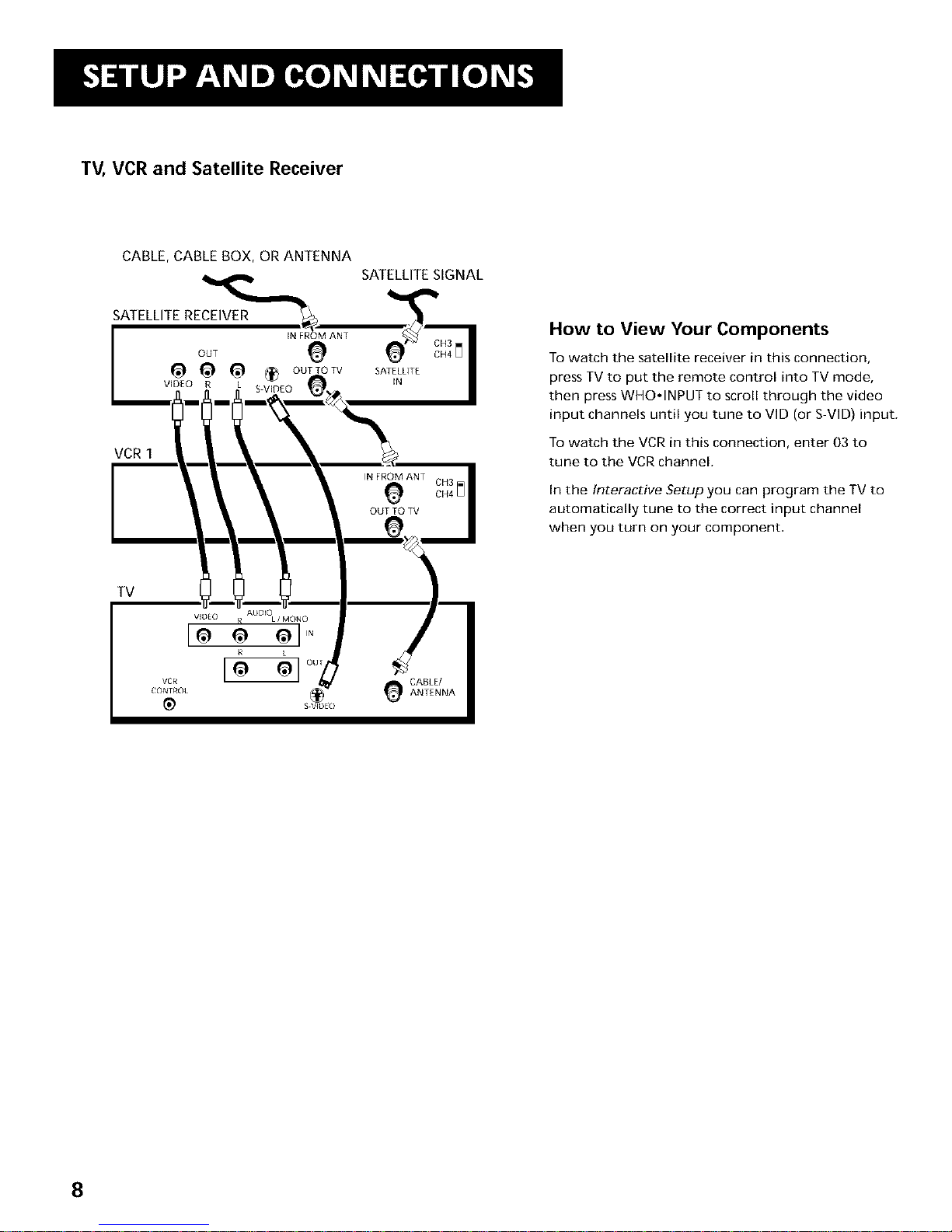

ADVANCED CONNECTIONS

Advanced connections give you better sound and video by separating

the audio and video signals and enabling you to connect multiple

components.

This section describes the types of inputs available on the back of your

TV and suggests ways you can use them for optimum performance.

Once you have made your connections

you will need to program the TV to tune

to the correct Video INPUT channel in

order to see and hear audio and video

from the component. You will program

this later in the Interactive Setup.

Back ofthe TV

The diagram below describes each of the back panel jacks. When

connecting A/V cables, be sure to connect corresponding OUTPUTS and

INPUTS (Video to Video, Right Audio to Right Audio, etc.).

VIDEO and Audio Inputs

Connect any one of the following components:

• VCR •Intemet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to VIDEO,

use the WHO,INPUT button on the remote.

\_ V_DEO

VCR

CONTROL S-_EO

VCR Control

Connect the GUIDE Plus+

system IR controller for

one-button recording

and channel tuning from

the GUIDE Plus+ system.

S-Video

This optional

connection can

be used for

better video

quality picture.

Audio Outputs

Connect to an audio receiver or

amplifier for variable controlled

or fixed level stereo output.

e CABLE/

ANTENNA

ICable/Antenna 1

Takes the signal input from a cable,

cable box, or an off-air antenna. Can also

be used for basic component connections.

Sample Connections

The following are sample connection scenarios you may encounter when

connecting components to your TV. Note: those components which offer

an S-Video connection, such as DVD, VCR or satellite receivers, must

match their S-Video connection with their audio iNPUT connection.

Cables

You will use the following types of cables to make your connection:

Coaxial Cables: Carries the signal from the

antenna or cable directly to the television or

through a cable box, as needed by your cable

system.

AudioNideo Cables: Carries audio and video

from acomponent to the TV.

S-Video Cable: Carries video from an S-Video

capable component which provides best

picture quality.

TV and Stereo VCR

Compared to the Basic Connection, using Audio/Video and

S-Video (if available) cables will enhance the sound and picture quality

from a component.

Cautions:

Position cables to Avoid Audio Hum

or Interference

•Insert all cables firmly into jacks.

•Place the audio/video cables to the

sides of the TV's back panel instead of

straight down the middle.

•Try not to coil any twin-lead cables and

keep them away from the audio/video

cables.

Protect your components from

Overheating

•Do not block ventilation holes in any of

the components. Arrange the

components so that air can circulate

freely.

•Do not stack components•

•Allow adequate ventilation when

placing your components in a stand.

•Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components•

CABLE, CABLE BOX, OR ANTENNA

VCR 1

IN FROM ANT CH3 I

OUT CH4[

Q ou TV

VIDEO R L

CABLE/

ANTENNA

How to View Your VCR

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press WHO.iNPUT to

toggle to the video (VID) inputs.

In the Interactive Setup section you can program the TV to

automatically tune to the VlD input channel when you turn

on the VCR.

Most Audio/Video cables are combined

into one cable with three

heads on each end.

We show individual _ __ . .

• R gilt Aud o (ed)

cables in these

sample connections. _ --

• Left Audio (white)

may be used,

Either

but you must be sure to

connect Video to Video,

Right to Right and Left to Left.

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

VCR 1

SATELLITE SIGNAL

How to View Your Components

To watch the satellite receiver in this connection,

press TV to put the remote control into TV mode,

then press WHO*INPUT to scroll through the video

input channels until you tune to VID (or S-VID) input.

To watch the VCR in this connection, enter 03 to

tune to the VCR channel.

In the Interactive Setup you can program the TV to

automatically tune to the correct input channel

when you turn on your component.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA Roku TV RTR3265-CA Bedienungsanleitung

RCA

RCA G32710 Bedienungsanleitung

RCA

RCA 24F524T Bedienungsanleitung

RCA

RCA C33682 Bedienungsanleitung

RCA

RCA G32710 Bedienungsanleitung

RCA

RCA F27628 Bedienungsanleitung

RCA

RCA F35317 Bedienungsanleitung

RCA

RCA 27F650TYX3KCY Bedienungsanleitung

RCA

RCA MR27555 Bedienungsanleitung

RCA

RCA F32668YX53 Bedienungsanleitung

RCA

RCA P60828 Bedienungsanleitung

RCA

RCA 27V412T Bedienungsanleitung

RCA

RCA F27250 Bedienungsanleitung

RCA

RCA HDTV Television Bedienungsanleitung

RCA

RCA MR13401, M14300, M19401, M2030 Bedienungsanleitung

RCA

RCA 14F512T Bedienungsanleitung

RCA

RCA F27718, F32718, F36718, MR68R7 Bedienungsanleitung

RCA

RCA F32550 Bedienungsanleitung

RCA

RCA F27677 Bedienungsanleitung

RCA

RCA F27240 Bedienungsanleitung

RCA

RCA PS27108 Bedienungsanleitung

RCA

RCA F19253BCFJ1 Bedienungsanleitung

RCA

RCA CR20805 Bedienungsanleitung

RCA

RCA 27GT720TX2AX1 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
