RCA RTDVD2409 Bedienungsanleitung

RTDVD2409

INSTRUCTION MANUAL

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device might not cause harmful interference, and

(2) this device must accept any interference received,

including interference that might cause undesired operation

Before using the TV, please read this manual thoroughly, and

retain it for future reference.

Caution

Important Safety Precautions

Top/Side panel diagram

Remote Controller

Battery Installation

Using the Remote Control

Install TV

Set your TV

Connect Antenna and power

Turn On TV

Help

6-7

12-13

15-18

TV Bracket assembly 5

Specifications

Setup Wizard

Wall Mount Installation

Main Menu Operation

Sound Menu

Time Menu

Setup Menu

Lock Menu

Channel Menu

15-16

16-18

Systems Connection 10

Select Input Source

PC 21

PC Menu

DVD Setup 22-23

Table of Contents

The lightening flash with arrowhead symbol, within an equilateral triangle is

intended to alert the user to the presence of un-insulated "dangerous voltage"

within the products enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user to

the presence of important operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

Correct disposal of this Product

W aste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life,

should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste

collection/recycling centre.

In the European Union there are separate collection systems for used electrical

and electronic products. Please help us to conserve the environment we live in!

Caution

This Compact disc player is classified as a Class 1 LASER PRODUCT.

This is class Ⅱ apparatus whis double insulation, and no protective earth provided.

Important Safety Instructions

The use of apparatus in moderate climates;

Minimum distances 5cm around the apparatus for sufficient ventilation;

To preserve our environment,dispose of used batteries according to your local laws or regulations.

The mains plug is used as disconnect device,the disconnect device shall remain readil.

The ventilation should not be impeded by covering the ventilation openings with items, cloths,

curtains, etc.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

Warning: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

23)

3.95”

3.95” x 3.95”

100 100

Wall Mount Installation

BB4 * 12mm

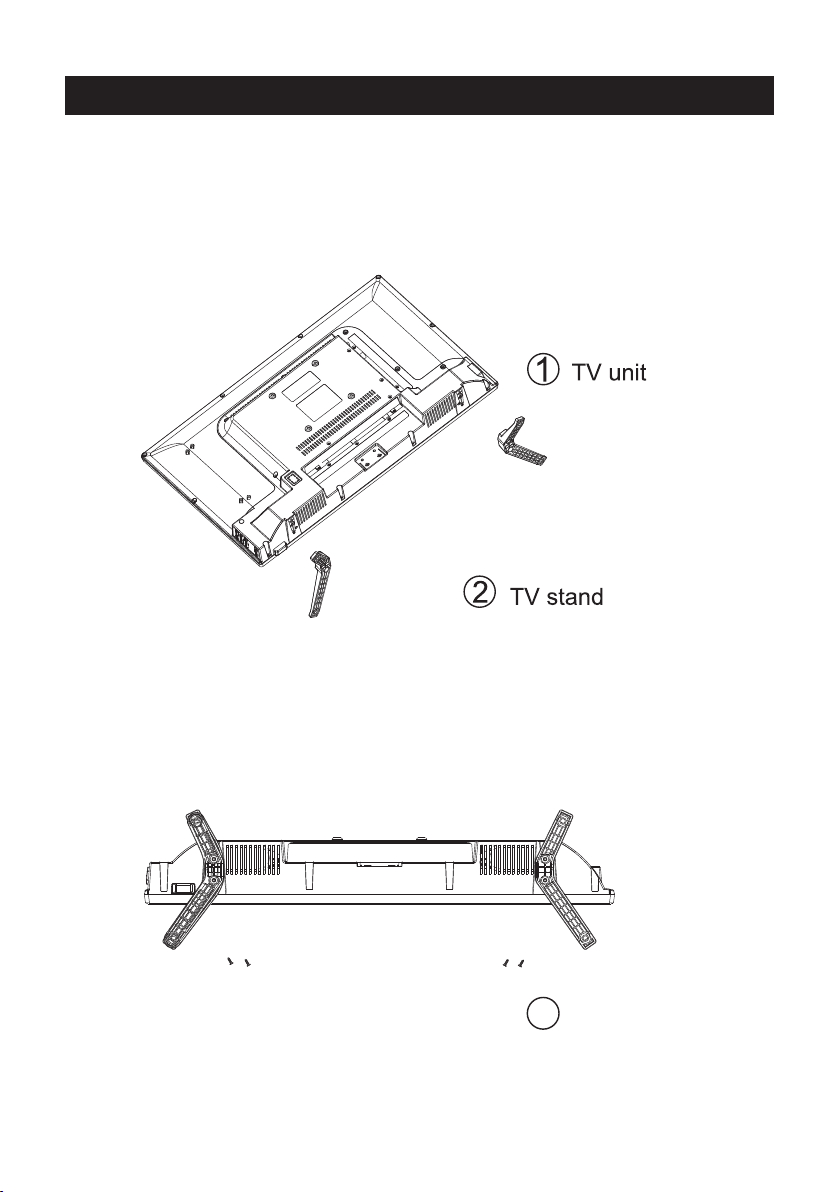

1.Match the TV unit into the stand, then hold the TV stand,

revolve and lock the tv unit tightly as the arrowhead point.

2.Fix the screws into the TV stand after installing the tv

unit and tv stand.

3screws

TV Bracket assembly

VOL

CH+/-:When watching TV: select channels.

(DVD Mode. CH-:DVD Eject. CH+:Play/Pause DVD Program)

/MENU:

1.Press Menu.

2.Use CH+/- to shift UP/DOWN.

3.Press VOL+/-to adjust.

SOURCE External signal input selection

1.Use CH+/- to shift UP/DOWN.

2.Press VOL+ to enter.

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

(IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby) LED Indicator: Press to turn on and off

The functions of the buttons on the are as follows:TV

Top panel diagram

Side Panel Diagram

(Left Side)

(Back Side)

Connect to ANT or cable source

PC AUDIO IN PC audio input

VGA IN VGA signal from computer output

YPbPr Connect to the composite terminal of your DVD/VCR

EARPHONE

For Upgrade Use

AV INPUT

Earphone output

Digital Audio Output

Service Port

HDMI IN Connect to HDMI of DVD or other equipment

Name Function Description

(The service Port is intended for service use only.Please do not connect any device to the port)

Digital Audio Out

service port

HDMI(ARC)

INPUT R

INP UT

CVBS/Y

Pb Pr

Digital

Audio out

AC IN

Remote Controller

Universal remote code

This is the code for remote control of

RTDVD2409,if you want to change to a

universal remote control,you can edit

this code into your universal remote control.

(1)Open the battery compartment cover

on the back side

(2)Insert two 1.5V batteries of AAA type

with correct polarity

(3)Close the battery compartment cover

on the back side

Universal Remote Control code:007F

(Universal Remote control is not included)

MEN U SOURC E

ENT ER

EXI T

SLE EP

P.MOD E S.M ODE

DISPLAY

MTS / MP3PROG

EPG

REV FWD PREV

FAV-

FAV FAV+

D.setup

D.Menu D.Title Goto D.Disp

PROG STEP REPEAT AD /TT S

Zoom Angle Subtitle

Audio

D.TITLE:

TTS/AD Press the button to select (On/Off) the TTS or AD

SLEEP: ：Select amount of time before TV turn

off

automatically.

S.MODE: ：Press to cycle through the different sound settings

P.MODE:：Press to cycle through the different picture settings

D.DISP:

D.MENU:

Press "-" to enter a program number for multiple program

channel, such as 2-1 etc.

GOTO:

STEP：Play for single frame image

ZOOM In DVD source adjust DVD picture size

MTS / MP3PROG:：

Press to select the audio mode,you can select stereo,Mono,

or SAP(second audio program)./When playing mp3 disc,

press MP3 PROG and add the favorite music to playlist,

press PROG two times to see the programmed playlist.

CH +/- : Press to scan through or to select a channel.

V +/-: Press to increase / decrease the sound level.

EPG:：

D.Setup:：

AVTV HDMI

COMPONENT DVD

function( TTS: Text To Speech, AD: Audio

Description)

side

indicator

10cm

10cm 10cm

LED TV
