USER’S

GUIDE

COLOR TV

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof

of purchase. Attach it here and record the serial and model numbers in

case you ever need them. The numbers are located on the back of the TV.

Model No.________________________________________________________

Serial No._________________________________________________________

Purchase Date: ___________________________________________________

Dealer/Address/Phone:____________________________________________

__________________________________________________________________

Important Information

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

CAUTION:

To prevent electric shock, match wide blade of plug to wide

slot, fully insert.

ATTENTION:

Pour éviter les chocs électriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et

pousser jusqú au fond.

Cautions

Operate TV only on 120 volts, 60 Hz AC power (normal house power).

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user’s authority to operate it.

Note To Cable TV Installer This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code (Section 54 of the Canadian Electrical Code,

Part 1) which provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system

of the building as close to the point of cable entry as practical.

Product

Registration

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates

“dangerous voltage” inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the

product.

Table of Contents

Important Information Warning, Product Registration ____________________________________ i

Quick Guide to Your TV Startup ____________________________________________________________________ 2-3

Hook up your TV, Plug in the TV, Put Batteries in the Remote,

Turn on the TV and Place Channels in Memory

Basic Tour of the Remote ____________________________________________ 4

Power, Volume, Channel, Special and Menu Buttons

Menu Basics ______________________________________________________________ 5

Colors, Menu Buttons and Moving through the Menus

Using Your Remote With Remote Buttons ________________________________________________ 6

Adjusting Your TV Overall Picture __________________________________________________________ 7

Picture Settings __________________________________________________________ 8

Color, Tint, Brightness, Sharpness, Autocolor and Picture Reset

Using Advanced Features Placing Channels in Memory/Autoprogram ______________ 9

Watching Closed Captioning ____________________________________ 10

Setting Your TV for Antenna or Cable ________________________ 11

References Front Panel Buttons __________________________________________________ 12

Displays on the Screen _____________________________________________ 13

Trouble Checks ____________________________________________________ 14-15

Order Form for Parts ___________________________________________ 16-18

Limited Warranty ____________________________________________________ 19

Glossary __________________________________________________________________ 20

Index _______________________________________________________________________ 21

Quick Guide to Your TV

Startup

Plug the cord into the outlet,

matching the wide and the small

end of the plug with the outlet.

2. Plug in the TV

The steps below will get your TV connected and ready for watching. For

more details, see the page numbers listed.

3. Put Batteries in the Remote A. Pull off the cover of the battery

compartment.

B. Place two AAA batteries as

shown, matching the +and –

end of each battery in the

compartment.

C. Replace the cover.

CAUTION: Matching stands were designed to be used with 25 inch and larger table model TVs. The

recommended stands are provided with hardware to secure the TV to the stand so that it cannot be easily

pulled off or tipped over. Your RCA dealer can help you choose the appropriate stand for your TV.

If you choose to use a stand with your TV, take precautions that the stand or other furniture the TV is placed

on is properly located and of adequate size and strength to prevent the TV from accidentally being tipped over

or pulled off. This could cause damage to the TV and or personal injury.

Stands are not available by mail order. To locate your nearest RCA dealer call 1-800-336-1900.

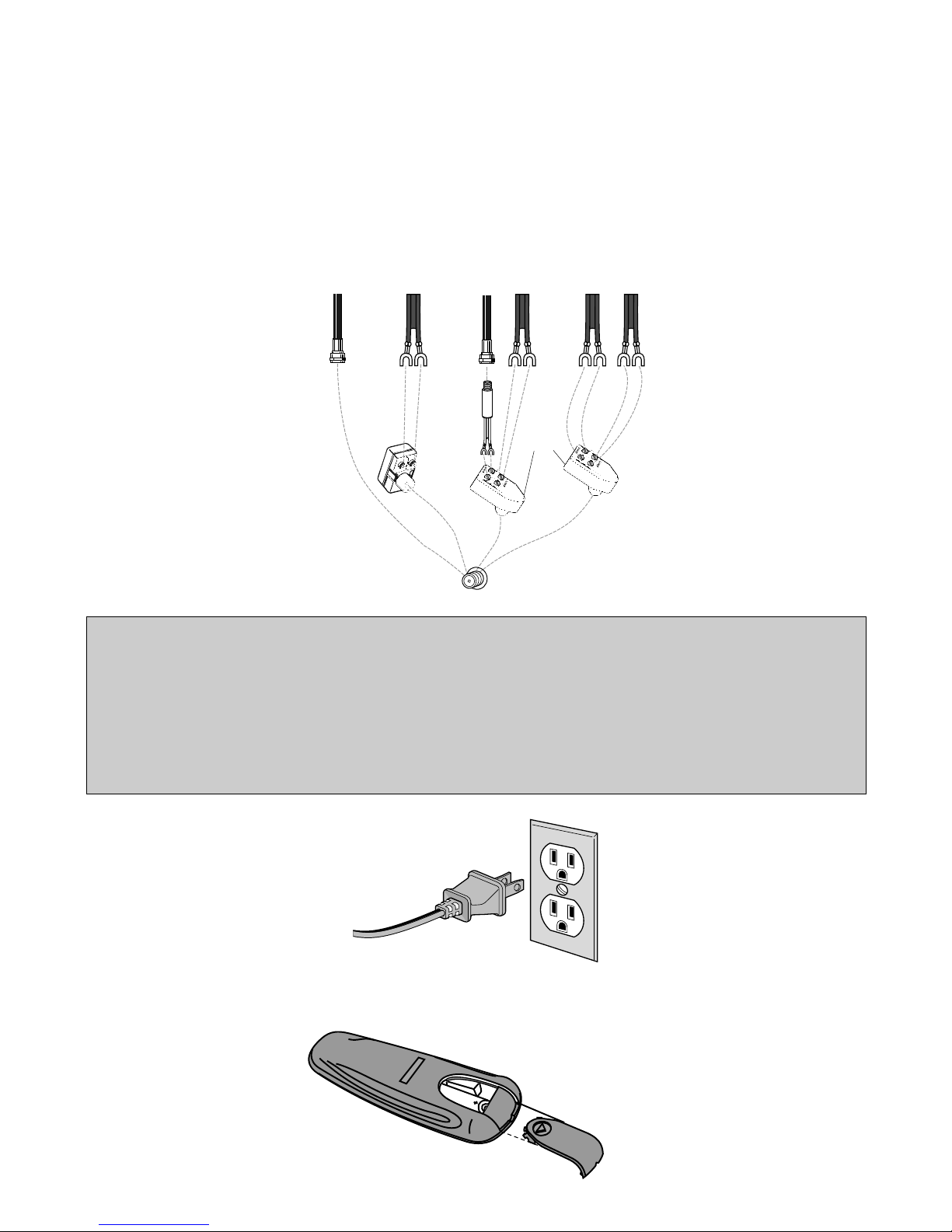

OROR

CABLE /

ANTENNA

Back of TV

Use Only

Adapter

( #193983)

Transformer

( #AH011)

Use Only

Adapter

( #193984)

1. Hook up your TV

It is important to use only

the adapters specified as

they incorporate special

isolation circuitry to meet

safety regulations. Parts

can be ordered on page 17.

Hook up your antenna or

cable to the TV before you

follow the steps below.

Match your type of antenna or cable

UHF & VHF UHF & VHF VHF UHF VHF UHF

Quick Guide to Your TV

Startup

A. Press MENU on the TV front

panel until the Setup menu is

selected. This menu is white.

B. Press VOLUME +to place chan-

nels in the TV’s memory

(Autoprogram).

C. Wait until TV has cycled

through all the channels and

returns to the original channel.

5. Place all available

channels in memory

(Autoprogram)

Details for adding and deleting

channels are on page 9.

Press POWER on the remote.

Press POWER on the TV.

4. Turn on the TV

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

1 32

4 65

7 98

MENU CH VOL–VOL+POWERCH

Controls Adjust Setup

Autoprogram

Channel Memory: 13 Stored

Cable/Air: Cable

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

1 32

4 65

7 98

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

1 32

4 65

7 98

Quick Guide to Your TV

Basic Tour of the Remote

Turns the TV on and off.

Operate the TV.

Operate special features of the TV.

Power Button

Volume, Channel and

Special Buttons

Details are on page 6.

Basic information about your remote is shown below. This will give you a

general idea of how your remote works. For more details, see page 6.

Change the menus and features on

the screen.

Menu Buttons

See next page for details.

Quick Guide to Your TV

Menu Basics

Colors

Menu Buttons

These buttons are used with the

TV’s menus to adjust the features.

You can use the menu buttons on

the remote or the front of the TV.

Press MENU repeatedly to see

each of the four menu colors.

Each menu has a different color

background as shown at the left.

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

1 32

4 65

7 98

General information about using the on-screen menu system is shown

below. Details on using the remote buttons are on page 6. Many menu items

are explained in detail in Adjusting Your TV starting on page 7 and Using

Advanced Features starting on page 9.

Moving through the Menus 1. Press MENU to move from

menu to menu.

2. Press CHANNEL up and down

to move through the features in

the menu.

3. Press VOLUME +and –to

move left and right on the

menu lines.

MENU CH VOL–VOL+POWERCH

Yellow Light

Blue White

Controls Adjust Setup

Autoprogram

Channel Memory: 13 Stored

Cable/Air: Cable

Controls Adjust Setup

Autoprogram

Channel Memory: 13 Stored

Cable/Air: Cable

Using Your Remote

With Remote Buttons

DISPLAY

Shows displays on the screen.

Clears menus from the screen.

POWER

Turns the TV on and off.

MUTE

Switches the TV sound on or off.

PREV CH (Previous Channel)

Changes back and forth between

two channels.

Select a channel and then select

another. Press PREV CH to switch

between the two channels.

CHAN 2 and 1

(Channel up and down)

Scans up and down through

channels in the TV’s memory.

Moves up and down menus. See

Menu Basics on page 5.

VOL +and –

(Volume up and down)

Raises and lowers sound.

Moves left and right on a menu

line. See Menu Basics on page 5.

Changes a feature setting.

CLEAR

Clears menus and displays from

the screen.

Shows menus on the screen and

moves from menu to menu.

RESET

Returns the picture adjustments to

the original settings.

INPUT

Switches the TV to channel 03 to

easily access VCR or other

components hooked up to the TV.

SKIP (Commercial Skip)

Allows you to look at other

channels during commercials.

Each press adds 30 seconds. Use

the CHANNEL or number buttons

to scan the other channels. TV

switches back to original channel

when time runs out. Press CLEAR

to cancel SKIP.

Number Buttons (0-9)

Selects any channel number.

Two numbers must be pressed for

each channel. Press 0 and 6 for

channel 6.

For three digit channels, press and

hold 1 until 1-- appears on the

screen. Then press the other two

numbers.

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

1 32

4 65

7 98

Adjusting Your TV

Overall Picture

Follow the steps below to lighten or darken the overall picture without

changing the color levels.

1. Select the Controls Menu Press MENU to select the Controls

menu. This menu is yellow.

Press CHANNEL down to

highlight Picture.

Press +to lighten the picture.

Press –to darken the picture.

2. Highlight Picture

3. Use VOLUME +and –to

adjust the Picture

Controls Adjust Setup

Closed Captioning: Off

Picture -.....I.....+

Picture -.......I...+

Controls Adjust Setup

Closed Captioning: Off

Picture -.....I.....+

Picture Reset

Adjusting Your TV

Picture Settings

1. Select the Adjust Menu Press MENU repeatedly to select the

Adjust menu. This menu is light

blue.

Press CHANNEL down to

highlight the picture item you

want to adjust.

Press + or –to adjust each item.

Press DISPLAY to remove the

menu from the screen when you

are finished.

2. Highlight item to change

3. Use VOLUME +or –to

adjust each item

Follow the steps below to change the picture on the screen to your

personal setting. The chart below explains your options.

Color

Tint

Bright (Brightness)

Sharp (Sharpness)

Autocolor

Picture Reset

Press VOLUME +to:

Increase color richness

Give red tint to skin color

Add more light to dark parts of

the picture

Show cleaner, clearer images

Turn on to keep Color and Tint in

proper balance each time you

change channels

Reset the picture back to the

original settings

Press VOLUME –to:

Lower color to black and white

Give green tint to skin color

Add more dark to light parts of

the picture

Make picture more smooth

Turn off for manual adjustment

of Color and Tint

Reset the picture back to the

original settings

Controls Adjust Setup

Color -.....I.....+

Tint G.....I.....R

Bright -.....I.....+

Sharp -.....I.....+

Autocolor: On

Controls Adjust Setup

Color -.....I.....+

Tint G.....I.....R

Bright -.....I.....+

Sharp -.....I.....+

Autocolor: On

Picture Reset

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA VPORT F36650 Bedienungsanleitung

RCA

RCA E13208GYF25 Bedienungsanleitung

RCA

RCA G32665 Bedienungsanleitung

RCA

RCA F32715 Bedienungsanleitung

RCA

RCA RLD3273A-B Bedienungsanleitung

RCA

RCA 14F400T Bedienungsanleitung

RCA

RCA 20V414T Bedienungsanleitung

RCA

RCA J20542 Bedienungsanleitung

RCA

RCA P46721 Bedienungsanleitung

RCA

RCA RLDED4691A Bedienungsanleitung

RCA

RCA RTU5540 Bedienungsanleitung

RCA

RCA 20F514TD Bedienungsanleitung

RCA

RCA 1616262A Bedienungsanleitung

RCA

RCA P52810 Bedienungsanleitung

RCA

RCA Scenium HDLP50W151YX1 Bedienungsanleitung

RCA

RCA 9V345T Bedienungsanleitung

RCA

RCA RTU7877-B Bedienungsanleitung

RCA

RCA P52811 Bedienungsanleitung

RCA

RCA P52820BLLG2 Bedienungsanleitung

RCA

RCA D52W136D - 52" HDTV Monitor Bedienungsanleitung

RCA

RCA 32V550TYX1GYV Bedienungsanleitung

RCA

RCA 27F554T Bedienungsanleitung

RCA

RCA F27242GY Bedienungsanleitung

RCA

RCA G27750 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
