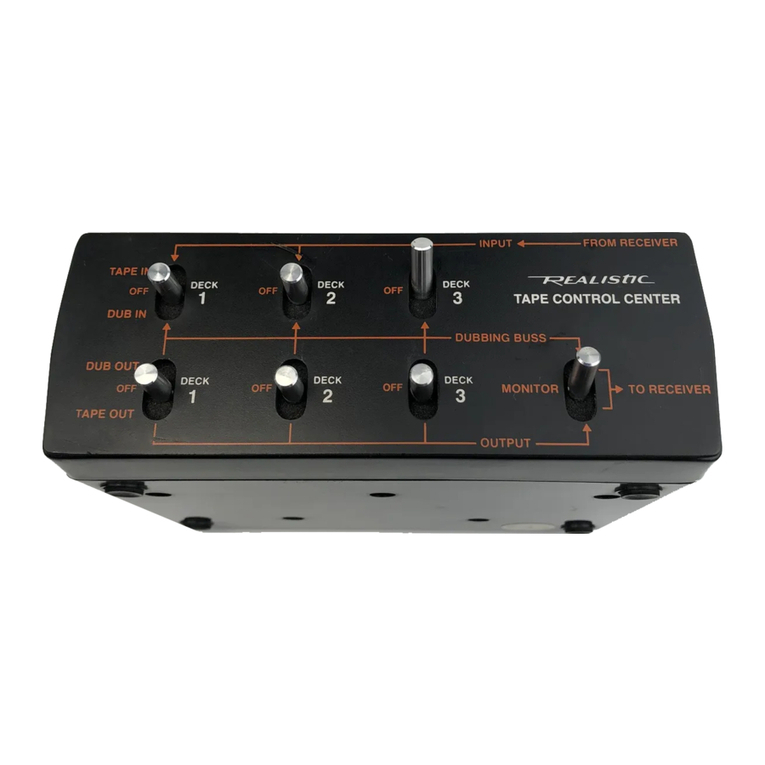

With this professionally designed Tape
Control Center you can easily duplicate
recordings onto up to 3 decks at one time.
And if the decks are the 3-head type, you
can monitor any one of the three signals
without affecting the other deck(s) or the
Receiver/Amplifier. You can also dub from
one deck to another — or mix signals vie
switching.
All functions are illustrated on the clearly
labled panel. Connections are via standard
RCA jacks.
INPUT
4---FROM
RECEIVER
TAPE IN
OFF
DUB IN
DUB OUT
OFF
TAPE OUT
DEC
J
DECK
K
DECK
2
W
DECK
OFF
OFF
DECK
3
0
OFF
OFF
Recording by
0
DECK 1,2.
I
0000
0 !I 0
0000
,
Recording by
DECK 2.
Recording on DECK 2
from DECK 1.
1060
[M000
Recording on DECK 3
from DECK 1,2.
Recording on DECK 1,3
from DECK 2.
606
0000
NOTE: Again, you can Monitor either the original or Dub tape by setting MONITOR down or up.
Monitoring
Setting MONITOR up or down will result in the signal from Dub source (up) or Tape Out jacks of selected
Deck(s).
Monitor-
DECK 1.
000
6006
Monitor-
Recording on DECK 2
from DECK 1.
060
M001!
Simultaneous Functions
While recording
receiver on
DECK 2,
recording on DECK 3
from DECK 1.
01%1
M000
While recording on
DECK 2 from
DECK 3,
playing DECK 1.
060
60M6
0
0 0 0 0 0
RECEIVER
TAPE DECK
3
TAPE, DECK 2
TAPE DECK
While recording
receiver on
DECK 1,2
playing DECK 3.
As you can see from these few examples, the use and application of this Tape Control Center is almost
limitless; the extreme versatility of switching will permit many combinations.
SWITCH FUNCTIONS (notice Front Panel graphics)
The top row of switches determines the Input connection to the three Decks:
•
When Up, the Deck(s) is connected to the Receiver/Amplifier
•
In the center position, the Deck(s) is not connected (off)
•
In the Down position, the Deck(s) is connected to a Dubbing Buss
The lower row of switches determines the Output connection of the three Decks:
•
When Up, the Deck(s) is connected to a Dubbing Buss
•
In the center position, the Deck(s) is not connected (off)
•
In the Down position, the Deck(s) is connected to the Output
The switch at the right has 2-positions and determines the signal being passed on to the Receiver/Amplifier
for Monitor sound:
•
In the Up position, the Receiver/Amplifier will monitor output from the Dubbing Buss
•
In the Down position, the Receiver/Amplifier will monitor output from Decks 1, 2 and/or 3
USING THE TAPE CONTROL CENTER
Recording from Receiver
Flip up appropriate upper switch (es)
CONNECTING THE UNIT
Make connections as illustrated (using shielded cable). The decks need not be open-reel type — they can be
cassette or 8-track (or any combination of tape decks).
NOTE: If Deck is 3-head type, you can Monitor.the Output by setting MONITOR switch down.
Dubbing Tapes
To dub (copy) from one Deck to another, set switches as follows:
