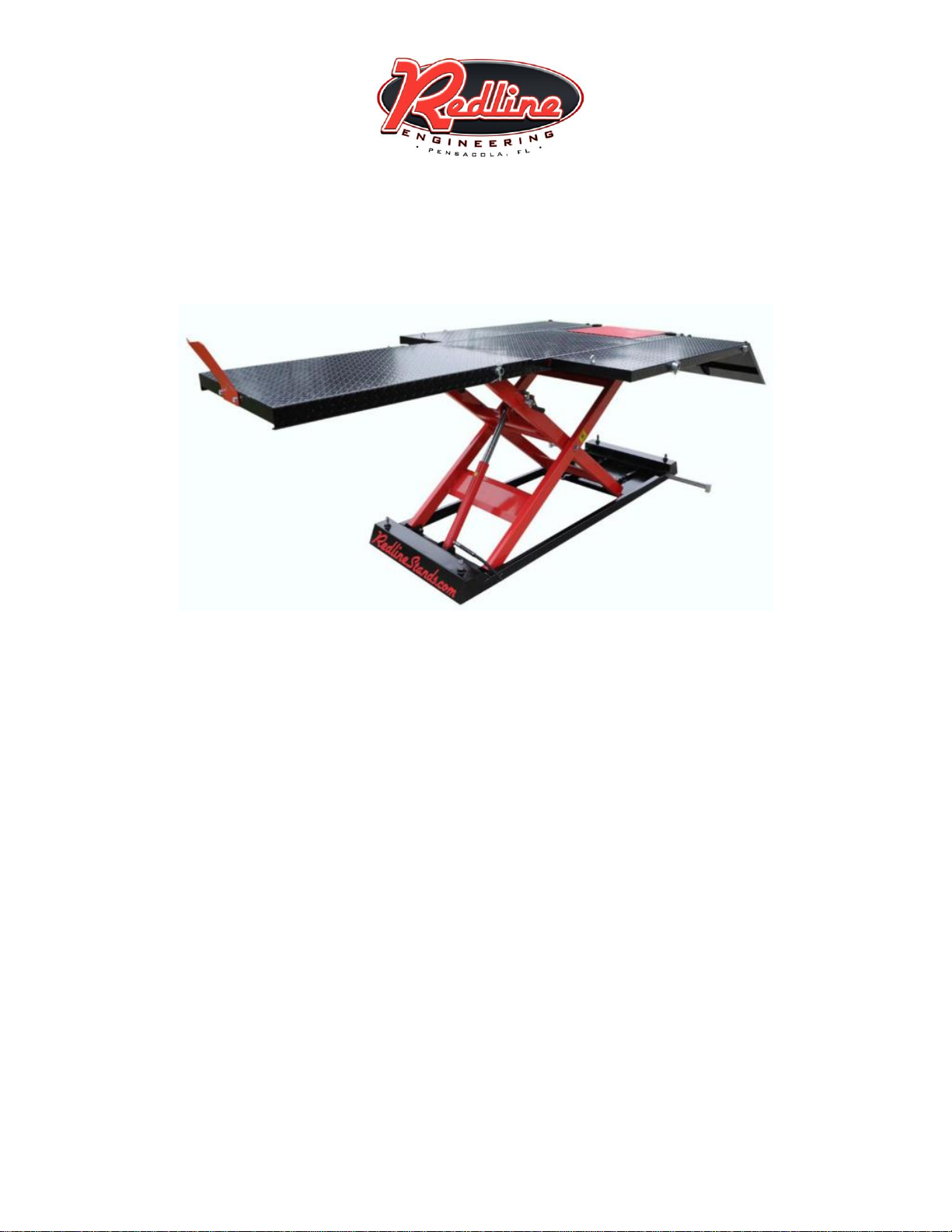

Redline TR1500 Trike Motorcycle Lift Table

Assembly & Operation Manual

Step 1

Use the provided bolts shown to secure the front wheel stop to the front of either the lift itself, or to the front

of the front extension panel if you intend to use the front extension panel. We do not recommend using the

front extension unless you actually have an unusually long motorcycle and require this panel.

This photo below shows the wheel stop installed.

Step 2

Assuming you wish to install the front extension, it slides over the front of the table as shown.

Be sure to line up the large holes on the sides of the front extension panel with the same holes found in the li table.

Next, you’ll install the front extension support pole. The TR1500 comes with 4 poles total as shown below. The 2 longest

poles support the side extensions (installed later). The middle length pole is an an-p stabilizer bar (installed later).

Finally, the shortest pole is the front extension support pole.

You’ll insert the shortest pole through the front extension panel and also through the li table at the same me,

resulng in the shortest pole slightly exing the front extension panel on both sides. Once done, you’ll insert the

provided clevis pin and coer pin on each side of the front extension support pole

Step 3

Next, you’ll insert the middle length pole into the base of the machine. This is an an-p stabilizer bar.

You’ll then use the pictured hardware to install the p-over feet into the ends of the p-over bar.

Step 4

In step 4, you’ll insert the 2 longest support poles into the 2 most rearward holes in the li’s tabletop, and then

slide the side extensions over those protruding bars.

Again, using the supplied hardware you’ll insert all 4 clevis and coer pins, eecvely pinning the side

extensions into place so that they cannot possibly slide o without intenonally doing so.

Step 5

Next, you’ll aach the 3 piece ramp assembly to the table top as shown using the hooks of the ramps to drop

into the holes in the table top, as well as the holes in the side extensions

Hardware is supplied to bolt all three ramps together, but we do not recommend doing so as it makes it

especially dicult to remove and replace the ramps when all three are connected. Nevertheless, the hardware

and bolt holes are included in case the customer wishes to do so.

Step 6

If you purchased the oponal wheel vise with your trike li, both your table and your front extension panel

come pre-drilled with the necessary mounng holes to install the Redline wheel vise to this table as shown. Be

sure to use ratchet straps to secure your bike to the li as the wheel vise alone is not sucient to hold the

motorcycle rmly to the li.
