Reed Instruments R7200 Bedienungsanleitung

Instruction

Manual

R7200

1 YEAR

1 AN

White background

ransparent background

White

Black

1 YEAR1AN

LED

Stroboscope

www. .com information@itm.com1.800.561.8187

Table of Contents

Introduction ................................................................................................ 2

Product Quality........................................................................................... 2

Safety ......................................................................................................... 3

Features...................................................................................................... 3

Includes ...................................................................................................... 3

Specications............................................................................................. 4

Instrument Description ............................................................................... 5

Operating Instructions................................................................................ 6

Power ON/OFF......................................................................................... 6

Using the Function Buttons...................................................................... 6

Measuring Procedure ................................................................................. 7

Rotation Speed Measurement.................................................................. 7

Observing Dynamic Motion (Diagnostic Inspection)................................. 7

Charging the Battery .................................................................................. 7

Applications................................................................................................ 7

Product Warranty ....................................................................................... 8

Product Disposal and Recycling ................................................................ 8

Product Support......................................................................................... 8

Introduction

Thank you for purchasing your REED R7200 LED Stroboscope. Please

read the following instructions carefully before using your instrument. By

following the steps outlined in this manual your meter will provide years of

reliable service.

Product Quality

This product has been manufactured in an ISO9001 facility and has been

calibrated during the manufacturing process to meet the stated product

specications. If a certicate of calibration is required please contact the

nearest authorized REED distributor or authorized Service Center. Please

note an additional fee for this service will apply.

www. .com information@itm.com1.800.561.8187

Safety

• Do not use this instrument in any manner inconsistent with these

operating instructions or under any conditions that exceed stated

environmental specications.

•WARNING! Certain strobe frequencies can trigger epileptic seizures.

• Do not stare directly at the light source.

• Prolonged exposure to the light may cause some people to

experience headaches.

• Objects viewed with this product may appear to be stationary when in

fact they are moving at high speeds. Always keep a safe distance from

moving machinery and do not touch a target.

• Never attempt to repair or modify your instrument. Dismantling

your product may cause damage that will not be covered under the

manufacturer's warranty. Servicing should only be provided by an

authorized service center.

Features

• Bright LEDs with uniform light output

• High accuracy of ±0.001%

• Rechargeable Li-ion battery

• Extended battery life of 8 hours continuous use at 6000FPM/RPM

• Flash rate may be displayed in Flashes per Minute (FPM) or

Flashes per Second (Hz)

• Multiplier (x1/x10/x100) push button allows for quick verication of

actual RPM

• Easy-to-read LCD display

• Low battery indicator

Includes

• LED Stroboscope

• USB Cable

www. .com information@itm.com1.800.561.8187

Specifications

Measuring Range: 60 to 99,999FPM/RPM

Accuracy: ±0.001%

Resolution: 1FPM/RPM

General Speciﬁcations

Display Type: 5-digit LCD

Internal Phase Shift: Yes

Light Source: 16 LED Array

Selectable Units: FPM or Hz

Low Battery Indicator: Yes

Power Supply: 7.4V 2000mAh rechargeable Li-ion battery

Battery Life: Approx. 8 hours (Fully Charged)

Product Certications: CE

Operating Temperature: 14 to 131°F (-10 to 55°C)

Storage Temperature: -4 to 140°F (-20 to 60°C)

Operating Humidity Range: 10 to 90%

Maximum Operating Altitude: 6561' (2000m)

Dimensions: 8.26 x 3.54 x 2.24" (210 x 90 x 57mm)

Weight: 0.71lbs (320g)

www. .com information@itm.com1.800.561.8187

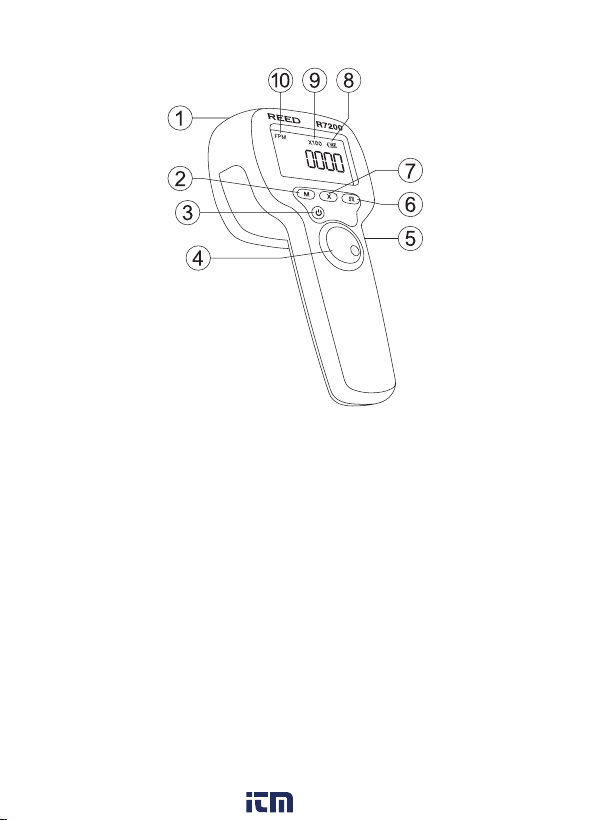

Instrument Description

1. LEDs

2. MODE Button

3. POWER Button

4. Rotary Dial

5. USB Interface

6. COUNTER CLOCKWISE

ROTATION Button

7. FLASH OUTPUT

SPEED/RESET Button

8. Battery Status Indicator

9. Flash Rate

Multiplier Indicator

10. Unit of Measurement

www. .com information@itm.com1.800.561.8187

Operating Instructions

Power ON/OFF

The R7200 is powered by an internal rechargeable battery and

should be charged before use. (See the Charging the Battery

section for further details)

To turn the meter ON or OFF, press the POWER button.

Using the Function Buttons

Mode Button

Press the Mbutton to toggle between FPM/HZ modes and

LED brightness.

Counter Clockwise Rotation Button

When the object appears to be stationary, press and hold

the button to provide the illusion that the object is rotating

counter clockwise.

Note: The counter clockwise rotation function is not relevant for

monitoring rotational motion from the side (orthogonal to the

rotational axis).

Flash Output Speed/Reset Button

Press the Xbutton to toggle between x1, x10 and x100 ash rate

multipliers. This feature allows a user to increase or decrease the ash

output value of the measurement by 1, 10 or 100FPM.

Press and hold the Xbutton to reset the ash output rate to 0.

www. .com information@itm.com1.800.561.8187

Measuring Procedure

Rotation Speed Measurement

1. "Mark" the object to be measured by either visually noting an

inherent distinguishing characteristic (i.e. label, scratch, etc.) or

physically marking the object (i.e. tape, pencil mark, etc.)

2. Direct the strobe LEDs towards the rotating surface of the object

being measured observe the light spot and adjust the ash output

rate from highest Flashes per Minute (FPM) downward.

Note: The optimal distance between the stroboscope and moving object

is approximately 2 feet.

3. If the ash output rate is adjusted to the same rotation speed of the

object, the target object will appear to be static or motionless.

4. The true RPM can be noted once the action appears frozen and the

rst single image of the "mark" appears.

Observing Dynamic Motion (Diagnostic Inspection)

Measure the speed of a moving object as described above and adjust

the ash output rate higher and lower to visually inspect all areas of the

device for any aws or defects.

Charging the Battery

1. Connect the R7200 via the included cable to a USB port on your PC

or into a wall outlet using a USB Power Adapter (not included) to

charge the Li-ion battery.

2. Power the instrument ON to see the battery status indicator.

3. Charge the meter until the battery indicator appears full and remove

the charging cable when done.

Applications

Measure speed of moving gears, fans, centrifuges, pumps, motors and

other rotational equipment.

www. .com information@itm.com1.800.561.8187

Product Warranty

REED Instruments guarantees this instrument to be free of defects in

material or workmanship for a period of one (1) year from date of shipment.

During the warranty period, REED Instruments will repair or replace, at no

charge, products or parts of a product that proves to be defective because

of improper material or workmanship, under normal use and maintenance.

REED Instruments total liability is limited to repair or replacement of the

product. REED Instruments shall not be liable for damages to goods,

property, or persons due to improper use or through attempts to utilize the

instrument under conditions which exceed the designed capabilities. In

order to begin the warranty service process, please contact us by phone

at 1-877-849-2127 or by email at [email protected] to discuss

the claim and determine the appropriate steps to process the warranty.

Product Disposal and Recycling

Please follow local laws and regulations when disposing or recycling

your instrument. Your product contains electronic components and

must be disposed of separately from standard waste products.

Product Support

If you have any questions on your product, please contact your authorized

REED distributor or REED Instruments Customer Service by phone at

1-877-849-2127 or by email at [email protected].

Please visit www.REEDInstruments.com for the most

up-to-date manuals, datasheets, product guides and software.

Product specifications subject to change without notice.

manual is strictly prohibited without prior written permission from

REED Instruments.

www. .com information@itm.com1.800.561.8187
