Regency Fireplace Products P33-NG4 Kurzanleitung

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

918-520b

MODELS: P33-NG4 Natural Gas P33-LP4 Propane

02/26/09

WARNING:

Iftheinformationintheseinstructionsarenotfollowedexactly,

a ﬁre or explosion may result causing property damage,

personal injury or loss of life.

FOR YOUR SAFETY

Do not store or use gasoline or other ﬂammable vapors and

liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁed

installer, service agency or the gas supplier.

FOR YOUR SAFETY

What to do if you smell gas:

Do not try to light any appliance

Do not touch any electrical switch:

do not use any phone in your

building.

Immediately call your gas supplier

from a neighbour's phone. Follow

the gas supplier's instructions.

If you cannot reach your gas

supplier, call the ﬁre department.

Tested by: Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

www.regency-ﬁre.com

Owners &

Installation Manual

P33-4 Zero Clearance

Direct Vent Gas Fireplace

WARNING

HOT GLASS

DO NOT TOUCH

NEVER

WILL

CAUSE BURNS

GLASS

UNTIL COOLED

ALLOW CHILDREN

TO TOUCH GLASS

CHILDREN AND ADULTS SHOULD BE ALERTED TO

THE HAZARDS OF HIGH SURFACE TEMPERATURES,

ESPECIALLY THE FIREPLACE GLASS, AND SHOULD

STAYAWAYTOAVOIDBURNSORCLOTHINGIGNITION.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace

To the New Owner:

Congratulations!

You are the owner of a state-of-the-art Gas Fireplace by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. The

P33-4 has been designed to provide you with all the warmth and charm of a wood ﬁreplace at the ﬂick of a switch.

The P33-4 has been approved by Warnock Hersey/Intertek for both safety and efﬁciency. As it also bears our own

mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take

a moment now to acquaint yourself with these instructions and the many features of your Regency®Fireplace.

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency®product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following

standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2002/CSA 2.33-2002 and GAS-FIRED APPLIANCES FOR USE

AT HIGH ALTITUDES CAN/CGA-2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the

Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for

Manufactured Home Installations, Sites, and CommunitiesANSI/NFPA501A, and with CAN/CSAZ240-MH Mobile Home Standard

in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of

local codes follow the current National Fuel Gas Code,ANSI Z223.1 and the current National Electrical Code ANSI/NFPA70 in the

U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,

with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

ThisRegency®Mobile/ManufacturedHomeListed

appliance comes factory equipped with a means

to secure the unit.

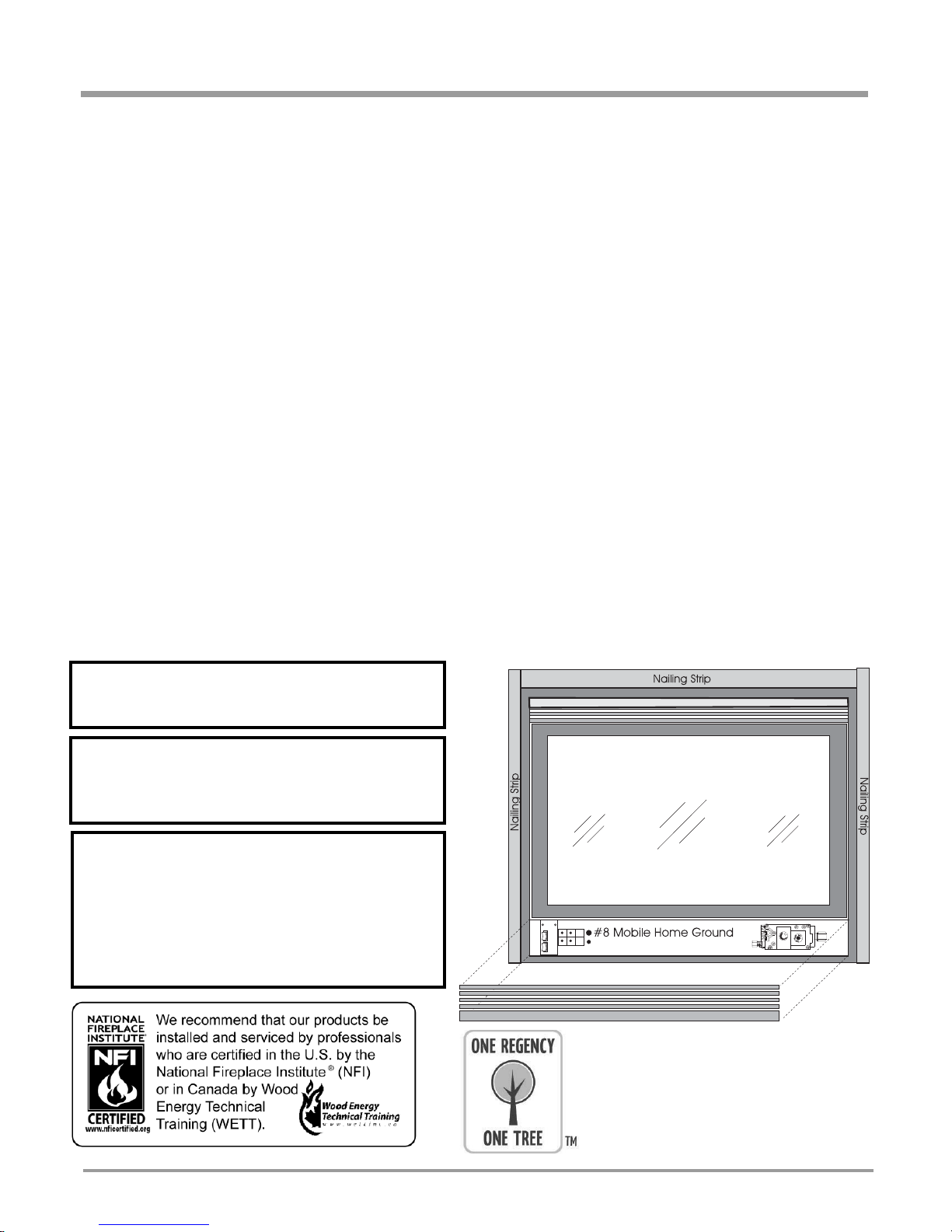

ThisRegency®Mobile/ManufacturedHomelisted

appliance comes equipped with a dedicated #8

groundlugtowhichan18gaugecopperwirefrom

the steel chassis ground must be attached.

Thisappliancemaybeinstalledinanaftermarket

permanently located, manufactured (mobile)

home, where not prohibited by local codes.

This appliance is only use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁed kit is used.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 3

TABLE OF CONTENTS

Double Screen Door...................................................38

Optional Bay Door......................................................38

Optional Bay Trim.......................................................38

Flush Louvers.............................................................38

Bay Louvers................................................................39

Full Screen doors .......................................................40

Contemporary Faceplate Installation Part 1...............42

Contemporary Faceplate Installation Part 2...............43

Contemporary Faceplate Installation Part 3...............44

Optional Wall Thermostat ..........................................46

Optional Remote Control............................................46

Optional Wall Switch...................................................46

Wiring Diagrams ........................................................47

Installing the Optional Fan..........................................49

OPERATING INSTRUCTIONS

Copy of the Lighting Plate Instructions.......................50

Operating Instructions ................................................51

Lighting Procedure .....................................................51

Shutdown Procedure..................................................51

First Fire .....................................................................51

Aeration Adjustment ...................................................51

MAINTENANCE

Maintenance Instructions............................................52

General Vent Maintenance.........................................52

Normal Operating Sounds of Gas Appliances............52

Gold-Plated Louvers/trim............................................52

Log Replacement .......................................................52

Thermopile/Thermocouple..........................................53

Glass Gasket..............................................................53

Door Glass..................................................................53

Removing Valve..........................................................54

Installing Valve............................................................54

PARTS LIST

Main Assembly ...........................................................55

Burner & Log Assembly..............................................57

Flush Front & Louvers................................................58

Contemporary Faceplate............................................59

WARRANTY

Warranty ...................................................................63

SAFETY LABEL

Safety Label...................................................................4

REQUIREMENTS

MA Code - CO Detector ................................................5

INSTALLATION

Important Message ......................................................6

Before You Start ............................................................6

General Safety Information............................................6

Manufactured Mobile Home Additional Requirements ..6

Installation Checklist......................................................7

Locating Your Fireplace.................................................7

Duct System Option.......................................................7

INSTALLATION

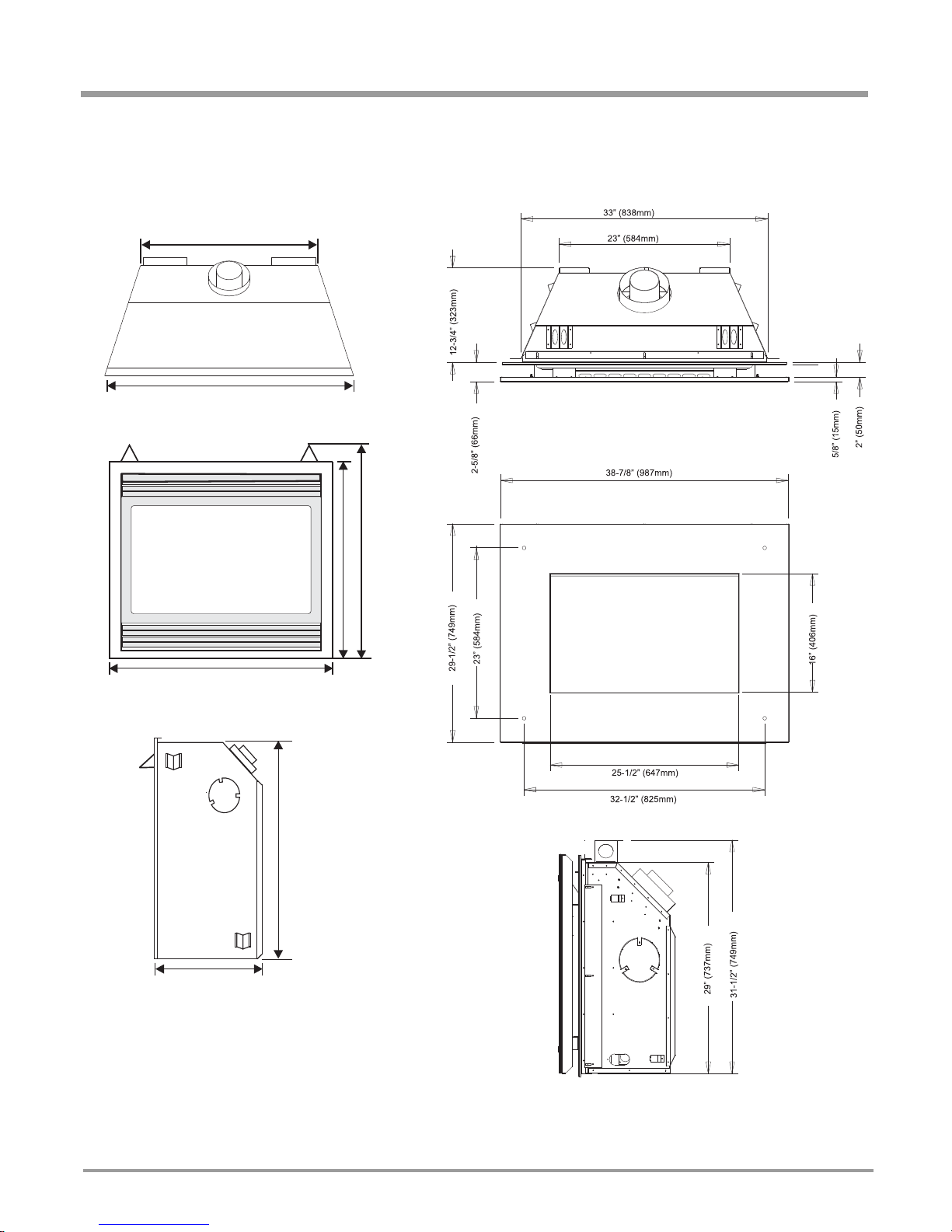

Unit Dimensions ............................................................8

Unit Dimensions with Contemporary Faceplate ............8

Clearances for Bay or Flush front..................................9

Clearances with Contemporary Faceplate ....................9

Combustible Mantels...................................................10

Mantel Leg Clearances with Flush or Bay Glass.........11

Mantel Leg Clearances w/Contemporary Faceplate ...11

Framing and Finishing.................................................12

Framing Dimensions with Contemporary Faceplate....13

Framing & Finishing with Contemporary Faceplate.....14

Unit Assembly Prior to Installation...............................15

Venting Introduction.....................................................15

Exterior Vent Termination Locations............................16

Regency®Direct Vent ﬂex System ..............................17

Installation Procedures................................................18

Rigid Pipe Venting Systems ........................................19

4” x 6-5/8” Rigid Pipe Cross Reference Chart.............20

Rigid Pipe Venting Arrangements ...............................22

Vertical Termination with Co-Linear Flex System........28

Venting Arrangements - Vertical Terminations ............29

Unit installation with Horizontal termination.................30

Unit installation with Vertical Termination ....................31

Gas Line Installation....................................................31

Pilot Adjustment...........................................................32

High Elevation .............................................................32

Gas Pipe Pressure Testing..........................................32

S.I.T. Valve Description................................................32

Conversion from NG to LP ..........................................33

Optional Brick Panels..................................................36

Log Set Installation......................................................36

Standard Flush Door ...................................................37

Optional Flush Trim .....................................................37

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace

SAFETY LABEL

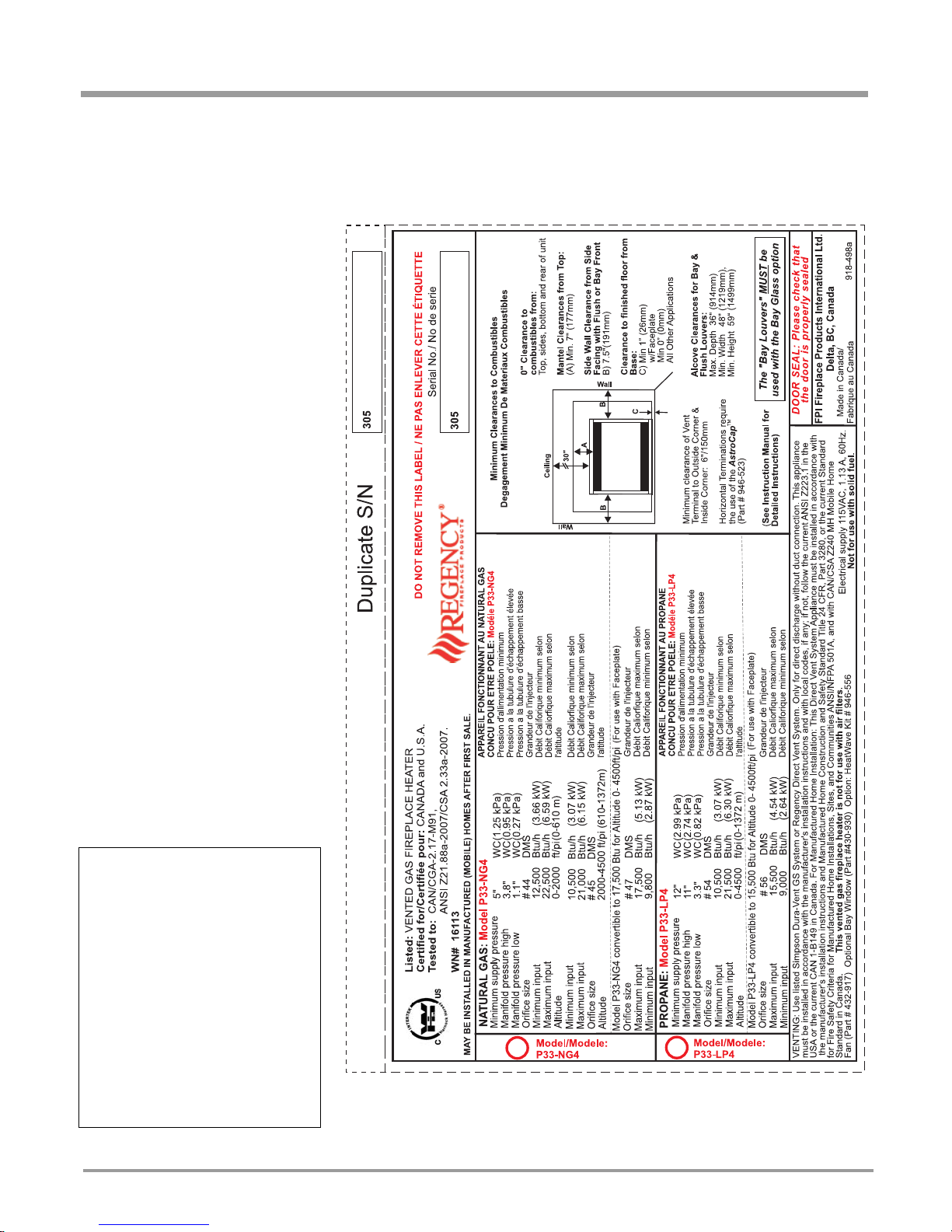

Thisisacopyofthelabelthataccompanieseach

P33-4ZeroClearanceDirectVentGasFireplace.

Wehave printedacopyofthecontents here for

your review. The safety label is located on the

front inside base of the unit, visible when the

bottom louver is open.

NOTE: Regency®units are constantly being

improved. Check the label on the unit and if

there is a difference, the label on the unit is the

correct one.

SAFETY LABEL

FortheState of Massachusetts, installation

and repair must be done by a plumber or

gasﬁtter licensed in the Commonwealth of

Massachusetts.

For the State of Massachusetts, ﬂexible

connectors shall not exceed 36 inches in

length.

For the State of Massachusetts, the appli-

ances individual manual shut-off must be a

t-handle type valve.

The State of Massachusetts requires the

installation of a carbon monoxide alarm in

accordancewithNFPA720 andaCOalarm

withbatterybackupinthesameroomwhere

the gas appliance is installed.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 5

REQUIREMENTS

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for

residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than

seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall

be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled

equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is

installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery

operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure

served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of

qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon

monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of

thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon

monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions

shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight

(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The

sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation

unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by

the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or

structure used in whole or in part for residential purposes.

Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the

instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a

Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies

"special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and

detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,

all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of

the installation.

MA Code - CO Detector

(for the State of Massachusetts only)

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

TheP33-NG4 or P33-LP4DirectVent Fireplace

must be installed in accordance with these

instructions. Carefully read all the instructions

in this manual ﬁrst. Consult the "authority

having jurisdiction" to determine the need for

a permit prior to starting the installation. It is

the responsibility of the installer to ensure

this ﬁreplace is installed in compliance with

manufacturer's instructions and all applicable

codes.

BEFORE YOU START

Safeinstallationandoperationofthisappliance

requires common sense, however, we are

required by the Canadian Safety Standards

and ANSI Standards to make you aware of

the following:

GENERAL SAFETY

INFORMATION

1) Theapplianceinstallationmustconformwith

localcodesor,intheabsenceoflocalcodes,

with the current Canadian or National

Gas Codes, CAN1-B149 orANSI Z223.1

Installation Codes.

2) The appliance when installed, must be

electrically grounded in accordance with

localcodes,orintheabsenceoflocalcodes

with the current National Electrical Code,

ANSI/NFPA 70 or CSA C22.1 Canadian

Electrical Code.

3) See general construction and assembly

instructions.Theapplianceandventshould

be enclosed.

4) This appliance must be connected to the

speciﬁed vent and termination cap to the

outsideofthebuildingenvelope.Nevervent

to another room or inside a building. Make

sure that the vent is ﬁtted as per Venting

instructions.

5) Inspect the venting system annually for

blockage and any signs of deterioration.

6) Venting terminals shall not be recessed into a

wall or siding.

7) Any safety glass removed for servicing

must be replaced prior to operating the

appliance.

8) Topreventinjury,donotallowanyone who

is unfamiliar with the operation to use the

ﬁreplace.

9) Wearglovesandsafetyglassesforprotection

while doing required maintenance.

10) Be aware of electrical wiring locations in

walls and ceilings when cutting holes for

termination.

11) Under no circumstances should this

appliancebemodiﬁed.Partsthathavetobe

removed for servicing should be replaced

prior to operating this appliance.

12) Installationandanyrepairstothisappliance

should be done by a qualiﬁed service

person. A professional service person

should be called to inspect this appliance

annually. Make it a practice to have all of

your gas appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid

fuels (wood, paper, cardboard, coal, etc.)

be used in this appliance.

15) Theapplianceareamustbekeptclearand

free of combustible materials, (gases and

other ﬂammable vapours and liquids).

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not

cut or weakened during installation.

2) Ensure proper grounding using the #8

ground lug provided. Refer to "Wiring

Diagram" Section.

INSTALLATION AND REPAIR

SHOULD BE DONE BY A

QUALIFIEDSERVICEPERSON.

THE APPLIANCE SHOULD BE

INSPECTED BEFORE USE

AND AT LEAST ANNUALLY

BY A PROFESSIONAL

SERVICE PERSON. MORE

FREQUENTCLEANINGMAYBE

REQUIREDDUETOEXCESSIVE

LINT FROM CARPETING,

BEDDING MATERIAL, ETC.

IT IS IMPERATIVE THAT

CONTROL COMPARTMENTS,

BURNERS AND CIRCULATING

AIR PASSAGEWAYS OF

THE APPLIANCE BE KEPT

CLEAN.

YOUNG CHILDREN SHOULD BE

CAREFULLY SUPERVISEDWHEN

THEY ARE IN THE SAME ROOM

AS THE APPLIANCE.

Emissionsfromburning woodorgascould

contain chemicals known to the State of

California to cause cancer, birth defects

or other reproductive harm.

DUE TO HIGH TEMPERATURES,

THE APPLIANCE SHOULD BE

LOCATED OUTOFTRAFFICAND

AWAY FROM FURNITURE AND

DRAPERIES.

WARNING:FAILURETOINSTALL

THIS APPLIANCE CORRECTLY

WILL VOID YOUR WARRANTY

AND MAY CAUSE A SERIOUS

HOUSE FIRE.

CHILDREN AND ADULTS

SHOULD BE ALERTED TO THE

HAZARDS OF HIGH SURFACE

TEMPERATURES, ESPECIALLY

THE FIREPLACE GLASS,

AND SHOULD STAY AWAY TO

AVOID BURNS OR CLOTHING

IGNITION.

CLOTHING OR OTHER

FLAMMABLEMATERIALSHOULD

NOT BE PLACED ON OR NEAR

THE APPLIANCE.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 7

DUCT SYSTEM OPTION

Kit #946-556

The HeatWave Air Duct Kit increases the

effectiveness of your ﬁreplace by dispersing

warmairfromtheﬁreplacetoremotelocations

in the same room or other rooms in your

home.

Upto twokitsmaybeinstalledontheﬁreplace.

Please Note: Only 1 HeatWave kit may be

operatedatonetime.Thisincludestheinternal

blower option as well.

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location

(Refer to "Locating Your Fireplace"

Section)

b) Clearances to Combustibles

(Refer to "Clearances" Section)

c) Mantle Clearances

(Refer to "Combustible Mantels"

Section)

d) Framing & Finishing Requirements

(Refer to "Framing & Finishing"

Section)

e) Venting Requirements

(Refer to "Venting" Sections)

2) Assemble Top Facing Support and Side

NailingStrips(Referto"Unit AssemblyPrior

to Installation" Section). NOTE: Must be

done before installing unit into ﬁreplace.

3) Install vent (Refer to "Venting" Sections)

4) Make gas and electrical connections. Test

the pilot. Must be as per diagram.

(Refer to "Gas Line Installation" and "Pilot

Adjustment" Section).

Convert to Propane if desired.

(Refer to "Conversion Kit from NG to LPG"

Section).

5) Installstandardandoptionalfeatures.Refer

to the following sections:

a. Optional Brick Panels

b. Log Set Installation

c. Standard Flush Door

d. Optional Flush Trim

e. Double Screen Door

f. Optional Bay Door

g. Optional Bay Trim

h. Flush Louvers

i. Bay Louvers

j. Full Screen Doors

k. Optional Contemporary Faceplate

l. Optional Wall Themostat

m. Optional Remote Control

n. Optional Wall Switch

o. Installing the Optional Fan

6) Final check.

Before leaving this unit with the customer,

the installer must ensure that the appliance is

ﬁring correctly and operation fully explained

to customer.

This includes:

1) Clockingtheappliancetoensurethecorrect

ﬁringrate (ratenotedon label)afterburning

appliance for 15 minutes.

2) Ifrequired,adjustingtheprimaryairtoensure

that the ﬂame does not carbon. First allow

the unit to burn for 15-20 min. to stabilize.

CAUTION:Any alterationtothe productthat

causes sooting or carboning that results

in damage is not the responsibility of the

manufacturer.

Diagram 1

INSTALLATION

LOCATING YOUR

FIREPLACE

1) Whenselectingalocationforyourﬁreplace,

ensure that the clearances outlined on this

page are met.

2) Provide adequate clearances for

servicing.

3) The appliance must be installed on a ﬂat,

solid,continuoussurface(e.g.wood,metal,

concrete).Thismaybetheﬂoor,orraisedup

on a platform to enhance its visual impact.

If the appliance is going to be installed

on carpeting, combustible linoleum tile or

othercombustiblematerialotherthanwood

ﬂooring,theappliancemustbeinstalledona

metalorwoodpanelextendingthefullwidth

and depth of the appliance.

4) The P33-4 can be installed in a recessed

position or framed out into the room as in

A, B, C, D. See Diagram 1 below.

5) This appliance is Listed for bedroom

installationswhenusedwithaListedMillivolt

Thermostat. Some areas may have further

requirements, check local codes before

installation.

6) The P33-4 Direct Vent Gas Fireplace is

approvedforalcoveinstallations,whichmeet

the clearances listed on the "Clearances"

Section.

7) Werecommendthatyouplanyourinstallation

on paper using exact measurements for

clearances and floor protection before

actually installing this appliance. Have a

qualiﬁedinspector,dealer,orinstallerreview

your plans before installation.

Note: Forventterminationssee"ExteriorVent

Termination Locations" Section.

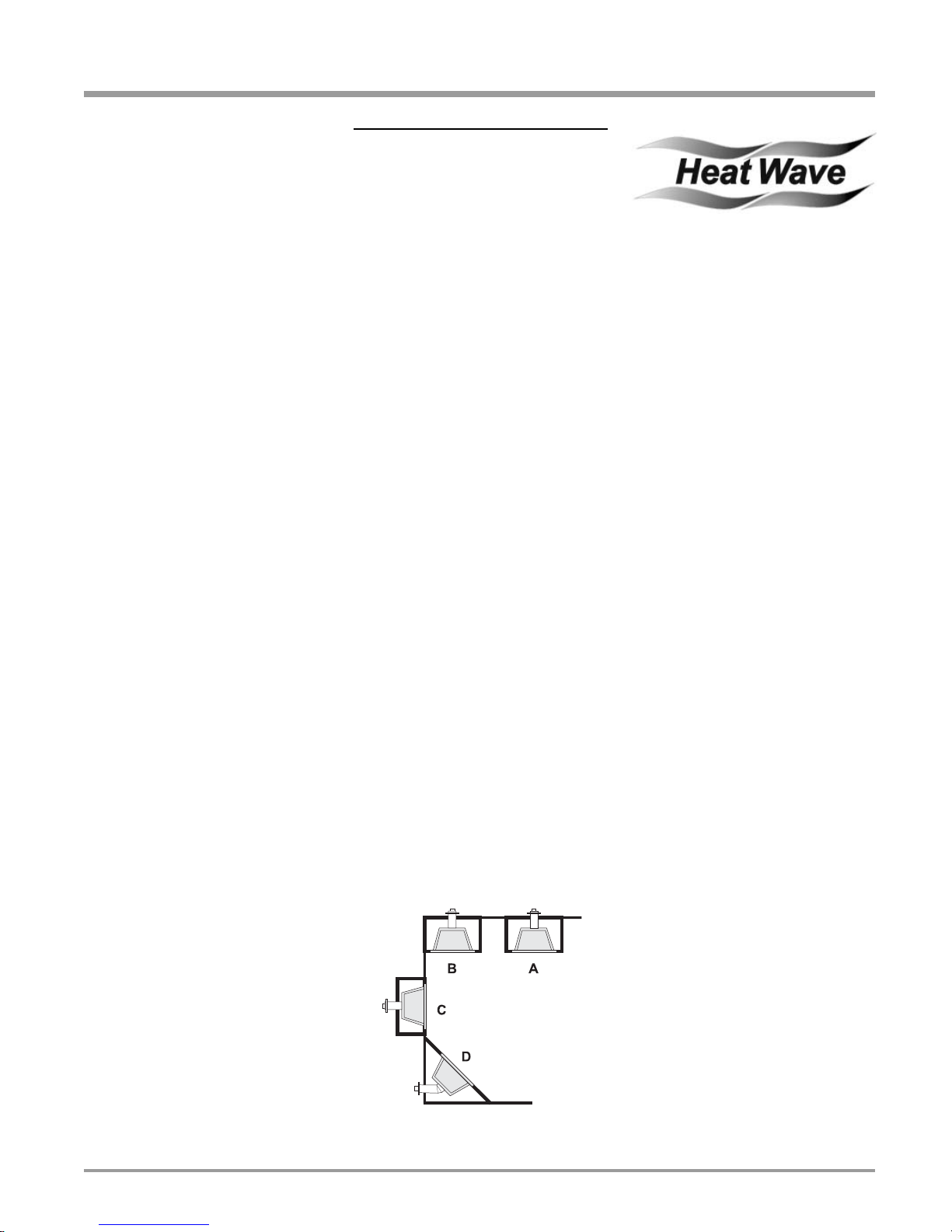

A) Flat on Wall

B) Flat on Wall Corner

C) Recessed into Wall/Alcove

D) Corner

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

UNIT DIMENSIONS WITH

CONTEMPORARY FACEPLATE

33"(838mm)

23"(584mm)

12-3/4"(324mm)

29"(737mm)

28-1/2"(724mm)

31-1/2"(800mm)

UNIT DIMENSIONS

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 9

INSTALLATION

Caution Requirements

The top, back and sides of the ﬁreplace are deﬁned by

standoffs. The metal ends of the standoff may NOT be

recessed into combustible construction.

WARNING

Fire hazard is an extreme risk

if these clearances (air space) to combustible materials are not

adhered to. It is of greatest importance that this ﬁreplace and vent

system be installed only in accordance with these instructions.

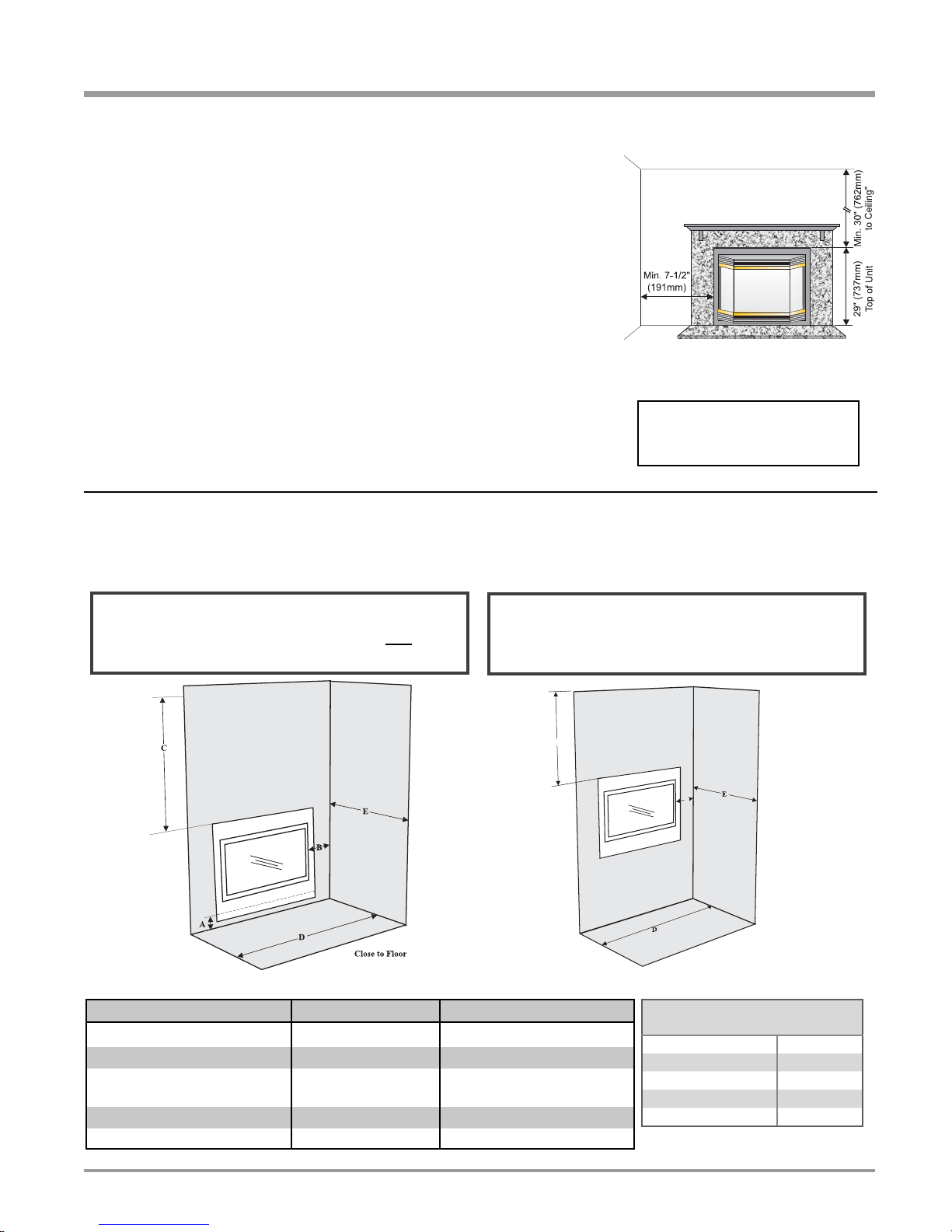

CLEARANCES WITH CONTEMPORARY FACEPLATE

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related ﬁres is failure to maintain required clearances (air space) to combustible materials. It is of the greatest

importance that this ﬁreplace and vent system be installed only in accordance with these instructions.

Clearance: Dimension Measured From:

A: *Front Floor Clearance (min.) 1" (25mm) Underside of Unit

B: *Sidewall 7-1/2" (241mm) Side of Unit

C: *Ceiling

(room and/or alcove) 30" (889mm) Top of Unit

D: Alcove Width 48" (1219mm) Sidewall to Sidewall (Minimum)

E: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)

Close to Ceiling

Flue Clearances to

Combustibles

Horizontal - Top 2-1/2"

Horizontal - Side 1-1/2"

Horizontal - Bottom 1-1/2"

Vertical (Flex Vent) 1-1/2"

Vertical (Rigid) 1-1/4"

*Note: All measurements are from the top/side of the unit, not optional front.

Clearances for Bay or Flush Front

The clearances listed below are Minimum

distances unless otherwise stated:

A major cause of chimney related ﬁres is

failure to maintain

requiredclearances(airspace)tocombus-

tible materials.

It is of the greatest importance that this

ﬁreplace and vent system

be installed only in accordance with these

instructions.

Clearance to Combustibles from:

Back 0" (0mm)

Side 0" (0mm)

Floor 0" (0mm)

NOTE: The minimum ﬂoor clearance must be

maintained

from the top surface of the carpeting, tile,

etc.

CLEARANCES FOR BAY OR FLUSH FRONT

Minimum Clearance from Top of Unit to:

Mantel* min. 7" (177mm)

Ceiling 30" (762mm)

from top of unit.

Side Wall Clearance

Bay or Flush Front 7-1/2" (191mm)

Minimum Vent Clearances:

2-1/2" (64mm) Horizontal Top

1-1/2" (38mm) Horizontal Side

1-1/2" (38mm) Horizontal Bottom

1-1/4" (32mm) Vertical Vent Clearance

(Rigid Vent)

1-1/2" (38mm) Vertical Vent Clearance

(Flex Vent)

Alcove Clearances:

Max. Depth 36" (914mm)

Min. Width 48" (1219mm)

Min. Height 59" (1499mm)

* see mantel clearance instructions.

Warning

Firehazardisanextremeriskifthese

clearances are not adhered to.

Andere Handbücher für P33-NG4

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Regency Fireplace Products Kamin im Innenbereich Handbücher

Regency Fireplace Products

Regency Fireplace Products P42 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Alterra CI1150 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Grandview G600C-1 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products I2404M Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products CI2700 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products I100B-1 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products ACC40E City Series Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products City Series Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Energy U31-NG10 Bedienungsanleitung

Regency Fireplace Products

Regency Fireplace Products Horizon HZ42E-NG Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Greenfire GFi350LNG-R Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Horizon HZ40E-NG10 Service-Handbuch

Regency Fireplace Products

Regency Fireplace Products CI2600 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Grandview G800EH Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products H2103 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Kingston F3502B Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products U32 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products GF950L-NG Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products P121-NG10 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products H2100 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Classic I2453M Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Pro Series Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products HZ54E-NG1 Kurzanleitung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
