Regency Fireplace Products Panorama P36 Kurzanleitung

- Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any

other appliance.

- WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch: do not use any phone in your building.

Leave the building immediately.

• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's

instructions.

• If you cannot reach you gas supplier, call the re department.

- Installation and service must be performed by a qualied installer, service agency or the gas supplier.

WARNING

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious

injury, death, or property damage.

REGENCY FIREPLACE PRODUCTS. 6988 Venture St., Delta, BC Canada, V4G 1H4

919-399k 01.17.23

Panorama® P36 Zero Clearance

Direct Vent Gas Fireplace

Owners & Installation Manual

Tested by:

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

MODELS: P36-NG10 Natural Gas P36-LP10 Propane

P36 Video

2| P36-10 Zero Clearance Direct Vent Gas Fireplace

To the New Owner:

Congratulations!

You are the owner of a state-of-the-art Gas Fireplace by REGENCY FIREPLACE PRODUCTS. The P36 has been designed to

provide you with all the warmth and charm of a wood replace at the ick of a switch. The model P36 has been approved

by Warnock Hersey / Intertek for both safety and eciency. As it also bears our own mark, it promises to provide you with

economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with

these instructions and the many features of your Regency Fireplace.

920-408

4.34.7

Instruction Plate

For a glass-fronted gas appliance where the temperature of the glass

viewing area outside surface exceeds the limits specified in Clause 5.14.4, the following

graphic danger and statements shall be shown on a Class IIIA-2 Permanent Label.

4.34.6

Instruction Plate

Each appliance shall bear a Class IIIB marking with letters on a contrasting background, located

adjacent to the controlling device or in an equally conspicuous position where the instruction can be easily read.

April 22/14: Created draft

Double sided

Material: Synthetic Paper

Size 5.965" W x 5.71" H

Color: As shown in artwork

DANGER

HOT GLASS WILL

CAUSE BURNS

DO NOT TOUCH GLASS

UNTIL COOLED

NEVER ALLOW CHILDREN

TO TOUCH GLASS

A barrier designed to reduce the risk of burns from the hot viewing glass

is provided with this appliance and must be installed for the protection

of children and other at risk individuals.

!DANGER

920-408

CAUTION:

HOT WHILE IN OPERATION. DO NOT TOUCH.

SEVERE BURNS MAY RESULT. KEEP CHILDREN, CLOTHING, FURNITURE,

GASOLINE, AND ANY OTHER LIQUIDS WITH FLAMMABLE VAPOURS AWAY.

KEEP BURNER AND CONTROL COMPARTMENT CLEAN.

SEE INSTALLATION AND OPERATING INSTRUCTIONS ACCOMPANYING

APPLIANCE.

Front Back

LA SURFACE VITRÉE CHAUDE

PEUT CAUSER DES BRÛLURES.

NE TOUCHEZ PAS À LA

SURFACE VITRÉE NON REFROIDIE.

NE LAISSEZ JAMAIS UN

ENFANT TOUCHER LA SURFACE

VITRÉE.

DANGER

L’écran pare-étincelles fourni avec ce foyer réduit le risque de brûlure en cas de

contact accidentel avec la vitre chaude et doit être installé pour la protection des

enfants et des personnes à risque.

920-408-fr

ATTENTION

S'assurer que le brûleur et le compartiment des commandes sont propres.

Voir les instructions d’installation et d’utilisation qui accompagnent

l'appareil.

Risque de brûlures graves.

Ne pas toucher l’appareil lorsqu’il fonctionne.

Ne pas laisser les enfants s’approcher de l’appareil. Garder les

vêtements, les meubles et tout gaz ou liquide inflammable (carburant)

à distance de l'appareil.

P36-10 Zero Clearance Direct Vent Gas Fireplace | 3

| 3

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency product has been tested and listed by Intertek as a Vented Gas Fireplace Heater to the following standards: ANSI Z21.88 • CSA 2.33 and CSA 2.17.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction

and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities

ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current

National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CSA B149.1 Gas Installation Code

and the current Canadian Electrical Code CSA C22.1 in Canada.

This Regency Mobile/Manufactured Home Listed appliance

comes factory equipped with a means to secure the unit.

P36 Video

This Regency Mobile/Manufactured Home listed appliance

comes equipped with a dedicated #8 ground lug to which

an 18 gauge copper wire from the steel chassis ground

must be attached.

This appliance may only be installed in an

aftermarket permanently located, manufactured

(mobile) home, where not prohibited by local codes.

This appliance is only use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless a

certied kit is used.

Nailing Strip

#8 Mobile Home Ground

Nailing Strip

4| P36-10 Zero Clearance Direct Vent Gas Fireplace

4table of contents

Pilot Adjustment......................................................44

Gas Pipe Pressure Testing ........................................44

SIT 829 Valve Description ........................................44

Conversion from NG to LP .....................................45

Optional Enamel Panels ...........................................46

Optional Brick Panels...............................................47

Oak Log Set Installation...........................................48

Standard Flush Door................................................51

Vignette Faceplate and Safety Screen Installation ......52

Optional Vignette Inlay Installation ...........................53

Vignette Finishing Trim Installation ...........................54

Optional Finishing Trim ............................................55

Safety Screen Installation .......................................56

Optional Flush Louvers Installation -

Used with Safety Screen # 515-929..........................56

Wall Thermostat (Optional) ......................................57

DC Spark Igniter .....................................................57

Battery Installation..................................................57

Wiring Diagrams ....................................................58

Optional Wall Thermostat Installation .......................59

Optional Fan Installation ..........................................60

Operating Instructions

Operating Instructions .............................................61

Lighting Procedure ..................................................61

Shutdown Procedure ...............................................61

Copy of the Lighting Plate Instructions......................62

First Fire.................................................................63

Aeration Adjustment................................................63

Normal Operating Sounds Of Gas Appliances.............63

Maintenance

Maintenance Instructions .........................................64

General Vent Maintenance .......................................64

Log Replacement ....................................................64

Thermopile / Thermocouple .....................................64

Glass Gasket ...........................................................64

Door Glass..............................................................64

Removing Valve ......................................................65

Installing Valve........................................................65

Gas Maintenance.....................................................66

Parts

Main Assembly ........................................................67

Burner Assembly & Log Set......................................69

Vignette Faceplate and Finishing Trim .......................70

Safety Screen and Louvers.......................................71

Warranty

Warranty ................................................................72

MA Code - CO Detector..............................................6

Dimensions

Unit Dimensions with Vignette and Vignette

Finishing Trim ...........................................................7

Unit Dimensions with Safety Screen (#515-929) and

Optional Louvers .......................................................7

Installation

Gas Installation Checklist ...........................................8

Lighting Procedure ..................................................10

Shutdown Procedure ...............................................10

Proame I Remote Control Operating Instructions .....11

Proame I Remote Receiver Battery Replacement......15

Important Message ...............................................16

Before You Start......................................................16

General Safety Information ......................................16

Installation Checklist................................................17

Locating Your Gas Fireplace .....................................17

Manufactured Mobile Home Additional

Requirements..........................................................17

Heatwave Duct System ............................................17

Clearances..............................................................18

Mantel Leg Clearances.............................................19

Combustible Mantel Clearances ................................20

Framing..................................................................21

Framing with Vignette Faceplate/Vignette .................22

Finishing Trim, Stepped Finish ..................................22

Framing with Vignette Faceplate & Finishing

Trim Finished Flush..................................................22

Framing with Louvers and Safety Screen...................22

Finishing.................................................................23

Wall Mount On/O Switch and Remote Receiver

Installation .............................................................24

Unit Assembly Prior To Installation............................25

Venting Introduction................................................25

Exterior Vent Termination Locations..........................26

Venting...................................................................27

4” x 6-5/8” Rigid Pipe Cross Reference Chart.............28

Rigid Pipe Venting Systems ......................................30

Rigid Pipe Venting Arrangements .............................31

Vertical Termination - Co-linear Flex System into a

Masonry Chimney ...................................................36

Venting Arrangements - Vertical Termination .............37

Dura-Vent Horizontal Terminations............................38

Dura-Vent Vertical Terminations................................39

Direct Vent System (Flex) Installation Procedures ......40

Vertical Termination - 4" x 6-7/8" Venting (#946-755)41

Vertical Flue Extension Kit ........................................42

Ceiling Firestop / Firestop Spacer .............................42

System Data ...........................................................43

High Elevation.........................................................43

Gas Line Installation ................................................43

P36-10 Zero Clearance Direct Vent Gas Fireplace | 5

| 5

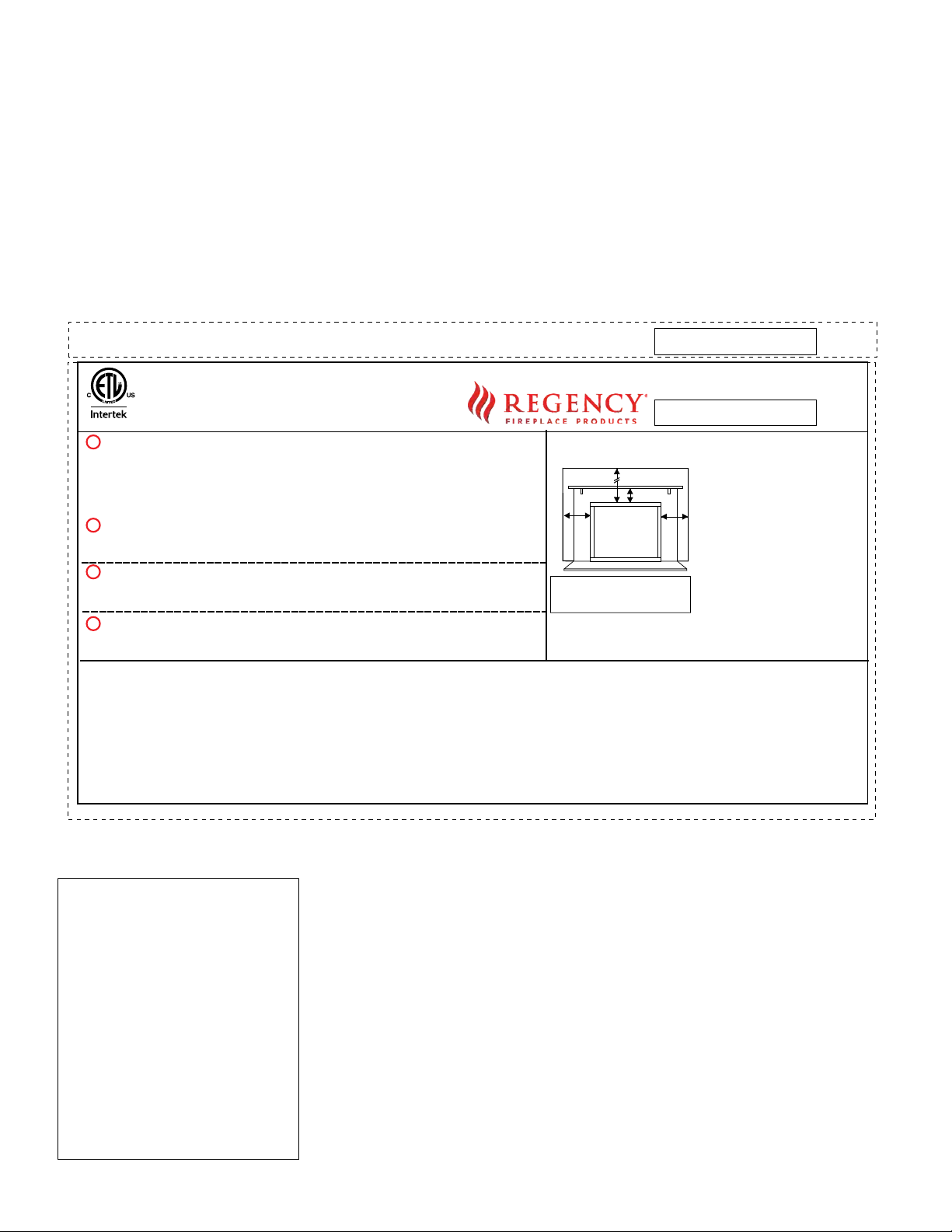

safety decal

This is a copy of the label that accompanies

each P36 Zero Clearance Direct Vent Gas

Fireplace. We have printed a copy of the

contents here for your review. The safety

label is located on the front inside base

of the unit.

NOTE: Regency units are constantly being

improved. Check the label on the unit and

if there is a dierence, the label on the unit

is the correct one.

For the State of Massachusetts, installation

and repair must be done by a plumber or

gastter licensed in the Commonwealth of

Massachusetts.

For the State of Massachusetts, exible

connectors shall not exceed 36 inches in

length.

For the State of Massachusetts, the

appliances individual manual shut-o must

be a t-handle type valve.

The State of Massachusetts requires the

installation of a carbon monoxide alarm in

accordance with NFPA 720 and a CO alarm

with battery back up in the same room where

the gas appliance is installed.

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

294

DOOR SEAL: Please

check that the door is

properly sealed

Minimum Clearances to Combustibles /

Degagement Minimum De Materiaux Combustibles

Serial No./ No de série

919-398b

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

Duplicate S/N

0" Clearance to

combustibles from:

Sides, bottom and rear of unit

Mantel Clearances from Top:

(A) Min. 12" (305mm)

Side Wall Clearance

from Side Facing

B) 6"

Alcove Clearances:

Max. Depth 36" (914mm)

Min. Width 48" (1219mm),

Min. Height 72" (1229mm)

Minimum Vent Clearances:

Horizontal Top 2" (51mm)

Horizontal Side 1-1/2" (38mm)

Horizontal Bottom 1-1/2" (38mm)

Vertical Vent 1-1/4" (32mm)

(See Instruction Manual for

detailed instructions)

12" WC/C.E. (3.00 kPa)

11" WC/C.E. (2.74 kPa)

2.9" WC/C.E. (0.72 kPa)

Minimum supply pressure

Manifold pressure High

Manifold pressure Low

Pression d'alimentation minimale

Pression manifold - lev e é é

Pression manifold - basse

30,000 Btu for altitude 0 - 2000 ft.

Maximum Input

Minimum Input

Orifice size

Altitude

30,000 Btu/h (8.79 Kw/h)

15,000 Btu/h (4.40 Kw/h)

#52 DMS (1.61mm)

0-2000 ft/pi (0-610m)

D bit calorifique maximalé

D bit calorifique minimalé

Taille de l'orifice

Altitude

Convertible to 25,000 Btu for altitude 2000 - 4500 ft. with Orifice part #: 904-345

Maximum Input

Minimum Input

Orifice size

Altitude

25,000 Btu/h (7.33 Kw/h)

12,600 Btu/h (3.69 Kw/h)

#53 DMS (1.51mm)

2000-4500 ft/pi (610-1372m)

D bit calorifique maximalé

D bit calorifique minimalé

Taille de l'orifice

Altitude

NATURAL GAS: Model P36-NG10

Minimum supply pressure

Manifold pressure high

Manifold pressure low

Orifice size

Minimum input

Maximum input

Altitude

APPAREIL FONCTIONNANT AU GAZ NATUREL

Modèle P36-NG10

Pression d'alimentation minimale

Pression manifold - lev eé é

Pression manifold - basse

Taille de l’orifice

D bit calorifique minimalé

D bit calorifique maximalé

Altitude

5" WC/C.E. (1.25 kPa)

3.8" WC/C.E. (0.95 kPa)

1.1" WC/C.E. (0.27 kPa)

# 37 DMS

15,500 Btu/h (4.54 kW)

30,000 Btu/h (8.79 kW)

0-4500 ft/pi (0-1372 m)

Part #: 919-398b

Colour: Everything black on grey except what is highlighted is printed red.

Size @ 100%

Material: 2 ml silver matt polyester (DPM SMS)

Oct.22/2014: Created Decal

Apr. 23/15: Rev. A added safety screen part # for use with Louvers

Jan 15/18: updated standard

Nov 30/18: updated 2017 standard + French blurb

Sept 2/22: Rev B - updated standards

*Printer: Continue number sequence from 918-499 - do not restart at 0

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.

This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United

States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard or ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles

This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See owner's manual

for details.

Fan (Part # 438-917) Option: HeatWave Kit # 946-556

Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation ANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.

Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard. Si ces

normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles.

Cet appareil doit être utilisé uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlements

locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements.

o o

Ventilateur (Pièce n 438-917) Option : Trousse HeatWave Kit n 946-556

This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation. Made in Canada/

Fabriqué au Canada

FPI Fireplace Products International Ltd.

Delta, BC, Canada

C#4001172

For Use Only with Barrier (Part #515-005 with Vignette) or (Part #515-929 Installed with Louvers) Follow installation instructions.

Utiliser uniquement avec l’écran (Pièce n°515-005 avec façade Vignette) ou (Pièce n°515-929 avec grilles d’aération). Suivre les consignes d'installation.

32"

Ceiling

Wall

ELECTRICAL SUPPLY/ALIMENTATION ÉLECTRIQUE:

115V_60HZ less than/moins de 2 AMP

PROPANE GAS: Model P36-LP10

30 000 Btu pour altitude de 0 à 2000 pi

Listed: VENTED GAS FIREPLACE HEATER/FOYER AU GAZ À ÉVACUATION

Certified to/Certifi pour : éCSA 2.17-2017

ANSI Z21.88-2019

CSA 2.33-2019

Refer to Intertek's Directory of Building Products for detailed information.

Pour plus de détails, se reporter au Répertoire des produits de construction de Intertek.

FOYER AU GAZ À ÉVACUATION - NE PAS UTILISER AVEC UN COMBUSTIBLE SOLIDE. CATÉGORIE I.

VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS. CATEGORY I.

6| P36-10 Zero Clearance Direct Vent Gas Fireplace

6installation

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for

residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than

seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall

be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled

equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is

installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery

operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure

served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of

qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon

monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of

thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a batteryoperated carbon

monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions

shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight

(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The

sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation

unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by

the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or

structure used in whole or in part for residential purposes.

Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the

instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a

Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies

"special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and

detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,

all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of

the installation.

MA Code - CO Detector

(for the State of Massachusetts only)

P36-10 Zero Clearance Direct Vent Gas Fireplace | 7

| 7

dimensions

UNIT DIMENSIONS WITH SAFETY SCREEN (#515-929) AND OPTIONAL LOUVERS

UNIT DIMENSIONS WITH VIGNETTE AND VIGNETTE FINISHING TRIM

37 1

32 5

31 3

12 3

14 3

(953mm)

(324mm)

(375mm)

(829mm)

(797mm)

1-1/4”

(26mm)

36"

30 1

12 3

14 7

36"

32 1

(9 mm)14

(378mm)

(775mm)

(325mm)

(914mm)

(826mm)

ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.

ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.

Optional 3 sided nishing trim (not shown) 38" W x 31-1/2" H

Optional 3 sided Vignette nishing trim (not shown) 38" (965mm) W x 33-3/4" (838mm) H

NOTE

Gas connection is from the right-hand side of the appliance & electrical connection on lefthand side of the appliance.

A metal receptacle box is supplied / installed with the appliance to make all 120 volt electrical connections.

8| P36-10 Zero Clearance Direct Vent Gas Fireplace

8installation

05/18/21

REGENCY GAS INSTALLATION CHECKLIST

Customer: Date Installed:

Install Address: Location of Fireplace:

Serial No: Installer:

Model No:

Site Requirements YES NO

If applicable, are the insulation, vapour barrier, and drywall present if installed on an outside wall or chase?

Does the area have a solid continuous base to support the unit?

Will the area accommodate the size of the applliance and all clearances?

Are the gas and electrical roughed into the area where the unit is being installed?

In City & Grandview series cool wall applications, is the chase enclosure sealed to prevent heat from escaping? All hot air

from the unit must exit via the mandatory ventilation openings.

In City & Grandview applications, Is the chase enclosure vented with the mandatory heat ventilation openings? See manual

for details.

If applicable, is the masonry/factory built freplace in its original condition with no modiﬁcations?

If applicable, have the hearth requirements been met?

Unit Setup YES NO

If applicable, are the standoffs and top nailing ﬂange extensions installed and at the correct depth to accommodate ﬁnishing

material? See manual for details.

If applicable, is the ﬁreplace level and secured, meeting framing clearances? See manual for details.

If applicable, is the unit converted to top or rear vent per manual instructions, and the insulation discarded?

Venting YES NO

Are the venting components approved for the unit installed?

Does the venting conﬁguration comply with venting diagrams?

Is venting installed and secured, and are clearances for the vent pipe and termination cap maintained?

If applicable, was a 1/4" rise maintained for every foot of horizontal run?

Was the termination installed and sealed?

Is the direct vent termination at the highest point in the vent assembly?

If applicable, are both chimney liners continuous from ﬂue collars to termination?

Electrical and Wiring YES NO

Is the appliance connected to the household's 110/120v per local codes? Check local codes for receptacle placement.

Were the connections in the ﬁreplace tested with a circuit tester?

Is the appliance properly grounded?

If applicable, is the supplied electrical/gang box afﬁxed to the wall to facilitate the mounting of the receiver/battery box ?

Gas YES NO

Does the supply pressure meet the requirements shown on the rating plate?

Was a conversion performed?

Was a leak check performed and manifold pressures veriﬁed?

Is the shut-off valve installed and easily accessible to the customer?

This general checklist does not contain all pertinent installation details or speciﬁcs and does not supersede the guidelines in this manual. Your

Regency dealer/installer should use it in conjunction with manual instructions. Please follow all local codes and jurisdictions in authority.

GAS INSTALLATION CHECKLIST

P36-10 Zero Clearance Direct Vent Gas Fireplace | 9

| 9

installation

05/18/21

REGENCY GAS INSTALLATION CHECKLIST

Finishing YES NO

If applicable, is only noncombustible material installed in the noncombustible areas?

Do clearances meet installation and manual requirements?

Do the mantels and/or projections comply with the installation manual?

If applicable, was the solid fuel ﬁreplace warning plate installed?

Appliance Media Setup YES NO

Do commands from the remote or wall switch light the pilot and main burner?

Are the burner media/log set, glass door, and screen installed per instructions in the manual?

Was the air shutter on the proper setting after running the unit for 20 minutes?

If applicable, were the surround and trims installed according to the manual?

Was the operation of the fan, lights (if installed), and ﬂame modulation checked?

Customer Tutorial and Presentation YES NO

Is the customer conﬁdent operating the new gas appliance and aware of all the features on the remote?

Conﬁrm that the rating and lighting plates are attached to the appliance. Do not remove.

Was the customer informed of the location of the rating and lighting plates?

Was accessing unit controls in a power outage explained to the customer?

Are the model and serial numbers and the date of installation of the unit written in the manual and on the checklist?

Were the warranty and unit registration reviewed with the customer?

Comments:

10 | P36-10 Zero Clearance Direct Vent Gas Fireplace

owner's information

LIGHTING PROCEDURE

IMPORTANT: The remote control system supplied with this appliance has

several options for starting/operating the appliance using the power button

and ON/OFF key on the hand-held transmitter.

Prior to operating this appliance, please read the remote control operating

instructions (packaged with remote control) to understand how to operate

this remote control system. Option to download remote functions video

with QR code below.

1. Ensure the wall switch/receiver is in the remote position (see Diagram 1).

3. After approximately 4 seconds the spark ignition system will spark for 60

seconds to light the pilot.

4. The unit will turn on.

Note: The rst try for ignition will last approximately 60 seconds. If there is no

ame ignition (rectication) the board will stop sparking for approximately

35 seconds. After wait time , the board will start second try for ignition by

sparking for approximately 60 seconds. If there is still no positive ignition

the board will go into lock out.

The system will need to be reset as follows:

a) Turn the system o using ON/OFF switch or press ON/OFF button - if

using remote.

b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF

button if using remote.

c) Repeat step 2.

ON/OFF

Button

Diagram 1

Diagram 2

Set Switch to

Remote

SHUTDOWN PROCEDURE

1. Turn the wall-mounted switch or remote to the "OFF" position.

2. Press "OFF" on the remote control.

3. Turn the gas control knob to the "OFF" position to turn o the pilot.

Remote shown in Manual Mode on Hi

Proame

video

2. Press and release the ON/OFF button on the remote handheld transmit-

ter (see Diagram 2). An audible beep should be heard from the receiver.

Andere Handbücher für Panorama P36

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Regency Fireplace Products Kamin im Innenbereich Handbücher

Regency Fireplace Products

Regency Fireplace Products I31-2 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products U41 Bedienungsanleitung

Regency Fireplace Products

Regency Fireplace Products Regency Horizon HZ40E-NG2 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Cascades I2500 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XT Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products FPI E33 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Alterra F175B-2 Kurzanleitung
