ACUITY BASIC

Acuity Basic

User Manual V1.5 3

Table of Contents

1 Introduction ................................................................................4

2 Installation, safety and maintenance..................................................4

Installation ..................................................................................4

Adjust the tilt of the screen.............................................................4

Adjust the height of the screen ........................................................5

Transporting the Acuity...................................................................5

Tips for usage...............................................................................5

3 Controls - Screen ..........................................................................6

3.1 Display Modes ..........................................................................6

3.2 Zoom .....................................................................................6

3.3 Block auto focus .......................................................................6

3.4 Brightness ...............................................................................7

3.5 Contrast .................................................................................7

3.6 White balance ..........................................................................7

3.7 Advanced Reading Aids ...............................................................7

3.8 Tableau ..................................................................................8

3.9 Brake Handle ...........................................................................8

4 Controls - Remote Control ...............................................................8

5 Advanced Menu ............................................................................8

6 Switch Screen (only for Acuity Basic with switch Screen).........................10

7 Regulations..................................................................................10

8 WEEE & RoHS Directives .................................................................10

9 Warranty Information .....................................................................10

10 Technical specications ..................................................................11

Acuity Basic

1 Introduction

Congratulations with your Acuity Basic; a desktop video magnier of high quality that is

especially user friendly with its touch sensitive input method.

Read this manual thoroughly before you start to use your Acuity Basic. Information in this

manual refers to both the Acuity Basic and Acuity Basic with Switch Screen models.

This manual contains instructions on how the device needs to be installed, and describes

all of the functions of the Acuity Basic.

2 Installation, safety and maintenance

Package contents

The package of the Acuity Basic contains the following:

• Acuity Basic or Acuity Basic with Switch Screen

• Power adaptor

• Manual

• Remote Control and Remote Control Receiver (optional accessory)

• HDMI Cable (for Acuity Basic with Switch screen function only)

Installation

Never open up the device yourself; this will void your warranty. If you

suspect the device is in need of service or repairs, please contact your

supplier.

The Acuity Basic will be delivered to you in a pre-assembled state. All you have to do is

slide the screen up to your preferred height and connect the adaptor into a wall socket

outlet and switch on the device.

Adjust the tilt of the screen

The screen can be tilted by rmly holding the screen on the left and right side, and tilting

the screen in your preferred position.

User Manual V1.5 5

Adjust the height of the screen

The height of the screen can be adjusted by rmly holding the screen on the left and right

side, and pulling the screen up or down to your preferred position.

Transporting the Acuity

If the device needs to be transported it is adviced to transport it in its original packaging in

order to avoid any potential damage to the device.

Tips for usage

• Avoid direct sunlight on the screen and tableau.

• Be careful when handling the moving parts of the reading table.

• The Acuity requires little or no maintenance. If you want to clean the exterior of the

device, only use a dry cloth. The use of aggressive cleaning products like alcohol,

acetone or other chemical substances is prohibited.

• Do not use the Acuity as a support for walking, sitting down or getting up.

• Switch off the device if you do not intend to use it.

• Ensure that the Acuity is placed in a well ventilated room.

• Place the Acuity on a stable surface to prevent it from falling.

• Only use your Acuity indoors. Do not expose the device to extreme temperature

uctuations or humidity. Do not place your Acuity next to a heat source.

• Only use the supplied cables and connect the adaptor to a wall socket outlet.

• Ensure that the Acuity is placed at a minimal distance of 10 cm / 4 inches from the

edge of the table.

Acuity Basic

3 Controls - Screen

The on/off switch of the Acuity is located at the lower right hand side on the back of the

monitor. To start up or shutdown the device, hold it for 2 seconds until you hear the start

up or shutdown tone.

The controls of the Acuity can be found below the screen and consist of touch sensitive

pads:

3.1 Display Modes

Tap

Tap this icon to cycle through all available display modes.

Press-and-hold

Press and hold the Display Mode icon to quickly switch between your last used high contrast

mode and the full colour mode.

Swipe

Swipe from left to right to go to the next display mode in the cycle.

Swipe from right to left to go to the previous display mode in the cycle.

3.2 Zoom

Tap or press and hold the minus icon allows you to zoom out.

Tap or press and hold the plus icon allows you to zoom in.

The magnication level will be shown on screen.

3.3 Block auto focus

By tapping the magnier icon the device will refocus on your reading material

and block the auto focus on that level.

Tap a zoom button to unblock the auto focus.

User Manual V1.5 7

3.4 Brightness

Tap

By tapping this icon you can cycle through 5 brightness levels.

3.5 Contrast

Swipe and hold

Swipe this icon from left to right and hold your nger on the right side of the rounded

rectangle to gradually increase the contrast.

Swipe this icon from right to left and hold your nger on the left side of the rounded

rectangle to gradually decrease the contrast.

Contrast can only be adjusted in high contrast modes, not in photo modes.

3.6 White Balance

Swipe and hold

Swipe this icon from left to right and hold your nger on the right side of the rounded

rectangle to gradually change the white balance to the colder, bluer side.

Swipe this icon from right to left and hold your nger on the left side of the rounded

rectangle to gradually change the white balance to the warmer, oranger side.

White balance can only be adjusted in photo modes, not in high contrast modes.

Brightness, contrast and White balance can’t be adjusted when reading aids are in use.

3.7 Advanced Reading Aids

Press-and-hold

Press and hold this icon to enter the Advanced Reading Aids menu.

The following reading aids are available:

horizontal

blanking

vertical

blanking

horizontal

line

vertical

line

Swipe up or down over this icon to select the desired reading aid required. Each reading

aid has 5 settings that are indicated by a number shown in the icon.

Once the desired reading aid is selected, tap this icon to set the desired setting of the

reading aid.

To change the setting value you can tap this icon to go to the next level or you can swipe

from right to left.

To change to a different reading aid then swipe up or down over this icon and then tap to

set the desired level of the reading aid selected.

To exit from the Advanced Reading Aids menu press and hold this icon for 2 seconds. The

reading aid will now disappear from the screen.

3.8 Tableau

The Acuity contains a tableau on which you can place your reading material. The tableau

can move from left to right and from front to back.

Acuity Basic

3.9 Brake Handle

In front of the tableau of the Acuity you will nd a single brake handle with which you can

control the movement of the tableau. The handle has 4 positions:

Left = The tableau can be moved freely.

Middle-left = Free movement from left to right.

Front to back movement can be adjusted by 5 millimeter increments

by moving the tableau.

Middle-right = Free movement from left to right, front to back movement is blocked.

Right = All movement of the tableau is blocked.

4 Controls - Remote Control

The Acuity can be used with a Bluetooth connected wireless remote control. This remote

control is sold seperately. Contact your supplier for more information.

5 Advanced menu

The Acuity Speech contains an advanced menu with which you can (de)activate certain

functions of the Acuity live mode. You can access the advanced menu by ensuring the

device is switched off, then holding the on/off button approx. 10 seconds until you hear a

beep after the start up tone.

By tapping the brightness icon you can cycle through multiple screens of selectable options.

Tap the plus icon of the zoom button to highlight which mode you wish to change. You

can recognize the highlighted function by the white rounded rectangle around it. Tap the

magnier icon to activate/deactivate your selection.

To save any changes, or to exit without making changes power off the device and power

it on again.

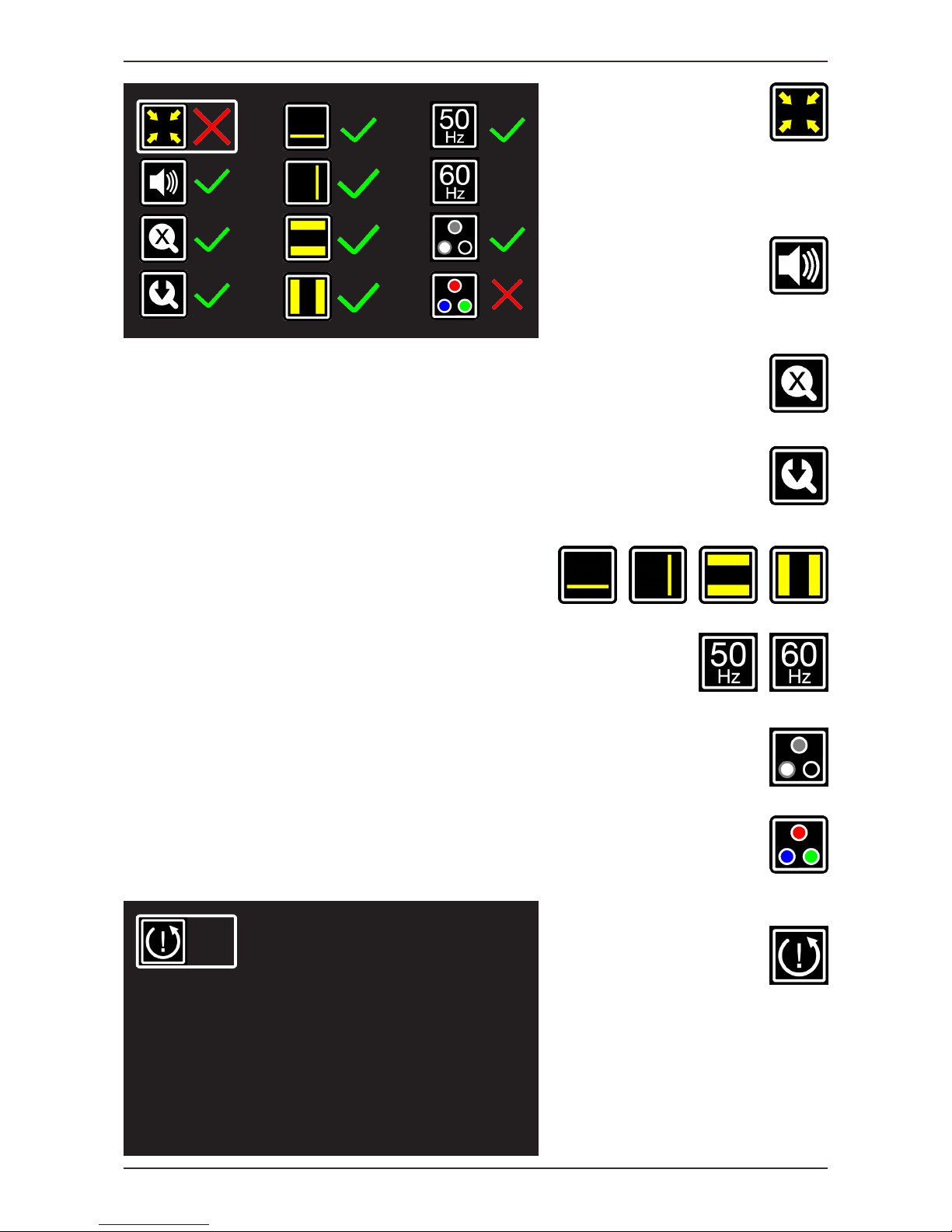

On the rst screen you can select

whether you want the photo mode

to have realistic or high saturation

colors by activating the photo mode

(A) and select which high contrast

mode you want available in your

Acuity live mode by activating the

high contast mode you want acti-

vated/deactivated.

The second screen shows advanced

functions.

User Manual V1.5 9

Crop zoom

The crop zoom function

crops the image on screen

to 50% so that a zoom

level of 1x can be achieved.

This function is originally off.

Sound feedback

Audible feedback when you

change a setting. This func-

tion is originally on.

Magnication indicator

When you zoom in or out a magnication indicator shows up in the top left corner

that shows what the magnication factor is. This function is originally on.

Zoom presets

When this function is on the device will go to the last used magnication in high

constrast modes and photo mode when you switch to these functions.

This function is originally on.

Reading aids

This will let you turn on reading aids on or off

individually. These functions are originally on.

Refresh rate / frequency

Depending on your location the mains power frequency will be 50 or 60

Hertz. By selecting the right setting you will supress ickering caused by

surrounding light sources. This function is originally set to 50Hz.

Contrast

With this function you can turn the manual contrast adjustment on or off. This

function is originally on.

White balance

Select whether you want the ability to manually set the white balance in the

photo modes. This function is originally off.

Factory Reset

The factory reset func-

tion resets all advanced

settings.

Software version

On the third and last page of the

advanced settings you will nd the

installed software

version.

Rehan Electronics

ACuity

Ver: X.X Cam: X.X

Acuity Basic

6 Switch Screen (only for Acuity Basic with Switch Screen)

Connect the HDMI cable from one of the HDMI ports at the back of the Acuity to your

computer. Press the On/Off button once to toggle between the Acuity and your computer.

7 Regulations

Products with CE marking comply with EMC Directive 2014/30/EC and the Low Voltage

Directive 2014/35/EU issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following standards:

Safety: EN62368-1

EMC: EN55022; EN55024

The device also complies to FCC part 15 Class B

8 WEEE & RoHS Directives

WEEE Notice

The WEEE logo (shown left) on the product or its literature indicates that the

product must not be disposed of or dumped with your household waste. For

more information about electronic and electrical waste equipment disposal,

recovery and collection points, please check your local regulations.

RoHS Compliance

The Acuity Basic is in compliance with the Restrictions of the use of certain Hazardous

Substances (RoHS)Directive.

9 Warranty Information

For all queries regarding warranty of your device, please contact your supplier for further

information.

Use of the device other than described in this manual will exclude it from warranty condi-

tions.

Andere Handbücher für ACUITY BASIC

Inhaltsverzeichnis

Andere Rehan Vergrößerungsglas Handbücher

Rehan

Rehan Looky4 Bedienungsanleitung

Rehan

Rehan i-See Speech Bedienungsanleitung

Rehan

Rehan i-See HD Bedienungsanleitung

Rehan

Rehan Looky + Bedienungsanleitung

Rehan

Rehan i-See Touch Bedienungsanleitung

Rehan

Rehan Looky 6 HD Bedienungsanleitung

Rehan

Rehan Looky 4+ HD Bedienungsanleitung

Rehan

Rehan i-See Bedienungsanleitung

Rehan

Rehan Looky Book Bedienungsanleitung

Rehan

Rehan ACUITY BASIC Bedienungsanleitung

Rehan

Rehan LOOKY Bedienungsanleitung

Rehan

Rehan LOOKY Bedienungsanleitung

Rehan

Rehan ACUITY SPEECH Bedienungsanleitung

Rehan

Rehan Looky 10 Bedienungsanleitung

Rehan

Rehan i-See HD Bedienungsanleitung

Beliebte Vergrößerungsglas Handbücher anderer Marken

HIMS

HIMS SenseView DUO Bedienungsanleitung

nedis

nedis MAGL12WWT Bedienungsanleitung

Ryobi

Ryobi RML18-0 Bedienungsanleitung

Eschenbach

Eschenbach Visolux Digital XL FHD Bedienungsanleitung

ENHANCED VISION

ENHANCED VISION Merlin Bedienungsanleitung

Ash Technologies

Ash Technologies Andromeda Bedienungsanleitung

Baum

Baum VisioBook Handbuch

HIMS

HIMS GoVision PRO Bedienungsanleitung

OPTRON

OPTRON i-Stick Bedienungsanleitung

Eschenbach

Eschenbach visolux DIGITAL HD Bedienungsanleitung

LS & S

LS & S 251107 Bedienungsanleitung

VisionAid

VisionAid HandyReader HD v2 Bedienungsanleitung

Carson

Carson SV-50 Bedienungsanleitung

MAGINON

MAGINON TL-70 Bedienungsanleitung

Optelec

Optelec Compact 7 HD Bedienungsanleitung

Optelec

Optelec ClearView GO Bedienungsanleitung

Carson

Carson Lighted MagniGrip MG-88 Bedienungsanleitung

VisionAid

VisionAid Helix HD Bedienungsanleitung
