Reliable PRONTO 100CH Bedienungsanleitung

PORTABLE STEAM CLEANING & GARMENT-CARE SYSTEM

SYSTÈME DE NETTOYAGE À VAPEUR PORTABLE &

PROTECTION DES VÊTEMENTS

LIMPIADOR A VAPOR PORTÁTIL & SISTEMA DE CUIDADO

DE VESTIMENTA

INSTRUCTION MANUAL

GUIDE D’UTILISATION

MANUAL DE INSTRUCCIONES

PRONTO 100CH

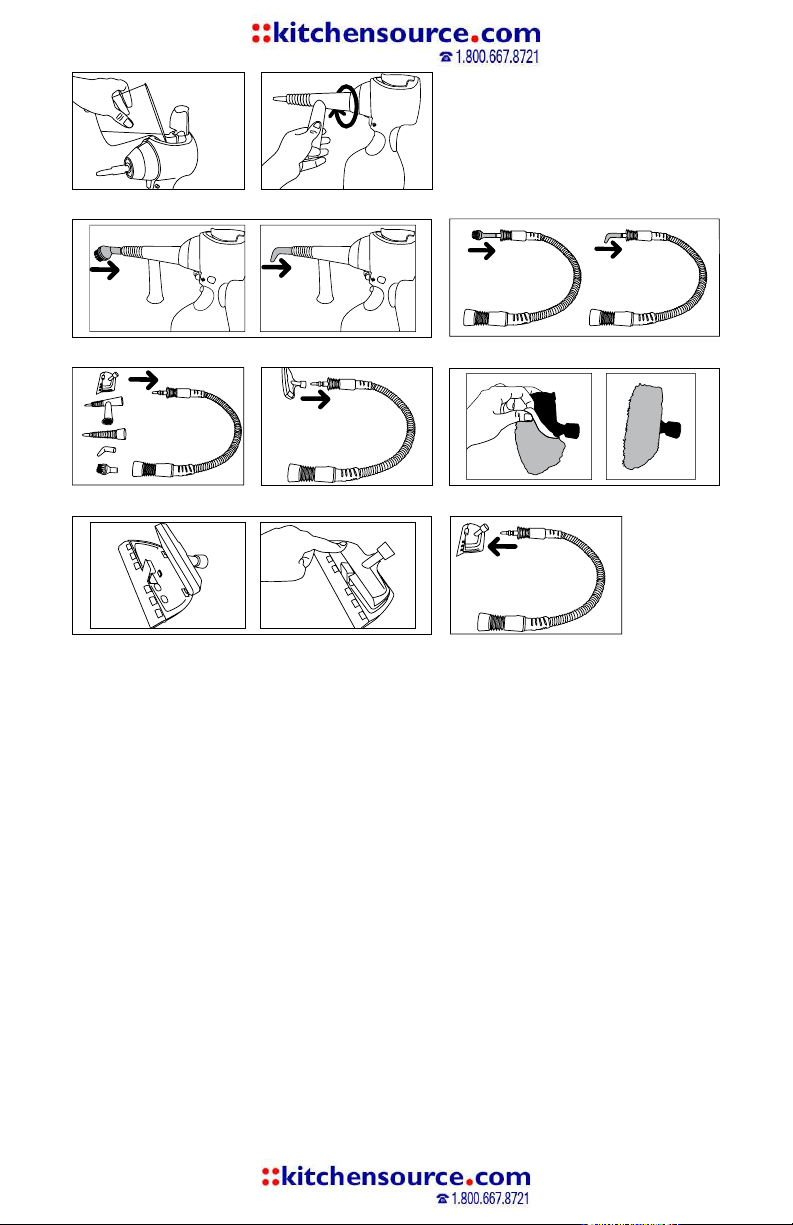

Fig. 4

Fig. 6 7.giF

Fig. 11 Fig. 12

Fig. 5


WARNING: RED SAfETY PIN MUST BE UP AND

CLEARLY VISIBLE BEfORE USING (AfTER WATER

HAS BEEN ADDED AND PILOT LIGHT TURNS Off).

AVERTISSEMENT : LA GOUPILLE ROUGE DE

SÉCURITÉ DOIT ÊTRE DIRIGÉE VERS LE HAUT ET

CLAIREMENT VISIBLE AVANT TOUTE UTILISATION

(APRÈS AVOIR AJOUTÉ DE L’EAU ET APRÈS

EXTINCTION DE LA VEILLEUSE)

ADVERTENCIA: EL PERNO DE SEGURIDAD ROJO

DEBE ESTAR PARA ARRIBA Y CLARAMENTE

VISIBLE ANTES DE USAR (DESPUÉS DE AGREGAR

EL AGUA Y DE APAGAR LA LUZ PILOTO).



Fig. 4

Fig. 6 7.giF

Fig. 11 Fig. 12

Fig. 5


PRONTO 100CH

PORTABLE STEAM CLEANING

& GARMENT CARE SYSTEM

INSTRUCTION MANUAL

ENGLISH

Reliable. Right there with you.

At Reliable, we do what we love, and take pride in doing it right.

You want what’s best for the people, places and things that matter

in your life – from where you live to what you wear. So do we. From

the start, we approach every product with a craftsman’s attention

to detail and passion for making it right. Quality, functionality,

design and customer service play an equally important part in

delivering what’s right for you. The Pronto 100CH portable steam

cleaning and garment care system is no exception. With its unique

Comfort Safety feature, and powerful 4 bar steam pressure you

will be able to obtain impressive results from this small, compact

unit.

For your safety and to fully enjoy the advantages of this product,

please take a few minutes to read all the important safeguards and

care instructions. Keep this manual handy and review the product

warranty for your reference.

IMPORTANT SAfETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEfORE USE

When using your new steam cleaner/fabric steamer basic safety precautions should

always be followed, including the following:

1. Fill the tank with (at most) with one measure of the water beaker provided. Do

not add anything to the water including chemicals, cologne, detergent and so

on. This may seriously damage the appliance and will void the warranty.

2. Do not use the appliance without water in the tank. If it stops producing steam,

this means that the water tank is empty. Unplug the appliance, and check that

the “Comfort Safety” system full indicator is not red (6). Then ﬁll the tank with

one measure of water from the beaker, close the lid of the “Comfort Safety”

system (5) and plug the unit back into the wall outlet.

3. Warning: Always unplug the appliance from the wall outlet before reﬁlling the

tank and check that the “Comfort Safety” system full indicator (6) is not red

before ﬁlling the tank.

4. Always check that the surfaces, objects and fabrics to be treated are resistant

to or compatible with high temperature steam. We recommend checking the

manufacturers instructions and carrying out a test on a hidden area or a sample

before using.

5. If you use the ﬂexible pipe, point the initial ﬂow from the steam cleaner/fabric

steamer into a container in order to get rid of steam that has condensed in

the pipe.

6. Do not lift the steam cleaner/fabric steamer at more than 45° from the

vertical during use, as boiling water could come out with the steam.

7. Never point the steam jet at persons, animals or at appliances containing

electrical parts.

8. Caution: the accessories will heat up during use. Take caution when removing

them.

9. Only use the measuring beaker to ﬁll the water tank.

10. To protect against a risk of electric shock, do not immerse the steam cleaner/

fabric steamer in water or other liquids, nor use with wet hands.

11. Never yank the cord to disconnect from the outlet. Instead, grasp the plug and

pull to disconnect.

12. Do not allow the cord to touch hot surfaces. Let the steam cleaner/fabric

steamer cool completely before putting away.

13. It is always recommended to disconnect the steam cleaner/fabric steamer

from the electrical outlet when ﬁlling with water or emptying. It should also be

disconnected when not in use.

14. Do not operate the steam cleaner/fabric steamer with a damaged cord or if the

steamer has been dropped or damaged. To avoid the risk of an electric shock, do

not disassemble the product. Take it to a qualiﬁed service depot for examination

and repair. Incorrect reassembly can cause a risk of electric shock when the

steamer is used.

15. Close supervision is necessary for any appliance being used near children.

Do not leave the steam cleaner/fabric steamer unattended while connected.

16. Do not allow children to use this appliance.

17. Burns can occur from touching hot parts, hot water, or steam. Always take

caution when there is hot water in the reservoir.

18. This product is designed for home use, not commercial use.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high wattage appliance on

the same circuit.

2. If an extension cord is absolutely necessary, a 15-amp cord should be used.

Cords rated for less amperage may overheat. Care should be taken to arrange

the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS IN A SAfE

PLACE fOR fUTURE REfERENCE

ATTENTION

• Before using your Pronto 100CH, remove all paper or plastic bags, plastic

sheets, cards and possible stickers that may be on the outside or inside of the

appliance that acted as handling protection or sales promotion material.

• Do not plug it in without checking that the voltage of the steam cleaner/fabric

steamer is the same as your home power.

• Do not spray “vertical” steam on a garment hanging in the wardrobe or on

a person. Vertical ironing (steaming) must be done with the garment on a

hanger and away from people or animals.

• Keep the steam cleaner/fabric steamer in an upright position during storage,

set on a stable surface.

• We recommend that you empty the water tank if you are not going to use the

appliance for an extended period of time.

• This product is not for use by persons (including children) whose physical,

sensorial or mental capacities are impaired, or who lack sufﬁcient experience

or knowledge, unless they have been supervised or instructed in the use of

the appliance by a person responsible for their safety.

IMPORTANT: When you want to dispose of the appliance, NEVER throw it in the

garbage. Instead, go to your closest recycling station or waste collection centre

for subsequent disposal. In this way, you will be contributing to looking after the

environment.

MAIN COMPONENTS

1. Main body of the appliance

2. Steam button

3. Accessory base

4. Pilot light

5. “Comfort Safety” system reservoir lid

6. “Comfort Safety” system full indicator

ACCESSORIES

7. Brass brush

8. Nylon brush (black)

9. Nylon brush (white)

10. Angle nozzle

11. Taper nozzle

12. Taper nozzle with handle

13. Fabric (window) accessory

14. Cloth for fabrics (3)

15. Window cleaning blade

16. Flexible pipe

17. Water beaker

18. Accessory bag

19. Deluxe steam bonnet

fILLING THE RESERVOIR BEfORE USE

• Make sure that the appliance is unplugged.

• Open the lid of the “Comfort Safety” System (5), check that the “Comfort

Safety” system full indicator/red pin (6) is NOT visible, ﬁll the reservoir with

1 beaker (17) (Fig.1). Remember that the water level should not exceed the

maximum marker on the beaker.

• Close the lid of the “Comfort Safety” system (5).

IMPORTANT! For the unit to function:

• The blue lid for the “Comfort Safety” system must be CLOSED.

• Red safety pin must be visible after water has been added

and pilot light turns off.

USER INSTRUCTIONS

• Attach the desired cleaning accessory and plug in the appliance.

• The pilot light (4) will come on indicating that the appliance is plugged in.

• When the steam cleaner/fabric steamer has the pressure required to operate,

the pilot light (4) will go off indicating that you can start to use it. This

operation will take approximately 2 minutes. During use, the pilot light will

switch on and off, indicating that the steamer is recovering the necessary

pressure.

• Press the steam control (2) to obtain steam.

• We recommend pressing the control (2) repeatedly for short bursts rather

than just a few times for longer periods, so as to maintain pressure in the

boiler and increase the performance of the steam.

• When you ﬁnish using the steam cleaner/fabric steamer, unplug it and wait for

it to cool down before removing the accessories.

• We recommend that you empty the water tank if you are not going to use the

appliance again for an extended period of time.

ACCESSORIES

TAPER NOZZLE (11)

•Insert the taper nozzle (11) in the accessory base (3) by lining up the lugs on

the taper nozzle with the holes in the base (3) and turn it clockwise (Fig. 3).

NYLON BRUSH (8,9), BRASS BRUSH (7) AND ANGLE NOZZLE (10)

•Attach these accessories by pushing them as far as they will go onto the

taper nozzle (11), taper nozzle with handle (12) or ﬂexible pipe (16).

• For items that are particularly prone to scratches, it is best to use the nozzle

without a brush. For all other areas, start with the nylon brush (least abrasive)

and carefully work your way up to the brass. It is always better to use care

when using the brushes to prevent damage or scratching.

•The use of the steam nozzle alone is particularly good for cleaning and

degreasing many working surfaces, ventilation hoods, see through oven

doors, ventilation grating, kitchen furniture, stainless steel or enamel sinks,

hand-basins, bath-tubs, water taps (to remove scale and water residue), doors,

metal frames, car wheel rims, pet areas etc.

•The nylon brush, because of its softness, is ideal for removing the dirt in

grout, sinks and other surfaces where you need some light scrubbing action.

Be careful not to scratch the surface.

•Tougher cleaning jobs may require the use of the brass brush that is supplied.

Please make sure you are careful that it does not scratch the surface with

this tool. Brass is tougher than nylon, but softer than stainless steel. For

surfaces (grout for example) where the dirt is not being properly lifted with

the nylon brush, carefully using the brass brush may give the best results.

•When using the steam nozzle with or without the brushes, you will need a

cloth to wipe up the moisture and dirt that has been lifted through cleaning.

fLEXIBLE PIPE (16)

•If you want to reach hard to access places or the area to be cleaned is too

far away, use the ﬂexible hose.

•Attach the pipe to the appliance in the way explained for attaching the

taper nozzle (11).

•You can add the following accessories to the ﬂexible pipe, on its ﬂat side:

nylon and brass brushes (7,8,9), angle nozzle (10), taper nozzle (11), taper

nozzle with handle (12) fabric accessory (13), and window-cleaning accessory

(15).

Andere Handbücher für PRONTO 100CH

Inhaltsverzeichnis

Andere Reliable Dampfreiniger Handbücher

Reliable

Reliable EnviroMate GO E20 Bedienungsanleitung

Reliable

Reliable PRONTO PLUS 300CS Bedienungsanleitung

Reliable

Reliable Steamboy T1 Bedienungsanleitung

Reliable

Reliable i702C Bedienungsanleitung

Reliable

Reliable The EnviroMate BRIO Bedienungsanleitung

Reliable

Reliable Enviromate E3 Bedienungsanleitung

Reliable

Reliable Enviromate T630 Bedienungsanleitung

Reliable

Reliable BRIO PRO 1000CC Bedienungsanleitung

Reliable

Reliable 5100CJ Bedienungsanleitung

Reliable

Reliable Enviromate T730A Bedienungsanleitung

Reliable

Reliable PRONTO 100CH Bedienungsanleitung

Reliable

Reliable Steamboy T1 Bedienungsanleitung

Reliable

Reliable DASH 100GH Bedienungsanleitung

Reliable

Reliable EnviroMatePRONTO P7 Bedienungsanleitung

Reliable

Reliable 6000IS Bedienungsanleitung

Reliable

Reliable BRIO 400CC Bedienungsanleitung

Reliable

Reliable 4100CJ Bedienungsanleitung

Reliable

Reliable Enviromate T630 Bedienungsanleitung

Reliable

Reliable PRONTO 200CS Bedienungsanleitung

Reliable

Reliable i500 Bedienungsanleitung

Reliable

Reliable BRIO 500CC Bedienungsanleitung

Reliable

Reliable Enviromate T730A Bedienungsanleitung

Reliable

Reliable Enviromate E5 Bedienungsanleitung

Reliable

Reliable 5100CD Bedienungsanleitung

Beliebte Dampfreiniger Handbücher anderer Marken

Oreck

Oreck STEAM-IT STEAM100LRH Bedienungsanleitung

Beautural

Beautural YPZ-146 Bedienungsanleitung

MPM

MPM MZP-02 Bedienungsanleitung

Electrolux

Electrolux Refine 500 Bedienungsanleitung

Kärcher

Kärcher SC 3 Premium Bedienungsanleitung

Shark

Shark PRO Steam & Spray Bedienungs- und Wartungsanleitung

Jula

Jula 802-337 Bedienungsanleitung

Haan

Haan Floor Sanitizer MS-30 Bedienungsanleitung

Black & Decker

Black & Decker HSM13E1 Bedienungsanleitung

HOFFEN

HOFFEN GS-1231 Bedienungsanleitung

POLTI

POLTI VAPORETTO SYSTEME PRO Bedienungsanleitung

eta

eta AQUASIM PRO Bedienungsanleitung

Maxwell

Maxwell MW-3715 G Bedienungsanleitung

VAPamore

VAPamore Primo MR-100 Handbuch

Bestron

Bestron AZQ016 Bedienungsanleitung

Nilfisk-ALTO

Nilfisk-ALTO Steamtec 312 Bedienungsanleitung

Tempo di saldi

Tempo di saldi SPINSCRUBBER Bedienungsanleitung

DOMENA

DOMENA HYGIAFLOR Bedienungsanleitung
