Momentary Contact closure connection (dry contact, normally open, voltage free).
Recommended to set close contact for 1.5sec for best working condition.
Any voltage above 3Vdc voltage will damage the motor.
Suitable to use with control systems (example: AMX, Crestron, Extron, ..etc)
Warranty void if damaged is caused by inappropriate use
**
COM
Contact Closure (Dry Contact)
Up (Red)
Down (Black)
Common (Yellow)
Not in use (Green)
Cable color legend

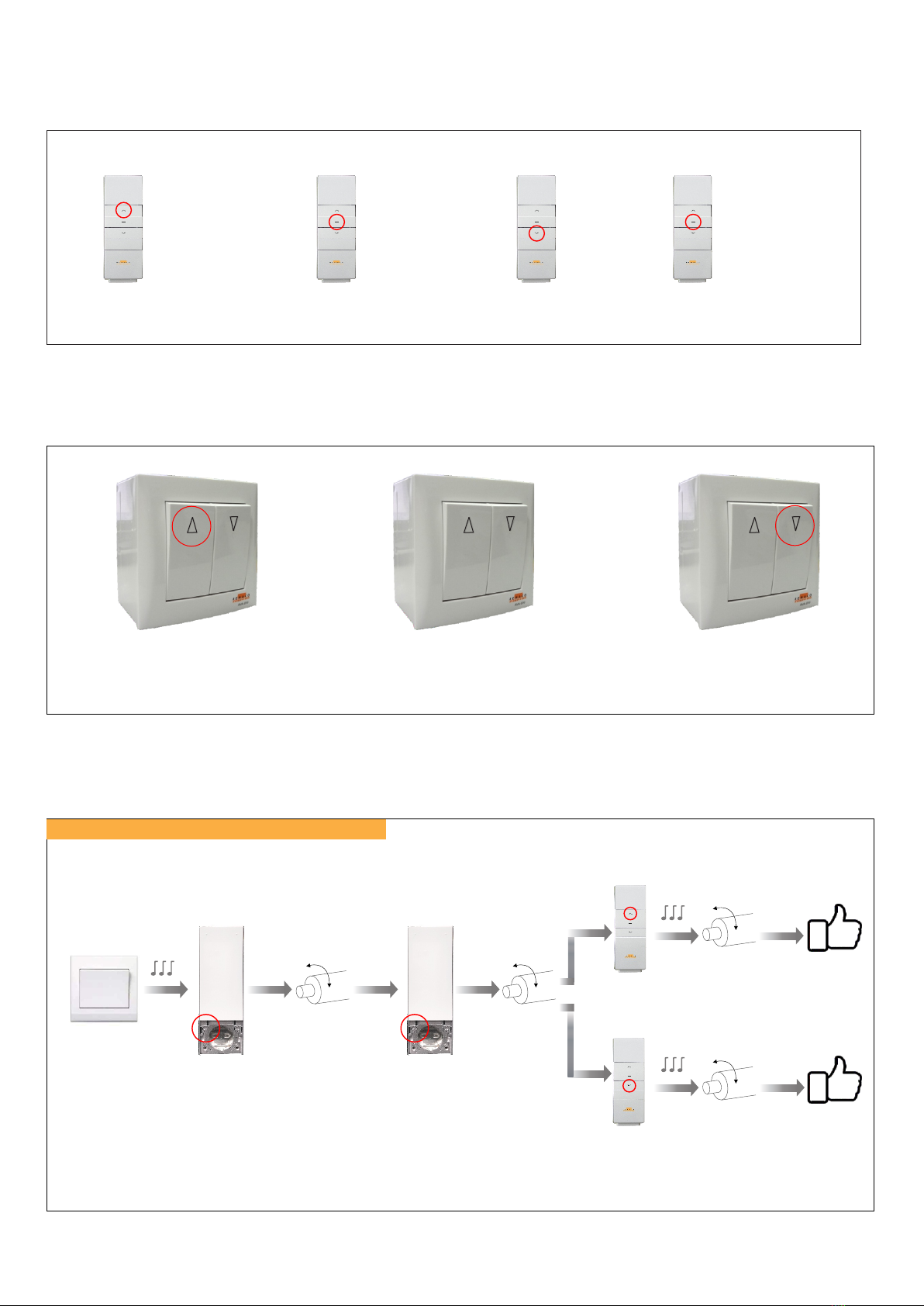

** AVA-200
Spring-Loaded
Mechanical Switch
* Stop - press any button to stop
movement
**A/V Control System
(e.g. AMX / Creston)
Concrete
1021 x 948mm (Ceiling Enclosure, Outer)
False Ceiling
(Plaster Ceiling)
Ceiling Enclosure
Hollow Ceiling
Frame, Outer
Bottom Frame
Top Frame
C-Hook Bracket
78.7 x 4.1 x 3cm
M8 Anchor
Stainless Steel
Wire (4 nos)
1061 x 988mm (Hollow Ceiling Frame, Outer)
1010 x938mm (Ceiling Cut Hole Size)
Hollow Ceiling
Frame
To Cut Out Plaster Ceiling
Hole (& insert Ceiling Frame
into this hole)
Plaster Ceiling
(False Ceiling)
Screws to hold Hollow
Ceiling Frame onto
Plaster Ceiling
938mm
1010mm
2. Slip in
1. Lift up
Motor
Projector
Projector
