QUICK GUIDE

LAGUNA

RENAULT S.A.S. SOCIÉTÉ PAR ACTIONS SIMPLIFIÉE AU CAPITAL DE 533 941 113 € / 13-15, QUAI LE GALLO

92100 BOULOGNE-BILLANCOURT R.C.S. NANTERRE 780 129 987 — SIRET 780 129 987 03591 / TÉL. : 0810 40 50 60

RP 814-6 – 99 91 014 67R – 03/2009 – Edition anglaise

à999101467Rëùêä ZT

(www.e-guide.renault.com )

EGuide ENG

ENG_UD12625_6

Edito (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0

WELCOME ABOARD YOUR LAGUNA

Note

Congratulations on choosing your vehicle: in your Laguna, you will enjoy a unique driving experience!

In order to make your experience as pleasant as possible, we suggest you discover how to get the best out of your Laguna by using this document.

This document does not replace the driver’s handbook.

Please read your complete driver’s handbook for more detailed information on the equipment mentioned in the reference guide for your Laguna.

Detailed information regarding your vehicle’s use, maintenance and warranty, as well as videos and simulators,

are all only a click away in the New Laguna e-Guide, available at www.e-guide.renault.com.

Translated from French. Copying or translation, in part or in full, is forbidden unless prior written permission has been obtained from RENAULT, 92100 Billancourt 2009.

A.S.R. (antipatinage) ................................................................................... (page courante)

ENG_UD12695_4

Sommaire BK (X91 - B91 - K91 - Renault)ENG_RP_814-6_BK91_Renault_0

Front and engine compartment

Passenger side

Rear seats

Rear

Accessing the vehicle

RENAULT card, instrument panel

Dashboard

Multimedia systems

Lighting/Wipers

Driver’s position: seats

Driver’s position: settings

Heating and air conditioning system

Electronic parking brake

Cruise control/Speed limiter

Fuel

Gadgets

ENG_UD10089_4

Avant et compartiment moteur (niveaux) (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0

Front and engine compartment

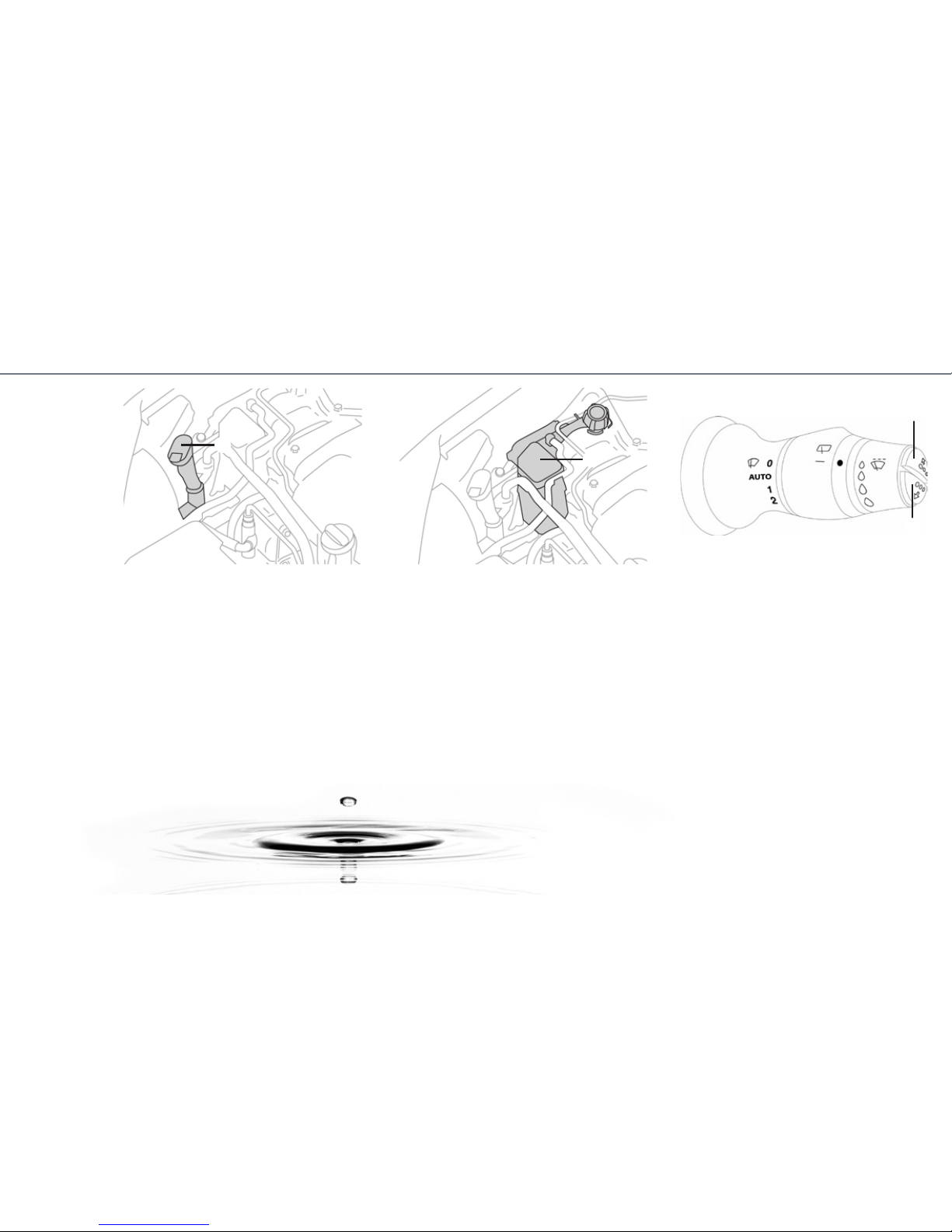

FRONT AND ENGINE COMPARTMENT

Screen washer fluid level

Add some fluid in the reservoir 1if necessary.

Coolant level

The level indicated on the tank 2should be be-

tween MINI and MAXI.

If it is necessary to top up this level, it is essential

to do so when the engine is cold.

Engine oil level

You can view the oil level on the instrument panel:

when the message “test of control system” appears

on the instrument panel, press either button 3or 4.

The oil level is displayed on the instrument panel.

You must observe the service intervals and the

standards governing the oils tested for your engine.

Refer to the Maintenance Service and Warranty

document for your vehicle, and to Section 4 of the

vehicle handbook for the precautions to take when

filling with oil.

ENG_UD9807_2

Côté passager (X91 - B91 - K91 - Renault)ENG_RP_814-6_BK91_Renault_0

Passenger side

Sockets for audio

connection

Depending on the version, you have the option

to connect your portable audio devices, USB key,

and MP3 player to your vehicle Specially designed

sockets are located in the glove box.

Refer to the instructions for the equipment for de-

tails of the connections.

PASSENGER SIDE

Reposition the switch immediately to ON as soon

as you are no longer using the child seat.

Deactivating the front

passenger air bag

If you wish to fit a rear-facing child seat on the

front passenger seat, you must deactivate the air

bag: with the vehicle stationary, turn switch 1to

OFF.

Indicator light

lights up on the central dis-

play on the dashboard.

ENG_UD9808_3

Places arrière (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0

Rear seats

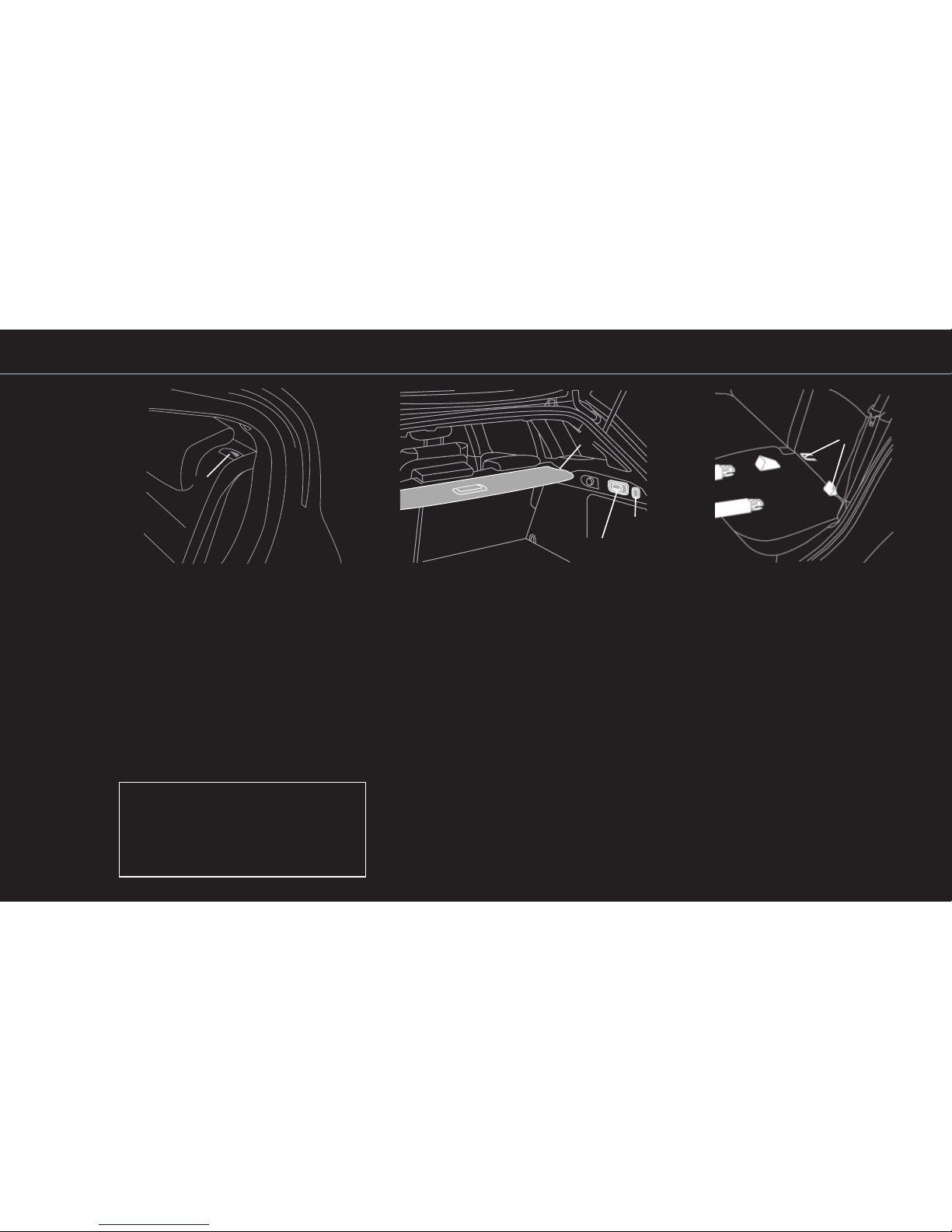

REAR SEATS

Folding the seatback

down

Saloon version: press handle 1on the side to be

folded down.

Estate versions: the vehicle is fitted with a system

that allows the seats to lay flat in a single opera-

tion. Pull handle 4on the side to fold down. The

luggage net requires certain precautions, refer to

the information on “Luggage net” in Section 3 of

your driver’s handbook.

In all cases, to return the seatback to its initial po-

sition, check that the seat belts are in the correct

position and lift the seatback.

Rear functions of the

estate

It offers intelligent storage solutions in the rear

luggage space with bag hooks 3, storage compart-

ments in the side sections of the luggage compart-

ment, an automatically retractable sliding luggage

compartment cover 2, a storage compartment for

the luggage compartment cover under the carpet

and other innovations to discover in your driver’s

handbook.

ISOFIX system

Each rear side seat is fitted with the ISOFIX child

seat mounting system 5.

Depending on the type of child seat used, installa-

tion requires specific precautions.

Refer to the information on “Child safety” in

Section 1 of your driver’s handbook for the spe-

cial features.

Consult your approved dealer to find out about the

equipment available for your vehicle.

Ensure that nobody is near to the bench seat

when you fold it down.

Remember to remove anything on the rear bench

seat.

ENG_UD13419_4

Arrière (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0

Rear

REAR

Parking distance control

On equipped vehicles, the parking distance con-

trol measures the distance between the rear and/

or the front of the vehicle and any obstacles that

are nearby.

When approaching an obstacle during manoeuvres,

the beeps become faster and then sound continu-

ously when 25 cm from the obstacle.

The system can be permanently deactivated (refer

to the user instructions).

Opening the tailgate

Press button 1located in the centre of the badge

on the tailgate. When the tailgate opens a little, lift

it by placing your fingers underneath.

Closing the tailgate

Using one of the handles 2(depending on the ve-

hicle), lower the tailgate.

It will close under its own weight.

Tyre pressure kit/

emergency spare wheel

Depending on the vehicle, in the event of a punc-

ture, there is either a tyre inflation kit or emergency

spare wheel available. To access it, lift the luggage

compartment carpet.

ENG_UD9810_3

Poste de conduite (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0

REMOTE CONTROL RENAULT CARD VERSION

Press:

‡

to unlock;

…

to lock;

to switch the exterior lights on/off remotely

(in order to find your vehicle in a car park for ex-

ample);

†

to lock/unlock the luggage compartment

only.

HANDS-FREE RENAULT CARD VERSION

With the card on your person (you can leave it in

your pocket, bag etc.), in addition to the remote

control RENAULT card functions, the following are

possible:

– automatic unlocking by pulling a door handle;

– automatic locking when leaving the vehicle (a

beep sounds) or intentional locking by pressing

the button on the driver’s door handle.

Note: if required, you can use the manual mode or

the key 2. To release the key, press button 1.

Accessing the vehicle

ACCESSING THE VEHICLE

Never leave the RENAULT card in the vehicle

Locking/unlocking the

vehicle

The RENAULT card system replaces the tradi-

tional key. Locking/unlocking the vehicle is simple:

whether from a distance or nearby, a single press

is required.

SPECIAL FEATURES

– The detection zone of the card, necessary for

locking and unlocking the vehicle, depends on

the surrounding environment or the location of

the card;

–

…

for vehicles equipped with deadlocking,

two successive presses on this button stop the

vehicle from being opened, even from the inside

and, depending on the vehicle, the windows are

closed.

NOTE

In all situations:

– Two flashes of the direction indicator lights con-

firm locking;

– one flash of the direction indicator lights con-

firms unlocking.

After locking/unlocking the vehicle or the tailgate

only using the buttons on the RENAULT card,

remote locking and unlocking in hands-free

mode are deactivated.

To reactivate the hands-free mode: restart the

vehicle.

ENG_UD9811_3

Poste de conduite (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0

RENAULT card, instrument panel

RENAULT CARD/INSTRUMENT PANEL

Starting the engine

With the remote control RENAULT card in reader 2

or the hands-free RENAULT card in the passenger

compartment (excluding certain high locations

such as the sun visor, etc.) apply the following

starting conditions:

MANUAL GEARBOX

With the gear lever in neutral, press button 1.

AUTOMATIC TRANSMISSION

With the lever in position P, press button 1.

Note: for vehicles fitted with the hands-free

RENAULT card, the brake pedal must be depressed

to allow the engine to be started.

Stopping the engine

With the vehicle stationary, press button 1.

Accessing functions

Once you have gained access to your vehicle, you

may use some of its functions (radio, navigation,

wipers, etc.).

Depending on the case, these functions will switch

off at the latest when the vehicle is locked.

Vehicle settings

personalisation menu

Certain functions (parking distance control etc.)

can be adjusted from the trip computer and warn-

ing system. To access this menu, with the vehicle

stopped:

– press button 3or 4several times until the mes-

sage “settings menu: long press” appears,

– hold down button 3or 4until the message “set-

tings menu” appears,

– press button 3or 4repeatedly until you find the

function you wish to modify.

To exit the menu:

– press 3once or more to select “Back” or “Exit”;

– press and hold 3to confirm;

– repeat the operation if necessary.

ENG_UD4945_2

Poste de conduite Noir (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0

Dashboard

DASHBOARD

1 2

12 11 7

14 13
