Renesas PiggyBack 144QFP Bedienungsanleitung

RH850 Evaluation Platform

RH850/P1M-C –

144QFP PiggyBack

board

Y-RH850-P1XC-144PIN-PB-T1-V1

R20UT3282ED0101, Rev. 1.1

2015-06-10

All information contained in these materials, including products and product specifications,

represents information on the product at the time of publication and is subject to change by

Renesas Electronics Corp. without notice. Please review the latest information published by

Renesas Electronics Corp. through various means, including the Renesas Technology Corp.

website (http://www.renesas.com).

The newest version of this document can be obtained from the following web location

http://www.renesas.eu/updates?oc=Y-RH850-P1XC-144PIN-PB-T1-V1.

www.renesas.com

User Manual

R20UT3282ED0101 Rev. 1.1 2

2015-06-10

Table of Contents

Chapter 1 Introduction .........................................................................3

Chapter 2 Overview ..............................................................................4

2.1 Overview ...............................................................................................4

2.2 Mounting of the device ........................................................................5

Chapter 3 Power supply.......................................................................6

3.1 Board power connection .....................................................................6

3.2 Voltage distribution..............................................................................7

Chapter 4 Clock sources......................................................................9

4.1 MainOsc ................................................................................................9

4.2 Programmable Oscillator.....................................................................9

Chapter 5 Debug and Programming interface..................................10

Chapter 6 Connectors for ports of device.........................................11

6.1 Connectors for ADC voltage supply.................................................11

6.2 Push button for RESET......................................................................11

6.3 Mode Selection...................................................................................11

6.4 Connectors to MainBoard..................................................................12

6.4.1 Connector CN1............................................................................................................12

6.4.2 Connector CN2............................................................................................................13

Chapter 7 Other circuitry....................................................................16

7.1 Signalling for CVMOUTZ and ERROROUTZ.....................................16

7.2 Pin Headers for Pull-Down and Pull-Up............................................16

Chapter 8 Precautions........................................................................17

8.1 Missing function of signalling LEDs 1 and 2....................................17

8.2 Jumper 11 (JP11) labelling ................................................................18

Chapter 9 Mechanical dimensions ....................................................19

Chapter 10 Schematic ..........................................................................20

Chapter 11 Revision History................................................................24

R20UT3282ED0101 Rev. 1.1 3

2015-06-10

Chapter 1 Introduction

The RH850/P1M-C Application Board is part of the RH850 Evaluation Platform

and serves as a simple and easy to use platform for evaluating the features and

performance of Renesas Electronics 32-bit RH850/P1M-C microcontrollers in a

144pin QFP package with 0.4mm pin pitch. The PiggyBack board (Y-RH850-

P1XC-144PIN-PB-T1-V1) can be used as a standalone board, or can be mated

with a mainboard (e.g. Y-RH850-X1X-MB-T1-V1) for extended functionality.

Main features:

Socket for mounting of device

Standalone operation of the board

Direct supply of device voltage (typ. 3.3V and 1.25V) enabling single power

supply (eVR) and dual power supply (DPS)

Device programming capability

Device debugging capability

Pin headers for direct access to each device pin

Reset switch

MainOSC circuitry

Connectors to MainBoard

Operating temperature from 0°C to +40°C

This document describes the functionality provided by the PiggyBack board and

guides the user through its operation.

For details regarding the operation of the microcontroller, refer to the

corresponding User Manual.

R20UT3282ED0101 Rev. 1.1 4

2015-06-10

Chapter 2 Overview

2.1 Overview

Figures 1 and 2 provide a schematic view of the PiggyBack board.

Figure 1 PiggyBack Board Schematic Top View

The black arrow denotes the position of socket pin #1.

Figure 2 PiggyBack Board Schematic Bottom View

R20UT3282ED0101 Rev. 1.1 5

2015-06-10

2.2 Mounting of the device

The board is designed for use with the following device:

RH850/P1M-C in 144pin QFP package with 0.4mm pin pitch

The device must be placed inside the socket IC1. To insert the device, press

down the lid of the socket, align the #1 pin of the device to the #1 pin of the

socket, insert the device into the socket and release the lid.

R20UT3282ED0101 Rev. 1.1 6

2015-06-10

Chapter 3 Power supply

3.1 Board power connection

For operation of the device, a supply voltage must be connected to the board.

There are several possibilities to power the device.

Within this document the following voltages are considered as ‘typical’

connections:

Voltage1 = 3.3V

Voltage2 = 1.25V

Direct voltage supply

Two different voltages can be supplied to the board.

The following connectors are available to supply those voltages directly:

Three 4mm ‘banana-type’ connectors:

- Two red connectors for voltages Voltage1 (CN13) and Voltage2 (CN14).

- A black connector for ground (GND) connection (CN12).

Note: The three connectors are supplied with the board but not assembled.

For details about voltage distribution, refer to Chapter 3.2 ‘Voltage distribution’.

Supply by E1 emulator

The E1 emulator that is used for debug purposes and flash programming can

also supply a single operating voltage (‘Dbg_Voltage’). This voltage is connected

to Voltage1.

See the documentation of the E1 and Chapter 5 ‘Debug and Programming

interface’for details.

Supply by MainBoard

In case the PiggyBack board is mounted on a MainBoard, the voltage Voltage1 is

supplied by the on-board regulator of the MainBoard.

CAUTION: Do not supply Voltage1 directly to the PiggyBack board in case it is

mounted on the MainBoard.

For each of the voltages, Voltage1 and Voltage2 a green LED is available to

signal that the related voltage is available on the PiggyBack board. The

corresponding LEDs are placed directly beneath the connectors of the related

voltage.

R20UT3282ED0101 Rev. 1.1 7

2015-06-10

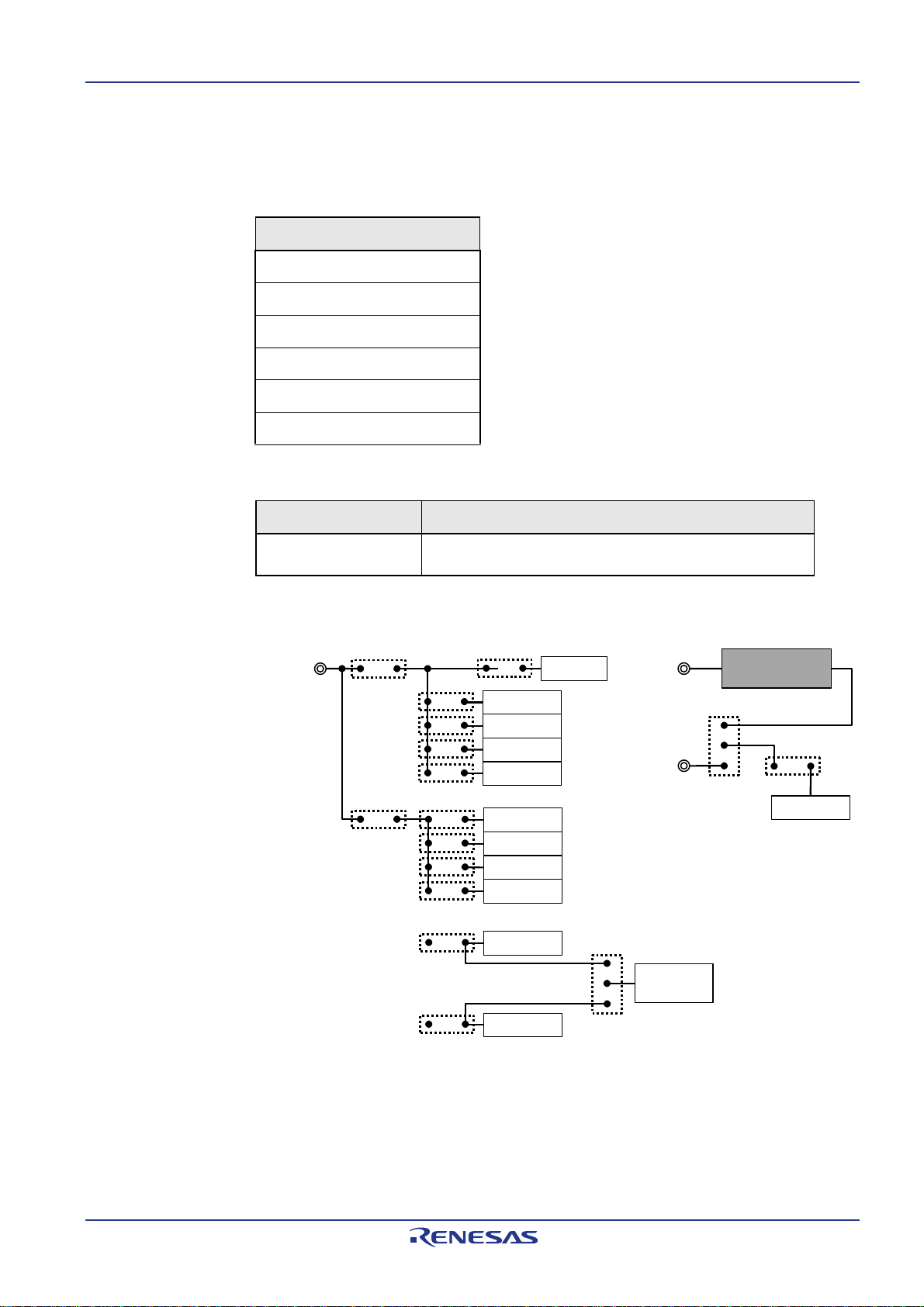

3.2 Voltage distribution

The table shows the required device power supply pins. For detailed explanation

of their function, please refer to the user documentation of the corresponding

device:

Device Supply Pin

SYSVCC

VCC

EnVCC (n = 0, 1)

AnVCC (n = 0, 1)

AnVREFH (n = 0, 1)

VDD (VCL)

Additional one power supply for the MainBoard can be selected:

Supply voltage

Function

VDDIOF

IO supply voltage for components located on a

connected mainboard.

The following figure shows the configurable voltage distribution on the PiggyBack

board.

Figure 3 Voltage Distribution on the PiggyBack Board

All power supply lines can be interrupted by jumpers. This provides the

possibility to measure the current consumption of each individual power

domain of the device.

The IO supply voltage for the Mainboard (VDDIOF) can be connected via

jumper JP1 to Voltage1, if the PiggyBack board is mounted on a MainBoard.

VCC

A0VCC

Voltage regulator

for VDD

VDDIOF

E0VCC

JP0

SYSVCC

A0VREFH

E1VCC

A1VCC

A1VREFH

JP2

JP3

JP4

JP5

JP7

JP8

JP9

JP10

JP1

JP11

VCL/VDD

JP12

JP6

Voltage1 Voltage1

Voltage2

VCCJP3

VCL/VDDJP12

JP19

Pin 142

VCC/VDD

R20UT3282ED0101 Rev. 1.1 8

2015-06-10

In case of a DPS device, VDD can be powered either directly from the

‘banana-type’ connector (Voltage2 –CN14) or by an on-board voltage

regulator. Thereby even a DPS device can be operated with one single

voltage supply (Voltage1).

The source for VDD is selectable by the jumper JP11. The jumper JP12

connects the voltage, configured by JP11 with the VDD pins.

CAUTION: Jumper JP12 must not be connected in case of an eVR device. In this

case the connected pins function as VCL pins and must not be supplied with a

voltage.

R20UT3282ED0101 Rev. 1.1 9

2015-06-10

Chapter 4 Clock sources

One external crystal oscillator for the device clock supply is provided with the

board.

4.1 MainOsc

A crystal or ceramic resonator can be mounted on socket X1.

A 16Mhz oscillator is supplied with the board.

4.2 Programmable Oscillator

It is possible to mount a programmable crystal oscillator on the PiggyBack board

at OSC1. The available footprint and circuitry is designed for a SG-8002CE

programmable crystal oscillator from Epson Toyocom. The output from this

oscillator can be connected to port X1 of the device via jumper JP13. The SG-

8002CE is neither mounted nor provided with the board. For details about the

available circuitry refer to Chapter 10 ‘Schematic’. A resonator mounted on

socket X1 must not be used in parallel to another clock source.

R20UT3282ED0101 Rev. 1.1 10

2015-06-10

Chapter 5 Debug and Programming interface

For connection of the microcontroller debug and flash programming tools, the

connector CN15 with fourteen pins is provided.

The signal connection of the connector CN25 is shown in the table below:

CN25 Pin

Device Port

Device Signal

JP0_2

TCK / LPDCLK / FLSCI3SCKI

GND

JP0_4

TRSTZ

FLMD0

JP0_1

TDO / LPDO / FLSCI3TXD

JP0_0

TDI / LPDI / FLSCI3RXD / FLSCI3TXD

‘Dbg_Voltage’

Voltage1

JP0_3

TMS

JP0_5

RDYZ / LPDCLKOUT

GND

RESET

RESETZ

GND
