R0E0100TNPFK00

Converter Board for Connecting R0E001000FLX10 to 100-pin 0.5mm pitch LQFP

User’s Manual

* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and LSPACK are

trademarks of Tokyo Eletech Corporation.

CAUTION If the requirements shown in the "CAUTION" sentences are ignored,

the equipment may cause personal injury or damage to the products.

Renesas Tools Homepage http://www.renesas.com/tools

Rev.1.00

Feb. 01, 2008

REJ10J1736-0100 (1/4)

1. Outline

The R0E0100TNPFK00 is a converter board for connecting the

flexible cable R0E001000FLX10 to a foot pattern for 100-pin

0.5mm pitch LQFP (PLQP0100KB-A).

2. Package Components (See Figure 1)

Check to see if the R0E0100TNPFK00 package has all the

following contents before using this product.

(1) R0E0100TNPFK00 converter board........................... 1 pc.

(2) YQPACK100SD (made by Tokyo Eletech Corporation) ................ 1 pc.

(3) NQPACK100SD-ND (made by Tokyo Eletech Corporation) ....... 1 pc.

(4) YQ-GUIDE (made by Tokyo Eletech Corporation) .....................4 pcs.

(5) R0E0100TNPFK00 User's Manual (this manual)

3. Specifications

Table 1 Specifications

Applicable package PLQP0100KB-A:

formerly 100P6Q-A

(100-pin 0.5mm pitch LQFP)

Insertion/removal

iterations of connector 50 times guaranteed

4. Usage (See Figure 2)

The R0E0100TNPFK00 can be used for debugging and

board-mounted evaluation in common by mounting the

NQPACK100SD-ND on the user system.

(1) For debugging

Mount the NQPACK100SD-ND on the foot pattern of the

user system and attach the YQPACK100SD on it. In

addition, connect the R0E0100TNPFK00 to the

YQPACK100SD, and then connect the flexible cable

R0E001000FLX10 of the emulator to the upper connector

of the R0E0100TNPFK00.

(2) For onboard evaluation

Mount an MCU with on-chip flash memory or one-time

PROM and the HQPACK100SD (not included) in order

on the NQPACK100SD-ND on the user system.

Before using the R0E0100TNPFK00, be sure to read "7.

Precautions" on page 4.

R0E0100TNPFK00

converter board

YQ-GUIDE (×4)

YQPACK100SD

NQPACK100SD-ND

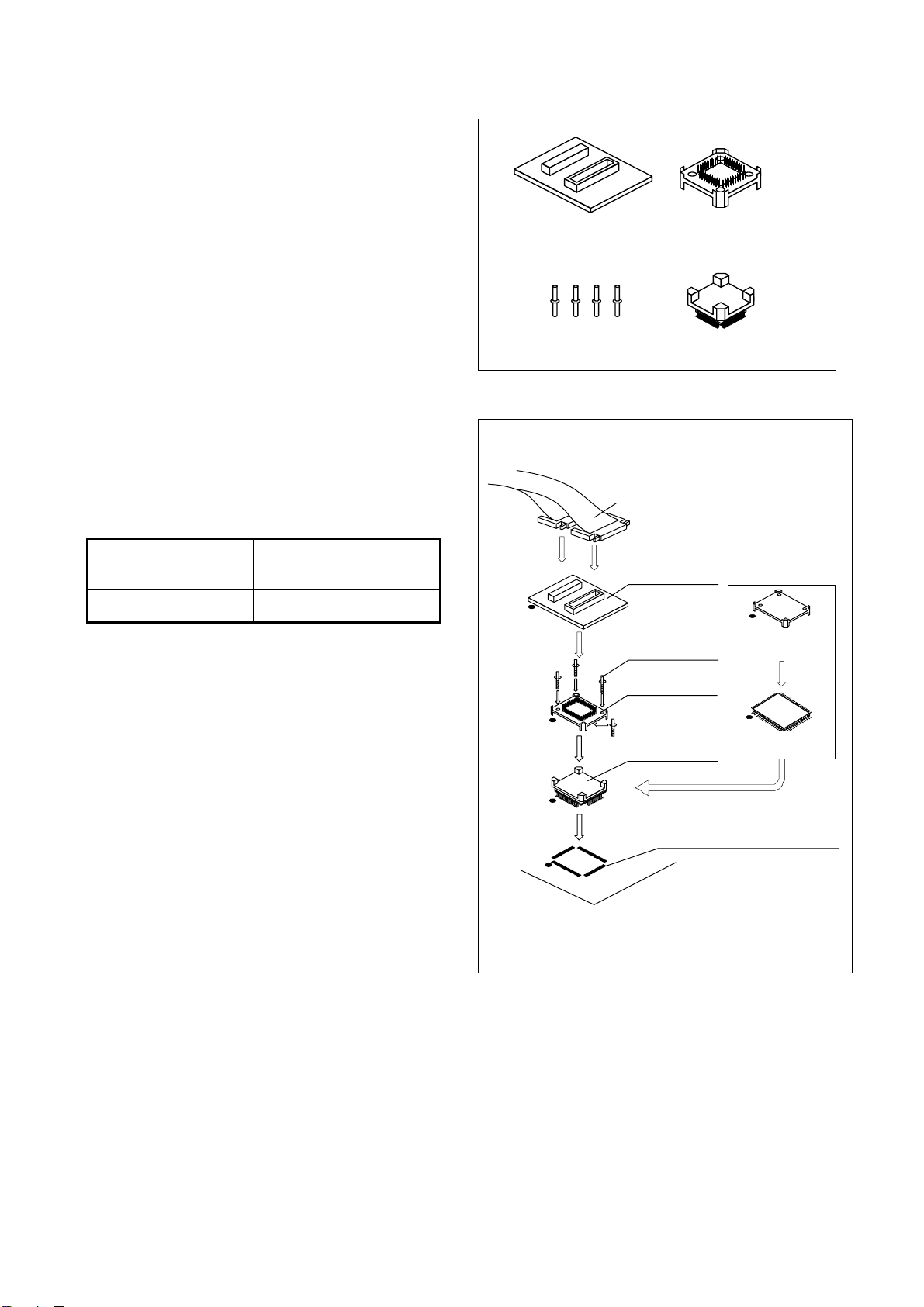

Figure 1 Package components of the R0E0100TNPFK00

100-pin 0.5mm pitch

(PLQP0100KB-A) foot pattern

FLASH MCU, etc.

(2) For on-board

evaluation

YQPACK100SD

NQPACK100SD-ND

YQ-GUIDE (×4) HQPACK100SD

(not included)

R0E0100TNPFK00

(1) For debugging

●: No.1 pin

Be sure to align the pins.

Flexible cable

R0E001000FLX10

Figure 2 Usage of the R0E0100TNPFK00

(2/4)

(3/4)

5. Connection Procedure (See Figure 3)

The procedure for connecting the R0E0100TNPFK00 is shown

below.

(1) Mount the NQPACK100SD-ND on the user system.

(2) Attach the YQPACK100SD on the NQPACK100SD-ND.

(3) Secure the four corners of the YQPACK100SD with the

YQ-GUIDEs.

●Do not use the screws included with the

YQPACK100SD for fixing the YQPACK100SD.

●Do NOT use the screwdriver included with the

NQPACK100SD-ND for fixing the YQ-GUIDEs. That

is used only for the HQPACK100SD.

(4) Mount the R0E0100TNPFK00 on the YQPACK100SD.

(5) Attach the flexible cable R0E001000FLX10 of the

emulator to the R0E0100TNPFK00.

100-pin 0.5mm pitch

(PLQP0100KB-A) foot pattern

YQPACK100SD

NQPACK100SD-ND

YQ-GUIDE (×4)

R0E0100TNPFK00

●: No.1 pin

Be sure to align the pins.

(1)

(2) (3)

(4)

(5)

Use a slotted screwdriver.

Flexible cable

R0E001000FLX10

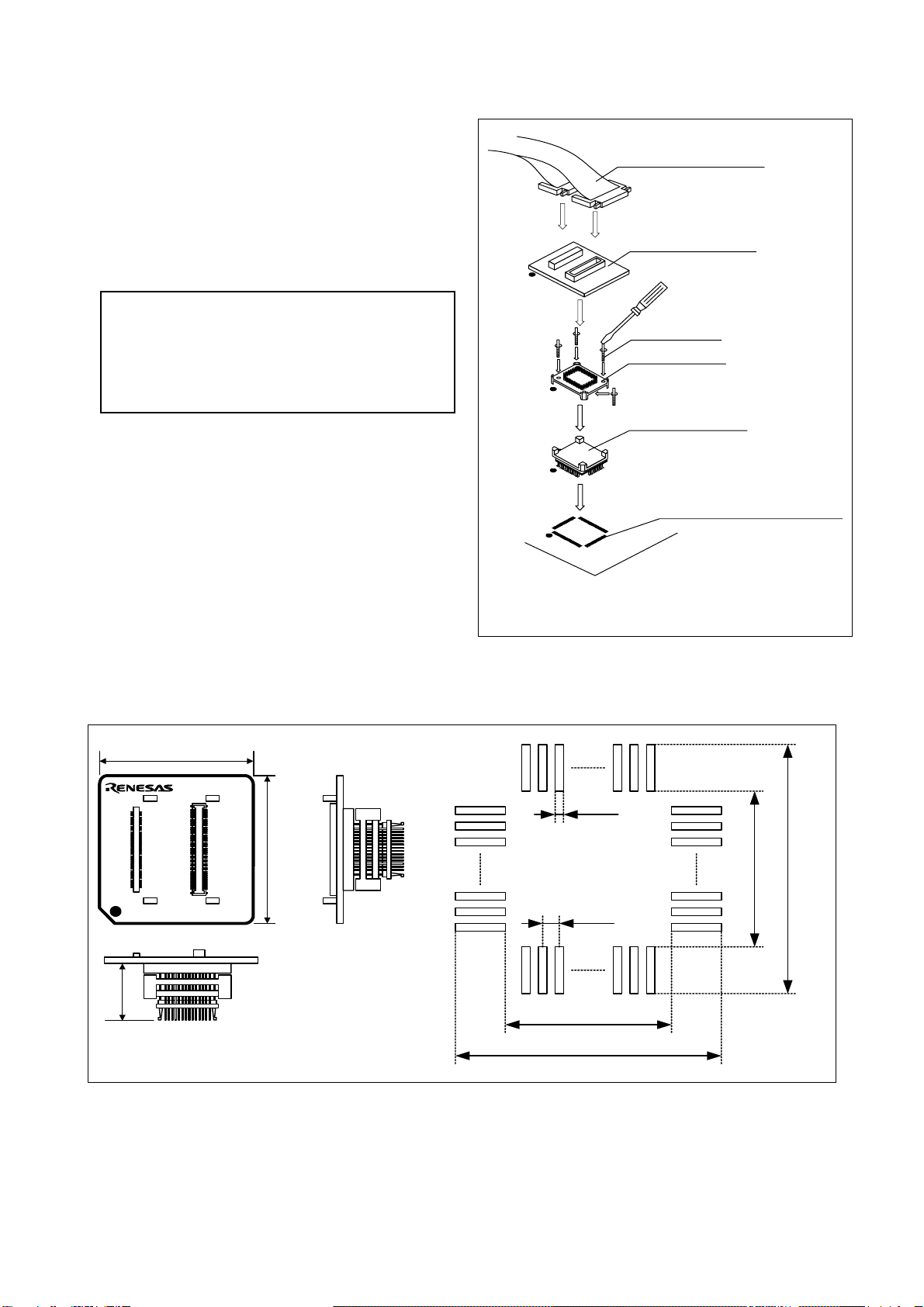

Figure 3 Connection procedure of the R0E0100TNPFK00

6. External Dimensions and a Sample Foot Pattern

R0E0100TNPFK00

REV.A

CN1

50 51

100

CN2

5051

100

MADE IN JAPAN

38.00

37.00

13.0

17.0

13.0

17.0

0.50

0.25

Unit: mm

16.50

Figure 4 External dimensions and a sample foot pattern of the R0E0100TNPFK00

(4/4)

7. Precautions

CAUTION

Cautions to Be Taken for This Product:

zWhen connecting the YQPACK100SD, be sure to use the included YQ-GUIDEs.

zDo NOT use the screws included with the YQPACK100SD for connecting the YQPACK100SD.

IMPORTANT

Notes on This Product:

zWe cannot accept any request for repair.

zFor purchasing the NQPACK100SD-ND, YQPACK100SD and HQPACK100SD, contact the following:

Tokyo Eletech Corporation http://www.tetc.co.jp/e_index.htm

zFor inquiries about the product or the contents of this manual, contact your local distributor.

Renesas Tools Homepage http://www.renesas.com/tools

8. Correspondence of Connectors CN1 and CN2

Table 2 Correspondence of the connectors

CN1 Pin No. IC1 CN1 Pin No. IC1 CN2 Pin No. IC1 CN2 Pin No. IC1

1 - 100 - 1 - 100 -

2 - 99 - 2 - 99 -

3 - 98 - 3 - 98 -

4 - 97 - 4 - 97 -

5 57 96 56 5 - 96 -

6 58 95 55 6 - 95 -

7 59 94 54 7 - 94 -

8 60 93 53 8 - 93 -

9 61 92 52 9 - 92 -

10 62 91 51 10 - 91 -

11 63 90 50 11 - 90 -

12 64 89 49 12 - 89 -

13 65 88 48 13 - 88 -

14 66 87 47 14 - 87 -

15 - 86 - 15 - 86 -

16 67 85 46 16 - 85 77

17 68 84 45 17 - 84 78

18 69 83 44 18 - 83 79

19 70 82 43 19 - 82 80

20 71 81 42 20 - 81 81

21 72 80 41 21 - 80 82

22 73 79 40 22 - 79 83

23 74 78 39 23 - 78 84

24 75 77 38 24 - 77 85

25 76 76 37 25 - 76 86

26 - 75 - 26 - 75 -

27 97 74 36 27 - 74 87

28 98 73 35 28 - 73 88

29 99 72 34 29 - 72 89

30 100 71 33 30 - 71 90

31 1 70 32 31 - 70 91

32 2 69 31 32 - 69 92

33 3 68 30 33 - 68 93

34 4 67 29 34 - 67 94

35 5 66 28 35 - 66 95

36 6 65 27 36 - 65 96

37 - 64 - 37 - 64 -

38 7 63 26 38 - 63 -

39 8 62 25 39 - 62 -

40 9 61 24 40 - 61 -

41 10 60 23 41 - 60 -

42 11 59 22 42 - 59 -

43 12 58 21 43 - 58 -

44 13 57 20 44 - 57 -

45 14 56 19 45 - 56 -

46 15 55 18 46 - 55 -

47 16 54 17 47 - 54 -

48 - 53 - 48 - 53 -

49 - 52 - 49 - 52 -

50 - 51 - 50 - 51 -

(-:No connection or signals in the emulator)
