Renesas REG10J0020-0200 Bedienungsanleitung

REG10J0020-0200

Renesas Starter Kit LCD Application Board

User's Manual

RENESAS STARTER KIT

Rev.2.00 Renesas Technology Europe Ltd.

Revision date：29.11.2007 www.renesas.com

Table of Contents

Chapter 1. Preface..................................................................................................................................................3

Chapter 2. Purpose.................................................................................................................................................4

Chapter 3. Board Layout.........................................................................................................................................5

3.1. Component References ...............................................................................................................................5

3.2. Board Component functions.........................................................................................................................6

3.3. Board Dimensions........................................................................................................................................7

Chapter 4. User Circuitry.........................................................................................................................................8

4.1. Fitting the Target RSK to the RSK LCD application board...........................................................................8

4.2. LCD Module..................................................................................................................................................8

4.3. Coin Cell and switch...................................................................................................................................10

4.4. Capacitors ..................................................................................................................................................10

Chapter 5. Headers...............................................................................................................................................11

5.1. Application Headers ...................................................................................................................................11

Chapter 6. Code Development .............................................................................................................................15

Chapter 7. Additional Information..........................................................................................................................16

Chapter 1. Preface

Cautions

This document may be, wholly or partially, subject to change without notice.

Technology Europe Limited.

Trademarks

All brand or product names used in this manual are trademarks or registered trademarks of their respective companies or

organisations.

Website: http://www.eu.renesas.com/

Glossary

CPU Central Processing Unit RTE Renesas Technology Europe Ltd.

HEW High-performance Embedded Workshop RSO Renesas Solutions Organisation.

LCD Liquid Crystal Display RSK Renesas Starter Kit

PC Program Counter E8A E8a On-chip debugger module

Chapter 2.Purpose

This RSK Application Board is an evaluation tool for Renesas microcontrollers with an LCD driver interface. It is used in conjunction with

the RSK for the microcontroller to be evaluated.

Features include:

•Mounting connections to allow RSK to be added to top of board.

•Interface to standard RSK LCD expansion connector and RSK expansion connections.

•8 character 14 segment “starburst” LCD.

•Coin cell holder to power mounted RSK for low power operation.

Chapter 3.Board Layout

3.1.Component References

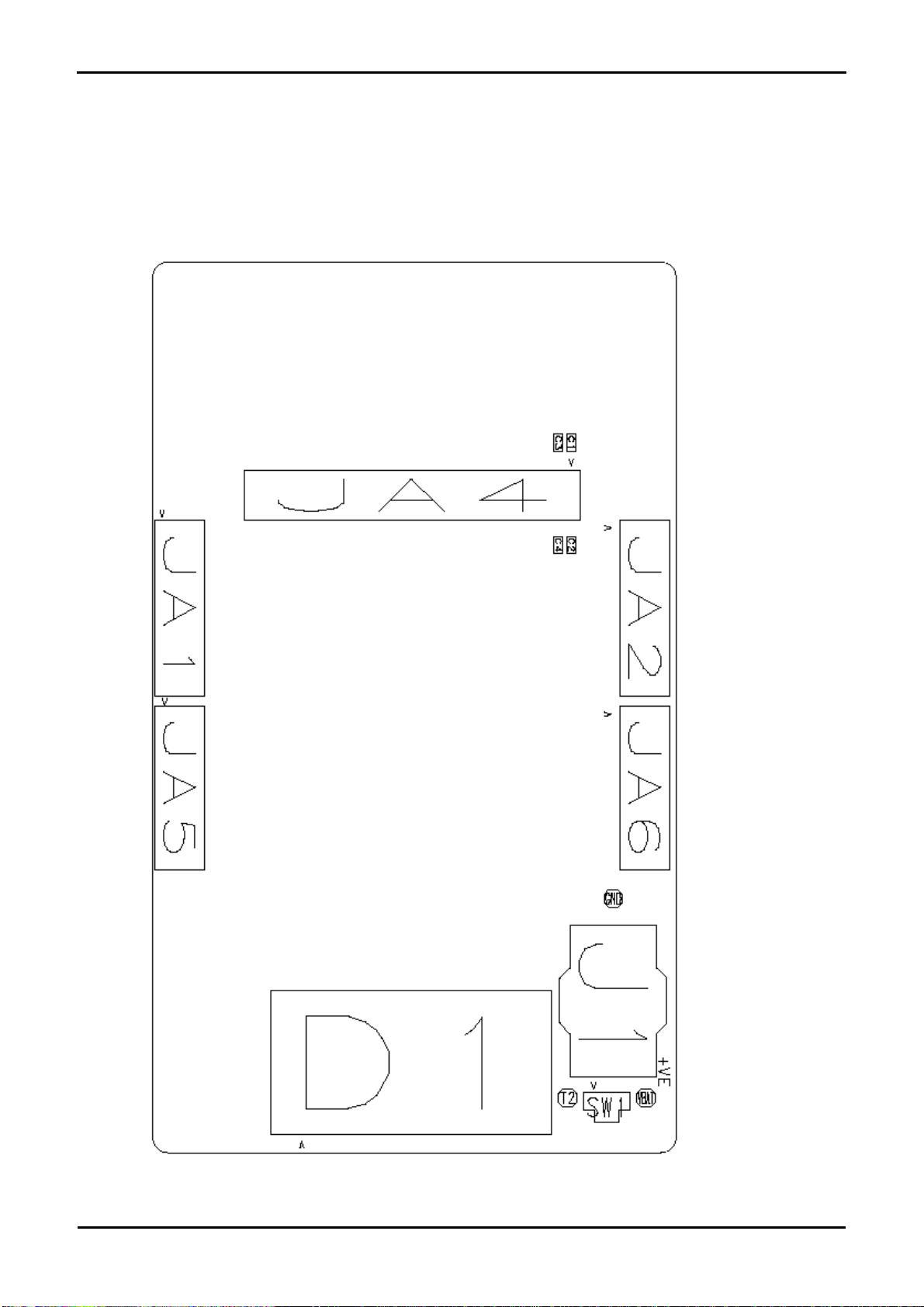

The following diagram shows the component references for the board.

Figure 3-1: Component References

3.2.Board Component functions

The following diagram the shows the functions of the components on the board.

JA5 JA1

JA6 JA2

Application Board Interface

JA4

LCD

Switch

Coin Cell Holder LCD Application Interface

Figure 3-2: Board Layout

Caution: If processor is not in low power mode at start up the battery life will be significantly reduced.

3.3.Board Dimensions

Thefollowingdiagramgivestheboarddimensionsandconnectorpositions.Allthroughholeconnectorsareonacommon0.1”gridforeasy

interfacing.

LCD connector

170.00mm

100.00mm

Coin Cell

Holder

115.00mm

14.00mm

86.36mm

85.00mm

80.01mm

50.80 mm

27.00mm

45.00mm

Corners x4

3mm

radius

JA1

JA2

JA4

JA6

JA5

LCD

ONOFF

5.00mm

3.81mm

Figure 3-3 : Board Dimensions

Chapter 4.User Circuitry

4.1.Fitting the Target RSK to the RSK LCD application board

The board is supplied with 2x 24 way sockets, 2x 26 way sockets and 1 x 50 way socket.

These should be soldered on the underside of the host RSK in JA1, JA2, JA5, JA6 and JA4 positions.

The RSK should be plugged into the equivalent connectors on the RSK LCD application board.

4.2.LCD Module

The LCD module on the board is connected to the RSK LCD connector JA4.

It uses ¼ duty cycle and has 4 common lines. There are 8x14 segment starburst characters. Refer to Figure 4-1: LCD Segment Names.

Each character uses 4 SEG lines. Each SEG line controls 4 segments on the LCD as it uses ¼ duty cycle.

The LCD controller must be programmed for ¼ duty cycle.

In the case of the H838347, a RAM in the LCD controller has 1 bit per segment. Thus each character is a 16 bit number.

The following Table 4-1: LCD character maps gives the bit mappings for common characters for this controller.

The lowest address (H’F740 in the case of the H838347) represents the rightmost character of the display.

The next word address (H’F742 in the case of the H838347) represents the next character, etc.

Figure 4-1: LCD Segment Names

ment L K J I DP C B

DEFXMNGH

Bit number 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 Hex value for RAM

0 1 0 0 0 1 1 1 0 1 1 0 0 0 1 0 4762

B 1 0 1 0 0 0 0 1 1 1 1 0 0 0 1 0

1E2

C 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 01E0

D 0 0 0 0 0 0 0 0 0 1 1 0 0 1 0 1 0065

E 0 1 0 0 0 0 0 1 1 1 1 0 0 0 1 0 41E2

F 0 1 0 0 0 0 0 1 0 1 1 0 0 0 1 0 4162

G 1 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 81E0

H 0 1 0 0 0 1 1 0 0 1 1 0 0 0 1 0 4662

I 0 0 0 1 0 0 0 1 1 0 0 0 1 0 0 0 1188

J 0 0 0 0 0 1 1 0 1 0 0 0 0 0 0 0 0680

K 1 0 1 0 0 0 0 0 0 1 1 0 0 0 1 0

062

L 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 00E0

M 0 0 1 0 0 1 1 0 0 1 1 0 0 0 0 1 2661

N 1 0 0 0 0 1 1 0 0 1 1 0 0 0 0 1 8661

O 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 07E0

P 0 1 0 0 0 0 1 1 0 1 1 0 0 0 1 0 4362

Q 1 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 87E0

R 1 1 0 0 0 0 1 1 0 1 1 0 0 0 1 0 C362

T 0 0 0 1 0 0 0 1 0 0 0 0 1 0 0 0 1108

S 0 1 0 0 0 1 0 1 1 0 1 0 0 0 1 0 45A2

U 0 0 0 0 0 1 1 0 1 1 1 0 0 0 0 0 06E0

V 1 0 0 0 0 1 1 0 0 0 0 0 0 0 0 1 8601

W 1 0 0 0 0 1 1 0 0 1 1 0 0 1 0 0 8664

X 1 0 1 0 0 0 0 0 0 0 0 0 0 1 0 1

005

Y 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0 1 2009

Z 0 0 1 0 0 0 0 1 1 0 0 0 0 1 0 0 2184

0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 07E0

1 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 1008

2 0 1 0 0 0 0 1 1 1 1 0 0 0 0 1 0 43C2

3 0 1 0 0 0 1 1 1 1 0 0 0 0 0 1 0 4782

4 0 1 0 0 0 1 1 0 0 0 1 0 0 0 1 0 4622

5 0 1 0 0 0 1 0 1 1 0 1 0 0 0 1 0 45A2

6 0 1 0 0 0 1 0 1 1 1 1 0 0 0 1 0 45E2

7 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0700

8 0 1 0 0 0 1 1 1 1 1 1 0 0 0 1 0 47E2

9 0 1 0 0 0 1 1 1 1 0 1 0 0 0 1 0 47A2

? 0 1 0 0 0 0 1 1 0 0 1 0 1 0 0 0 4328

Table 4-1: LCD character maps

4.3.Coin Cell and switch.

The board includes a coin cell holder to hold a 2032 3.6V coin cell. To power the attached RSK from this cell the switch must be in the

“ON” position.

IT IS IMPORTANT NOT TO POWER THE ATTACHED RSK VIA THE POWER SUPPLY JACK OR VIA THE

E8A IF THIS OPTION IS USED.

Caution: If processor is not in low power mode at start up the battery life will be significantly reduced.

4.4.Capacitors

Pads are supplied to allow 0603 capacitors to be placed on the LCD drive voltages V1 – V4.
