Renesas US082-INTERPEVZ Bedienungsanleitung

Evaluation Board Manual

R36UZ0006EU0100 Rev.1.0 Page 1

The US082-INTERPEVZ Board provides a standard

Pmod™ Type 6A (Extended I2C) connector to

compatible Renesas MCU kits. The board plugs into

the existing Type 2A or 3A Pmod on the MCU board

and interposes key pins to create a Type 6A

connector.

The US082-INTERPEVZ features Pmod connectors

on both sides of the board allowing additional Type

6/6A boards to be connected in a daisy-chained

solution with multiple sensors on the same MCU

Pmod connector. Because of the standard connector,

the US082-INTERPEVZ is the best choice to rapidly

create an IoT system with the Renesas Quick-

Connect IoT.

Features

▪Corrects the pinout of a Pmod on compatible

Renesas MCU evaluation kits providing a

standardized Type 6A Pmod connector for an I2C

Extended interface.

Board Contents

▪US082-INTERPEVZ Board

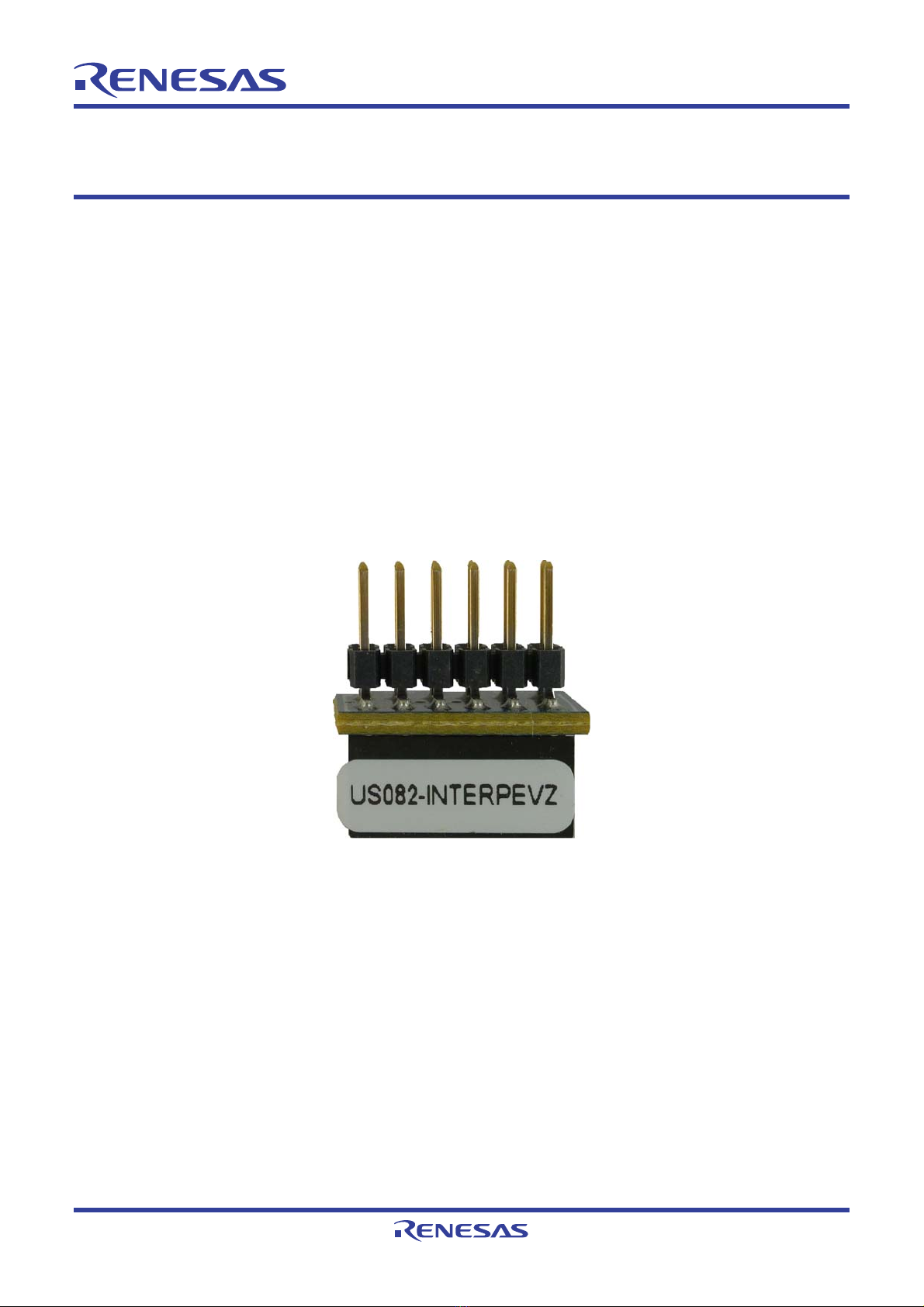

Figure 1. US082-INTERPEVZ Pmod Board

US082-INTERPEVZ

R36UZ0006EU0100 Rev.1.0 Page 2

Jun 15, 2021

US082-INTERPEVZ Evaluation Board Manual

Contents

1. Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Required or Recommended User Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.2 Kit Hardware Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Board Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.2 Bill of Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4. Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

R36UZ0006EU0100 Rev.1.0 Page 3

Jun 15, 2021

US082-INTERPEVZ Evaluation Board Manual

1. Setup

1.1 Required or Recommended User Equipment

The US082-INTERPEVZ board is used with the evaluation kits listed in Table 1.

Note: This table is not a comprehensive list of supported MCU Kits. See your evaluation kit hardware manual to

confirm the Pmod pinout.

1.2 Kit Hardware Connections

Follow these procedures to set up the kit as shown on Figure 2.

1. Ensure the MCU evaluation kit being used has a Pmod connector that can be used with the

US082-INTERPEVZ (to confirm, see the kit hardware manual). See Ta ble 2 for the pin rerouting map.

2. Plug in the US082-INTERPEVZ to the MCU board connector, being careful to align Pin 1 on the interposer

board and MCU kit.

3. Plug in any desired Type 6A Pmod into the other side of the US082-INTERPEVZ.

4. The system is now ready for use.

Table 1. Renesas MCU Evaluation Kits[1] that support a Type 6A Pmod

when used with the US082-INTERPEVZ

1. This table is not a comprehensive list of supported MCU Kits. See the evaluation kit hardware manual to confirm Pmod pinout.

RA RX Synergy

EK-RA4W1 RX111-Starter-Kit PK-S5D9

EK-RA2A1 RX231-Starter-Kit DK-S3A7

EK-RA4M1 RX23W-Starter-Kit DK-S128

EK-RA6M1 RX23T-Starter-Kit TB-S1JA

EK-RA6M2 RX24T-Starter-Kit TB-S3A6

EK-RA6M3 RX24U-Starter-Kit DK-S7G2

EK-RA6M3G

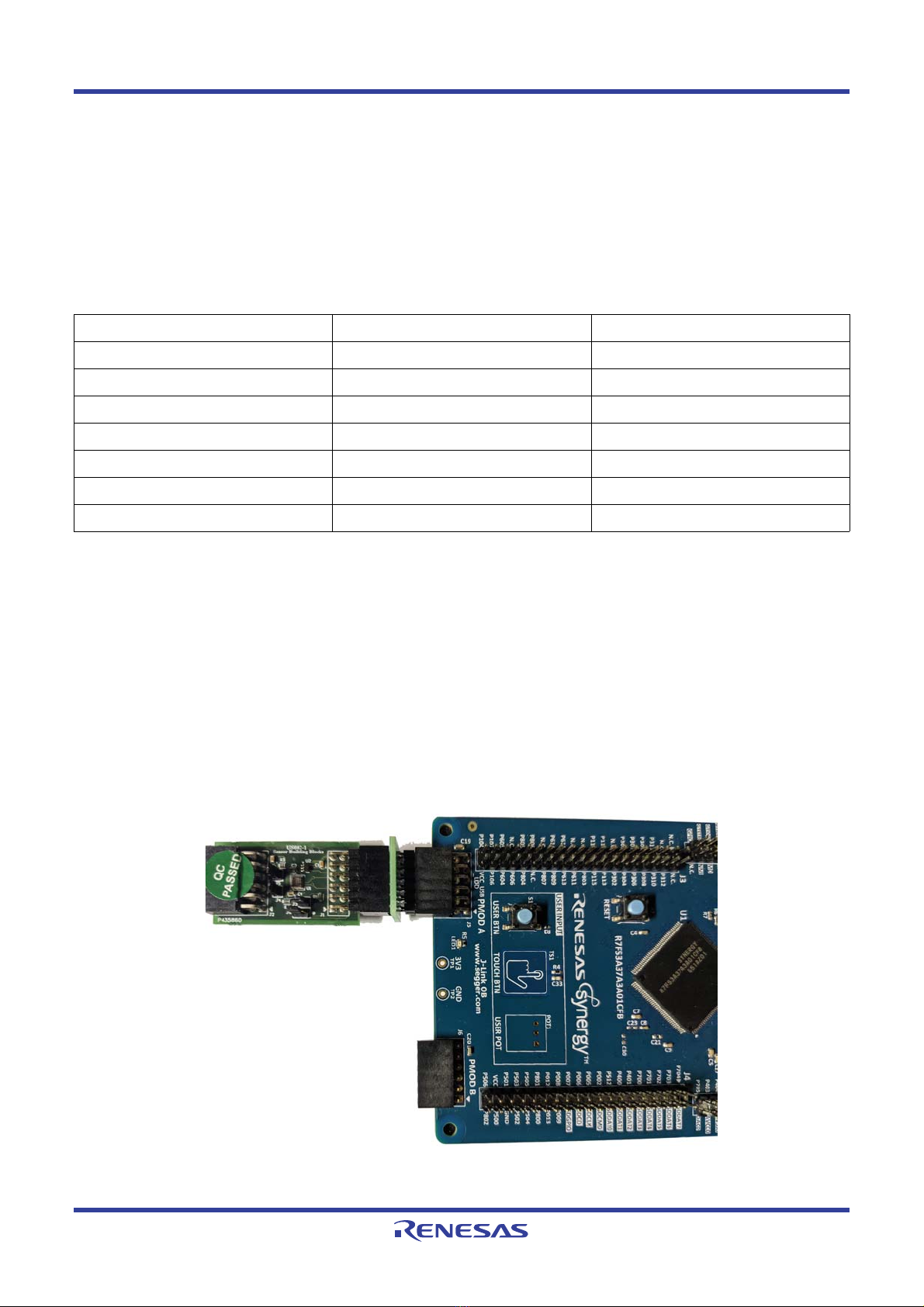

Figure 2. US082-INTERPEVZ Placed Between TB-S3A3 and US082-ZMOD4450EVZ

R36UZ0006EU0100 Rev.1.0 Page 4

Jun 15, 2021

US082-INTERPEVZ Evaluation Board Manual

2. Board Design

2.1 Schematic Diagram

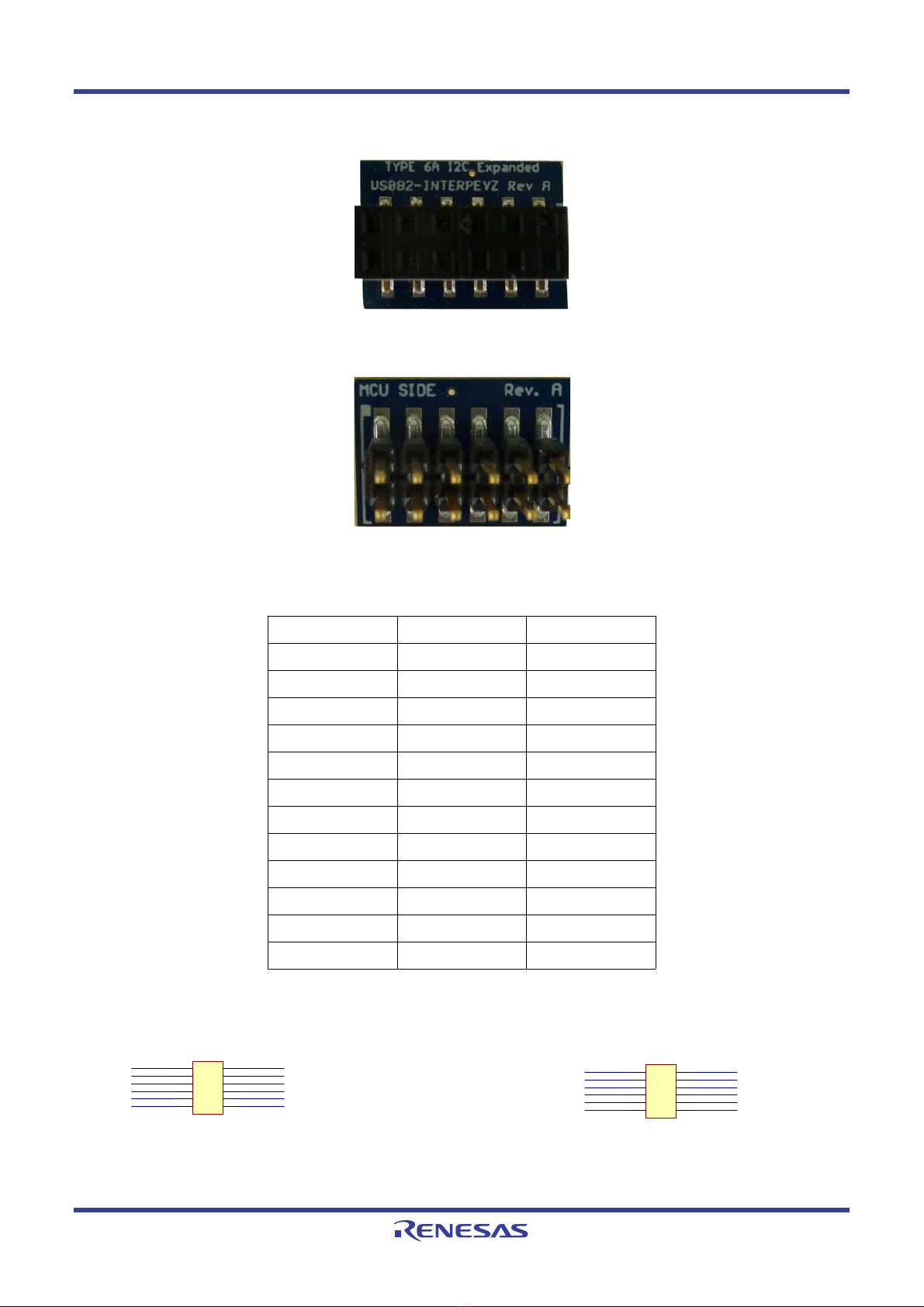

Figure 3. US082-INTERPEVZ Pmod Board (Top)

Figure 4. US082-INTERPEVZ Pmod Board (Bottom)

Table 2. Pmod Pin Mapping on US082-INTERPEVZ

Pin MCU Side Type 6A Side

1GPIO4IRQ#(INT)

2 GPIO 5 (SDA) GPIO 7

3 GPIO 6 (SCL) GPIO 6 (SCL)

4 GPIO 7 GPIO 5 (SDA)

5GNDGND

6VCCVCC

7IRQ#(INT)GPIO4

8 GPIO 1 GPIO 1

9 GPIO 2 GPIO 2

10 GPIO 3 GPIO 3

11 GND GND

12 VCC VCC

Figure 5. US082-INTERPEVZ Application Schematic

VCC VCC

IRQ#

GNDGND GND GND

IRQ#

GPIO1

GPIO4

PMOD Type 6A PMOD1 EVK-RA6M3

GPIO2

GPIO3

P004 IRQ9

P800

P801

P802

P205 (SSLB0_A)

P203 (MOSIB_A)

P202 (MISOB_A)

P204 (RSPCKB_A)

GPIO4

GPIO5

GPIO6

GPIO7

GPIO1

GPIO2

GPIO3 GPIO5

GPIO6

GPIO7

(IRQ9)

(RESET#)

(SCL9)

(SDA9)

(BUSY#)

PMOD1 EVK-RA4M1

P104 IRQ1

P107

P111

P112

P103 (SSLA0_A)

P101 (MOSIA_A)

P100 (MISOA_A)

P102 (RSPCKA_A)

(IRQ1)

(RESET#)

(SCL1)

(SDA1)

R36UZ0006EU0100 Rev.1.0 Page 5

Jun 15, 2021

US082-INTERPEVZ Evaluation Board Manual

2.2 Bill of Materials

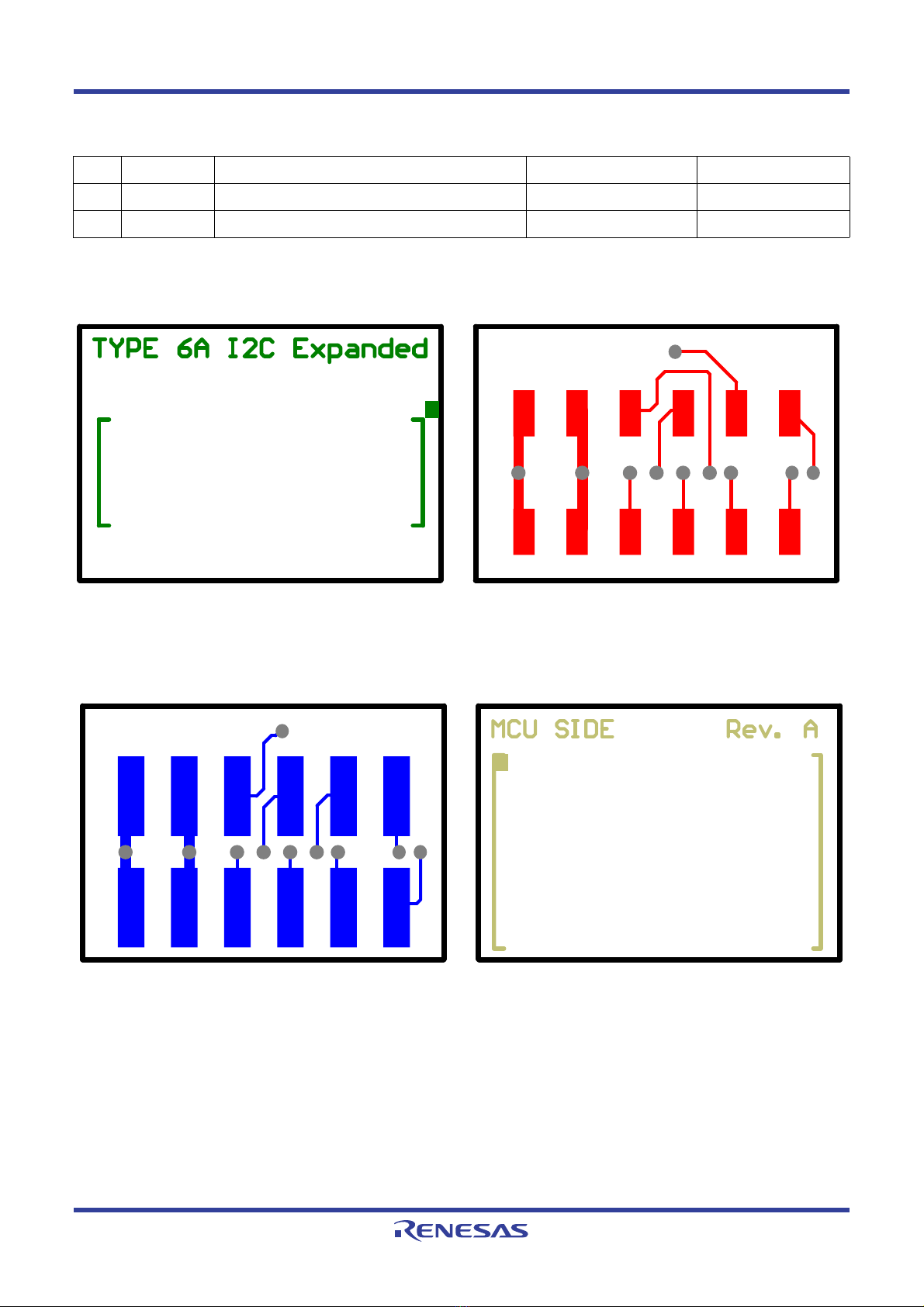

2.3 Board Layout

Qty Reference Description PCB Footprint Part Number

1 J1 CONN SOCKET 12POS 2ROW Vertical SMT PMOD_VRT_HDR NPPC062KFMS-RC

1 J2 CONN HEADER 12POS 2ROW Vertical SMT PMOD_VERT_SOCKET TSM-106-01-L-DV-P

Figure 6. Silkscreen Top Figure 7. Copper Top

Figure 8. Copper Bottom Figure 9. Silkscreen Bottom

R36UZ0006EU0100 Rev.1.0 Page 6

Jun 15, 2021

US082-INTERPEVZ Evaluation Board Manual

3. Ordering Information

4. Revision History

Part Number Description

US082-INTERPEVZ Pmod interposer board to convert Type 2A and 3A to Type 6A on older Renesas MCU kits.

Revision Date Description

1.0 Jun 15, 2021 Initial release
