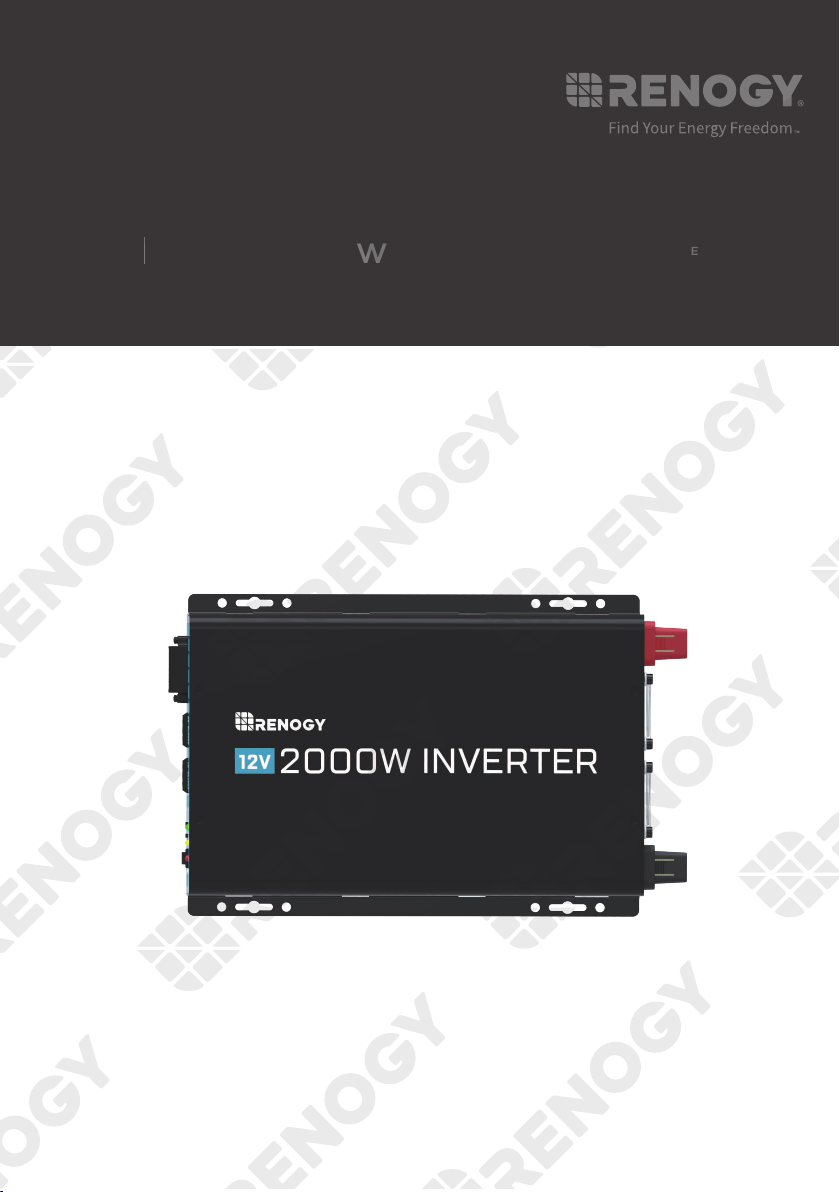

Renogy PGH1 Series Bedienungsanleitung
VERSION A3
PGH1 Series
Battery Power Inverter
Renogy
12V
1000W/2000W/3000W
USER MANUAL
Applicability
The user manual applies to the following products:
zRenogy PGH1 12V 1000W Battery Power Inverter (PGH1-10111S)
zRenogy PGH1 12V 2000W Battery Power Inverter (PGH1-20111S)
zRenogy PGH1 12V 3000W Battery Power Inverter (PGH1-30111S)
Disclaimer
zRenogy ensures the accuracy, sufficiency, and the applicability of information in the user
manual at the time of printing due to continual product improvements that may occur.
zRenogy assumes no responsibility or liability for personal and property losses, whether
directly and indirectly, caused by the user’s failure to install and use the product in
compliance with the user manual.
zRenogy is not responsible or liable for failures, damages, or injuries resulting from repair
attempted by unqualified personnel, improper installation and operation.
zThe illustrations in the user manual are for demonstration purposes only. Details may
appear slightly different depending on product revision and market region.
zRenogy reserves the right to change the information in the user manual without notice.
For the latest user manual, visit renogy.com.
Copyright
Renogy PGH1 Series Battery Power Inverter User Manual © 2022 Renogy. All rights
reserved. All information in the user manual is subject to copyright and other intellectual
property rights of Renogy and its licensors. The user manual may not be modified,
reproduced, or copied, in whole or in part, without the prior written permissions of Renogy
and its licensors.
Trademark
The following are registered trademarks of Renogy:
RENOGY
The registered trademarks in the user manual are the property of Renogy. The unauthorized
use of the trademarks is strictly prohibited.
Date and Revision
October 2022, Revision A3
Table of Contents
Important Safety Information .......................................................................................................... 01
Symbols Used.......................................................................................................................... 01
General Safety Information ...................................................................................................... 01
Overview......................................................................................................................................... 03
Introduction .............................................................................................................................. 03
Key Features............................................................................................................................ 03
Pure Sine Wave ....................................................................................................................... 03
Package Contents .......................................................................................................................... 04
Included Components .............................................................................................................. 04
Optional Components .............................................................................................................. 04
Product Overview ........................................................................................................................... 05

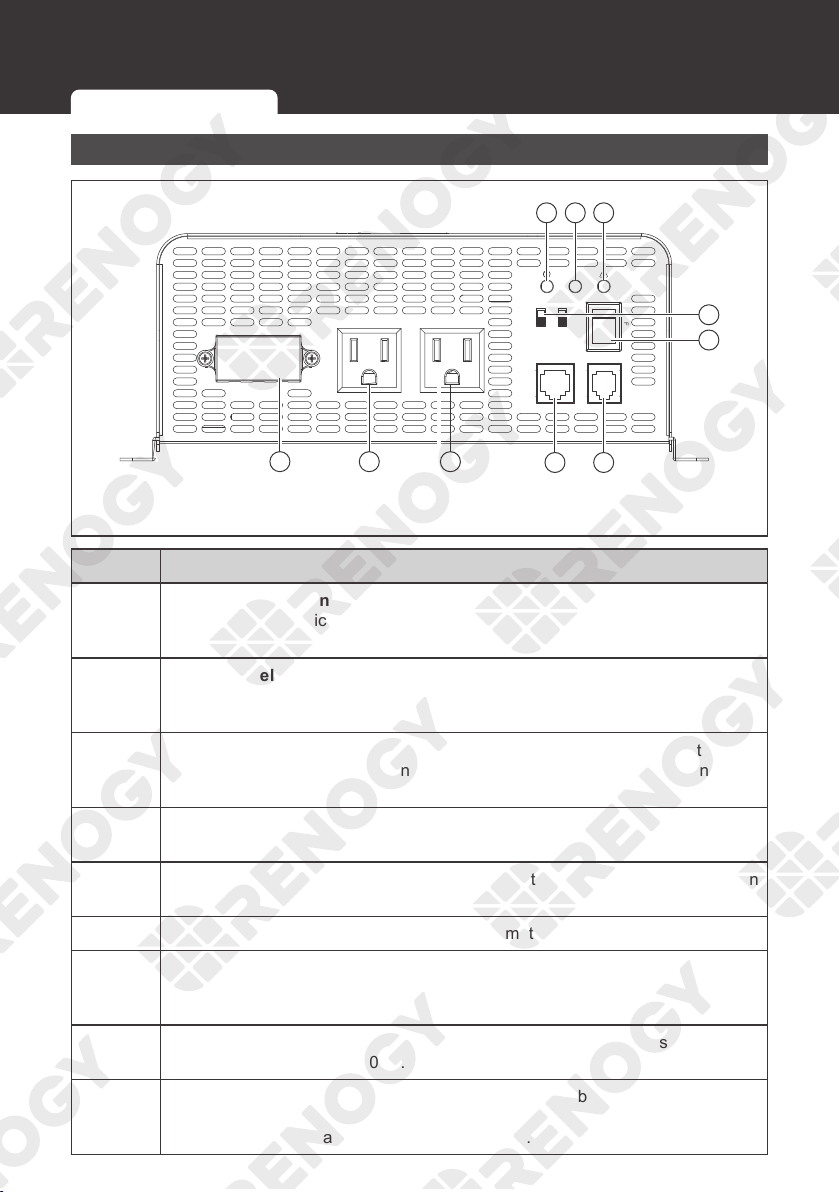

Identification of Parts (AC Side)............................................................................................... 05

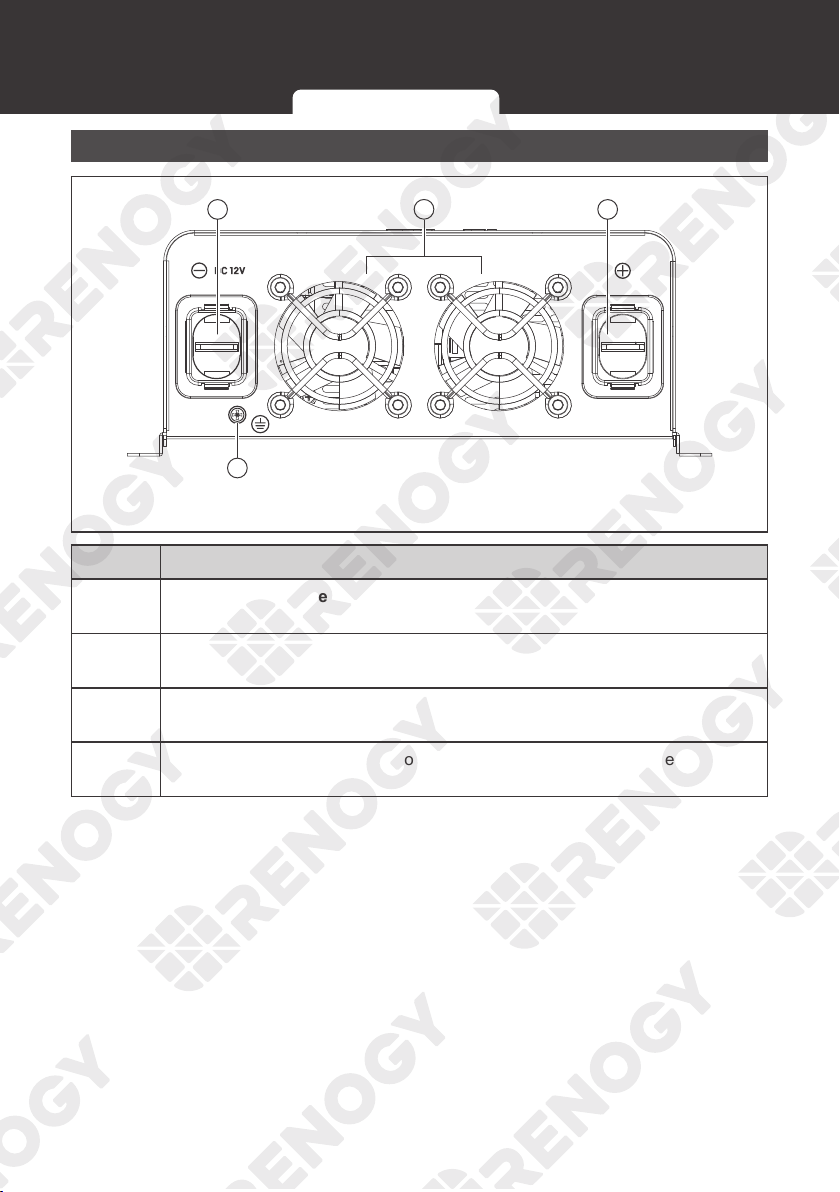

Identification of Parts (DC Side)............................................................................................... 06
Installation ...................................................................................................................................... 07
Location Recommendations..................................................................................................... 07
Sizing your Battery Bank.......................................................................................................... 08
Wiring ............................................................................................................................................. 09
Grounding ................................................................................................................................ 09
DC Wiring................................................................................................................................. 09
AC Wiring ..................................................................................................................................11
Fusing ...................................................................................................................................... 13
Operation........................................................................................................................................ 14
AC Side Operation ................................................................................................................... 14
LED Overview .......................................................................................................................... 14
Wired Remote .......................................................................................................................... 15
DIP Switches............................................................................................................................ 15
Troubleshooting.............................................................................................................................. 16
Technical Specifications ................................................................................................................. 18
Dimensions..................................................................................................................................... 20
1000W Inverter (PGH1-10111S) .............................................................................................. 20
2000W Inverter (PGH1-20111S) .............................................................................................. 20
3000W Inverter (PGH1-30111S) .............................................................................................. 21
Maintenance................................................................................................................................... 22
Inspection................................................................................................................................. 22
Cleaning................................................................................................................................... 22
Storage..................................................................................................................................... 22
Emergency Responses .................................................................................................................. 23
Fire ........................................................................................................................................... 23
Flooding ................................................................................................................................... 23
Smell ........................................................................................................................................ 23
Noise ........................................................................................................................................ 23
Technical Support........................................................................................................................... 24
Important Safety Information
01
Important Safety Information
The user manual provides important installation, operation, and maintenance instructions
for Renogy PGH1 Series Battery Power Inverter (hereinafter referred to as inverter).
Read the user manual carefully before installation and operation and save it for future
reference. Failure to observe the instructions or precautions in the user manual can result in
electrical shock, serious injury, or death, or can damage the inverter, potentially rendering it
inoperable. The installation and service of the inverter might require knowledge of electricity
and is recommended to be carried out by qualified personnel.
Symbols Used
The following symbols are used throughout the user manual to highlight important
information:
WARNING
Indicates a potentially dangerous condition which could
result in injury or death.
CAUTION
Indicates a critical procedure for safe and proper installation
and operation.
NOTE
Indicates an important step or tip for optimal performance.
INFO
Indicates that more information is available in other
documents relating to the subject.
General Safety Information
WARNING
zInspect the inverter for any visible damage including cracks, dents, deformation, and
other visible abnormalities before installation.
zDo not puncture, drop, crush, penetrate, shake, strike, or step on the inverter.
zDo not open, dismantle, repair, tamper with, or modify the components of the inverter.
zInstall the inverter on a vertical surface indoors protected from direct sunlight, high
temperature, and water. Make sure there is good ventilation.
zMake sure all connections going into and from the inverter are tight. There may be sparks
when making connections, therefore, make sure there are not flammable materials or
gases near installation.
zKeep the inverter away from heating equipment.
zDo not insert foreign objects into the inverter.
zDo not install the inverter near flammable fumes or gases.
zKeep the inverter out of the reach of children.
zWear proper protective equipment and use insulated tools during installation and
operation. Do not wear metal jewelry, such as necklaces and watches.
Symbols Used General Safety Information
Important Safety Information
02
zDo not touch the connector contacts while the inverter is in operation.
zDisconnect all connectors from the inverter before maintenance or cleaning.
zRisk of electric shock! Be careful when touching bare terminals of the inverter as they
may retain high lethal voltages even after power is removed.
zDo not dispose of the inverter as household waste. Comply with local, state, and federal
laws and regulations and use recycling channels as required.
zIn the event of fire, use fire extinguishers suitable for electrical equipment.
zIf the inverter is installed improperly on a boat, it may cause damage to the corrosive
agents of the boat. Please have the inverter installed by a qualified electrician.
CAUTION
zDo not expose the inverter to flammable or harsh chemicals or vapors.
zEnsure that there is no water source including downspouts, sprinklers, or faucets above
or near the inverter.
zEnsure that the battery bank is properly connected before installation.
zCheck the installation environment of the inverter regularly and keep it clean to prevent
the ventilation holes from being blocked by debris or dust.
▇Inverter Safety
zThe inverters are suitable for 12V Battery Banks ONLY.
zALWAYS make sure the inverter is in OFF position and disconnect all AC and DC
connecting when working on any circuit associated with the inverter.
zNEVER connect the AC output of the inverter directly to an Electrical Breaker Panel/Load
Centre which is also fed from the utility power/generator.
zWhen connecting battery terminals, ensure the polarity of the battery connections is
correct. Incorrect polarity may cause permanent damage to the inverter.
▇Battery Safety
zDo NOT let the positive (+) and negative (-) terminals of the battery touch each other.
zUse Sealed Lead Acid, AGM, Flooded, Gel, or Lithium batteries which must be deep
cycle.
zExplosive battery gases may be present while charging. Be certain there is enough
ventilation to release the gases.
zBe careful when working with large lead acid batteries. Wear eye protection and have
fresh water available in case there is contact with the battery acid.
zOver-charging and excessive gas precipitation may damage the battery plates and
activate material shedding on them. Too high of an equalizing charge or too long of one
may cause damage. Please carefully review the specific requirements of the battery
used in the system.
Symbols Used General Safety Information
Overview
03

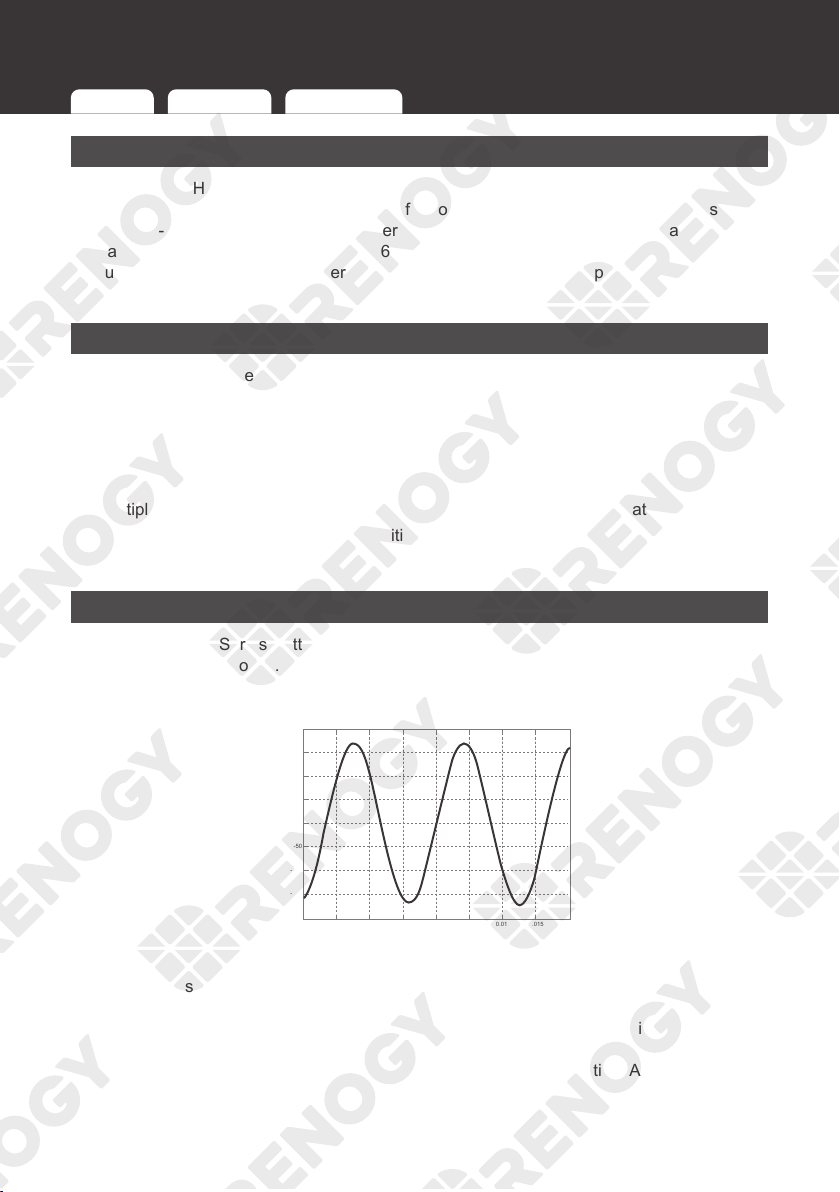

Overview
Introduction
The Renogy PGH1 Series Battery Power Inverter transforms the DC power stored in
batteries into standard household AC power for consumer electronic needs. It features an
ECO power-saving mode in order to conserve your system's energy and even has a switch
to change the frequency between 50Hz / 60Hz. As a pure sine wave inverter, it is capable of
producing cleaner, smoother, quieter, and more reliable electricity to operate fans, lights, and
other electronics without interference.
Key Features
zRobust and sleek design
zPure sine wave output (THD<3%)
zExcellent Surge Rating: 2x the Power Rating
zOptimized for 12VDC system voltage
zEasy-to-read LED indicator display
zMultiple protection features (LVD, HVD, AC Overload and Over Temperature)
zClean power for safe operation of sensitive electronics
zPower Saving Mode to conserve energy
Pure Sine Wave
The Renogy PGH1 Series Battery Power Inverter output a pure sine wave similar to the
waveform of the grid power. In a pure sine wave, the voltage rises and falls in a smooth
fashion with very low harmonic distortion and cleaner utility-like power.
Time(Seconds)
Amplitude(Volts)
Pure(Sine Wavefom)
200
150
100
50
0
-50
-100
-150
-200
-0.02 -0.015 0.015-0.01 0.01-0.005 0 0.005
0.02
This gives users stable enough power to operate tools, fans, lights, computers, and other
electronics without any interference. Pure sine wave inverters are in many cases more
efficient, allowing users to use less energy and allow for more device capability. The main
advantage to pure sine wave inverters is that they are used to operate sensitive electronic
devices that require a high quality waveform with little harmonic distortion. Almost any
electronic device could be powered using a pure sine wave inverter.
Introduction Key Features Pure Sine Wave
Package Contents
04

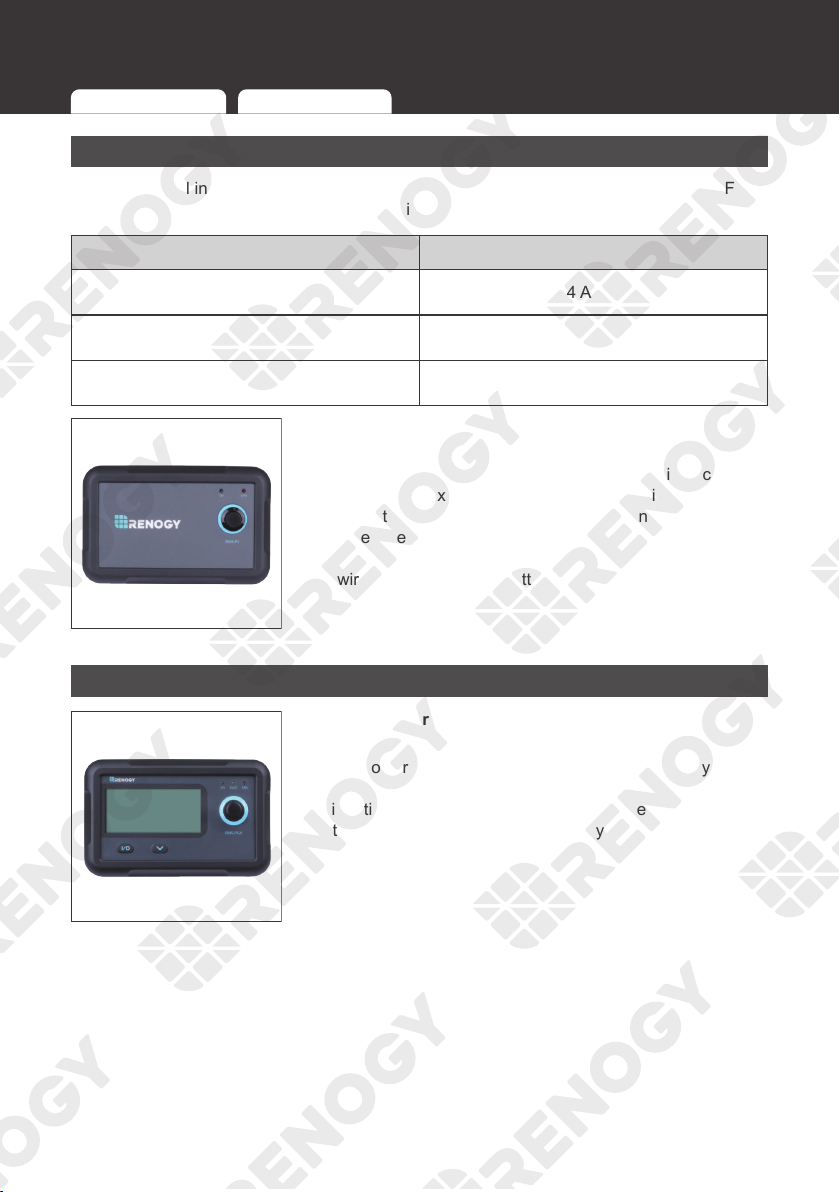

Included Components
The inverter will include a wired remote controller that can power the inverter ON or OFF. In
addition, the 1000W and 2000W models will include inverter cables.
Inverter Model Gauge
1000W Inverter (PGH1-10111S) 4 AWG
2000W Inverter (PGH1-20111S) 4 AWG * 2
3000W Inverter (PGH1-30111S) Cables not included. 4/0 Recommended
Wired Remote Control
The Wired Remote Control for the inverter gives users the
opportunity to power on/off the inverter from a distance.
Giving you approximately 16.4ft of distance, simply connect
the cable to the REMOTE port on the PGH inverter. Make
sure the inverter switch is flipped to REM and the wired
remote power button is unpressed. When connected, press
the wired remote's power button to turn on the inverter.
Optional Components
Monitoring Screen (Model: RMS-PGH)
The RMS-PGH is a high precision meter designed for the
PGH1 Power Saving Inverter Series. Utilize the 2-key input
to easily navigate through your system information as well
as identify any error codes. You can also use the main push
button to power your inverter on/off at your convenience. The
RMS-PGH is the perfect monitor companion to optimize any
solar-inverter system!
Package Contents
Included Components Optional Components
Product Overview
05
Identification of Parts (AC Side)
Figure 1: 2000W Inverter
AC OUTPUT AC OUTPUT
L N G
ON OFF REM.
REMOTE
ECO
GF
COMM.
50Hz
60Hz Nor.
5
4
1 2 3
9 88 7 6
No. Part
1
Power LED (Green): Solid Green indicates normal power on operation.
Flashing Green indicates inverter is powered in ECO power saving mode and
is pulsing.
2
GF LED (Yellow): Indicates an interruption in the circuit. Shut down the
inverter to clear or review AC wiring. The inverter does not have Neutral and
Ground bonded. Refer to Troubleshooting.
3
Fault LED (Red) + Alarm: Solid Red light indicates a system fault due to
either overheating, overload, undervoltage, or over-voltage. Alarm sounding is
typical for a low battery voltage. Refer to Troubleshooting.
4DIP Switches (Frequency/Power Saver): Adjust the frequency or ECO power
saver mode.
5ON/OFF/REM Power Button: Main power button that can switch between
ON, Off, or be in Remote control mode.
6Remote Port: Connect the included wired remote onto this port.
7
Communication Port (RS485): Optional port for connecting the BT-2 Module
(Model: RCM-BT2) or Monitoring Screen (Model: RMS-PGH). Requires
separate purchase.
8AC Outlets: Directly plug in AC appliances. Utilize up to 8.3Amps (1000W) or
up to 15amps (2000W/3000W).
9
AC Terminal Block (Covered): Use the terminal block to utilize the full
wattage in 110V AC 50Hz / 60Hz for the 2000W / 3000W models. 1000W
model can use full wattage using the AC outlets.
Product Overview
Identification of Parts (AC Side) Identification of Parts (DC Side)
Product Overview
06
Identification of Parts (DC Side)
4
Figure 1: 2000W Inverter
3
2
1
No. Part
112VDC M8 Negative Battery Terminal: Negative 12V DC is written above the
terminal.
2Ventilation Fans: Automatic fans that dissipate heat inside the inverter. They
that are temperature controlled.
312VDC M8 Positive Battery Terminal: Positive 12V DC is written above the
terminal.
4M4 Grounding Lug: Connect to grounding point which will vary depending on
install.
Identification of Parts (AC Side) Identification of Parts (DC Side)
Inhaltsverzeichnis
Andere Renogy Wechselrichter Handbücher
Renogy
Renogy Off-Grid Kit Konfigurationshandbuch
Renogy
Renogy RNG-INVT-700-12V-P2 Bedienungsanleitung
Renogy
Renogy PWM10CC Bedienungsanleitung
Renogy
Renogy R-INVT-PGH1-20111S-G1 Bedienungsanleitung
Renogy
Renogy Element Series Bedienungsanleitung
Renogy
Renogy RNG-INVT-700- 12V-P2 Bedienungsanleitung
Renogy
Renogy PGH1-10111S Bedienungsanleitung
Renogy
Renogy Wanderer 30A Bedienungsanleitung
Renogy
Renogy REGO Bedienungsanleitung
Renogy
Renogy Solar 200W 2.4kWh Extension Solution Bedienungsanleitung
Renogy
Renogy 700w Bedienungsanleitung
Renogy
Renogy PWM30CC-LCD Bedienungsanleitung
Renogy
Renogy E.FLEX 21W R-SC001 Bedienungsanleitung
Renogy
Renogy 500W Bedienungsanleitung
Renogy
Renogy Solar 440W 3.84kWh Extension Solution Bedienungsanleitung
Renogy
Renogy Solar 400W 2.56kWh Extension Solution Bedienungsanleitung
Renogy
Renogy 100W Solar Suitcase Bedienungsanleitung
Renogy
Renogy RSP8TC-G1 Bedienungsanleitung
Renogy
Renogy R-SP001 Bedienungsanleitung
Renogy
Renogy PCL Series Bedienungsanleitung
