Rextron SOHO Tower TNP12C Bedienungsanleitung
Package Contents:
▓ The complete TNP12C contains:
2-Port SOHO
Tower
(TNP12) x 1
Custom cable set 1.8M(6ft) x 2
User’s manual x 1
▓The complete TNP14C contains:
4-Port SOHO
Tower
(TNP14) x 1
Custom cable set 1.8M(6ft) x 4
User’s manual x 1
Copyright 12/2003 Rextron Technology, Inc.
PP5-N6300-000
Printed in Taiwan
Table of Content
■ Introduction
Overview ................................................................ 1
Features................................................................. 2
■ Installations
Console Connection .............................................. 3
Computers Connection .......................................... 5
Cable Management................................................ 6
Initial Power-up ...................................................... 6
■ Operations
Front Panel operation ............................................ 7
Hot-key commands ................................................ 7
■ Appendices
Specifications ......................................................... 10
Troubleshooting ..................................................... 11
Please read this manual thoroughly and
follow the Installation procedures to
prevent any damage to the SOHOTower or any
connecting device.
SOHOTower
1
----------------- Introduction
Overview
The SOHOTower TNP12C and TNP14C are computer
switches that allow access to two or four IBM compatible
computers respectively from one PS/2 keyboard, mouse
and monitor. Switching between computers is as easy as
pressing the push button or entering hot-key commands
from your keyboard. There is no interface card and
software to install and the SOHOTower is independent of
the computer operating system.
Ready to run right out of the box, this Kit comes with
everything you need - a switch and complete cable sets, just
hook them up and go. By allowing one console to manage
all your computers, the SOHOTower eliminates the expense
for extra consoles, the spaces for extra peripherals and the
time hopping around for accessing different computers.
SOHOTower
2
Features
Unique loose-free cables included preventing keyboard
or mouse connector from getting loose.
Supports PS/2 keyboard and mouse.
Keyboard and mouse emulation for error-free PC boot
up.
Keyboard and mouse are hot pluggable at any time
without turning either SOHOTower or PCs off.
Space-saving design.
Auto scan automatically selects computers sequentially.
Supports M/S IntelliMouse (Pro), Explorer, Optical.
Hot-key and push button allow easy computer access.
Keyboard states automatically saved and restored when
switching computers.
Operating system independent, transparent to all
applications.
High VGA resolution 1920x1440.
DDC2B compatible.
Power-free operation - the SOHOTower draws power
from the attached PCs.
SOHOTower
-----------------Installation
Console Connection
Turn your computers off. Connect a PS/2 keyboard to the
mini-DIN-6 port marked with “Keyboard” and a PS/2 mouse
to the mini-DIN-6 port marked with “Mouse”. Then connect
your VGA monitor cable directly to the HDB15 port as
shown in figure 1.

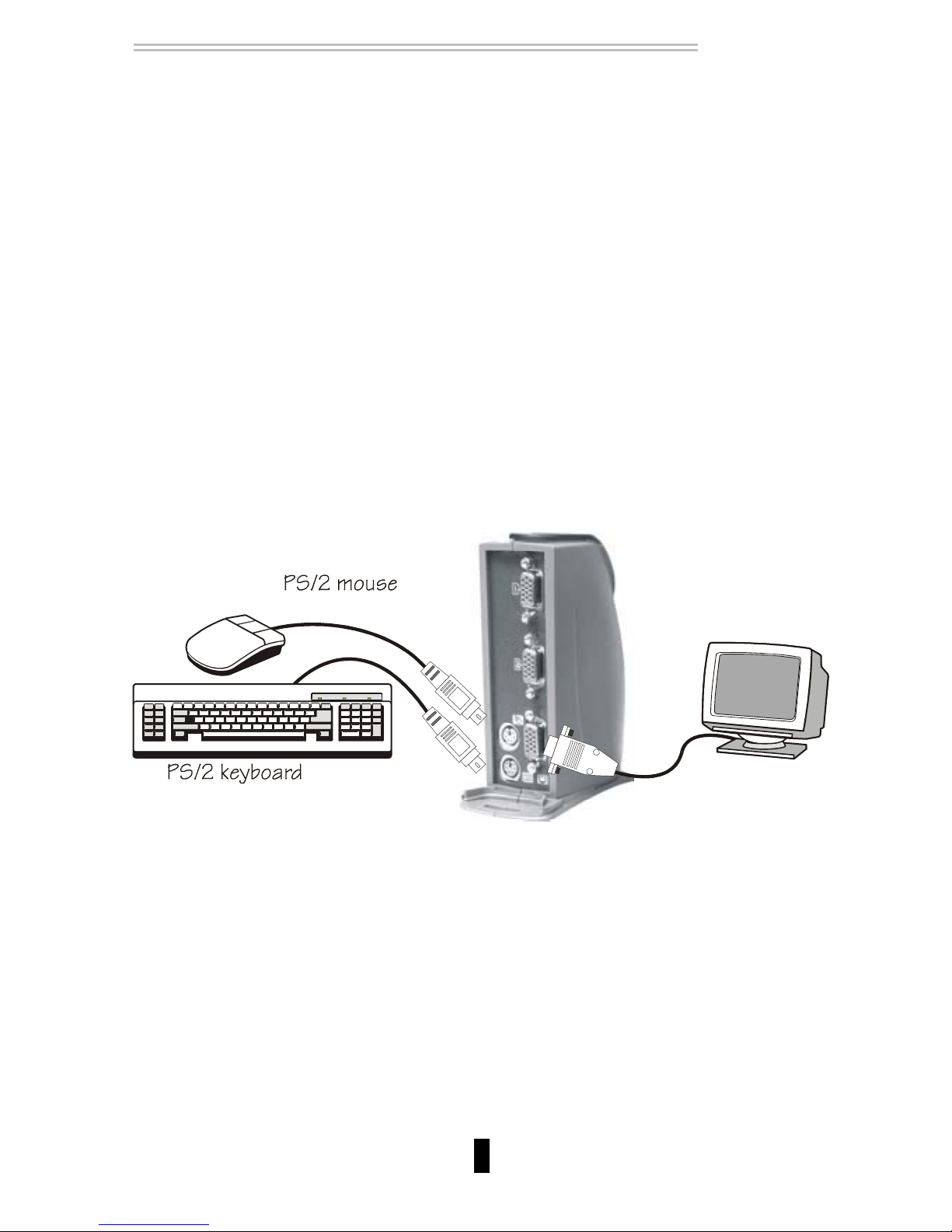

Figure 1: SOHOTower 2 Console Connection
3
SOHOTower
The figure 2 shows 4-port SOHOTower console connection.

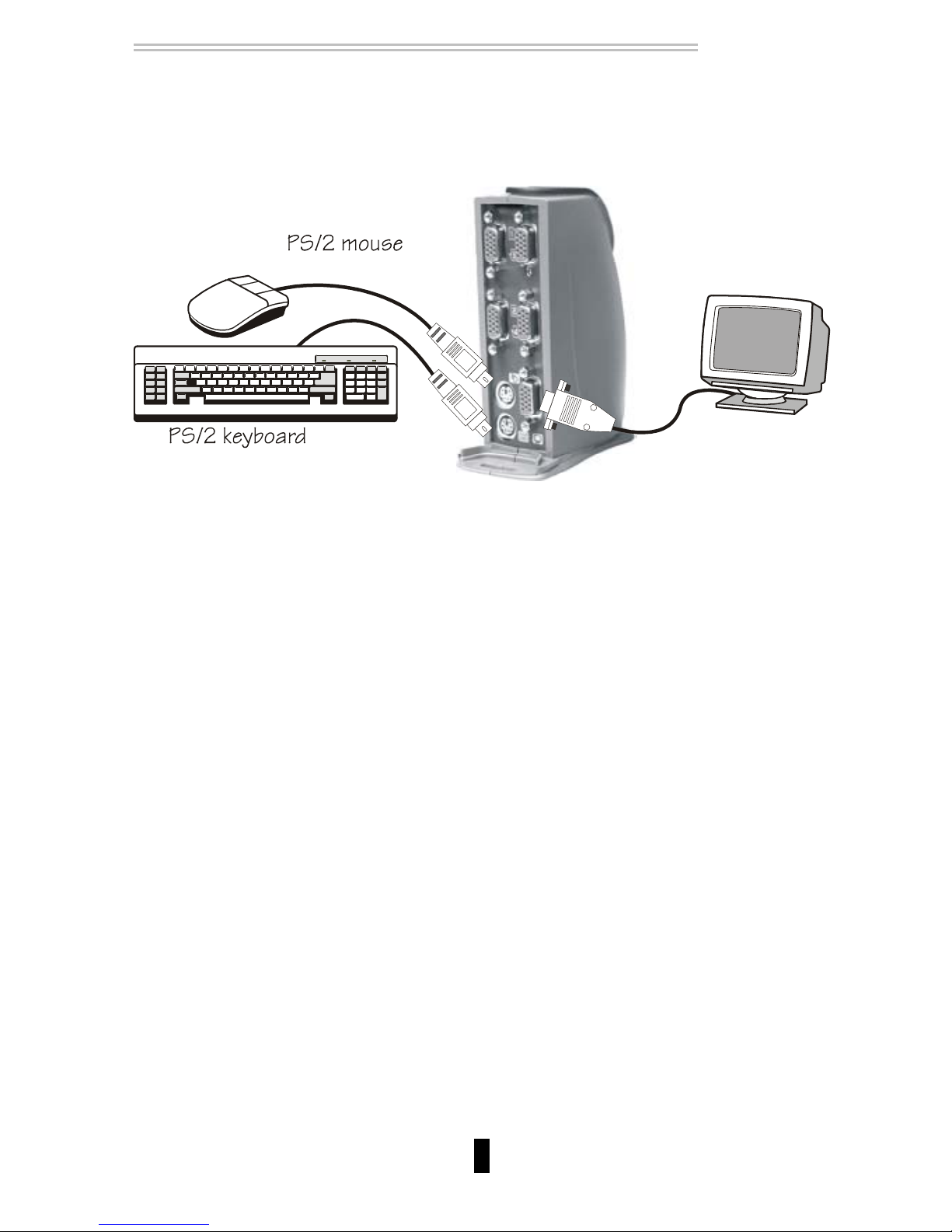

Figure 2: SOHOTower 4 Console Connection
The multi-sync monitor must be capable of synchronizing
with the computer's video signal. If you are uncertain
about the monitor type, please consult the monitor user's
manual.
The SOHOTower consumes negligible power and is
designed to run reliably without an external power adapter.
4
SOHOTower
Computers Connection
SOHOTower comes with complete cable sets facilitating
computer connection. One side of the cable has an
HDB-15 connector and the other side has three connectors
(one HDB-15 and two mini-DIN6s). The 1 ~ 4marks on
the SOHOTower are for computer connection as shown in
figure 3.

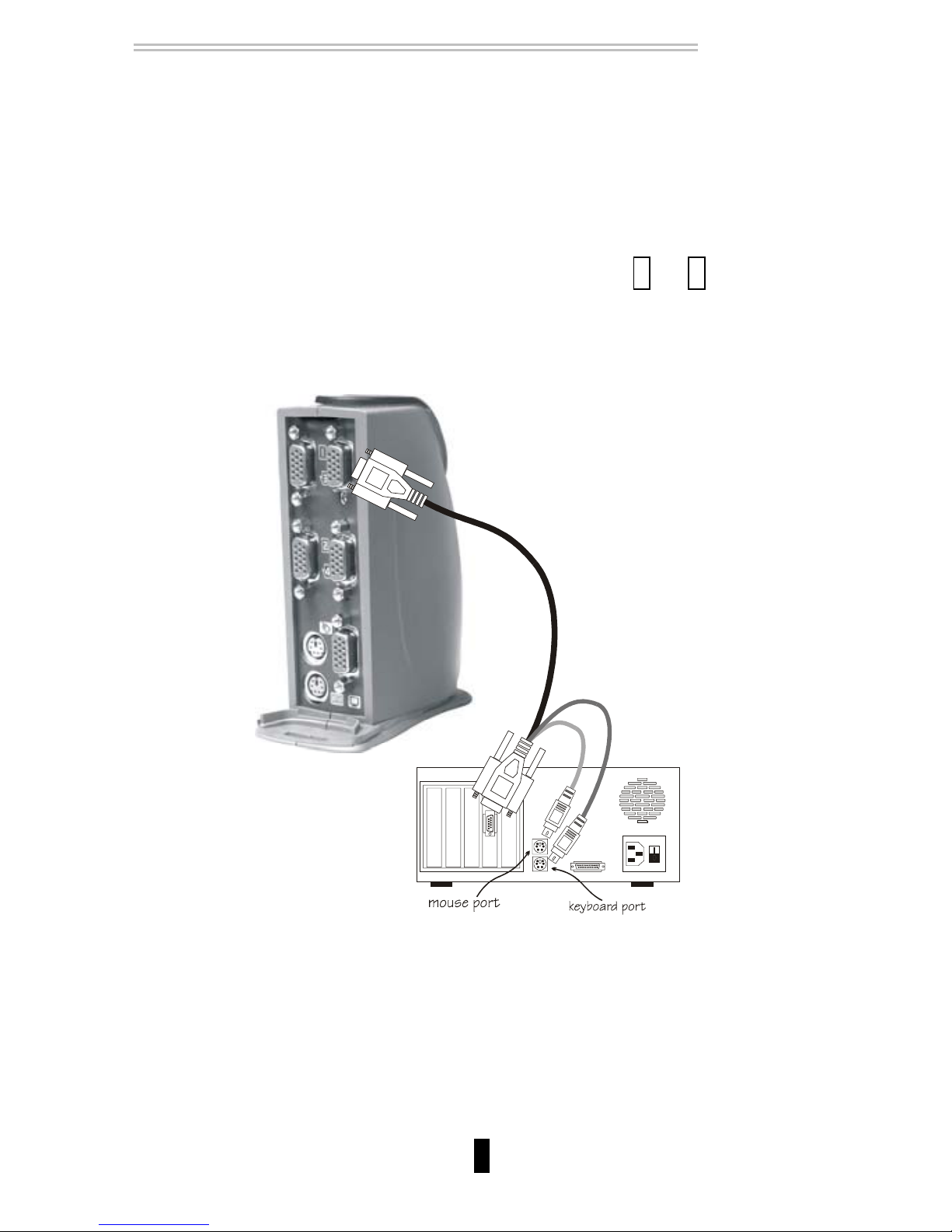

Figure 3: COMPUTER Connection
NOTE: If your computer uses an AT style keyboard, you will
need an "AT-to-PS/2 keyboard adapter" at the
computer keyboard port.
5
SOHOTower
Cable Managemenet
Manage the KVM cable sets by tying all the cables with the
attached Velcro and run the Velcro through the loop at the
back of the SOHOTower. The Velcro can support the
weight of the cable sets to prevent the SOHOTower from
tumbling, as shown in Figure 4.

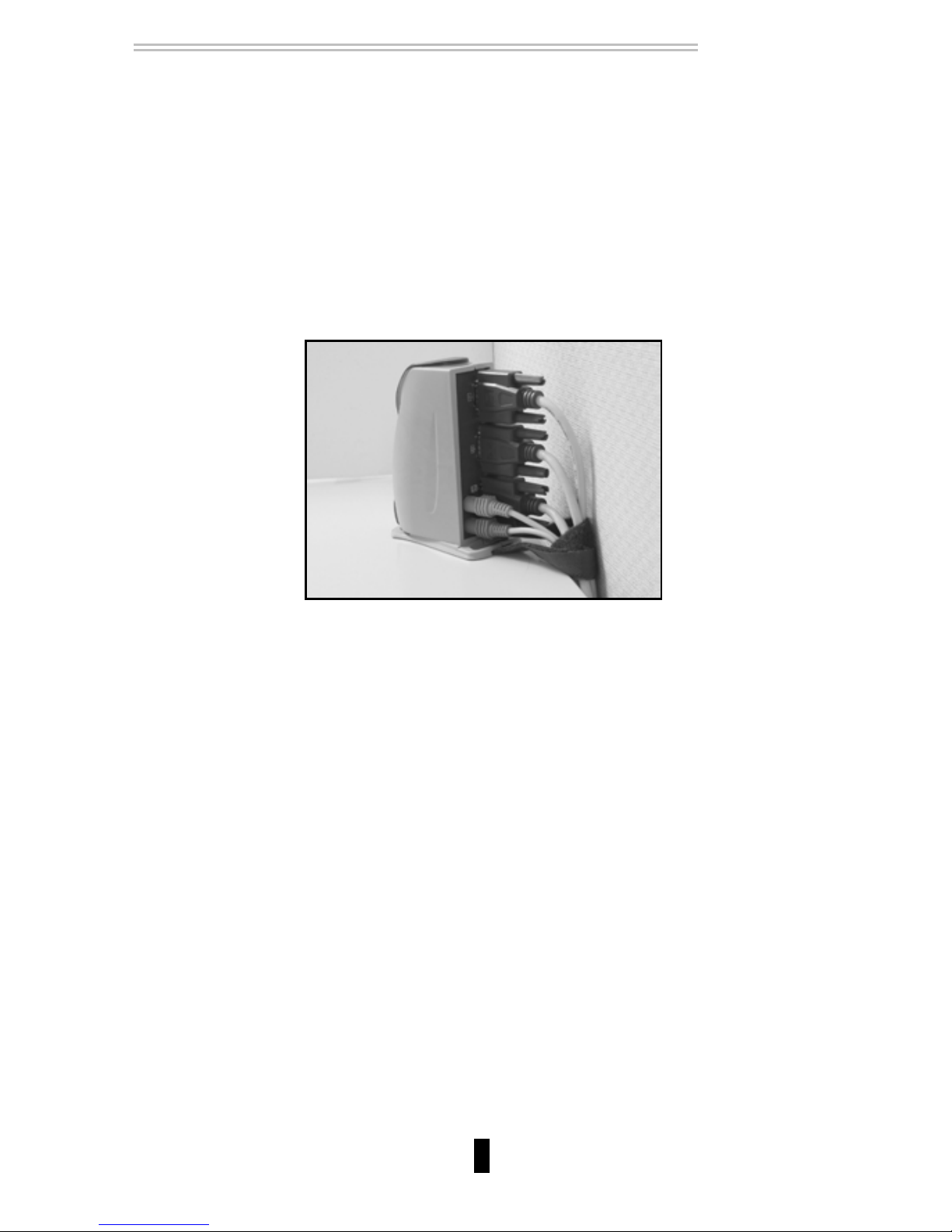

Figure 4: Velcro ties the cable sets and extends the base of
the SOHOTower.
Initial Power-up
Make sure all computers and the SOHOTower are
powered down during installation. You may power up
the computers after installation,. The SOHOTower can
be powered from the computers. This procedure
ensures the SOHOTower receive computer settings
correctly when computer boots.
NOTE: You may hot plug any additional powered-down
computer to the SOHOTower at any time after the initial
power up.
6
SOHOTower
----------------- Operations
Front Panel operation
Figure 5: Front push-button for selection
You may switch to a different computer by pressing the front
panel push-button directly or by issuing hot-key commands.
The front-panel LED illuminates indicating the active port.
The LED flashes while in either Auto Scan or Manual Scan
mode.
Should you encounter any keyboard or mouse problem,
press and hold down the push-button for 3 seconds to
initialize the keyboard and mouse.
Hot-key commands
Hot-key command is a short keyboard sequence to select a
computer or to activate computer scanning. SOHOTower
interprets keystrokes for hot-keys all the time. A hot-key
7
