RHINO Arcadw M01632F Bedienungsanleitung
Arcade
ASSEMBLY INSTRUCTIONS AND RULES
Askforourfulllineofexcitingbrandsandsportinggoods
productsatasportinggoodsretailernearyou.
TableTennisTables
PoolTables
Basketball
Darts
HockeyTables
SoccerTables
Multi-GameTables
Model# MO1632F 2
Customer Service Department
866.556.2759
Toll Free Fax 866.873.3531
foosball@escaladesports.com
Escalade®Sports • 817 Maxwell Ave. • Evansville, IN 47711 • 800.457.3373 • Fax 812.467.1245
All Rights Reserved. www.escaladesports.com ©2008Escalade®Sports
DateCode# M01632HG08
Date Code # M01632HG08
1For Customer Service Call 1-888-996-2729
© 2008 Escalade Sports
1-888-996-2729
FAX: 1-866-873-3535
arcadegames@escaladesports.com
We strive to ensure that our products are of the highest quality
and free of manufacturing defects or missing parts.However, if
you have any problems with your new product,
DO NOT RETURN IT TO THE STORE,
please contact us toll free @:
Or writ e t o:
Escalade Sports
Customer Service Department
P.O. Box 889
Evansville I N 47706
When contacting Escalade Sports please provide your model number, serial number (if
applicable), and part number if requesting a replacement part. These numbers are
located on the product, packaging, and in this owners manual.
Your Model Number
Please have your model number when inquiring about parts.
______________________
M01632F
Date Code # M01632HG08
2
IMPORTANT! READ THIS MANUAL ALL THE
WAY THROUGH BEFORE BEGINNING TO
PUT YOUR GAME TABLE TOGETHER! THEN
READ EACH STEP BEFORE STARTING
THAT STEP.
Philips Screwdriver
Furniture Polish and Cloth
Make sure you understand the following tips before you begin to assemble your Roll a score Table
1. When installing parts that have more than one bolt, start ALL the bolts in that part by
hand before tightening anything.
2. Some drawings or images in this manual may not look exactly like your product. Please
read and understand the text before starting each assembly step.
TWO (2)ADULTS ARE REQUIRED TO ASSEMBLE
THIS GAME TABLE
Assembly Tips
Tools Required:
READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO
ADULTS ARE NEEDED TO PUT THIS GAME TABLE
TOGETHER.
Allen Wrench T1 included with the Hardware Kit

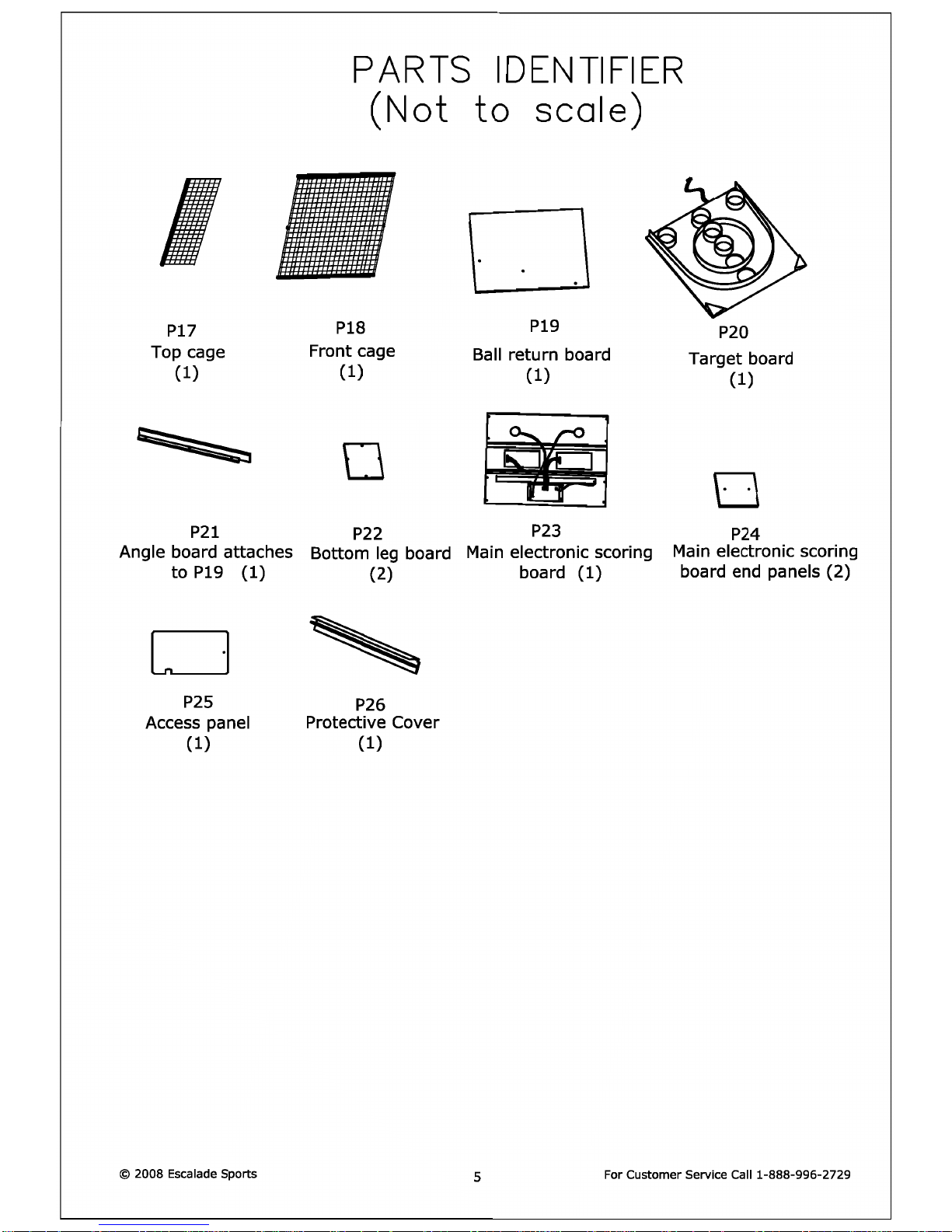

Figure 1
Figure 2
Note:
Be sure to use this hole.
The front hole will be
used in a future Assembly
Carefully fold P23 Main Electronic Scoring Board, attach P24 End Panels
using H4 Screws.
Using H3 Bolts, attach P16 Right Side Cage to
P17 Top Cage. Complete the assembly by
attaching P15 Left Side Cage to P17 Top
Cage using H3 Bolts.
Figure 4
Figure 3
Lay P19 Ball Return Board flat with pilot holes facing up , then attach P21 Angle Board
as shown Fig.3 using H5 Screws.
Carefully fold P4 Right Front Leg as shown. Secure the leg using H4 Screws. Insert
P22 Bottom Leg Board and attach with H8 Screws. Find P5 Left Front Leg, P22
Bottom Leg Board, H4 and H8 Screws and repeat the above.
Figure 5
Figure 6
is
Note:
Attach P26
Protective
Cover on
front edge
UP
Switchwire
On a clean level place, lay P1 Left Leg Panel and P2 Right Leg Panel upside down. First,
place P9 Ball Stop Board into place on P2 Leg Panel. Insert P3 Playfield as shown.
Before installing P8 slat board, note location of cut out in each slat board for routing
switch wires. Install P8 Slat Boards using H4 Screws as shown. Next, attach P6
Front Leg Panel with H5 Screws .Feed wires as shown.
P2
P1
m
Figure 7
Figure 8
Attach P4 and P5 Leg Assemblies per Figure 7 using H1 Bolts with H2 Washers.
With help from another adult, place P13 Lower Front Cabinet Panel between P10 Left
Side Back Apron and P11 Right Side Back Apron, attach using H4 Washer Head Screws.
Next, Secure P23 Main Electronic
Scoreboard between P10 and P11
panels using H5 Washer Head
Screws.
