CONDENSING GENERATORS

Wall-hung gas condensing modules

Condexa Pro

PRODUCT OVERVIEW

Condexa PRO is the new Riello proposal as a modular condensing wall-hung system, capable to ensure extremely high

performance levels and to cover a wide range of applications for indoor installation, with sealed combustion; stand alone or

cascade configurations are possible with heat outputs up to 970 kW.

The range consists of 3 models with thermal modules from 45 up to 97 kW. 70 P and 100 P models are equipped with the innovative

heat exchanger with patented geometries, consisting of two smooth concentric stainless steel pipes, each having a pentagonal

inner section and a circular outer section, designed to maximize the exchange surface and offer maximum corrosion resistance.

The 50 P model is equipped with an helical, single principle exchanger, with a “P” shaped cross section.

The primary circuit pump with modulating regulation allows working with a settable constant DT, reducing set-up plant

regime times and maximizing condensation. The basic electronics include climate control, module cascade management, with

integrated master / slave functions, automatic summer / winter switching and the possibility of managing both a direct zone

and a DHW tank.

The electronics also offers the possibility of remote management via 0-10V input or with the Modbus protocol. Standard

equipment includes: boiler drain tap, safety valves, LPG conversion kit, wall support and the condensate drain syphon. Through

appropriate accessories there is also the possibility of managing the distribution of the secondary circuit, up to 16 mixed zones.

The optimal combustion management and the high modulation ratios from 1 up to 50 for the cascade installations with 10

thermal modules allow high efficiencies and low pollutant emissions (Class 6, UNI EN 15502-1).

– Service continuity is guaranteed by the system modularity: even in the case of a module failure, the overall operation it is

not prejudiced;

– The anti-freeze and anti-seize functions ensure operation in all weather conditions

– Maximum operating pressure: 3 bar

– A wide range of accessories is available to ensure a simple, fast and complete cascade installation.

Condexa Pro

CONDEXA PRO 50 P - 70 P - 100 P

TECHNICAL DATA

MODEL CONDEXA PRO

50 P

CONDEXA PRO

70 P

CONDEXA PRO

100 P

Material Steel Steel Steel

Efficiency class > 93 + 2 log Pn > 93 + 2 log Pn > 93 + 2 log Pn

Fuel NG-LPG NG-LPG NG-LPG

Test room temperature °C 20 20 20

Max. rated heat input at furnace (LCV) kW 45,0 68,0 97,0

Min. rated heat input at furnace (LCV) kW 9,0 14,0 19,4

Max. rated heat output (80-60°C) kW 44,2 67,0 95,2

Min. rated heat output (80-60°C) kW 8,9 13,5 19,2

Max. rated heat output (50-30°C) kW 48,8 72,9 105,1

Min. rated heat output (50-30°C) kW 9,9 14,9 21,1

Efficiency at max. rated heat output (80-60°C) %98,3 97,9 98,1

Efficiency at min. rated heat output (80-60°C) %98,9 98,9 98,8

Efficiency at max. rated heat output (50-30°C) %108,6 108,1 108,2

Efficiency at min. rated heat output (50-30°C) %109,7 109,3 109,2

Useful efficiency at 30% %109,2 108,8 109,0

Heat loss in standby mode %0,1 0,1 0,1

Chimney losses with burner on at P.max %2,3 2,3 2,6

Chimney losses with burner on at P.min %0,1 0,1 0,2

Blanket losses with burner on with 70°C average

Temperature %1,1 0,9 0,9

Blanket losses with burner off with 70°C average

Temperature %1,1 0,9 0,9

Flue gas temperature at max. and min. power 80-60°C °C 67,5 / 61,0 72,0 / 61,0 78,0 / 62,0

Flue gas temperature at max. and min. power 50-30°C °C 45,0 / 32,0 46,0 / 33,0 49,0 / 35,0

Excess air at max.power 1,27 1,27 1,27

Excess air at min.power 1,27 1,27 1,27

Max-min flue gas mass flow rate kg / s 0,0200-0,0050 0,0300-0,0070 0,0460-0,0072

Available useful discharge head P.max Pa 480 630 610

Available useful discharge head P.min Pa 45 35 32

Flue side pressure drop mbar --- --- ---

NOx mg/kWh 43,9 36,4 38,7

Water-side resistance (DT 20°C) mbar --- --- ---

Available useful discharge head (DT 20°C) mbar 250 390 350

Water-side resistence (DT 10°C) mbar --- --- ---

Available useful discharge head (DT 10°C) mbar --- --- ---

Water content l 5 15 17

Maximum working pressure bar 333

Expansion tank capacity l--- --- ---

Power supply V/Hz 230-50 230-50 230-50

Electrical protection level IP IPX4D IPX4D IPX4D

Electrical consumption with boiler at max. power W200 175 345

Electrical consumption with boiler at min. power W34 30 31

Electrical consumption with pumps at max. power W--- --- ---

Electrical consumption with pumps at min. power W--- --- ---

Flue gas discharge diameter mm 80 80 110

Empty weight kg 66 78 81

Category according to UNI 10642 II 2H3P appliance II 2H3P appliance II 2H3P appliance

Boiler water content l--- --- ---

Boiler losses W / K --- --- ---

Boiler material --- --- ---

Insulation thickness mm --- --- ---

Boiler circulator absorption W--- --- ---

Sanitary expansion vessel l--- --- ---

Noise dB(A) 52 54 56

Nominal/min natural gas pressure supply (G20) mbar 20 / 17 20 / 17 20 / 17

Nominal/min natural gas pressure supply (G31) mbar 37 / 25 37 / 25 37 / 25

CONDENSING GENERATORS

Wall-hung gas condensing modules

ErP TECHNICAL DATA

MODEL CONDEXA PRO

50 P

CONDEXA PRO

70 P

CONDEXA PRO

100 P

Seasonal efficiency class in

central heating mode A A ---

Seasonal efficiency class in water heating --- --- ---

Useful (rated) heat output Pn kW 44,2 68 95

Seasonal efficiency class in room heating mode ηs%94 94 94

USEFUL THERMAL POWER

At useful heat output and at high temperature capacity

(*) P4 kW 44,2 67 95,3

At 30% of useful heat output and at low temperature

capacity (**) P1 kW 14,7 22,3 31,7

EFFICIENCY

At useful heat output and at high temperature capacity

(*) η4%88,4 88,2 88,2

At 30% of useful heat output and at low temperature

capacity (**) η1%98,2 98,0 98,0

AUXILIARY ELECTRICAL CONSUMPTION

At full load elmax W105 77 203

At partial load elmin W34 30 31

In standby mode PSB W 9 13 6

OTHER PARAMETERS

Thermal losses in Stand-by mode Pstby W57,0 87,0 124,0

Pilot flame energy consumption Pign W--- --- ---

Yearly energy consumption QHE GJ 91 141 ---

Noise level, indoor (sound power) LWA dB 52 54 56

Nitrogen oxide emissions (NOx) NOx mg/kWh 43,9 36,4 38,7

FOR COMBINED HEATING EQUIPMENT

Declared load profile

Energy efficiency class in water heating ηwh %--- --- ---

Daily electrical energy consumption Qelec kWh --- --- ---

Daily fuel consumption Qfuel kWh --- --- ---

Annual electrical energy consumption AEC kWh --- --- ---

Annual fuel consumption AFC GJ --- --- ---

Condexa Pro

BOILER MODELS CONDEXA

PRO 50 P

CONDEXA

PRO 70 P

Condexa

PRO 100 P

MAXIMUM THERMAL POWER

Useful (80/60°C) kW 44,2 67 95,2

Useful (50/30°C) kW 48,8 73,9 105,1

Furnace kW 45,0 68 97

MINIMUM THERMAL POWER

Useful (80/60°C) kW 8,9 13,5 19,2

Useful (50/30°C) kW 9,9 14,9 21,1

Furnace kW 9,0 14 19,4

EFFICIENCY

Useful (80/60°C) %98,34-

98,9 98,1-98,9 98,1-98,8

Useful (50/30°C) %108,6-119,7 108,1-109,3 108,2-109,2

With reduced load 30% (return 30°C) % 109,2 109 109

COMBUSTION

Chimney and blanket losses with

burner on %2,3-1,1 2,3-0,9 2,6-0,9

Chimney losses with burner off %0,1 0,1 0,1

Flue flow rate kg / s 0,020 0,03 0,046

GAS EMISSION VALUES AT MAX AND MIN FLOW RATES G20 (**)

MAXIMUM

CO s.a. less than (***) ppm 73 90 92

CO2% 9 9 9

NOx (EN 677) (***) ppm 30 30 30

Flue temperature °C 67,5 72 78

DT flue - return water K 7,50 12 18

MINIMUM

CO s.a. less than (***) ppm 2,3 6,5 7,5

CO2% 9 9 9

NOx (EN 677) (***) ppm 30 30 30

Flue temperature °C 61 61 62

DT flue - return water K 1 1 2

NOx class 6 6 6

Electric power: circulator, total 105 77 203

(**) Verification carried out with concentric pipe Ø 60-100 mm length 0.85 m; water temperatures 80-60 °C.

(***)Graphs for intermediate power values are also available. The expressed data must not be used to certify the plant; for certification the data

indicated in the "installation manual" measured at the time of the first ignition must be used.

LAW TABLE 10

CONDENSING GENERATORS

Wall-hung gas condensing modules

OVERALL DIMENSIONS

Fumi Aria (opz)

Ritorno

G 1” 1/2

Gas

G 1”

Mandata

G 1” 1/2

Scarico condensa

Ø 24 mm

Ø Ø

96 92

SYSTEM LAYOUT

Condexa PRO 50 P

Commercial

description

Ø fumes/

air

Net

weight

CONDEXA PRO 50 P 1000 600 435 80 66

CONDEXA PRO 70 P 1000 600 435 80 78

CONDEXA PRO 100 P 1000 600 435 110 81

Fumes Air (acc)

13 14 1512

1 烟气分析检测口

2 烟气排气管

3 燃气阀

4 风机

5 烟气压差开关

6 燃烧室

7 主控板

8 最小压力开关(0.7 bar)

9 烟气温度传感器

10 冷凝水收集器

11 排水阀

12 电源开关

13 采暖回水口

14 燃气供气管

15 采暖供水管

16 冷凝水排放管

17 流量传感器

18 循环泵

19 回水温度传感器

20 控制面板

21 过热保护（需手动复位）

22 流量传感器

23 自动排气阀

24 点火/火焰检测电极

25 外壳

Condexa Pro

Condexa PRO 70 P

Condexa PRO 100 P

1211 13 14

1 烟气分析检测口

2 烟气排气管

3 燃气阀

4 风机

5 燃烧室

6 主控板

7 烟气止回阀

8 排水阀

9 最小压力开关（0.7bar）

10 循环泵

11 电源开关

12 供暖回水管

13 燃气供气管

14 采暖供水管

15 冷凝水排放管

16 流量传感器

17 烟气温度传感器

18 回水温度传感器

19 控制面板

20 点火/火焰检测电极

21 过热保护（需手动复位）

22 流量传感器

23 自动排气阀

24 外壳

109 11 12

1 烟气分析检测口

2 烟气排气管

3 风机

4 燃烧室

5 主控板

6 烟气止回阀

7 排水阀

8 最小压力开关（0.7−bar）

9 电源开关

10 供暖回水管

11 燃气供气管

12 采暖供水管

13 冷凝水排放管

14 流量传感器

15 燃气阀

16 烟气温度传感器

17 回水温度传感器

18 控制面板

19 点火/火焰检测电极

20 过热保护（需手动复位）

21 流量传感器

22 自动排气阀

23 外壳

24 循环泵

CONDENSING GENERATORS

Wall-hung gas condensing modules

HYDRAULIC CIRCUIT

1. Heat exchanger

2. Circulator

3. Drain tap

4. Minimum pressure switch

5. NTC return probe

6. NTC flow probe

7. Safety thermostat temperature sensor

8. Automatic bleed valve

9. Flow meter

F Central heating flow

R System return

1678

CIRCULATORS

100

200

300

400

500

600

700

800

900

1000

1100

0 1,5 2 2,5 3 3,510,5 4 4,5 5

Condexa PRO 50 P

Condexa PRO 70 P

Condexa PRO 100 P

Condexa Pro

Vista frontale

Vista inferiore

RG F

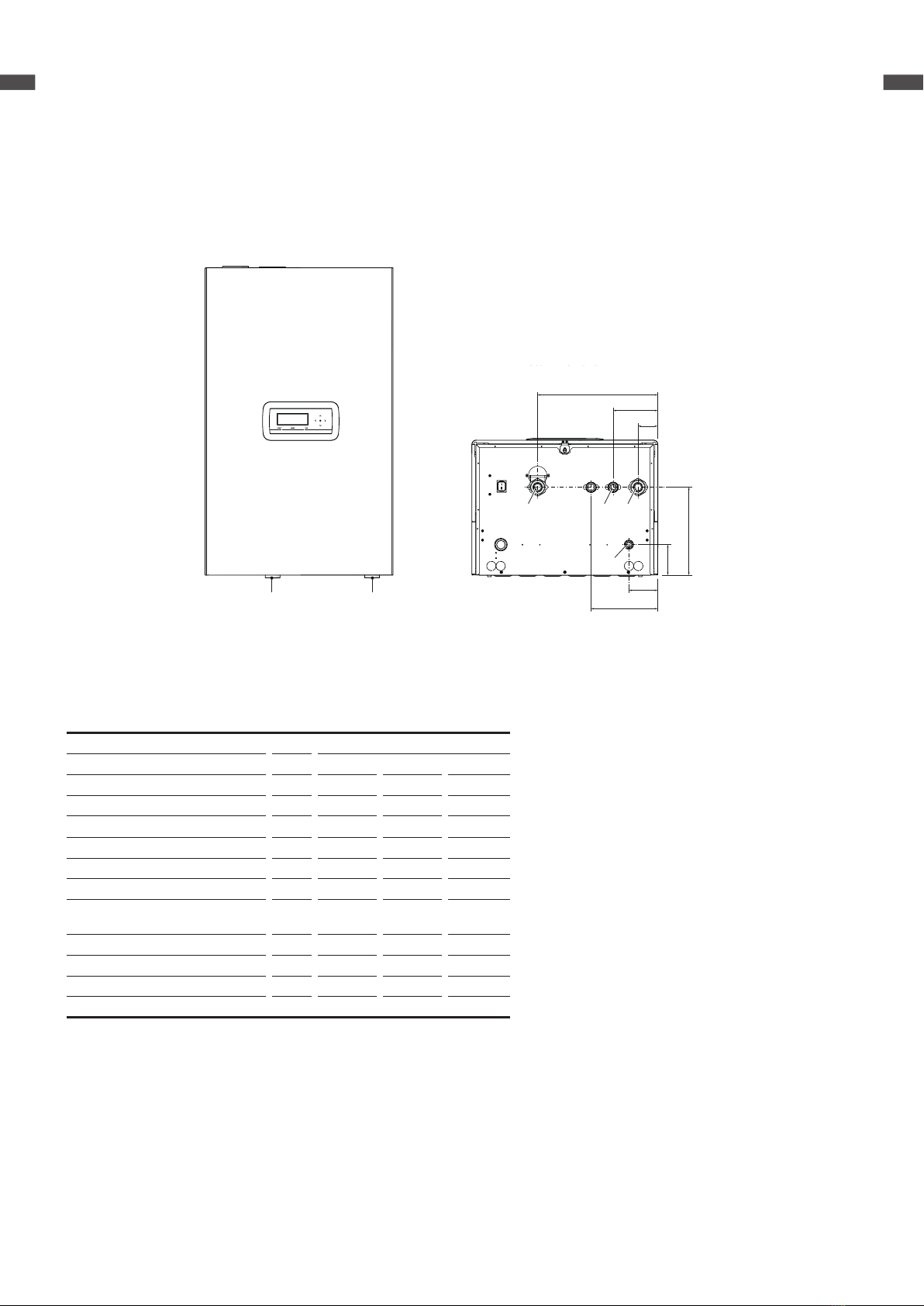

HYDRAULIC CONNECTIONS AND FUMES DISCHARGE

The dimensions and position of thermal module's hydraulic connections are shown in the table below.

DESCRIPTION Condexa PRO

50 P 70 P 100 P

Amm 387 387 387

Bmm 143,5 143,5 143,5

Cmm 63,5 63,5 63,5

Dmm 283,5 283,5 283,5

Emm 98,5 98,5 98,5

Fmm 92,5 92,5 92,5

H(optional 3-way

valve connection)

mm 202,5 - -

F(System flow) ØG 1 ”1/2 M G 1 ”1/2 M G 1 ”1/2 M

R(System return) ØG 1 ”1/2 M G 1 ”1/2 M G 1 ”1/2 M

CD (condensate drain) Ø mm 25 25 25

GGas input ØG 1" M G 1" M G 1" M

Front view

Bottom view

CONDENSING GENERATORS

Wall-hung gas condensing modules

WATER IN THE PLANT

Before connecting the thermal module, it is necessary to clean the system. This step is absolutely required when the appliance

replaces another one on pre-existing systems.In order to carry out this cleaning activity, if the old generator is still installed

on the system, it is advisable to:

• Add a de-scaling additive.

• Operate the system with the generator on for around 7 days.

• Discharge dirty system water and flush the system one or more times with clean water.

If the system is very dirty, repeat the last procedure one more time.In case of new installation or if the old generator is not

present or available, use a pump to circulate the additive water in the system for about 10 days and carry out the final washing

as described in the previous paragraph.

Once the cleaning has been completed, it is recommended to add a suitable protective fluid to the system's water before

installing the thermal module.

Do not use incompatible liquid detergents, including acids (eg chloridric acid and similar) in any concentration.

Do not subject the exchanger to cyclical pressure variations because the fatigue stress is very dangerous for the integrity of the

system components.

Sludge, limestone and contaminants present in the water can lead to irreversible damage to the heat generator, even in short

times and regardless of the quality level of the materials used.

The quality of the water used in the heating system must comply with the following parameters:

Parameters Value Unit

General characteristic Colorless, without sediment

PH value Min 6.5; Max 8 PH

Dissolved oxygen <0.05 mg / l

Total iron (Fe) <0.3 mg / l

Total Copper (Cu) <0.1 mg / l

Na2SO3 <10 mg / l

N2H4 <3 mg / l

PO4 <15 mg / l

CaCO3 Min 50; Max 150 ppm

Trisodium phosphate None ppm

Chlorine <100 ppm

Electrical conducibility <200 microsiemens / cm

Pressure Min 0.6; Max 6 bar

Glycol Max 40% (only propylene glycol) %

All the data in the table refer to the water contained in the system after 8 weeks' operation.

Do not use excessively softened water. Excessive water softening (total hardness < 5° f) results in corrosion due to contact with

metal elements (pipes or thermal module components).

Immediately repair any leaks or drips that could result in air entering the system.

Excessive pressure fluctuations can cause stress and fatigue to the heat exchanger.

Maintain a constant operating pressure.

Water used to fill a system for the first time and water used to top it up must always be filtered (using synthetic or metal mesh

filters with a filtration rating of no less than 50 microns) to prevent sludge from forming and triggering deposit corrosion. If

oxygen enters a circuit continuously or even intermittently (e.g. in under-floor heating systems whose pipes are not protected

by impermeable synthetic sheaths, in circuits with open expansion vessels, or in circuits that require frequent top-ups) always

separate the boiler’s water circuit from the central heating circuit.

It is prohibited to top up the heating system constantly or frequently, since this can damage the thermal module's heat

exchanger. The use of automatic topping up systems should be avoided for this reason.

To sum up, in order to eliminate contact between air and water (and to prevent the latter from becoming oxidized), it is

necessary:

• that the expansion system be a closed vessel, correctly sized and with the correct pre-loading pressure (to be regularly

checked);

• that the system be always at a pressure higher than the atmospheric one at any point (including the pump suction side)

and under any operating conditions (all seals and hydraulic couplings in a system are designed to withstand pressure

towards the outside, but not underpressure);

• the installation be not made with gas-permeable materials (e.g. plastic pipes without oxygen barrier for underfloor

heating systems).

Damages suffered by the thermal module, caused by encrustations and corrosion, are not covered by warranty.

Andere Handbücher für Condexa PRO Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Riello Kessel Handbücher

Riello

Riello Residence PRO 32 KIS Leitfaden

Riello

Riello 20144523 Gebrauchs- und Pflegehandbuch

Riello

Riello Start Aqua Condens 25 BIS Bedienungs- und Installationshandbuch

Riello

Riello Vokera UNICA MAX Series Bedienungsanleitung

Riello

Riello RTT 163 Bedienungsanleitung

Riello

Riello Start Aqua Condens 25 BIS Bedienungs- und Installationshandbuch

Riello

Riello INSIEME EVOe 25 B/70 LN Bedienungsanleitung

Riello

Riello Residence Condens IS n Bedienungs- und Installationshandbuch

Riello

Riello Family KIS Series Bedienungs- und Installationshandbuch

Riello

Riello MINI 17 LN NG Bedienungsanleitung

Riello

Riello INSIEME EVOe 25 LN Handbuch

Riello

Riello ALU PRO power Series Benutzerhandbuch

Riello

Riello FAMILY AQUA CONDENS 3.5 BIS Bedienungs- und Installationshandbuch

Riello

Riello Start Condens 25 IS Bedienungs- und Installationshandbuch

Riello

Riello Array AR 800 Bedienungsanleitung

Riello

Riello Caldariello 24 KIS C Bedienungs- und Installationshandbuch

Riello

Riello FAMILY CONDENS 2.5 Bedienungs- und Installationshandbuch

Riello

Riello FASTECH 24 KI Bedienungs- und Installationshandbuch

Riello

Riello RTT 163 Bedienungsanleitung

Riello

Riello RTT 378 Bedienungsanleitung

Riello

Riello INSIEME EVO COND B/130 LN Bedienungsanleitung

Riello

Riello INSIEME EVO COND 25 B/130 LN Handbuch

Riello

Riello INSIEME CONDENS 26 B Handbuch

Riello

Riello TAU 35 UNIT Handbuch

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Leitfaden

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung
