Rinnai Avenger 25 Plus Bedienungsanleitung

This appliance shall be installed in accordance with:

• Manufacturer’s Installation Instructions

• Current AS/NZS 3000 & AS/NZS 5601

• Local Regulations and Municipal Building Codes

This appliance must be installed, serviced and repaired by an Authorised Person.

Portable Unflued Gas

Convection Heaters

With Electric Boost

Operation Manual

To Suit Models

Avenger 25 Plus

Capella 18 Plus

N10378

Rinnai i Operation Manual

This page intentionally blank.

Rinnai 1 Operation Manual

ABOUT YOUR NEW AVENGER/CAPELLA PLUS ....................................................2

CONTROL PANEL LAYOUT ......................................................................................3

REMOTE CONTROL ...................................................................................................4

FEATURES..................................................................................................................5

IMPORTANT POINTS .................................................................................................6

CUSTOMER OPERATING INSTRUCTIONS ............................................................11

HOW TO OPERATE THE HEATER ..........................................................................12

ADJUSTING TEMPERATURES................................................................................13

HEATER MODES & FUNCTIONS.............................................................................14

SETTING HEATER MODES......................................................................................15

SETTING CLOCK......................................................................................................16

PROGRAMMING THE ON/OFF TIMERS..................................................................17

OPERATING THE ON/OFF TIMERS ........................................................................18

PRE-HEAT.................................................................................................................18

OVERRIDE FUNCTION.............................................................................................19

USING THE REMOTE CONTROL ............................................................................19

CHILD LOCK .............................................................................................................20

SAFETY DEVICES ....................................................................................................20

CARE OF HEATER ...................................................................................................21

TROUBLE SHOOTING..............................................................................................22

ERROR CODES ........................................................................................................23

SPECIFICATIONS .....................................................................................................24

CONTACT INFORMATION .......................................................................................26

TABLE OF CONTENTS

Rinnai 2 Operation Manual

STANDBY/ON BUTTON

ABOUT YOUR NEW AVENGER/CAPELLA PLUS

Rinnai 3 Operation Manual

STANDBY/ON

STANDBY / ON button

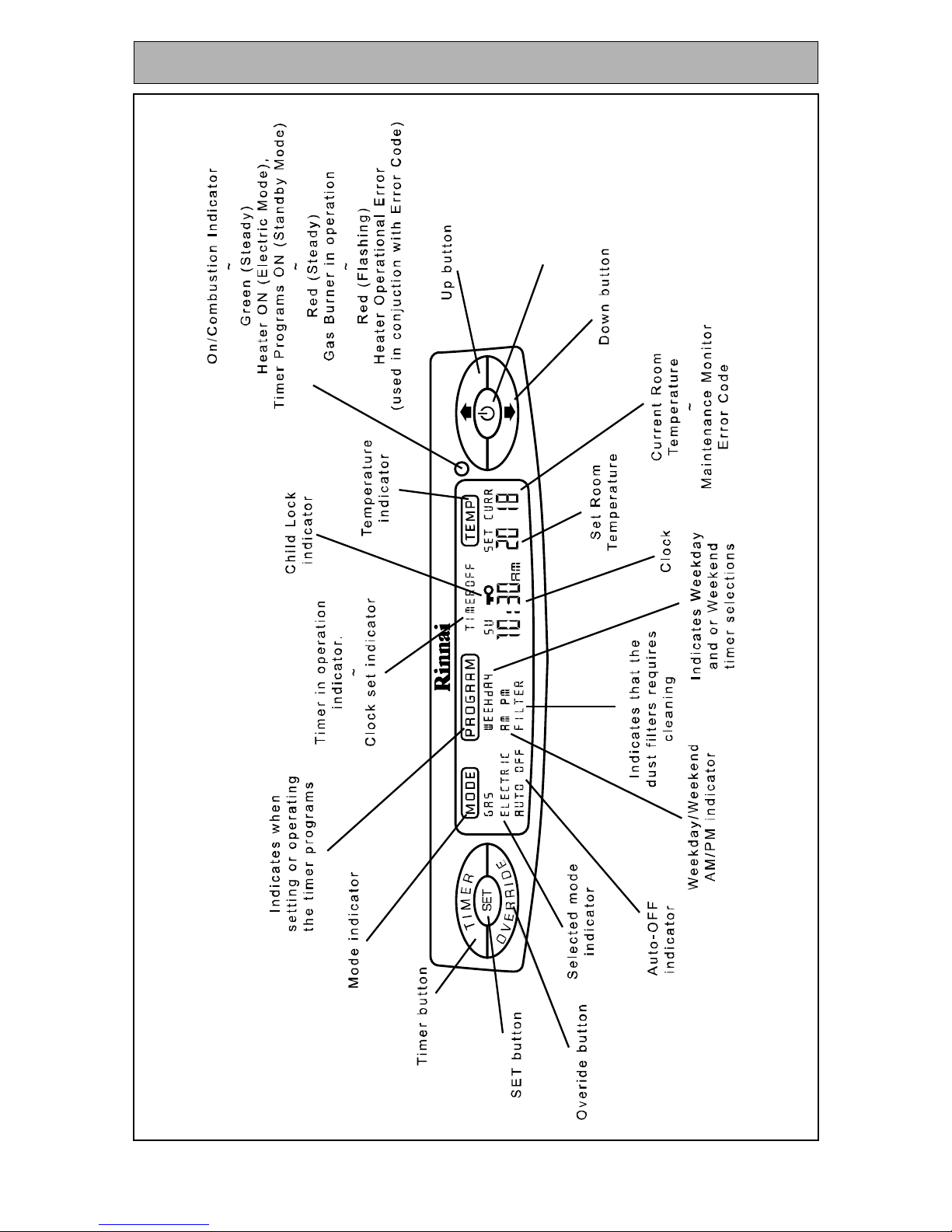

CONTROL PANEL LAYOUT

Rinnai 4 Operation Manual

STANDBY BUTTON

Timer mode.

STANDBY button will cancel any future timer

operations, these will have to be reset manually.

REMOTE CONTROL

Rinnai 5 Operation Manual

PUSH BUTTON IGNITION Only one touch of the STANDBY/ON switch is required

to operate the heater.

CHILD LOCK When the Child Lock is activated all controls other than

the STANDBY switch will be locked. Deactivating the

lock releases the controls. If the lock is activated when

the appliance is in STANDBY, all functions will be

locked.

MEMORY The micro-computer records selected preset

temperatures, the times programmed into Timers as well

as operating the Economy/Auto-Off and Pre-heat

modes, to maintain comfort levels.

PRE-HEAT This function will automatically operate the appliance

before the programmed start time of the Timer, in order

to heat a room to the pre-set temperature by the

programmed time.

FILTER INDICATOR When the fan filters become covered with dust, the filter

indicator will flash. The filters should be vacuumed at

regular intervals to avoid unnecessary strain on the

appliance.

REMOTE CONTROL For the convenience of operating the heater between

STANDBY or ON, as well as adjusting the temperature

up or down while at a short distance from the heater.

DUAL WEEKDAY / WEEKEND

TIMER

The Dual WEEKDAY/WEEKEND Timer allows you to

program the appliance to come on for two separate

periods each day, one period in the morning and one

period in the evening, on separate WEEKDAY and

WEEKEND timers. The built in Pre-heat Mode brings the

room temperature to the temperature you have selected,

by the time programmed into the Timer.

The Dual Timer feature means that you can "Set and

Forget" your heater. It will turn itself ON or to STANDBY

at the times you have programmed until you cancel the

Timer program.

ECONOMY / AUTO-OFF

FUNCTION

The Economy / Auto-Off functions are energy saving

feature designed to control the room temperature and

are automatically selected in all modes.

FEATURES

Rinnai 6 Operation Manual

Unpacking Appliance:

Check for damage. If the heater is damaged, contact your supplier for advice. Before installing the

appliance, check it is labelled for the correct gas type (see label on rear of heater). Refer to local gas

authority for confirmation of gas type if you are in doubt. The following items should also be included in

the carton: Customers Operation Information, Remote Control, Remote Control Caddy and Batteries.

IMPORTANT

1. The appliance must be installed in accordance with the local gas and electrical authority

regulations.

2. For information on gas consumption, see data plate on the appliance.

3. When using this appliance, ensure that the room is correctly ventilated. Check AS5601 (Gas

Installations) or the local gas authority for information on ventilation requirements, or refer to the

warning label located on the appliance.

4. DO NOT connect this appliance to the gas supply to heat a bedroom. It may be connected

to the electric supply for heating a bedroom in ‘ELECTRIC’ mode only.

5. DO NOT use this heater in the immediate surroundings of a bath, shower, swimming pool,

toilet or sauna. The appliance must not be used to heat any of these areas.

6. DO NOT connect to an LPG Gas cylinder indoors.

7. This appliance must not be installed where

curtains or other combustible materials could

come into contact with it. In some cases

curtains may need restraining.

8. This appliance is not designed to be built in.

Not intended for fireplace insert.

9. Heater must not be located below a power

socket-outlet.

10. If you move house, check the gas type in the

area where you are moving to.

11. The local gas and electrical authorities will be

able to advise on local regulations.

12. Heat emanating from the front of this appliance may over time affect the appearance of some

materials used for flooring such as carpet, vinyl, cork or timber. This effect may be amplified if the

air in the room contains cooking vapours or cigarette smoke. To avoid this possibility, it is

recommended that a mat be placed in front of the appliance, extending at least 750 mm in front

of it.

13. The appliance is not intended for use by young children or infirm persons without supervision.

14. Young children should be supervised to ensure they do not play with the appliance.

15. If the supply cord or gas hose are damaged or require replacing, they must be replaced by the

manufacturer or the manufacturer's agent or similarly qualified person in order to avoid a hazard.

16. The appliance weighs 21 kg. Exercise caution when lifting or moving.

DO NOT modify this appliance.

Servicing shall be carried out ONLY by authorised personnel.

WARNING

ON/OF

SET

50mm

750mm

50mm

The above diagram shows the clearances required

around this heater whilst in operation.

IMPORTANT POINTS

Rinnai 7 Operation Manual

Do not allow children to post articles in the

louvres.

The appliance is not intended for use by

young children or infirm persons without

supervision.

Young children should be supervised to

ensure they DO NOT play with the appliance.

Do not sit on this heater.

Do not allow children or elderly persons to

sleep in the warm air discharge from the

heater.

Do not cover or place articles on or against

this appliance.

IMPORTANT POINTS

Rinnai 8 Operation Manual

IMPORTANT POINTS

Do not operate/install this heater in areas

where painting is taking place, or in places

such as hairdressing salons, where there

may be fluff and dust, and where aerosols are

used.

Turn the heater on to STANDBY after use.

Keep heater away from flammable materials.

DO NOT use or store flammable materials

near this appliance.

Do not spray aerosols near this heater while it

is in the vicinity of this heater while it is in

operation.

Most aerosols contain butane gas which can

be a fire hazard if used near this heater when

it is in use.

Use of aerosols, paint, polishes etc. whilst

this heater is in use may also cause

unpleasant smells.

DO NOT modify this appliance.
