RHFE-551FT

FORCED FLUE HEATER

CUSTOMERS OPERATING

INFORMATION

AND

INSTALLATION INSTRUCTIONS

.‘I.

This appliance shall be installed in accordance with:-

Manufacturer’s Installation Instructions

Local Gas Fitting Regulations

Municipal Building Codes

GANZ Installation Code for Gas Burning Equipment

Any other relevant Statutory Regulation

This appliance must be installed, serviced and removed by an

Authorised Person. Rinnai

GAS SPACE HEATERS

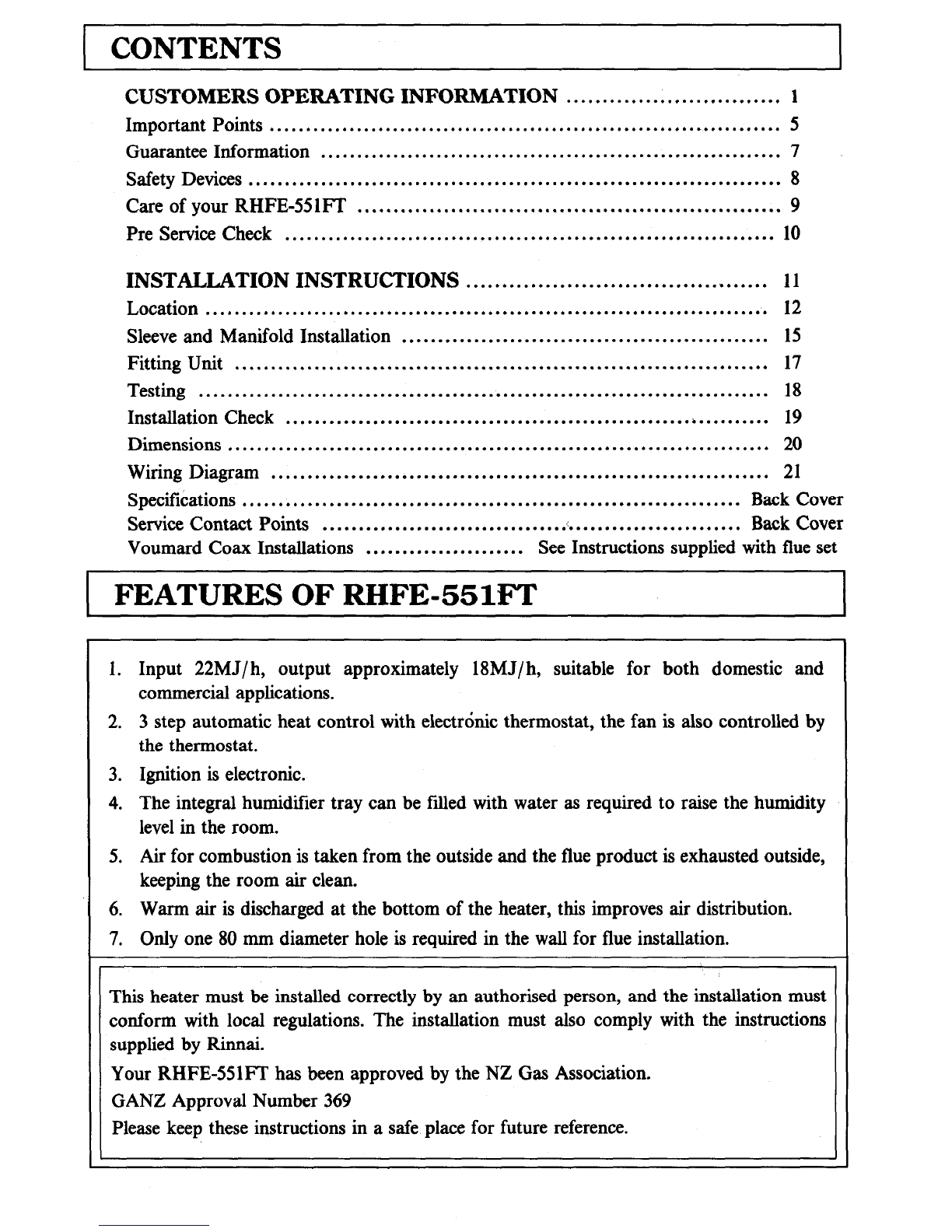

( CONTENTS

CUSTOMERS OPERATING INFORMATION .............................. 1

Important Points ....................................................................... 5

Guarantee Information ................................................................ 7

Safety Devices .......................................................................... 8

Care of your RHFE-551FT ........................................................... 9

Pre Service Check .................................................................... 10

INSTALLATION INSTRUCTIONS .......................................... 11

Location .............................................................................. 12

Sleeve and Manifold Installation ................................................... 15

Fitting Unit .......................................................................... 17

Testing ............................................................................... 18

Installation Check ................................................................... 19

Dimensions ........................................................................... 20

Wiring Diagram ..................................................................... 21

Specifications ..................................................................... Back Cover

Service Contact Points ................................ ..I ....................... Back Cover

Voumard Coax Installations ...................... See Instructions supplied with flue set

( FEATURES OF RHFE451FT

1. Input 22MJ/ h, output approximately 18MJ/ h, suitable for both domestic and

commercial applications.

2. 3 step automatic heat control with electrdnic thermostat, the fan is also controlled by

the thermostat.

3. Ignition is electronic.

4. The integral humidifier tray can be ftied with water as required to raise the humidity

level in the room.

5. Air for combustion is taken from the outside and the flue product is exhausted outside,

keeping the room air clean.

6. Warm air is discharged at the bottom of the heater, this improves air distribution.

7. Only one 80 mm diameter hole is required in the wall for flue installation.

This heater must be installed correctly by an authorised person, and the installation must

conform with local regulations. The installation must also comply with the instructions

supplied by Rinnai.

Your RHFE-551FT has been approved by the NZ Gas Association,

GANZ Approval Number 369

Please keep these instructions in a safe place for future reference.

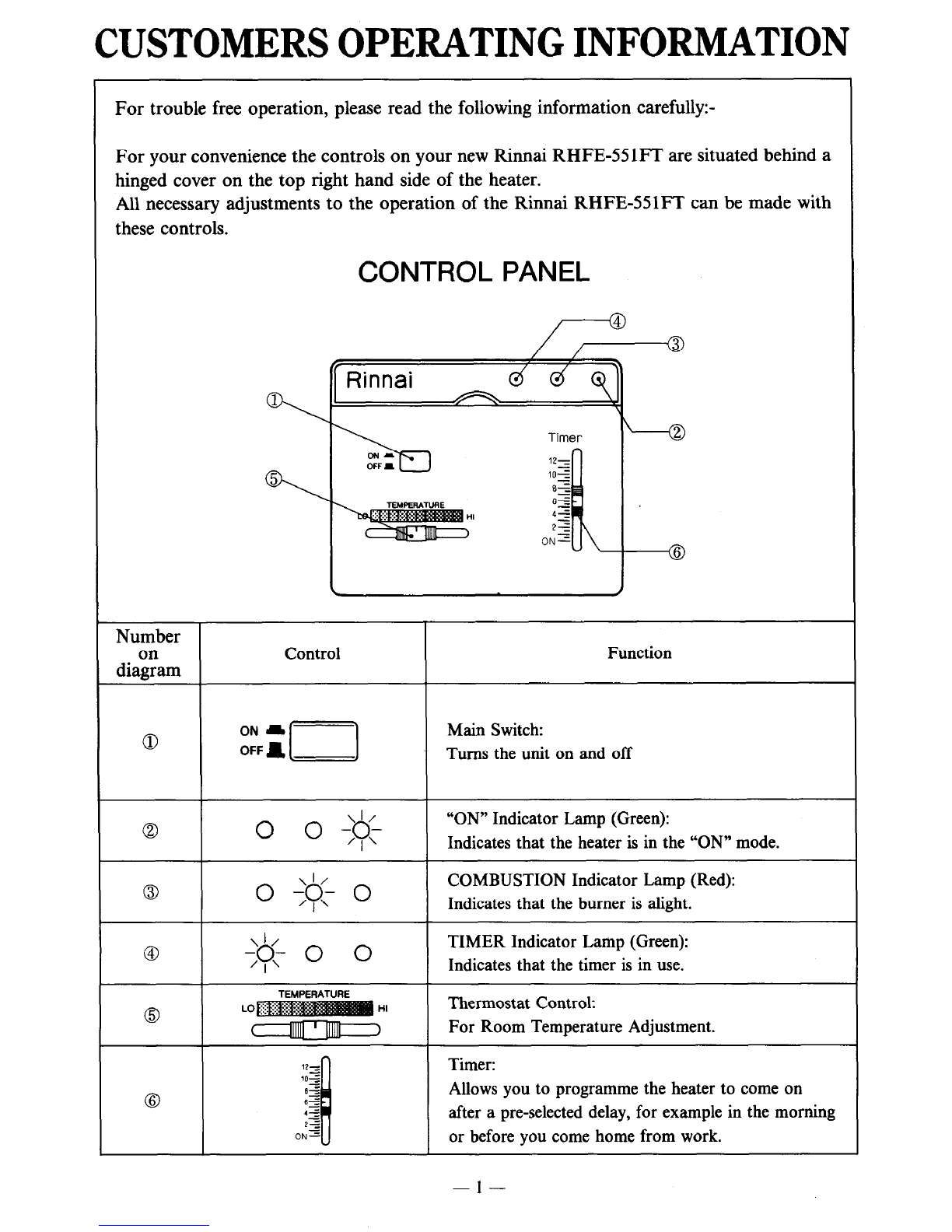

CUSTOMERSOPERATINGINFORMATION

For trouble free operation, please read the following information carefully:-

For your convenience the controls on your new Rinnai RHFE-551FT are situated behind a

hinged cover on the top right hand side of the heater.

All necessary adjustments to the operation of the Rinnai RHFE-551FT can be made with

these controls.

CONTROL PANEL

Number

diagam Control Function

a ON -

OFF& ~ Main Switch:

Turns the unit on and off

a 0 0 -;$- “ON” Indicator Lamp (Green):

Indicates that the heater is in the “ON” mode.

0 0 +- 0 COMBUSTION Indicator Lamp (Red):

Indicates that the burner is alight.

@I ;+- 0 0 TIMER Indicator Lamp (Green):

Indicates that the timer is in use.

TEMPERATURE Thermostat Control:

For Room Temperature Adjustment.

Timer:

Allows you to programme the heater to come on

after a pre-selected delay, for example in the morning

or before you come home from work.

-l--

1 CUSTOMERS OPERATING INFORMATION

H IGNITION (Not using Timer)

Make sure the timer is in the “ON”

position.

n To Ignite Main Burner

Push the main switch down to switch it

“ON”. ON * -

OFF 1 0

The green indicator lamp will glow.

The heater will light in about 15 seconds,

and the red indicator lamp will glow.

If the heater does not light, check that the

temperature control is set to a high enough

setting.

TEMPERATURE

n To Increase Room Temperature

Slide the temperature control towards the

“HI” position. The burner has 3 settings,

“OFF”, “LO”; “HI” and will automatically

modulate between these settings to keep

the room temperature constant. It is quite

normal for the burner to go out auto-

matically during operation. When the

burner goes out, the red combustion lamp

goes out, but the green operation lamp

stays alight.

The fan speed will also modulate according

to the room temperature.

TEMPERATURE

n To Decrease Room Temperature

Slide the control towards the “LO”

position.

The heater may go out completely, and

come on again when the room temperature

has dropped to the selected level.

TEMPERATURE

-2-

1 CUSTOMERS OPERATING INFORMATION

e mam swi o the “OFF”

position. The fan will continue to run until

the heater is cool.

Do not turn the heater off by unplugging

it from the power point.

If the main switch is in the “ON” position

and the operation lamp is out, the unit is

in Lockout (automatic shut off). This does

not apply when timer is in use.

To re-set, switch off, wait 10 seconds, then

switch on again.

No “Operation”

Indication

Set timer

hours delay which you require.

For example if you are going to bed at 11

p.m. and need the heater to warm the

room at 7 a.m. slide the control to 8 hrs.

Turn the heater on (Push main switch)

Set the thermostat

Turn ON

(The timer moves back towards the “ON”

position indicating the remaining delay

time.) TIMER INDICATOR

GLOWS

After the pre-selected delay, the operation

lamp will glow. The burner will light

automatically in about 15 seconds and the

heater will maintain the pre-set room

TEMPERATURE

Thermostat

The burner will go out and the fan will

stop when the heater is cool.

The heater will relight after the pre-selected

delay.

CUSTOMERS OPERATING INFORMATION

So that you can humidify the air your

RHFE-551FT is fitted with an enamelled

tray behind the air outlet. To fill the tray,

open the door as shown in the diagram

and pour water into the tray using the

spout built into the door.

The air will be humidified as it passes over

the water in the tray. DO NOT FILL

THE TRAY WHILST THE UNIT IS IN

OPERATION. CLOSE THE DOOR

AFTER FILLING. The RHFE-551FT is

a very high efficiency appliance, during

operation a small amount of water is

produced in the flue tubes, this drains into

the enamel tray. It is quite normal for a

small quantity of water to remain in the

bottom of the tray. If you are using the

humidifier, it will need filling about once

a day during the heating season.

Do not force door open too far.

Close door during operation.

To protect the fan from dust and lint, the

RHFE-55 1FT is fitted with 2 fan filters.

They are located at the top, rear of the

unit. To clean, pull the filters out of the

unit and remove dust with a soft brush or

a vacuum cleaner. Replace filters after

cleaning, Weekly cleaning is recommended

during the heating season.

WOUTSIDE FLUE

On cold days steam may be discharged from the flue outlet, this is normal with a high

efficiency appliance and does not indicate any fault.

The heater and its flue must be installed correctly by an authorised person, and the

installation must conform to all local regulations.

The installation also must comply with the instructions supplied by Rinnai.

This heater must be serviced, installed and removed by an authorised person.

No parts or functions should be modified or permanently removed from the heater or its

flue.

-4-

IMPORTANT POINTS

Do not use for any other purpose except

heating.

Do not allow curtains or other flammable

materials to come into contact with the

heater

Do not store flammable products near the

unit.

These clearances should be maintained at

all times.

15Omm iI

50mm

-1 m-

Keep flammable materials, trees shrubs

etc. away from flue terminal.

.(., Flue Terminal

Supervise children near heater Do not allow young children or the infirm

to sleep directly in front of the heater

-5-

1 IMPORTANT POINTS

Do not allow children to ‘post’ articles in

the louvres.

Do not spray aerosols on the heater whilst

it is in operation.

Do not sit on this heater.

Do not place any articles containing liquids

on top of the heater.

Do not place articles on or against the

heater.

-6-

GUARANTEE INFORMATION

H RINNAI GUARANTEE OF QUALITY

As a purchaser of a high quality Rinnai Product, we provide you with the following

guarantee on your new RHFE-551FT. J

All parts

FREE PARTS

1 year

The benefits conferred by this guarantee are in addition to all other rights and remedies in

respect of the product which you have under the Trades Practices Act.

Please record below:

Your Retailer:

Address:

Date Of Purchase:

Your Installer:

Address:

Phone:

Installer’s Licence No.

Phone:

Date Of Installation:

The installer is responsible for your heater’s correct installation. (There is no need to post

this guarantee back to Rinnai. Simply keep it in a safe place as your record.)

-7-

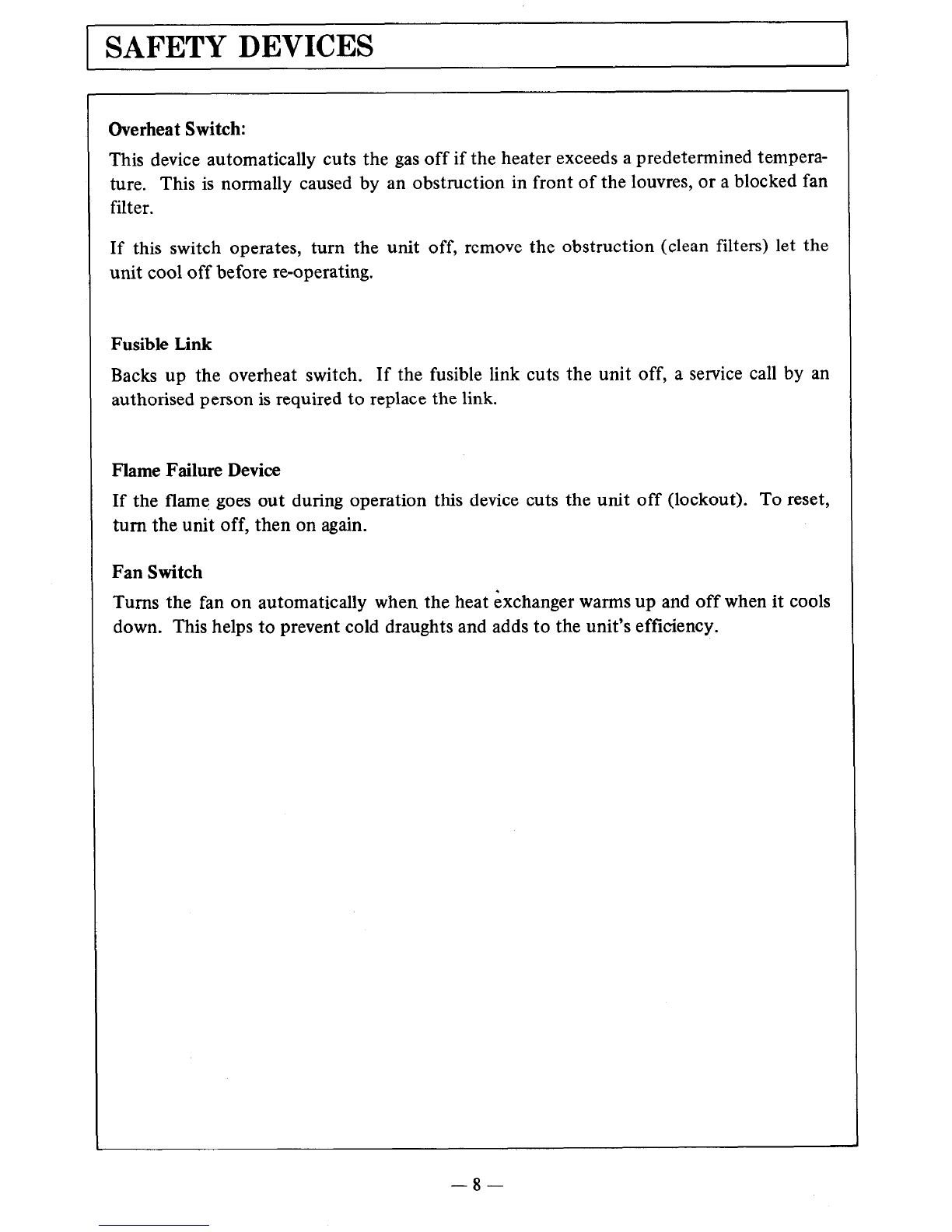

1SAFETY DEVICES

Overheat Switch:

This device automatically cuts the gas off if the heater exceeds a predetermined tempera-

ture. This is normally caused by an obstruction in front of the louvres, or a blocked fan

filter.

If this switch operates, turn the unit off, remove the obstruction (clean filters) let the

unit cool off before re-operating.

Fusible Link

Backs up the overheat switch. If the fusible link cuts the unit off, a service call by an

authorised person is required to replace the link.

Flame Failure Device

If the flame goes out during operation this device cuts the unit off (lockout). To reset,

turn the unit off, then on again.

Fan Switch

Turns the fan on automatically when the heat exchanger warms up and off when it cools

down. This helps to prevent cold draughts and adds to the unit’s efficiency.

-8-

Andere Handbücher für RHFE-551FT

Inhaltsverzeichnis

Andere Rinnai Heizung Handbücher

Rinnai

Rinnai RCE-592ACPA Montage- und Bedienungsanleitung

Rinnai

Rinnai RE650PMS(H) Bedienungsanleitung

Rinnai

Rinnai 1001T Bedienungsanleitung

Rinnai

Rinnai INFINITY 16 Montageanleitung

Rinnai

Rinnai ORH15SR Bedienungsanleitung

Rinnai

Rinnai ODHRAD3MN Technisches Datenblatt

Rinnai

Rinnai RHE1S40N Bedienungsanleitung

Rinnai

Rinnai RCE-329A Bedienungsanleitung

Rinnai

Rinnai RHFE-551FT Bedienungsanleitung

Rinnai

Rinnai RHFE-556FTR Technisches Datenblatt

Rinnai

Rinnai RHFE-556 FM Bedienungsanleitung

Rinnai

Rinnai Energysaver RHFE-1004FTR Betriebsanleitung

Rinnai

Rinnai RHFE-551FA Bedienungsanleitung

Rinnai

Rinnai RCE-460PTR Bedienungsanleitung

Rinnai

Rinnai RHFE-308 FTR Bedienungsanleitung

Rinnai

Rinnai ENERGYSAVER RHFE-308FTR Betriebsanleitung

Rinnai

Rinnai Arriva 750 Bedienungsanleitung

Rinnai

Rinnai RHFE-556FTR Bedienungsanleitung

Rinnai

Rinnai 37AHA04508KA5 Bedienungsanleitung

Rinnai

Rinnai RHFE-952ER Bedienungsanleitung

Rinnai

Rinnai Graduate MkII Bedienungsanleitung

Rinnai

Rinnai ENERGYSAVER RHFE-308FTR Bedienungsanleitung

Rinnai

Rinnai RCE-229A Kurzanleitung

Rinnai

Rinnai Efficiency HD250i Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
