Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

TIMBERFLAME COMPACT

Operation and Installation Manual

(for serial numbers 0901 7042 and above)

Suitability

Domestic heating appliance, suitable for living rooms and open plan

areas.

This heater is not designed:

To be built directly into a combustible opening, for combustible

opening installations a Rinnai Zero Clearance Box and Flue Kit is

mandatory

To be installed or operated in places where painting is taking place, or

in places such as hair salons where there is a lot of dust and uff, and

where aerosols are used

•

Appliance must only be installed with an approved Rinnai ue system.

Appliance must be installed, commissioned and serviced by a licensed

tradesperson in accordance will all applicable local rules and regulations.

Please retain this manual for future reference.

Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

LIMITED WARRANTY

Please keep these instructions in a safe place for future reference.

RECORD AND ATTACH YOUR PROOF OF PURCHASE BELOW:

Your Retailer:__________________________________________________

Name:________________________________________________________

Address:______________________________________________________

_____________________________________________________________

Telephone:( _______ ) __________________________________________

Date of Purchase: ______ / ______ / _________

TERMS AND CONDITIONS

1. During the 24 month period from date of

purchase and subject to clauses 2 and

3 below, Rinnai New Zealand Limited

(“Rinnai”) will, at its own discretion, either

replace or repair any defective product at

no charge to the customer.

2. This warranty covers manufacturing defects

only. This warranty will not apply if (for

example) the product has been improperly

installed or is otherwise installed contrary

to manufacturer’s recommendations, has

been damaged during or after installation,

has not been operated in accordance

with operating instructions, or has been

subjected to damage or abuse beyond that

expected from conditions of normal use.

3. Warranty claims may be invalid if not

accompanied by details of the installing or

supervising gas tter’s registration number

and the gas tting certication number.

4. This warranty commences from the date of

purchase. Proof of purchase is required at

the time of any warranty claim.

5. Servicing of the product is to be carried out

by a Rinnai authorised service centre.

All Rinnai appliances meet or exceed the

safety standards required by New Zealand

gas and electrical regulations. The company

is constantly improving its products and as

such specications are subject to change or

variation without notice.

Rinnai brings you peace of mind

with a 2 year minimum warranty.

Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

Contents

WARNING

Improper installation, adjustment, alteration, service or maintenance

can cause property damage, personal injury or loss of life.

For assistance or additional information contact Rinnai on 0800

RINNAI (0800 746 624).

Customer Information

Limited Warranty 2

Introduction 4

Safety 5

General Information 6

Operation 8

Troubleshooting 9

Installation Information

Before Installation 10

Specication 10

Appliance Location 11

Flueing - General Flueing Guidelines 12

Flueing - Masonry Installations and Flexiliner Flue Systems 13

Flueing - Decorative Fireplace Installations and Flueing 14

Installation - Preparation 15

Installation - Gas Connection 16

Installation - Installing the Logset 17

Testing Procedure 18

Commissioning 19

Installer Details 19

Wiring Diagram 20

Customer Contacts 20

Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

Customer Information - Introduction

Made for New Zealand, made in New Zealand

All Rinnai ame res are designed and made here in New Zealand to suit our unique climatic

conditions and the needs to New Zealand homeowners.

A great all-round re in a smartly designed package

Adaptable and safe

The Timberame Compact has the exibility to t into even the tightest of masonry replaces.

As with all Rinnai res, it’s got built-in safety features including an overheat switch and ame

failure detectors.

Perfect features

stylish brushed stainless steel or matt black steel

electronic push-button ignition

2-speed convection fan ensures even heat dispersal over a wide area

•

Gas Consumption: 25 - 9 MJ/h (high to low)

Output: 5.0 - 1.6 kW

Efciency: 73%

Heats Area Up To: 56 - 78 m2(depending on the region you live in)

Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

Customer Information - Safety

Do not restrict warm

air discharge by placing

articles in front of the

appliance.

This appliance

must not be used

for any other

purpose than

heating.

Do not spray aerosols

while the appliance

is operating. Most

aerosols contain

butane gas, this

can be a re hazard

if used near the

appliance.

Young children

should be

supervised at all

times. Hand or

body contact with

the appliance must

be avoided.

Do not allow

anyone to sit, lean

against or sleep

directly in front of

the appliance

Do not allow anyone to

post articles through

into the heater.

Do not unplug

the appliance

while it is

operating. Do

not use power

boards or double

adaptors to

operate this

appliance.

Do not allow curtains

or other combustible

materials to come

into contact with the

appliance

Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

Customer Information - General

Before operation

Read these instructions to get an overview of how to operate, maintain and service your

Timberame Compact.

Clearance to combustibles, mantles and surrounds

Combustible clearances

The appliance must not be installed where curtains or other combustible materials could come

into contact with the heater. In some case curtains may need restraining.

Mantles and surrounds

A mantle is allowable providing it is outside the minimum clearances shown.

For an additional overhang, 100 mm of vertical clearance is required for every 50 mm of added

depth. For example, a 100 mm mantle depth requires 400 mm of vertical clearance.

Floor protection

Heat emanating from this re may over time affect the appearance of some

materials used for ooring, such as, carpet, vinyl, cork or timber. This may be

amplied if the air contains cooking vapours or cigarette smoke. To avoid this

occurring, it is recommended that a mat be placed in front of the appliance.

Combustible Clearances Mantles

300mm

1000mm

300 mm minimum

from top of glass

50 mm maximum

at 300 mm above

Electrical connection

Appliance must not be located below a power socket outlet. If the supply cord is

damaged and requires replacing, it must be replaced by a licensed tradesperson. This

must be a genuine replacement part available from Rinnai.

Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

Customer Information - General

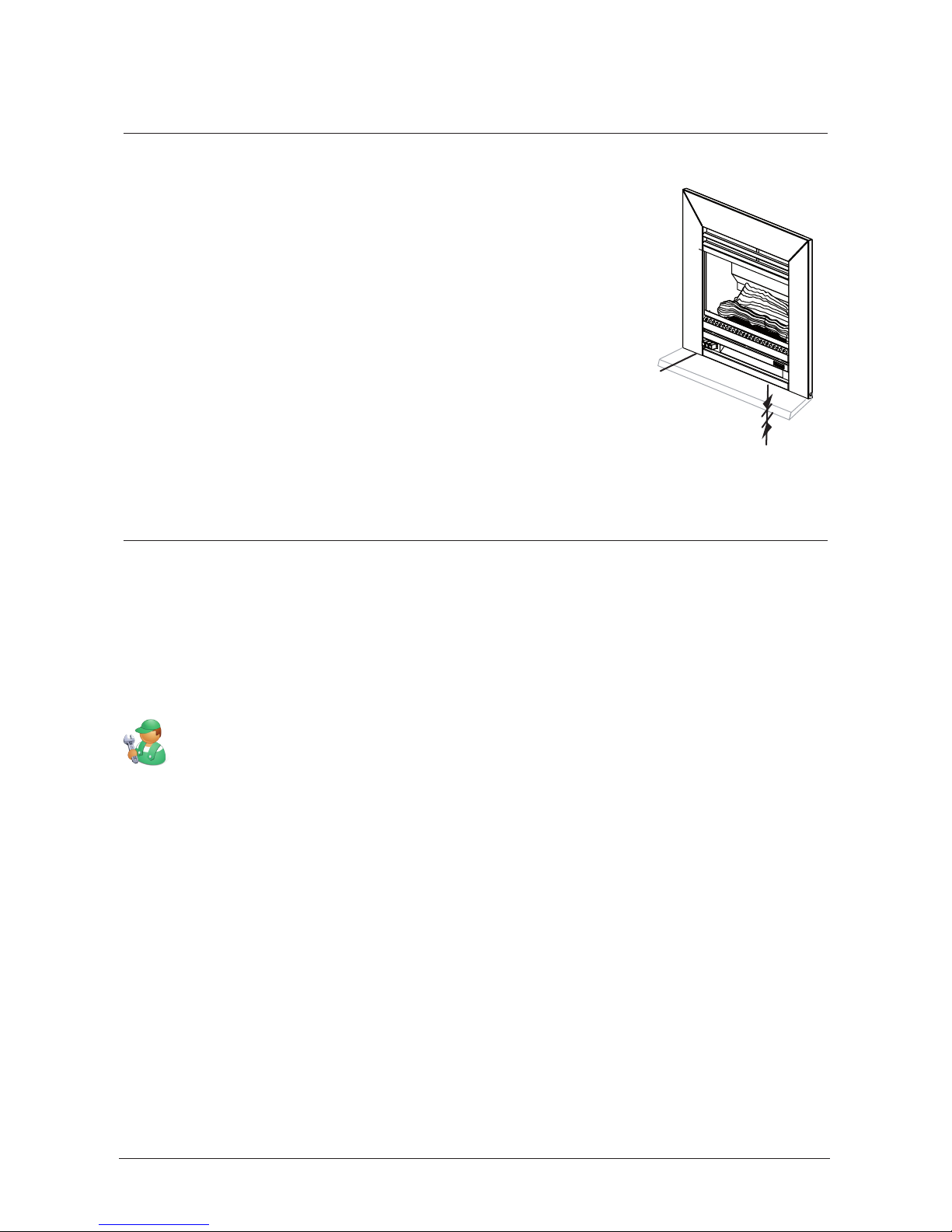

Hearths

A hearth is not necessary but can be used for decorative

purposes or protection of sensitive ooring if required.

Some general guidelines when installing a hearth such as

in an existing masonry replace.

It must not obscure the front of the re

The bottom of the appliance must be level with the

top of the hearth so there is a continuous level

Size should be at least the width and depth of the re

Remember to adjust the dimensions of the cavity to

allow for the hearth

In some instances an increase in hearth is desired. For the Timberame range this may affect

aesthetics. The increase in hearth height may cause you to look directly into the vents where

the wiring is visible instead of the ame prole.

•

Ensure continuous level

Adjust dimensions of cavity to

allow for the hearth

Maintenance and servicing

Maintenance

Your heater needs very little maintenance to keep it looking good. All parts of the heater

can be cleaned using a soft, damp cloth and mild detergent. Do not use solvents and do not

attempt to clean the heater while it is hot or operating.

Servicing

Rinnai has a service and spare parts network with personnel who are fully trained and

equipped to give the best advice on your Rinnai appliance. If your appliance needs

servicing, please call Rinnai (0800 746 624) and select option 1 for a service centre in

your area.

For reliable operation Rinnai Flame Fires should be serviced every 2 years (including inspection

of the ue system). If they are in a particularly dusty environment or subject to excess lint,

for example dog hair or where there are newly laid carpets then annual servicing would be

benecial.

Regular servicing is not covered by the Rinnai warranty.

Do not attempt to carry out any service work other than that mentioned in the troubleshooting

section. If you have any other faults or problems, please refer to your installer or call Rinnai.

Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

Customer Information - Operation

Ignition

Firmly press the IGN button for 10 seconds and release. This operates the built-in safety

device and starts the electronic spark (lights to pilot).

If the pilot does not remain alight, wait 2 minutes before retrying ignition. If the heater does

not ignite on initial use it may be due to air remaining in the gas supply line.

HIGH LOW IGN

Adjusting the heat

Press the buttons from ‘LOW’ to ‘HIGH’. This will ignite additional burners as shown above.

Turning off

Press and release the buttons from ‘HIGH’ to ‘IGN’ until they are in the off position. The fan

will stop when the heater cools.

Fan operation

The fan will operate automatically when the heater warms up and will stop when it cools.

When the heater is on the ‘LOW’ setting the fan may turn off as the heater cools and restart

when warm.

In the event of a power failure

If there is a power failure, turning the heater to the ‘LOW’ setting may allow the heater

to continue operating without overheating. Remaining on the ‘HIGH’ setting will cause the

overheat protection switch to activate. This will shut down the appliance.

The words HIGH, LOW and IGN are not part of

the control panel. They have been displayed to

highlight what each of the different settings mean.

Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

Customer Information - Troubleshooting

Symptom Cause Solution

Burner will not light No power present

No gas present

Power cut

Air in gas pipe

Ignition failure

Ensure power cord is plugged in and turned on

Ensure gas supply is turned on

Re-ignite after power is restored

Installer to do - purge air

Repeat ignition steps

Smell of gas Leaking gas Turn off gas at meter or LPG cylinder and call installer

Fan not working Heat switch is not activated

No power present

Allow heater to run on HIGH for approximately 5 mins

Ensure power cord is plugged in and turned on

Small soot deposit Normal operation No action required

Severe soot

deposits forming

on logs or glass

Inadequate ue system, incorrect

gas pressure or log misalignment

Call a Rinnai Service Centre

Condensation on

glass

Normal operation Allow heater to warm-up and condensation will

disappear

Streaky lines on

glass

Normal operation Clean glass

During installation there will be an initial burning in period where some smoke and smell may

be experienced. This is a normal part of the operation.

The appliance is tted with an overheat safety switch. Under overheating conditions this switch

will shut off the appliance. If the appliance shuts off repeatedly servicing may be required.

Abnormal ame pattern

Each Rinnai Flame Fire has a distinct ame pattern. This should look the same every time you

start your re, after an initial warm up period of approximately 20 minutes.

Abnormal ame performance and/or pattern can indicate a problem with your re, such as

blocked gas injectors or articial logs/burn media have shifted from when the re was rst

installed. There are some warning signs that could indicate a problem.

Unusual smell from the appliance

Continued difculty or delay in establishing a ame

Flame appears either very short or very long

Flame only burns part way across the burner

Severe soot building up on the inside of the glass door

If any of the above signs occur, please call Rinnai to discuss.

•

Normal Abnormal

Rinnai New Zealand Compact Op/Install Manual: 10170-C 02-09

Installation Information - General

Before installation

Unpack the appliance and components and check for damage. DO NOT install any

damaged items.

Check all components have been supplied and that you have the correct gas type.

Read these instructions to get an overview of the steps required before starting the

installation. Failure to follow these instructions could cause a malfunction of the

appliance. This could result in serious injury and property damage.

Specication information

Data Plate Inside appliance - bottom panel front right hand side

Dimensions H-645 mm, W-750 mm, D-277 mm

Fan Type Tangential 2-speed, rating 28 W

Flue - Masonry Rinnai strongly recommends the use of a Rinnai Flexiliner Flue system. Failure to meet this

criteria may result in an unsafe situation. Installation without a exiliner ue is permissible

as long as the chimney is checked for soundness and ability to achieve a good draw.

Terminal 43 mm x 245 mm rear discharge (spigot)

Flue - Decorative Natural draft twin skin ue. Termination, an approved 100 mm cowl must be tted to

all installations. Decorative chimney installations require a Zero Clearance Box and Zero

Clearance Flue Kit. Flue dimensions, outer - 150 mm, inner - 100 mm.

Gas Connection ½ “ BSP male are to barrel union

Gas Type NG or LPG

Noise Level 49 dB(A)

Power Consumption High 80 W, Standby 4 W

Weight 39 kg

Inhaltsverzeichnis

Andere Rinnai Kamin im Innenbereich Handbücher

Rinnai

Rinnai RHFE-551FA Bedienungsanleitung

Rinnai

Rinnai Arriva 752 Bedienungsanleitung

Rinnai

Rinnai RHFE 952 ETRN Bedienungsanleitung

Rinnai

Rinnai RF1800 Bedienungsanleitung

Rinnai

Rinnai Linear Series Bedienungsanleitung

Rinnai

Rinnai 650 Bedienungsanleitung

Rinnai

Rinnai RHFE-750ETRA Bedienungsanleitung

Rinnai

Rinnai FS 35 Bedienungsanleitung

Rinnai

Rinnai Arriva 752 Bedienungsanleitung

Rinnai

Rinnai LS1000 Bedienungsanleitung

Rinnai

Rinnai FLAME FIRES Bedienungsanleitung

Rinnai

Rinnai RHFE 750 Bedienungsanleitung

Rinnai

Rinnai Symmetry RDV3611ETRN Bedienungsanleitung

Rinnai

Rinnai RHFE-1252ER Bedienungsanleitung

Rinnai

Rinnai Symmetry RDV3611 Bedienungsanleitung

Rinnai

Rinnai SS850 Bedienungsanleitung

Rinnai

Rinnai Advance Technisches Datenblatt

Rinnai

Rinnai Compact 2 Bedienungsanleitung

Rinnai

Rinnai Symmetry RDV3610 Bedienungsanleitung

Rinnai

Rinnai Evolve 952 Series Bedienungsanleitung

Rinnai

Rinnai Neo Bedienungsanleitung

Rinnai

Rinnai Timberflame IB30 Bedienungsanleitung

Rinnai

Rinnai Sapphire RIB2310 Bedienungsanleitung

Rinnai

Rinnai Neo RIB2311N Bedienungsanleitung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
