This appliance shall be installed in accordance with:

• Manufacturer’s Installation Instructions

• Current AS/NZS 3000, AS/NZS 3500 & AS 5601

• Local Regulations and Municipal Building Codes

This appliance must be installed, serviced and removed by an Authorised Person.

All Rinnai gas products

are A.G.A. certied.

Distributed and serviced in Australia under a Quality

System certied as complying with ISO 9001 by SAI

Global

Luminaire® Outdoor Gas Fire

Operation / Installation Manual

Models: ROF4500, 4501,

4502, 4100, 4101, 4102

A luminous effect appliance. Not certified as a space heater.

FOR OUTDOOR USE ONLY - this appliance shall not be installed or used indoors

Rinnai Australia - ii - Rinnai Luminaire® Outdoor Gas Fire - Operation and Installation Manual

This appliance must be installed by an Authorised person. The installation of gas must conform to

local regulations.

The installation must also comply with the instructions supplied by Rinnai.

Your Rinnai Luminaire® Outdoor Gas Fire has been approved by the Australian Gas Association. 

The A.G.A. Approval Number is shown on Data plate.

Please keep this instruction booklet in a safe place for future reference.

The Rinnai Luminaire® Outdoor Gas Fire does not need to be installed by a registered gas fitter if

connecting to a 9 kg LPG cylinder.

Ensure you read and understand the separate Warranty terms and conditions form

accompanying this appliance.

• Installations and connections for Universal LPG and NG connections must

be completed by a certified gas fitter when installed in reticulated system.

• Improper Installation, adjustment, alteration, service or maintenance can

cause property damage, personal injury or loss of life. For assistance or

additional information consult an authorised person.

• This appliance is for OUTDOOR use only. Refer to page 7 for details.

• DO NOT operate appliance indoors.

• DO NOT store or use petrol or other flammable vapours and liquids in the

vicinity of this Rinnai Luminaire® Outdoor Gas Fire.

• DO NOT operate in an unventilated area. Refer to page 7 for details.

• DO NOT obstruct the flow of air around this appliance whilst in use. Refer

to “Clearances and Location” section page 7.

• Certain materials or items when placed near the Rinnai Luminaire®

Outdoor Gas Fire may be affected by the radiant heat and could be

damaged. 

Keep all items away from your Rinnai Luminaire® Outdoor Gas Fire. Refer

page 3 for details.

• Keep Rinnai Luminaire® Outdoor Gas Fire away from combustible

materials. Maintain the Clearances as shown on page 7 and page 14.

• DO NOT light unit or attempt to light this appliance with the stainless steel

Weather/Cover on.

• DO NOT place cover on while unit is operating.

• DO NOT use with any other gas than that stated on data label.

• NOT TO BE USED AS A COOKING APPLIANCE.

• NOT TO BE USED FOR ANY OTHER PURPOSE OTHER THAN A LUMINOUS

EFFECT GAS FIRE.

• DO NOT USE TO DRY CLOTHES.

• DO NOT USE SOLD FUELS, WOOD, HEAT BEADS ETC. ON THIS

APPLIANCE. ONLY USE BURNER MATERIAL SUPPLIED.

Please keep these instructions in a safe place for future reference

Please take a moment to complete the following information:

Your Retailer: ______________________________________________

Name: ______________________________________________

Address: ______________________________________________

Telephone No. ______________________________________________

Date of Purchase: ________ / ________ / _______________________

WARNING

REGULATORY INFORMATION

WARRANTY INFORMATION

WARNINGS

Rinnai Australia - iii - Rinnai Luminaire® Outdoor Gas Fire - Operation and Installation Manual

REGULATORY INFORMATION ..............................................................................................ii

WARNINGS ..............................................................................................................................ii

WARRANTY INFORMATION ...................................................................................................ii

CARTON CONTENTS ............................................................................................................ 1

ACCESSORIES CONTENTS .................................................................................................. 2

SAFETY INFORMATION ........................................................................................................ 3

CLEARANCES AND LOCATION ............................................................................................ 7

CUSTOMER INFORMATION - OPERATION ......................................................................... 8

ABNORMAL FLAME PATTERN ............................................................................................. 9

INSTALLERS INFORMATION - TROUBLESHOOTING ......................................................... 9

SERVICING ............................................................................................................................. 9

SPECIFICATIONS ................................................................................................................ 10

INSTALLATION APPLICATIONS .......................................................................................... 12

GAS CONNECTION .............................................................................................................. 13

APPLIANCE LOCATION ....................................................................................................... 14

KITSET INSTALLATION - NON COMBUSTIBLE FRAME .................................................... 15

KITSET INSTALLATION - COMBUSTIBLE FRAME ............................................................. 16

DOOR ASSEMBLY ............................................................................................................... 17

FASCIA INSTALLATION ....................................................................................................... 19

MASONRY INSTALLATION .................................................................................................. 21

FREESTANDING UNIT ......................................................................................................... 22

BURNER MATERIAL ............................................................................................................ 22

CHECKLIST .......................................................................................................................... 23

INSTALLERS / GAS FITTER DETAILS ................................................................................ 23

CONTACT INFORMATION ................................................................................................... 23

TABLE OF CONTENTS

Rinnai Australia - 1 - Rinnai Luminaire® Outdoor Gas Fire - Operation and Installation Manual



Burner Only

Burner Assembly x 1 Granite Cover x 2 & Granite Trim x 6 Pumice/Stones/Pebbles x 1 each

Stainless Steel Weather - Cover x 1 Instruction Manual/Warranty Sheet LP Hose & Regulator Assy x 1

One Sided Unit

Burner and Box Assembly x 1 Granite Cover x 2 & Granite Trim x 6 Pumice/Stones/Pebbles x 1 each

Fascia Trim Kit Components x 1 Instruction Manual/Warranty Sheet LP Hose & Regulator Assy x 1

Angle Brackets x 4 Lintel x 1 Stainless Steel Weather-Coverx1

Two Sided See-Through Unit

Burner and Box Assembly x 1 Granite Cover x 2 & Granite Trim x 6 Pumice/Stones/Pebbles x 1 each

Fascia Trim Kit Components x2 Instruction Manual/Warranty Sheet LP Hose & Regulator Assy x 1

Angle Brackets x 4 Lintel x 2 Stainless Steel Weather-Coverx1

Granite Trim x 6

Granite Cover x 2

Granite Trim x 6

Granite Cover x 2

M4 x 8 Pan head -

10pcs

M5 x 10 Pan head - 8pcs

Trim Bracket – 4pcs Left side Trim – 1pce

Bottom Trim – 1

Top Trim – 1pce

Right side Trim – 1pce

Granite Trim x 6

Granite Cover x 2

M4 x 8 Pan head -

10pcs

M5 x 10 Pan head - 8pcs

Trim Bracket – 4pcs Left side Trim – 1pce

Bottom Trim – 1

Top Trim – 1pce

Right side Trim – 1pce

CARTON CONTENTS

Rinnai Australia - 2 - Rinnai Luminaire® Outdoor Gas Fire - Operation and Installation Manual



Accessories

Glass Door Kit:

M4 x 8 - 4 pieces

M5 x 10 - 2 pieces

Fascia Trim Kit Components x 1

Universal LPG - NG Gas Conversion Kit

M4 x 8 Pan head -

10pcs

M5 x 10 Pan head - 8pcs

Trim Bracket – 4pcs Left side Trim – 1pce

Bottom Trim – 1

Top Trim – 1pce

Right side Trim – 1pce

ACCESSORIES CONTENTS

Rinnai Australia - 3 - Rinnai Luminaire® Outdoor Gas Fire - Operation and Installation Manual

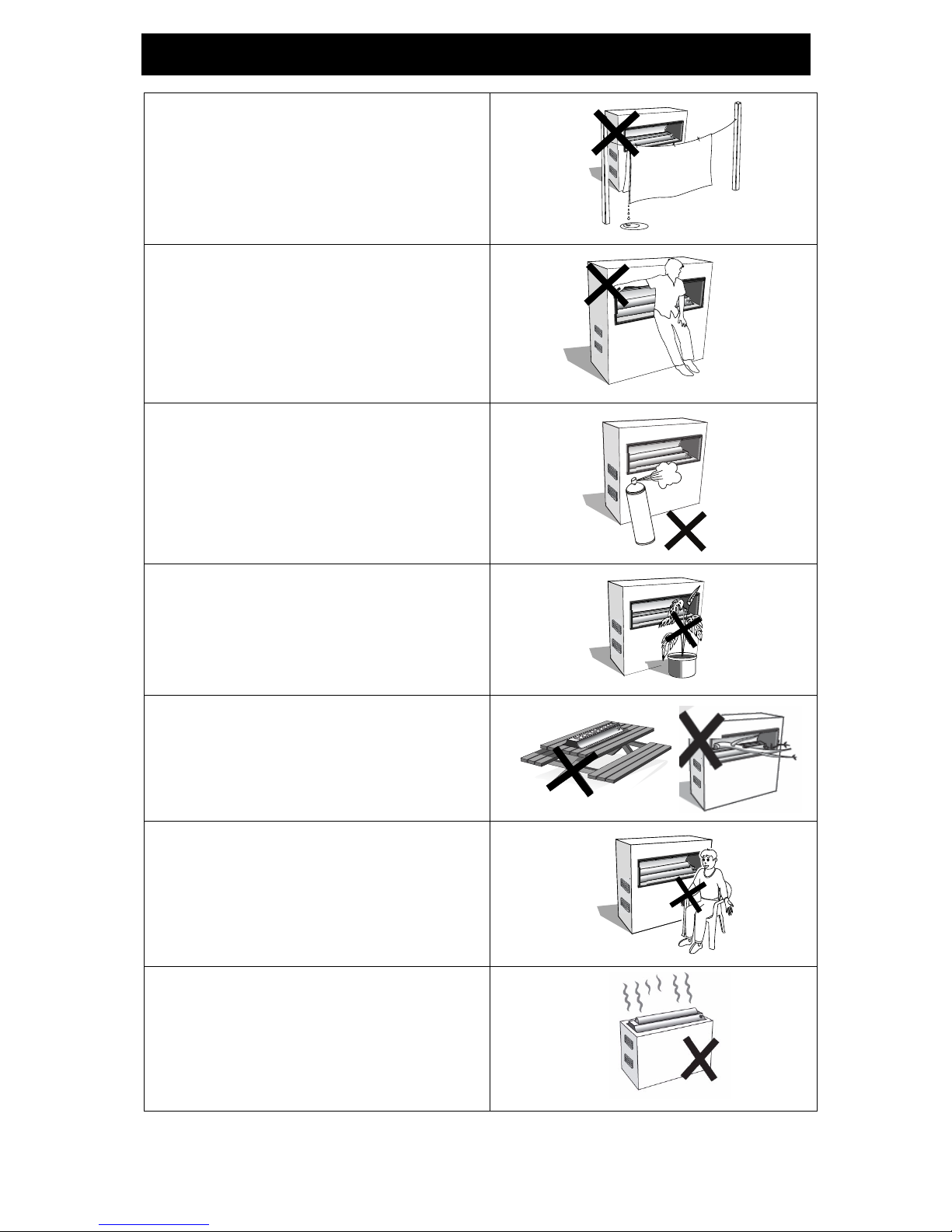

Clothing or other flammable materials should not

be hung from the appliance, or be placed on or

near the appliance.

Children and adults should be alerted to the

hazards of high surface temperatures, burns and

clothing ignition. 

Do no allow anyone to sit or lean against the

appliance.

Young children and the infirm should be

supervised at all times when they are in the area of

the appliance.

Do not spray aerosols in the vicinity of this

appliance while it is in operation. Most contain

inflammable contents or an inflammable propellant

which may ignite creating a dangerous situation.



Do not use or store flammable materials near this

appliance.

Keep unit away from combustible materials.

Combustible materials must not be placed where

the unit could ignite them.

Appliance must be secured into a permanent

fixture.

Solid fuels shall not be burned in this Rinnai

Luminaire Outdoor Gas Fire.

Ensure no leaves, cobwebs or any other foreign

debris is on the burner material prior to lighting.

People, other organisms, materials or objects that

are near this appliance when it is in operation may

be subjected to prolonged exposure to radiant

heat. Personal injury or material damage may

occur.

Do not operate this appliance with the stainless

steel weather cover on.

SAFETY INFORMATION

Rinnai Australia - 4 - Rinnai Luminaire® Outdoor Gas Fire - Operation and Installation Manual

General Safety Information



Before Installation

Check that the Rinnai Luminaire Outdoor Gas Fire supplied is correct for the gas type being used. The

gas type is clearly labelled on the appliance. Dataplate is located under left hand stone cover.

Appliance is labelled “Universal LPG”, or “Natural Gas”. Label is located under right hand stone cover.

If the appliance is “Universal LPG” it is normally used with a 9 kg gas cylinder. However, it is possible

to install appliance on a reticulated “Universal LPG” supply. ie. 45 Kg. cylinder domestic supply.

Pipe sizing for reticulated Natural or Universal LPG gas supplies must be in accordance with an

approved sizing chart such as the one in AS 5601.

Natural Gas:

1. Must be connected to the reticulated supply either by hard plumbing or the use of an

approved hose.

2. Must be installed with the pressure regulator supplied for Natural Gas.

3. Connection to the reticulated gas supply must incorporate an isolation valve.

4. The isolation valve must be closed when the Rinnai Luminaire Outdoor Gas Fire is not in use.

• Failure to comply with these Instructions could result in a fire or explosion

which could cause serious injury, death or property damage.

• This appliance must be installed and commissioned by an authorised person

only.

• This is a permanently fixed luminous effect appliance for outdoor areas only.

Not to be used for cooking, food preparation or food warming.

If you smell gas:

1. Shut off gas to the appliance, at its source if possible.

2. Extinguish any open flame.

3. Perform gas leak check procedure.

4. If odour continues, immediately call Rinnai service person refer page 23.

• Never connect the appliance directly to the gas cylinder / reticulated gas supply

without a Regulator.

• Always use the hose and regulator supplied (Universal LPG models only).

• Never store your gas cylinder indoors. Gas cylinders must be stored outdoors

in a well ventilated area out of reach of children or the infirm.

• DO NOT test for gas leaks with an open flame.

• DO NOT allow children or the infirm to operate or handle any parts of the

appliance.

• Ensure all PVC plastic coating material is removed before operating unit.

WARNING

SAFETY INFORMATION CONTINUED

Rinnai Australia - 5 - Rinnai Luminaire® Outdoor Gas Fire - Operation and Installation Manual

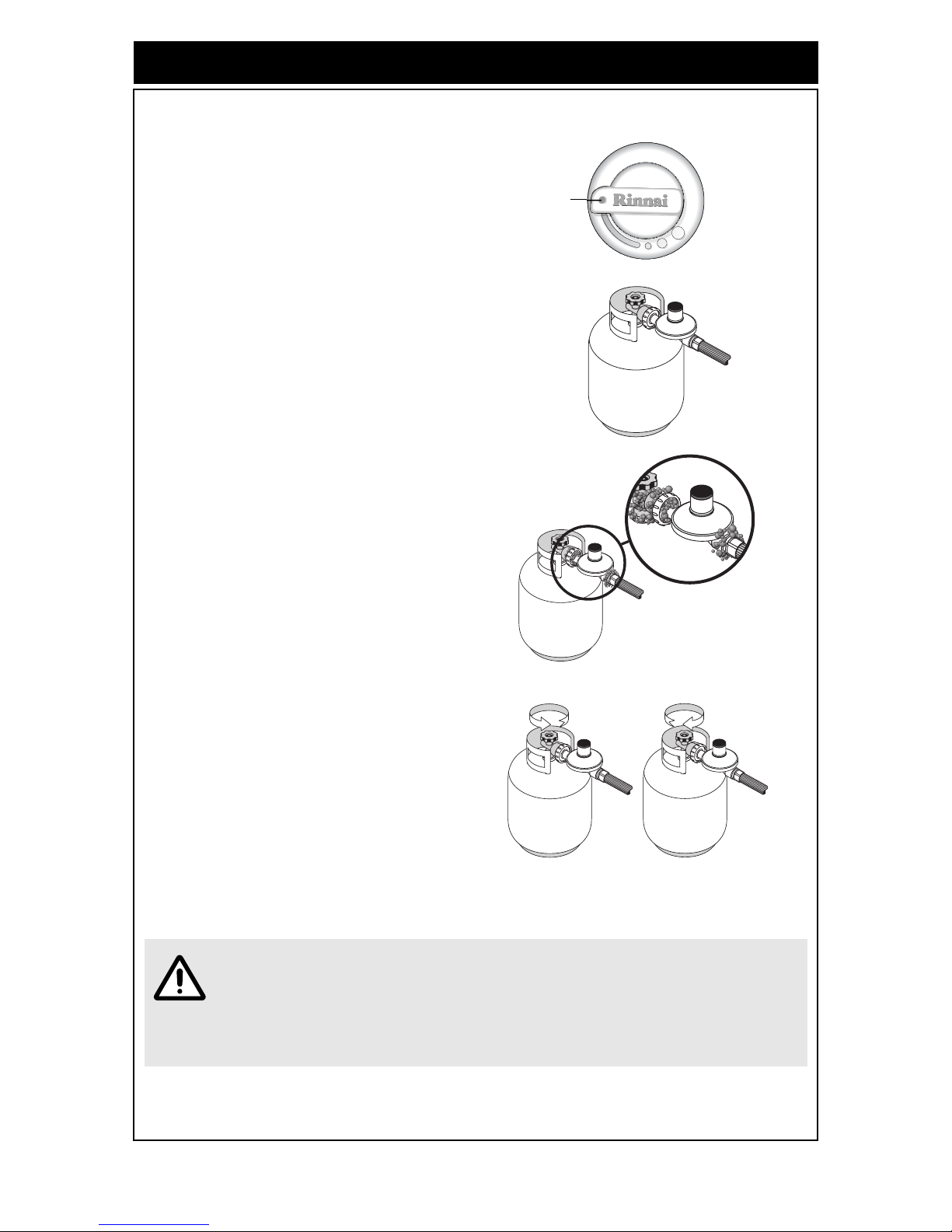

Hose and Regulator (used with gas cylinder):

1. Where applicable a pressure hose and regulator assembly supplied with the Rinnai

Luminaire Outdoor Gas Fire are suitable for use on bottled LP gas only.

2. The pressure regulator and hose assembly supplied with the appliance MUST be used.

3. Replacement pressure regulators and hose assemblies must be those specified by Rinnai for use

with this appliance.

4. The pressure regulator supplied has been fixed to have an outlet pressure of 2.75 kPa. 

A different pressure is not suitable.

5. Propane or universal LP gas cylinders must be installed and positioned to conform with 

AS 5601, Appendix J - “LP Gas Cylinders”.

6. When the appliance is not in use, the hose and regulator must only be disconnected from the

cylinder. The hose and regulator must not be disconnected from the unit unless it is being

replaced. Such replacement must only be carried out by an authorised person.

7. Inspect the gas hose when replacing the gas cylinder, or once per year, whichever is more

frequent. If the hose is cracked, cut, abraded, discoloured or damaged in any other way, the Rinnai

Luminaire Outdoor Gas Fire must not be used. The hose must be replaced if damaged or when

local regulations require this. Contact your supplier or local regulating authority if uncertain. Such

replacement must only be carried out by an authorised person.

Gas Cylinder

1. This Rinnai Luminaire Outdoor Gas Fire is designed for use with a 9 kg LP Gas cylinder.

This cylinder should conform to AS 2030.1 - 1999.

2. The Rinnai Luminaire Outdoor Gas Fire is designed for use in the vapour withdrawal mode.

Therefore it is important to always store and use the gas cylinder in an upright position.

3. For storage and when refilling / exchanging cylinders, disconnect the hose and regulator at the

cylinder end only. DO NOT disconnect the hose and regulator from the appliance end.

4. The gas cylinder should be refilled by a reputable gas dealer, or exchanged at a reputable gas

cylinder exchange outlet. Gas cylinders should be inspected and re-qualified periodically in

accordance with local statutory regulations. A dented or rusty gas cylinder may be hazardous and

should not be used.

5. DO NOT subject the gas cylinder to excessive heat.

6. Always close the cylinder valve when this unit is not in use.

7. Gas cylinders must be stored outdoors in a well ventilated area out of reach of children and must

not be stored in a building, garage or any other enclosed area.

8. When in use Gas Cylinders must be installed and positioned to conform with AS 5601 Appendix J -

“LP Gas Cylinders”.

SAFETY INFORMATION

Rinnai Australia - 6 - Rinnai Luminaire® Outdoor Gas Fire - Operation and Installation Manual

Gas Installation Using a Gas Cylinder

Step 1. Read and understand the information in

this manual, in particular the items under

"Safety Information".

Step 2. Ensure the control knob is in the "OFF"

position as shown.

Step 3. Connect the regulator to the gas cylinder

by turning the coupling nut anti-clockwise

to tighten to a full stop (left hand thread).

The seal has now engaged. An additional

one half to three quarter turn is required to

complete the connection. If your regulator

has a plastic type hand wheel DO NOT

use tools. Tighten by hand only. 

Use a spanner on brass hexagon type

nuts, DO NOT over tighten.

Step 4. Make a soapy solution by mixing one part

liquid detergent (such as dish-washing

liquid) and four parts water.

Step 5. Open the gas valve on the cylinder by

turning it anticlockwise.

Step 6. Apply the soapy solution to all visible gas

connections in the vicinity of the cylinder

and regulator. Gas leaks will show as

small bubbles gradually increasing in size

in the soapy solution.

Step 7. If there is a gas leak from the connection

between the regulator and gas cylinder,

close the gas valve on the cylinder by

turning it clockwise. Disconnect the

regulator and hose assembly from the

cylinder by turning the coupling nut

clockwise to disengage. Inspect for debris

inside the cylinder fitting and the fitting at

the end of the regulator. Remove debris

and reconnect as per step 3). Retest for

gas leaks.

Step 8. Removal of the gas hose, regulator and

cylinder is the reverse of the connection

procedure.

If there is still a gas leak from the connection between the regulator and gas

cylinder or any other connections contact your gas supplier or Rinnai for

assistance. Connections other than the connection between the regulator

and gas cylinder must only be altered by an authorised person.

If gas leaks are present DO NOT operate the Rinnai Luminaire® Outdoor Gas

Fire.

OFF

ON OFF

CAUTION

SAFETY INFORMATION

Rinnai Australia - 7 - Rinnai Luminaire® Outdoor Gas Fire - Operation and Installation Manual

Clearances

The following minimum clearances from combustible materials must be maintained:

• Top: 1000 mm - measured from top of cover in the closed position.

• Rear: 1000 mm - measured from the rear main panel.

• Sides: 300 mm - measured from the side main panel.

• Openings around the base of the appliance provide air for cooling and combustion and must not be

obstructed.

Location

‘Outdoor Use’ is defined as use in an above ground, open air situation with natural ventilation, without

stagnant areas and where gas leakage and products of combustion are rapidly dispersed by wind and

natural convection.

The following figures are diagrammatic representations of ‘Outdoor Use’ as defined:

An enclosure with walls on all sides, but

with at least one permanent opening at

ground level and no overhead cover.

Within a partial enclosure that includes an

overhead cover and no more than 2 walls.



Within a partial enclosure that includes an

overhead cover and more than 2 walls the

following shall apply:

• At least 25% of the total wall area is

completely open and

• At least 30% of the remaining wall area

is open and unrestricted.

In the case of balconies at least 20% of

the total wall area shall be and remain

open and unrestricted.

CLEARANCES AND LOCATION

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Rinnai Außenkamin Handbücher

Rinnai

Rinnai 4500 Kurzanleitung

Beliebte Außenkamin Handbücher anderer Marken

Outdoor Plus

Outdoor Plus PISMO OPT-2448 Bedienungsanleitung

Legacy

Legacy Fire Pit Bedienungsanleitung

Coleman

Coleman 5055-710 Bedienungsanleitung

Uniflame

Uniflame GAD1348HN Bedienungsanleitung

Jensen

Jensen 300NG Bedienungsanleitung

FEUERHAND

FEUERHAND PYRON Bedienungsanleitung

Firegear

Firegear KWB-NG1 Kurzanleitung

Classics

Classics FP35077 Bedienungsanleitung

Jensen

Jensen 1590LP Bedienungsanleitung

Mayer Barbecue

Mayer Barbecue HEIZA MFK-220 Bedienungsanleitung

Costway

Costway NP11018 Bedienungsanleitung

Target

Target Foxborough Bedienungsanleitung

Blumfeldt

Blumfeldt Merano Bedienungsanleitung

Blooma

Blooma Brasero Ulong Bedienungsanleitung

The Fireplace

The Fireplace JETMASTER 700 D Bedienungsanleitung

Superior

Superior VRE4543EN Bedienungsanleitung

Morsø

Morsø Forno Bedienungsanleitung

dobar

dobar CONICO 35439E Bedienungsanleitung
