i-COMM™ CONTROLLER

Pub. No. RHSPI388 JANUARY 2006 1

i-COMM DIGITAL CONTROLLER INSTRUCTIONS

i-COMM™ CONTROLLER

2Pub. No. RHSPI388 JANUARY 2006

i-COMM DIGITAL CONTROLLER INSTRUCTIONS

SPECIFICATIONS FOR THE i-COMM

CONTROLLER

1. If any procedures for the installation or operation

have been left out or are not complete, contact

RITE-HITE DOORS, INC. Technical Support at

1-563-589-2722.

2. The use of a handheld device is no longer required,

a downloader will be sent to download the new

program.

3. This controller is used on the following door models:

7100, 7514, 8000, 8000CL, 8000XL, 8600, 8910,

8920, 8920PL.

4. Terminals will accept wire sizes from 12 - 22 AWG.

5. 15 Digital Inputs. (24VDC; 10 mA)

6. 5 Relay Outputs. (24VAC/DC; 1 AMP)

7. 4 DC Outputs. (24VDC; 0.5 AMP MAX)

REMOVAL AND INSTALLATION

1. Change controller with door at close limit switch.

2. Make sure you have all the parts before beginning.

3. Unplug the J3 push button harness.

4. Unplug the J4 power supply harness.

5. Unplug the J5 induction loop harness if applicable.

6. Remove wires from the input and output terminals.

7. Remove the board by cutting the white plastic

supports, and remove supports from bracket.

8. Install new board, by screwing supports into

mounting bracket.

9. Plug in the J3, J4 and J5 connectors.

10. Insert wires into terminals, based on markings,

labels on the wires as well as the electrical wiring

diagram included with the door.

Make sure to barricade the door opening on both

sides to prevent unauthorized use until the door has

been completely installed.

CAUTION !!!

When working with electrical or electronic controls,

make sure that the power source has been locked out

and tagged according to OSHA regulations and

approved local electrical codes.

DANGER !!!

When connecting i-COMM to other control systems,

isolation relays (Dry Contacts) should be used.

IMPORTANT!!!

4DCx 4DCx

Relay Coil

DC Xx

(+24VDC) Controller

Input

BASIC INPUT WIRING

DC OUTPUT WIRING

The power MUST be OFF and the door on the close limit switch

when plugging in the Downloader Chip.

IMPORTANT!!!

i-COMM™ CONTROLLER

Pub. No. RHSPI388 JANUARY 2006 3

i-COMM DIGITAL CONTROLLER INSTRUCTIONS

Input Terminals

LCD

Display

Output

Terminals

Display Contrast Potentiometer

(Lighter / Darker)

Down Key

Up Key

Enter Key

J1 Programming Port

Green Input

Terminal LED’s Power LED

Red

Output

Terminal

LED's

Induction

Loop

JP2 Jumper

JP3

Jumper

JP1 Jumper

i-COMM™ CONTROLLER

4Pub. No. RHSPI388 JANUARY 2006

i-COMM DIGITAL CONTROLLER INSTRUCTIONS

LCD DISPLAY MESSAGES:

TOP DISPLAY BOTTOM DISPLAY REASON ACTION REQUIRED

FAULT MESSAGES

Door Faulted Normal Power Up Indicates Loss of Power Push Open/Reset*

Watchdog Timer Indicates the boards watchdog timer has reset Service Required*

Reset From Sleep Indicates the controller was awaken from sleep mode Service Required*

Low Voltage Drop in voltage caused controller to restart Push Open/Reset*

Breakaway Door is in breakaway mode Reset / Jog Door*

Breakaway Sideframe door (8000CL/XL), Overload Relay (8000/CL/XL) Reset / Jog Door*

Emergency Stop E-Stop pushed, Overload Relay (8900), Inverter (8600) Push Open/Reset*

Open Time Limit Run open time limit exceeded Service Required*

Menu Interrupt Menu Interrupted Push Open/Reset*

Limit Pulse Fail Trakline limit problem (8910/20/PL only) Service Required*

Limit Failure Limit switch has failed Service Required*

Obstruction Door has detected obstruction and reversed 3 times Inspect & Reset*

Unknown Unknown fault Service Required*

System Clock read System clock failed Service Required*

Unknown State State unknown Service Required*

Pro System Pro Inverter Fault Check Inverter*

Jog to Open Pos Displays when jogging open None*

Jog to Close Pos Displays when jogging close None*

* Displays on Screen

DOOR IS OPENING

Door is Opening

DOOR IS OPEN

Door is Open When not in preannounce to close None

Stand Clear When in preannounce to close None

Closing in xx.xs Displays closing time in seconds None

Activation On Indicates activation on (overrides timer display) Device Holding Open

Waiting for cmd. Indicates door is waiting for manual close cmd. Close Door

Photoeye Blocked Photoeye is blocked (overrides timer display) Remove Obstruction

I-Zone Detection I-Zone active (overrides timer display) Remove Detection

DOOR IS CLOSING

Stand Clear Door Closing None

DOOR IS CLOSED

Door Closed Cycles: xxxxxx Displays cycle count None

Door Closed Interlock Active Door is interlocked and cannot be opened Perform Interlocking

DOOR IS STOPPED

Door Stopped Push Open/Close Open/Close Door

CONN-

ECTOR

BARRIER FOLD

7514

OPEN L/S

CLOSE L/S

SPARE UNIT

UNUSED

TOGGLE

ACTIVATION

UNUSED

FLASHING LAMP OUT

UNUSED

DC POWER OUT

RESET INPUT (X12)

UNUSED

DC COMMON INPUT

DC POWER INPUT

24VAC INPUT

24VAC COMMON (N)

OPEN/CLOSE COM

CLOSE OUTPUT (K1)

OPEN OUTPUT (K0)

LOOP INPUT 2

LOOP INPUT 1

DC POWER OUT

DC COMMON OUT

DC POWER OUT

LOOP INPUT (X13)

i-COMM™ CONTROLLER

Pub. No. RHSPI388 JANUARY 2006 5

i-COMM DIGITAL CONTROLLER INSTRUCTIONS

MODEL

INPUTS

X10

X11

PIN #

PROTECDOR

8000/CL/XL

OPEN L/S

CLOSE L/S

PRO-FAULT

SPARE UNIT

TOGGLE

ACTIVATION

I-ZONE 1

I-ZONE 2

INT. PHOTOEYE

EXT. PHOTOEYE

FLASHING LAMP OUT

I-ZONE ALARM OUT

DC POWER OUT

RESET INPUT (X12)

UNUSED

DC COMMON INPUT

DC POWER INPUT

24VAC INPUT

24VAC COMMON (N)

OPEN/CLOSE CO

CLOSE OUTPUT (K1)

OPEN OUTPUT (K0)

LOOP INPUT 2

LOOP INPUT 1

DC POWER OUT

DC COMMON OUT

DC POWER OUT

LOOP INPUT (X13)

TRAKLINE

8910/20/PL

OPEN L/S

CLOSE L/S

SPARE UNIT

TOGGLE

ACTIVATION

I-ZONE 1

I-ZONE 2

INT. PHOTOEYE

EXT. PHOTOEYE

UNUSED OUTPUT

I-ZONE ALARM OUT

DC POWER OUT

RESET INPUT (X12)

UNUSED

DC COMMON INPUT

DC POWER INPUT

24VAC INPUT

24VAC COMMON (N)

OPEN/CLOSE COM

CLOSE OUTPUT (K1)

OPEN OUTPUT (K0)

LOOP INPUT 2

LOOP INPUT 1

DC POWER OUT

DC COMMON OUT

DC POWER OUT

LOOP INPUT (X13)

ISO-TEK

8600

OPEN L/S

CLOSE L/S

SPARE UNIT

APPR. OPEN L/S

TOGGLE

ACTIVATION

I-ZONE 1

I-ZONE 2

INT. PHOTOEYE

EXT. PHOTOEYE

FLASHING LAMP OUT

UNUSED

DC POWER OUT

RESET INPUT (X12)

UNUSED

DC COMMON INPUT

DC POWER INPUT

24VAC INPUT

24VAC COMMON (N)

OPEN/CLOSE COM

INVERTER OUT 2(K1)

INVERTER OUT 1 (K0)

LOOP INPUT 2

LOOP INPUT 1

DC POWER OUT

DC COMMON OUT

DC POWER OUT

LOOP INPUT (X13)

BARRIER GLIDER

7100

OPEN L/S

CLOSE L/S

SPARE UNIT

UNUSED

TOGGLE

ACTIVATION

UNDEDICATED

UNUSED

REVERSE

UNUSED

FLASHING LAMP OUT

UNUSED

DC POWER OUT

RESET INPUT (X12)

UNUSED

DC COMMON INPUT

DC POWER INPUT

UNUSED

OPEN/CLOSE COM

CLOSE OUTPUT (K1)

OPEN OUTPUT (K0)

LOOP INPUT 2

LOOP INPUT 1

DC POWER OUT

DC COMMON OUT

DC POWER OUT

LOOP INPUT (X13)

CONNECTOR TABLE

This table shows the function of each of the connectors on the i-COMM controller. The voltages listed for each pin

assume that either the input or output is activated.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation.

INSTRUCTIONS FOR NAVIGATING THE MENUS (MENU MODE):

*Note: Operation of the door is not possible when using the menu system.

1. To enter the menu press the ENTER key.

2. The Controller will stop and fault the door.

3. Use the arrow keys (Up and Down) to navigate through the choices

4. When the desired item is selected press enter to view the value or setting.

5. To Edit Item: Use the arrow keys to change the value if needed. Once editing is completed press ENTER to

return to the main menu.

6. When settings are completed, scroll to the "Exit" option in the main menu and press ENTER.

**IMPORTANT: Any changes made in the menu are not saved until the menu mode is exited. Turning power off

while in the menu mode will cancel all changes.

DETAILED MENU LISTING:

"Display Cycle Count" Read-Only Displays current cycle count for the door. [All models]

"Set Close Timer" Read/Write Displays and sets current close timer. This time plus the Preannounce Timer

will be the amount of time the door will stay open. Setting the Close Timer to

0 will place the door in toggle mode. In toggle mode the reclose timer will be

disabled. (Valid Range: 1-255 seconds, with 0=Toggle Mode) [All models]

"Set Preannounce " Read/Write Displays and sets Preannounce to close timer. This time plus the Close

Timer will be the amount of time the door will stay open. (Valid Range: 0-255

seconds) [All models]

"Display Serial#" Read-Only Displays door serial number. [All models]

"Display Model" Read-Only Displays door model. [All models]

"Set Loop Func." Read-Write Valid Choices are:

"Auto Close Mode" - Loop board will open and reverse door. (Note: Door will

not close is Toggle Mode is enabled (Close Timer = 0))

"Rev./Hold Open" - Loop board will only reverse door. Loop will not open

door from fully closed position. [All models]

"Set Open PB Func" Read-Write Valid Choices are:

"Auto Close Mode" - Loop board will open and reverse door. (Note: Door will

not close is Toggle Mode is enabled (Close Timer = 0))

"Toggle Mode" - Places the Open/Reset button in Toggle. Push the

Open/Reset once to open the door and again to close. Note reclose is

disabled when door has been opened via Toggle.

"Reset/Jog Only" - Open/Reset button will only reset and jog the door. If

pressed while door is traveling close, door will reverse to open. (If Reset

Only is required without opening door please consult applications or Rite-Hite

Door Technical Support) [All models]

“I-Zone System" Read-Write Use to "Enable/Disable" I-Zone System.

[Valid for Trakline and Protecdor series doors]

i-COMM™ CONTROLLER

6Pub. No. RHSPI388 JANUARY 2006

i-COMM DIGITAL CONTROLLER INSTRUCTIONS

i-COMM™ CONTROLLER

Pub. No. RHSPI388 JANUARY 2006 7

i-COMM DIGITAL CONTROLLER INSTRUCTIONS

Valid Values for Output Settings

Value Function

0 On when door closed (Interlock Out)

1 On when door Not Closed

2 On during preannounce to close

3 On when door full open

4 On when door not full open

5 On when door faulted

6 On when door not faulted

7 On when activation command

8 On during run Open

9 On during run Close

10 On during run (Open or Close)

11 On when door on limit (open or close)

12 On when I-Zone alarm

13 On when door open for 30 seconds

14 On when door open for 60 seconds

15 On when door open for 120 seconds

16 On during sequential activation

17 On when not running open

18 On when not running close

19 On when not running (open or close)

20 Output Disabled

Default Value for Output (Factory Configuration)

Model: YK2 YK3 YDC0 YDC1 YDC2 YDC3

Protecdor/CL n/a 0 2 20 20 20

Protecdor/CL PRO n/a 0 2 20 20 n/a

Protecdor XL n/a 0 2 20 20 20

Protecdor XL PRO n/a 0 2 20 20 20

Trakline 20 0 2 20 20 20

Iso-Tek n/a 0 2 20 20 20

Barrier Glider n/a 0 2 20 20 n/a

Barrier Fold n/a 0 2 20 20 20

n/a = Not available for change

DETAILED MENU LISTING:

"Output Definition" Read-Write Use to change functions of outputs where allowed. YK2, YK3, YDC0,

(see chart) (Note: Outputs which are not changeable will display "Not Adjustable")

YDC1, YDC2, YDC3

i-COMM™ CONTROLLER

8Pub. No. RHSPI388 JANUARY 2006

i-COMM DIGITAL CONTROLLER INSTRUCTIONS

Valid Values for Input Settings::

Value Function

0 Interlock In Allows door to open (Only Available for inputs X2, X3 & X5)

(Note: Interlocking is disabled if no inputs are defined as interlock)

1 Stop Stops door (Normally-Closed)

2 Activation Opens Door

3 Toggle Opens/Closes Door

4 Close Closes door

5 Sequential Act. Opens Door

6 Reverse Reverses or Holds open door

7 Stop Stops door (Normally-Open)

8 Manual Open Opens door (used for open-close-stop, normal activation will not

resume from stop)

9 Auto/Man Places Door in Toggle Mode when input is on.

Defaults:

Model: X2 X3 X5 X6 X7

Protecdor/CL 22322

Protecdor/CL PRO n/a 2322

Protecdor XL 22322

Protecdor XL PRO n/a 2322

Trakline 22322

Iso-Tek 22322

Barrier Glider 22322

Barrier Fold 22322

n/a = Not available for change

DETAILED MENU LISTING:

"Language" Read-Write Use to change language of the menus. [All models]

"Fault History" Read-Only Displays Last five faults as codes. Use arrows to provide a detailed

description of each fault code displayed.

"Kick Close Time" Read-Write Sets Kick Time on Barrier Fold door. (Valid Range: 1.00 - 5.00 seconds,

Default Value = 2.00 sec.) [Barrier Fold Only]

"Plug Stop Adj" Read-Write Adjusts Plug Stopping time on Protecdor and ProtecdorCL doors.

(Valid Range = 0 - 100 milliseconds) [Protecdor and ProtecdorCL]

"Copy to Loader" Read-Only Copies program in i-COMM to loader. Use up arrow to start copy process.

Detailed instructions will accompany program loader.

"Copy from Loader" Write-Only Copies program from loader to i-COMM. Use up arrow to start copy process.

Detailed instructions will accompany program loader.

"Exit" Read-Only Use to exit menu system and save changes. [All models]

"Input Define" Read-Write Use to change functions of inputs where allowed. X2, X3, X5, X6, X7

(Note: Inputs which are not changeable will display "Not Adjustable")

The power MUST be OFF when plugging in

the Downloader Chip.

IMPORTANT!

DO NOT configure devices such as Motion

Sensors, Photoeyes or Floor Loops to

Toggle Mode. Setting these devices to

Toggle may cause the door to close

unexpectedly.

WARNING !

Inhaltsverzeichnis

Andere RITE-HITE Controller Handbücher

RITE-HITE

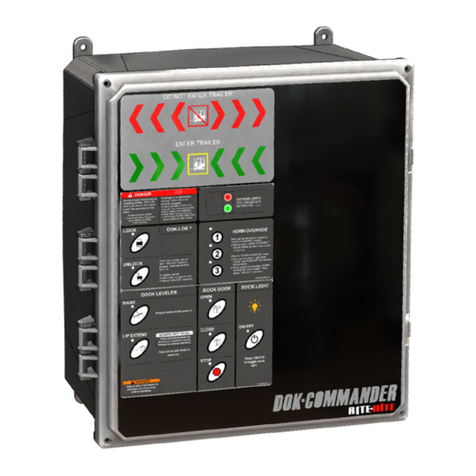

RITE-HITE Dok-Commander Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung

RITE-HITE i-COMM Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken
