Temperature Controller MODBUS SIO Driver

GP-Pro EX Device/PLC Connection Manual 2

Introduction

This manual describes how to connect the Display and the External Device (target Temperature Controller).

In this manual, the connection procedure will be described by following the below sections:

1System Configuration

This section shows the types of External

Devices which can be connected and SIO type.

)"1 System Configuration" (page 3)

2Selection of External Device

Select a model (series) of the External Device

to be connected and connection method.

)"2 Selection of External Device" (page 9)

3Example of Communication Settings

This section shows setting examples for

communicating between the Display and

the External Device.

)"3 Example of Communication Setting"

(page 10)

4Setup Items

This section describes communication

setup items on the Display.

Set communication settings of the Display

with GP-Pro EX or in offline mode.

)"4 Setup Items" (page 70)

5Cable Diagram

This section shows cables and adapters

for connecting the Display and the

External Device.

)"5 Cable Diagram" (page 75)

Operation

Temperature Controller MODBUS SIO Driver

GP-Pro EX Device/PLC Connection Manual 3

1 System Configuration

The system configuration in the case when the External Device of RKC Instrument Inc. and the Display are

connected is shown.

Series CPU Link I/F SIO Type Setting

Example Cable

Diagram

CB100-*-5/Z-1021

CB400-*-5/Z-1021

CB500-*-5/Z-1021

CB700-*-5/Z-1021

CB900-*-5/Z-1021

Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 1

(page 10)

Cable

Diagram 3

(page 81)

FB400/

FB900

FB900--*1/-

FB400--*1/-

Terminal block

on the

controller RS232C Setting

Example 2

(page 12)

Cable

Diagram 6

(page 100)

FB900--*4/-

FB400--*4/-

Terminal block

on the

controller

RS422/

485(4 wire)

Setting

Example 3

(page 14)

Cable

Diagram 7

(page 101)

FB900--*5/-

FB900--*X/-

FB900--*Y/-

FB400--*5/-

FB400--*X/-

FB400--*Y/-

Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 4

(page 16)

Cable

Diagram 3

(page 81)

FB900--*W/-

Terminal block

on the

controller RS232C Setting

Example 2

(page 12)

Cable

Diagram 6

(page 100)

FB400--*W/-

Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 4

(page 16)

Cable

Diagram 3

(page 81)

HA400/

HA900

HA900-









HA900-











HA901-









HA901-











HA400-









HA400-











HA401-









HA401-











Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 5

(page 18)

Cable

Diagram 3

(page 81)

HA900-









HA900-











HA901-









HA901-











HA400-









HA400-











HA401-









HA401-











Terminal block

on the

controller RS232C Setting

Example 6

(page 20)

Cable

Diagram 6

(page 100)

HA900-











HA901-











HA400-











HA401-











Terminal block

on the

controller

RS422/

485(4 wire)

Setting

Example 7

(page 22)

Cable

Diagram 7

(page 101)

continued to next page

Temperature Controller MODBUS SIO Driver

GP-Pro EX Device/PLC Connection Manual 4

MA900

MA900-4











Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 8

(page 24)

Cable

Diagram 3

(page 81)

MA900-4











Terminal block

on the

controller

RS422/

485(4 wire)

Setting

Example 9

(page 26)

Cable

Diagram 7

(page 101)

MA900-4











Terminal block

on the

controller RS232C Setting

Example 10

(page 28)

Cable

Diagram 6

(page 100)

MA901

MA901-8











Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 8

(page 24)

Cable

Diagram 3

(page 81)

MA901-8











Terminal block

on the

controller

RS422/

485(4 wire)

Setting

Example 9

(page 26)

Cable

Diagram 7

(page 101)

MA901-8











Terminal block

on the

controller RS232C Setting

Example 10

(page 28)

Cable

Diagram 6

(page 100)

SRV

V-TIO-A-











V-TIO-C-











Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 14

(page 36)

Cable

Diagram 3

(page 81)

SRX

X-TIO-A-



Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 14

(page 36)

Cable

Diagram 3

(page 81)

SA100









-6





Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 16

(page 40)

Cable

Diagram 3

(page 81)

SA200









-6





Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 16

(page 40)

Cable

Diagram 3

(page 81)

SR Mini

(H-PCP-A)

H-PCP-A-



1N-





Z-1021

Terminal block

on the

controller RS232C Setting

Example 18

(page 44)

Cable

Diagram 1

(page 75)

H-PCP-A-



4N-





Z-1021

Terminal block

on the

controller

RS422/

485(4 wire)

Setting

Example 19

(page 46)

Cable

Diagram 2

(page 77)

continued to next page

Series CPU Link I/F SIO Type Setting

Example Cable

Diagram

Temperature Controller MODBUS SIO Driver

GP-Pro EX Device/PLC Connection Manual 5

SR Mini

(H-PCP-J)

H-PCP-J-



-D*



Connector on

the controller RS422/

485(4 wire)

Setting

Example 20

(page 48)

Cable

Diagram 4

(page 87)

H-PCP-J-



-D*



Connector on

the controller RS422/

485(2 wire)

Setting

Example 21

(page 51)

Cable

Diagram 5

(page 91)

H-PCP-J-



1-D*



Connector on

the controller RS232C Setting

Example 22

(page 54)

Cable

Diagram 1

(page 75)

H-PCP-J-



4-D*



Connector on

the controller RS422/

485(4 wire)

Setting

Example 20

(page 48)

Cable

Diagram 8

(page 105)

H-PCP-J-



5-D*



Connector on

the controller RS422/

485(2 wire)

Setting

Example 21

(page 51)

Cable

Diagram 9

(page 111)

SRZ

(Z-TIO)

Z-TIO-A









Z-TIO-B









Z-TIO-C









Z-TIO-D









Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 23

(page 56)

Cable

Diagram 10

(page 120)

SRZ

(Z-DIO)

Z-DIO-A









Z-DIO-A





Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 24

(page 58)

Cable

Diagram 10

(page 120)

SRZ

(Z-CT)

Z-CT-A





Z-CT-A



Terminal block

on the

controller

RS422/

485(2 wire)

Setting

Example 25

(page 60)

Cable

Diagram 10

(page 120)

SRZ

(Z-COM)

Z-COM-A-4





Z-COM-A-4



COM.PORT1

COM.PORT2

on the

controller

RS422/

485(4 wire)

Setting

Example 26

(page 62)

Cable

Diagram 11

(page 129)

Z-COM-A-5





Z-COM-A-5



RS422/

485(2 wire)

Setting

Example 27

(page 64)

Cable

Diagram 12

(page 135)

Z-COM-A-





Z-COM-A-



4/N

COM.PORT3

COM.PORT4

on the

controller

RS422/

485(4 wire)

Setting

Example 28

(page 66)

Cable

Diagram 11

(page 129)

Z-COM-A-





Z-COM-A-



5/N

RS422/

485(2 wire)

Setting

Example 29

(page 68)

Cable

Diagram 12

(page 135)

Series CPU Link I/F SIO Type Setting

Example Cable

Diagram

Temperature Controller MODBUS SIO Driver

GP-Pro EX Device/PLC Connection Manual 6

Connection Configuration

• 1:1 Connection

• 1:n Connection

• 1:n Connection (For the SRZ (Z-TIO), SRZ (Z-DIO), and SRZ (Z-CT) Series)

• 1:n Connection (For the SRZ (Z-COM) Series)

*1 Up to 16 Z-COM modules can be connected.

Display

External Drive

Display

External

Drive

External

Drive

External

Drive

Maximum number of connections: 16 units

Display External Drive

Maximum number of connections: 16 unit

Display External Drive

Z-COM module *1

External Drive

Z-COM module *1

Temperature Controller MODBUS SIO Driver

GP-Pro EX Device/PLC Connection Manual 7

IPC COM Port

When connecting IPC with an External Device, the COM port used depends on the series and SIO type. Please

refer to the IPC manual for details.

Usable port

DIP Switch setting: RS-232C

Series Usable Port

RS-232C RS-422/485(4 wire) RS-422/485(2 wire)

PS-2000B COM1*1 , COM2,

COM3*1, COM4

*1 The RI/5V can be switched. Use the IPC’s switch to change if necessary.

PS-3450A, PS-3451A,

PS3000-BA, PS3001-BD COM1, COM2*1*2 COM2*1*2 COM2*1*2

PS-3650A (T41 model),

PS-3651A (T41 model) COM1*1 --

PS-3650A (T42 model),

PS-3651A (T42 model) COM1*1*2, COM2 COM1*1*2 COM1*1*2

PS-3700A (Pentium®4-M)

PS-3710A COM1*1, COM2*1,

COM3*2 , COM4

*2 Set up the SIO type with the DIP Switch. Please set up as follows according to SIO type to be used.

COM3*2 COM3*2

PS-3711A COM1*1, COM2*2 COM2*2 COM2*2

PS4000*3

*3 When making communication between an External Device and COM port on the Expansion slot,

only RS-232C is supported. However, ER (DTR/CTS) control cannot be executed because of the

specification of COM port.

For connection with External Device, use user-created cables and disable Pin Nos. 1, 4, 6 and 9.

Please refer to the IPC manual for details of pin layout.

COM1, COM2 - -

PL3000 COM1*1*2, COM2*1,

COM3, COM4 COM1*1*2 COM1*1*2

DIP Switch Setting Description

1OFF

*1 When using PS-3450A, PS-3451A, PS3000-BA and PS3001-BD, turn ON the set value.

Reserved (always OFF)

2OFF

SIO type: RS-232C

3OFF

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

Temperature Controller MODBUS SIO Driver

GP-Pro EX Device/PLC Connection Manual 8

DIP Switch setting: RS-422/485 (4 wire)

DIP Switch setting: RS-422/485 (2 wire)

DIP Switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

DIP Switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 ON Short-circuit of SDA (TXA) and RDA (RXA): Available

8 ON Short-circuit of SDB (TXB) and RDB (RXB): Available

9ON

RS (RTS) Auto control mode: Enabled

10 ON

Temperature Controller MODBUS SIO Driver

GP-Pro EX Device/PLC Connection Manual 9

2 Selection of External Device

Select the External Device to be connected to the Display.

Setup Items Setup Description

Maker Select the maker of the External Device to be connected. Select "RKC Instrument Inc.".

Driver

Select a model (series) of the External Device to be connected and connection method.

Select "Temperature Controller MODBUS SIO".

Check the External Device which can be connected in "Temperature Controller MODBUS

SIO" in system configuration.

)"1 System Configuration" (page 3)

Use System Area Cannot use in this driver.

Port Select the Display port to be connected to the External Device.

Temperature Controller MODBUS SIO Driver

GP-Pro EX Device/PLC Connection Manual 10

3 Example of Communication Setting

Examples of communication settings of the Display and the External Device, recommended by Digital

Electronics Corp., are shown.

3.1 Setting Example 1

Settings of GP-Pro EX

Communication Settings

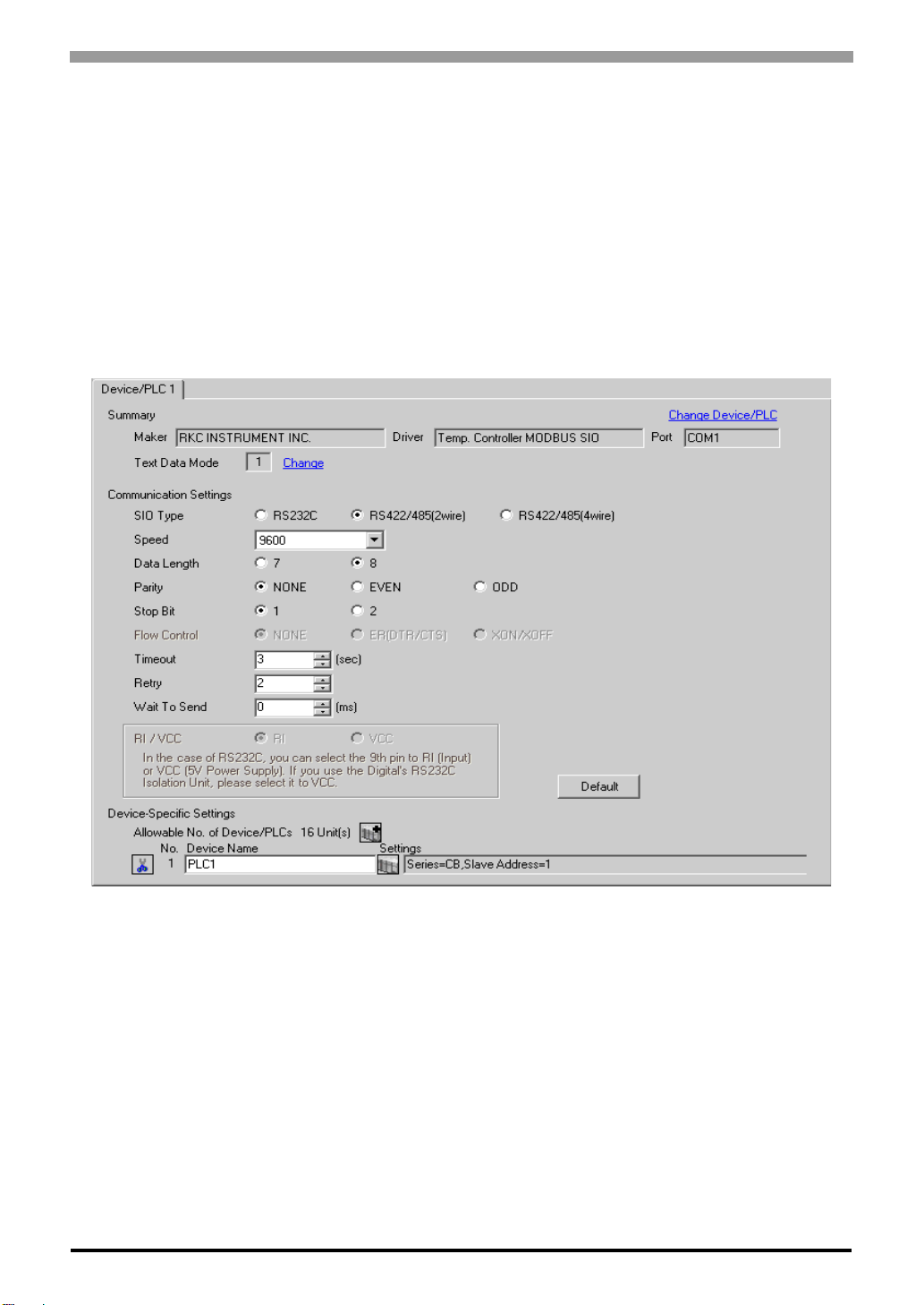

To display the setting screen, select [Device/PLC Settings] from [System setting window] in workspace.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RKC INSTRUMENT Controller Handbücher

RKC INSTRUMENT

RKC INSTRUMENT CB100 Series Gebrauchs- und Pflegehandbuch

RKC INSTRUMENT

RKC INSTRUMENT HA430 Installationshandbuch

RKC INSTRUMENT

RKC INSTRUMENT PF Series Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT CB100L Handbuch

RKC INSTRUMENT

RKC INSTRUMENT CB500 Series Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT THV-1 Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT CB103 Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT CB100 Series Gebrauchs- und Pflegehandbuch

RKC INSTRUMENT

RKC INSTRUMENT SA200 Series Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT PF900 Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT THV-1 Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT HA430 Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT HA400 Series Gebrauchs- und Pflegehandbuch

RKC INSTRUMENT

RKC INSTRUMENT HA400 Series Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT HA430 Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT THW-3 Series Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT REX-C100 Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT CB100 Series Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT CB100 Series Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT CB103 Handbuch

RKC INSTRUMENT

RKC INSTRUMENT CB100 Series Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT CD101 Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT CB103 Bedienungsanleitung

RKC INSTRUMENT

RKC INSTRUMENT THV-10 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
